2Pack - S1418 Solid Carbide Compression Spiral Router Bits - 2 Flutes - 1/4 SD - 1/4 CD - 1 CL - 2-1/2 OL
2Pack - S1418 Solid Carbide Compression Spiral Router Bits - 2 Flutes - 1/4 SD - 1/4 CD - 1 CL - 2-1/2 OL
Regular price
$35.67
Regular price
Sale price
$35.67
Unit price
per
Shipping calculated at checkout.
| Rotation | Compression | Coating | nACo |
|---|---|---|---|
| Shank Diameter | 1/4" | Router Bits Types | 1/4" Shank Spiral Bit |
| Cutting Diameter | 1/4" | Product Series | X-Series |
| Cutting Length | 1" | Cutting Edge Type | Solid Carbide |
| Overall Length | 2-1/2" | Measurement | Imperial |
| Flutes | 2 | Machinery Type | Handheld Router, CNC Router, Router Table |
| Material | Hardwoods, Softwoods, Laminate, Melamine, Plywood, MDF, Chipboard, Foamcore, Light Board, Aluminum Foamcore, Veneered Plywood, Particle, OSB, Solid Surface Material, Plastic, Acrylic | ||
| Rotation | Compression |
|---|---|
| Shank Diameter | 1/4" |
| Cutting Diameter | 1/4" |
| Cutting Length | 1" |
| Overall Length | 2-1/2" |
| Flutes | 2 |
| Coating | nACo |
Order by 4:30 PM EST to Ship Today.
Couldn't load pickup availability
CNC Software Tool File Database
| Image | SKU | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1401 | Upcut | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1403 | Downcut | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1404 | Compression | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1416 | Upcut | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1417 | Downcut | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1418 | Compression | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1414 | Compression | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1405 | Compression | 2 | 1/4" | 1/4" | 7/8" | 2-1/2" | ||||
|
S1406 | Upcut | 2 | 1/4" | 1/4" | 1-1/2" | 3" | ||||
|
S1407 | Downcut | 2 | 1/4" | 1/4" | 1-1/4" | 3" | ||||
|
S1408 | Downcut | 2 | 1/4" | 1/4" | 1-1/4" | 3" | ||||
|
S1409 | Compression | 2 | 1/4" | 1/4" | 7/8" | 2-1/2" | ||||
|
S1410 | Upcut | 2 | 1/4" | 1/4" | 1-1/2" | 3" | ||||
|
S1411 | Downcut | 2 | 1/4" | 1/4" | 1-1/4" | 3" | ||||
|
S1412 | Compression | 2 | 1/4" | 1/4" | 5/8" | 2-1/2" | ||||
|
S1413 | Compression | 2 | 1/4" | 1/4" | 5/8" | 2-1/2" | ||||
|
S1415 | Compression | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1431 | Upcut | 3 | 1/4" | 1/4" | 7/8" | 2-1/2" | ||||
|
S1433 | Downcut | 3 | 1/4" | 1/4" | 7/8" | 2-1/2" |

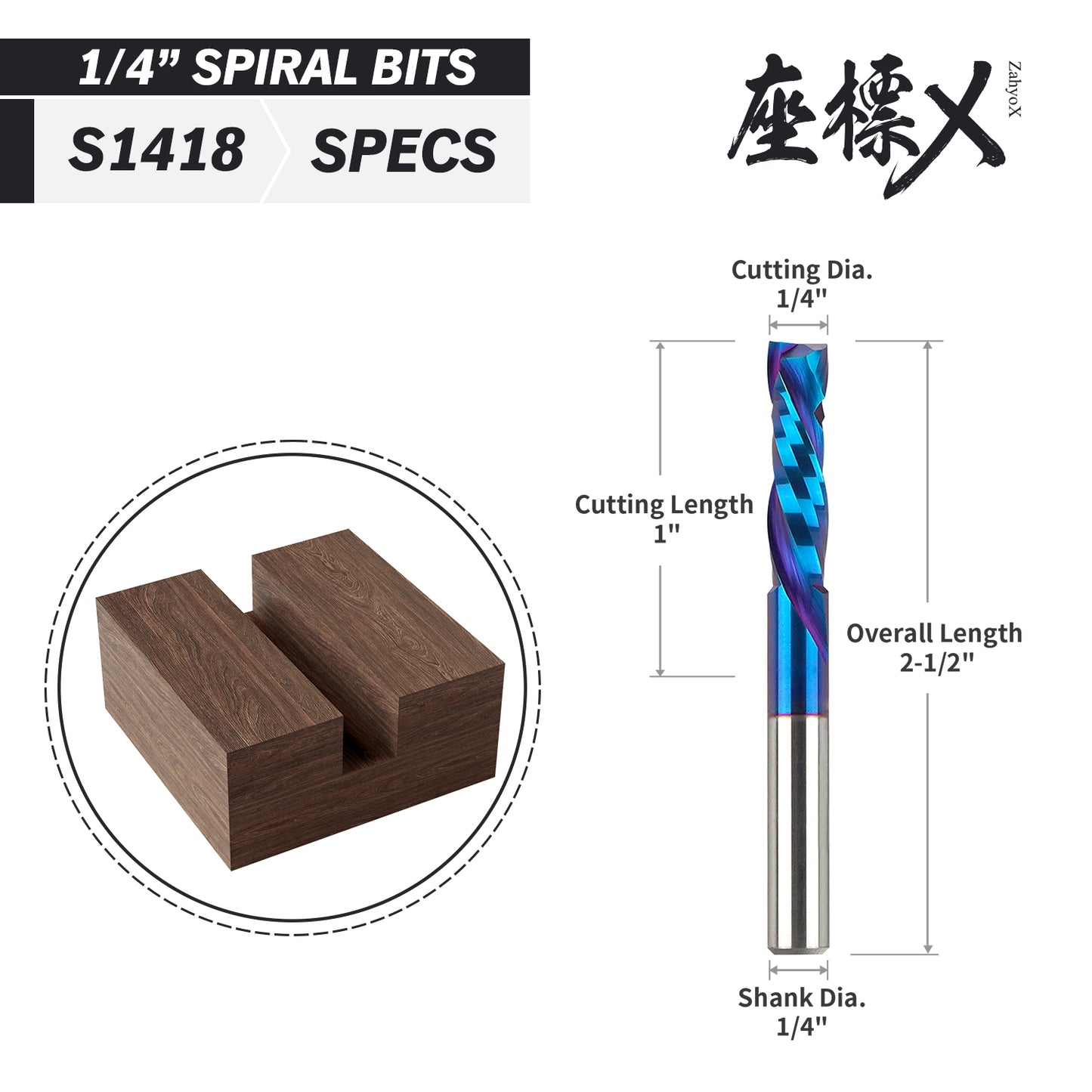

- Geometry Specs: 1/4" Cutting Diameter, 1/4" Shank, 1" Cutting Length, 2-1/2" Overall Length, 2 Flutes, Compression (Up and Down Cut) Spiral.
- Industrial-Grade Solid Carbide: Made of industrial quality Solid Carbide, reinforced with Tungsten Carbide cutters. This 1/4 inch compression router bit is specifically designed to provide high-quality finish and efficient cuts.
- Excellent for Cutting: Perfect for CNC sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.
- nACo Blue Coating: X-Series is one of our signature product lineups and bestselling for wood cutting, it is made by our own PVD process of Nano Composite Titanium Aluminum Silicon Nitride which provides highest hardness of 3800 HV, extremely low friction of 0.25, at 900°F max working temperature. The coating provides 3 times longer tool life for wood cutting performance.

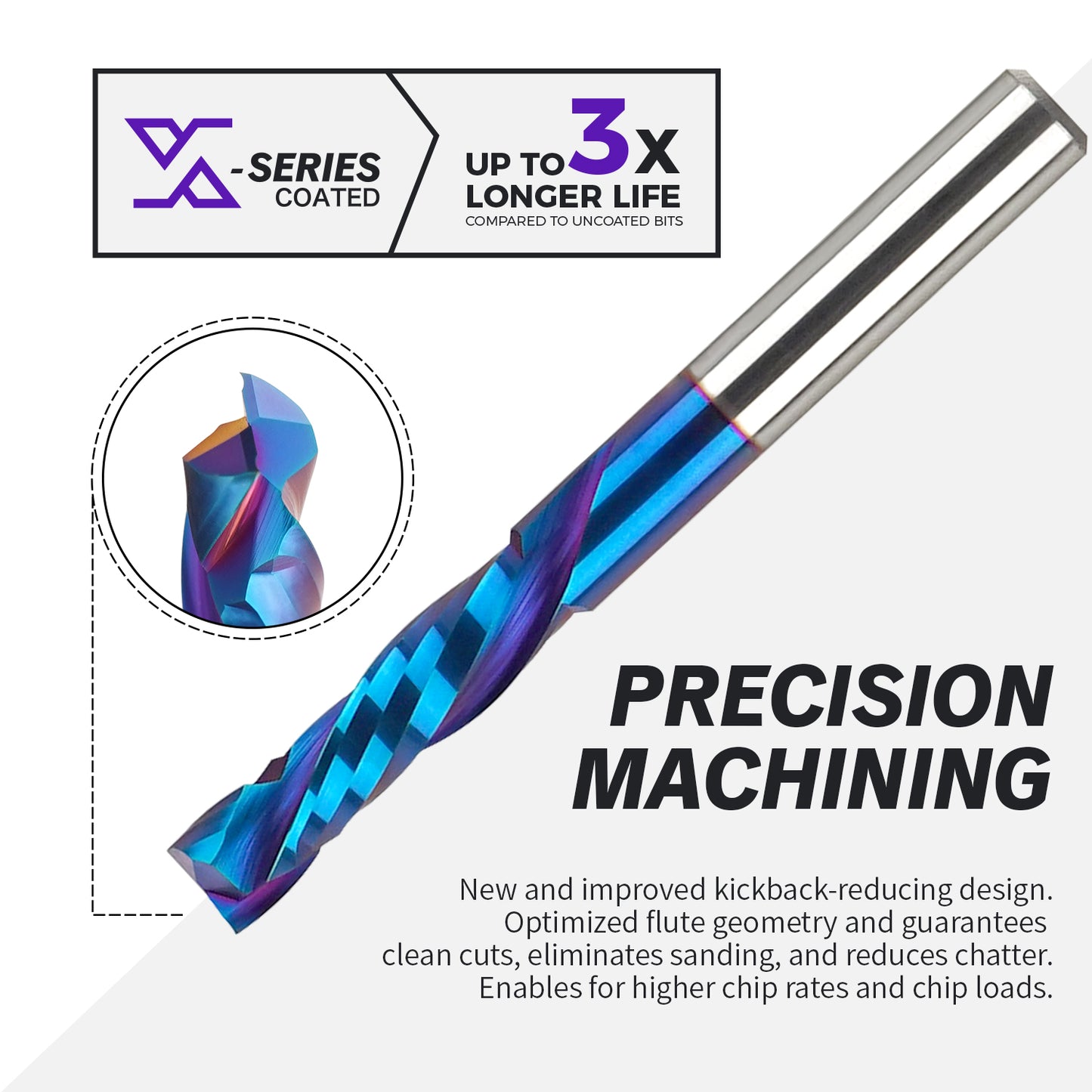

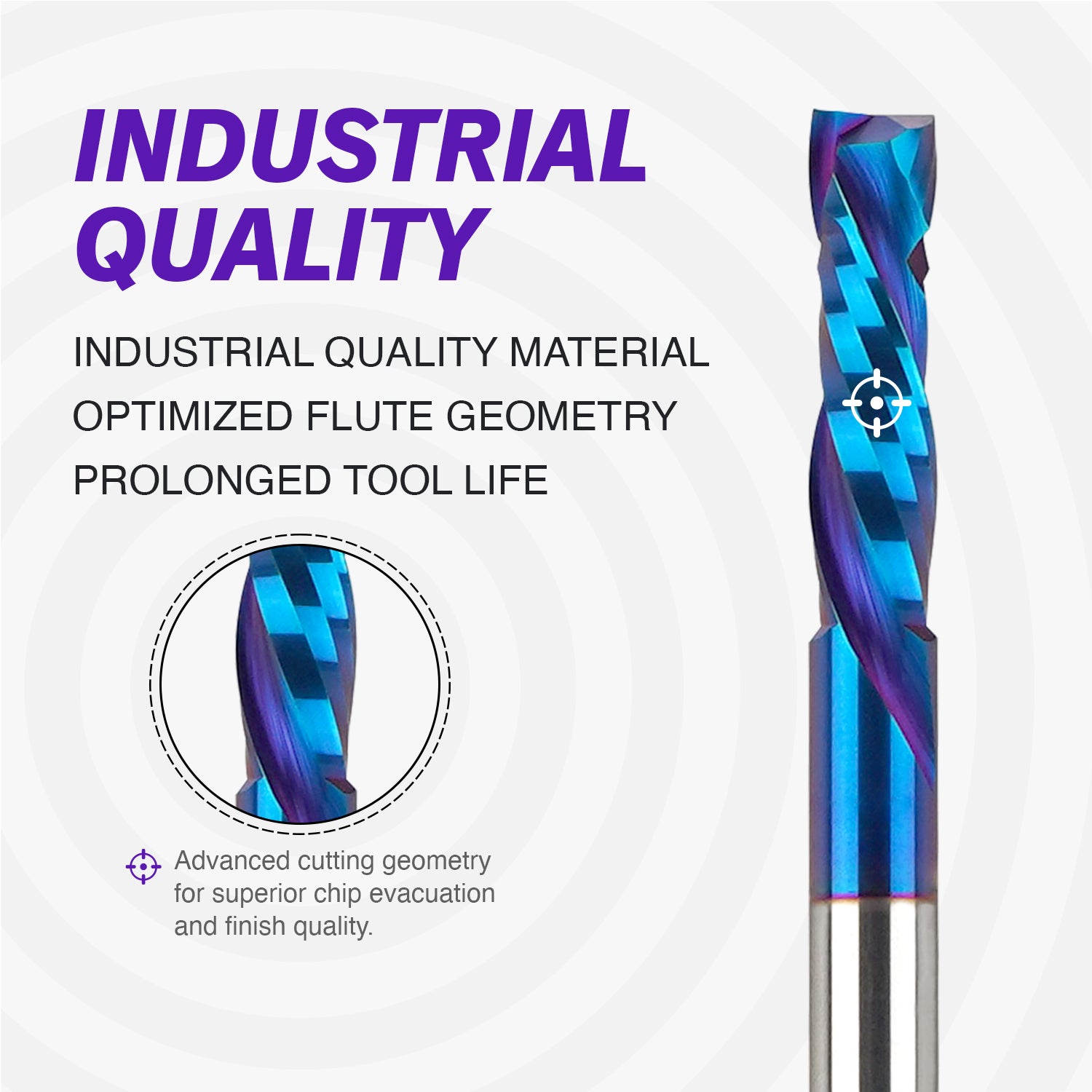

- Maximize Efficiency: Kickback-reducing design prevents overfeed and tearout. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts and efficiency than other bits on the market.
- Trusted Brand: ZahyoX provides industrial quality CNC & woodworking tools at an affordable price, by using superior materials, cutting-edge machinery and patented technology. Fully guaranteed with online customer support team.
