S1408 Solid Carbide nACo Coated Downcut Spiral Router Bit - 2Flutes - 1/4 SD - 1/4 CD - 1-1/4 CL - 3 OL

S1408 Solid Carbide nACo Coated Downcut Spiral Router Bit - 2Flutes - 1/4 SD - 1/4 CD - 1-1/4 CL - 3 OL

Regular price $25.57
Regular price Sale price $25.57
Sale Sold out
Tax included. Shipping calculated at checkout.
Rotation Downcut Coating nACo
Shank Diameter 1/4" Router Bits Types 1/4" Shank Spiral Bit
Cutting Diameter 1/4" Product Series X-Series
Cutting Length 1-1/4" Cutting Edge Type Solid Carbide
Overall Length 3" Measurement Imperial
Flutes 2 Machinery Type Handheld Router, CNC Router, Router Table
Material Hardwoods, Softwoods, Laminate, Melamine, Plywood, MDF, Chipboard, Foamcore, Light Board, Aluminum Foamcore, Veneered Plywood, Particle, OSB, Solid Surface Material, Plastic, Acrylic
Rotation Downcut
Shank Diameter 1/4"
Cutting Diameter 1/4"
Cutting Length 1-1/4"
Overall Length 3"
Flutes 2
Coating nACo
Fast Delivery

Order by 4:30 PM EST to Ship Today.

15% OFF ALL SPIRAL BITS! USE CODE: ZahyoX
CNC Software Tool File Database
View full details
Image SKU Rotation Flutes CD SD CL OL Stock Quantity Price Cart
S1408 Downcut 2 1/4" 1/4" 1-1/4" 3"
$25.57 USD
S1407 Downcut 2 1/4" 1/4" 1-1/4" 3"
$25.07 USD
S1411 Downcut 2 1/4" 1/4" 1-1/4" 3"
$21.57 USD

Why Choose Spiral Router Bits Instead of Straight Bits?

  • Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.

What is Down-Cut Bits?

What is Compression (Up-Cut & Down-Cut) Bits

  • Features: The “down-cut” cuts from the surface down, leaving a smooth edge at the surface.
  • Applications: Top Surface Finishing: Ideal for projects where a clean finish on the top surface is crucial, such as with veneers or laminated materials.
  • Considerations: 1. Trapped Waste: The down-cut action pushes waste back into the cut area instead of being ejected, so the down-cut bits are unsuitable for cutting dados or drilling holes. 2. Slower Operation: Down-cut bits need to be run slower, both in RPM and spindle movement, to manage the waste build-up effectively.

Why Choose ZahyoX 1/4 inch Shank Router Bits?

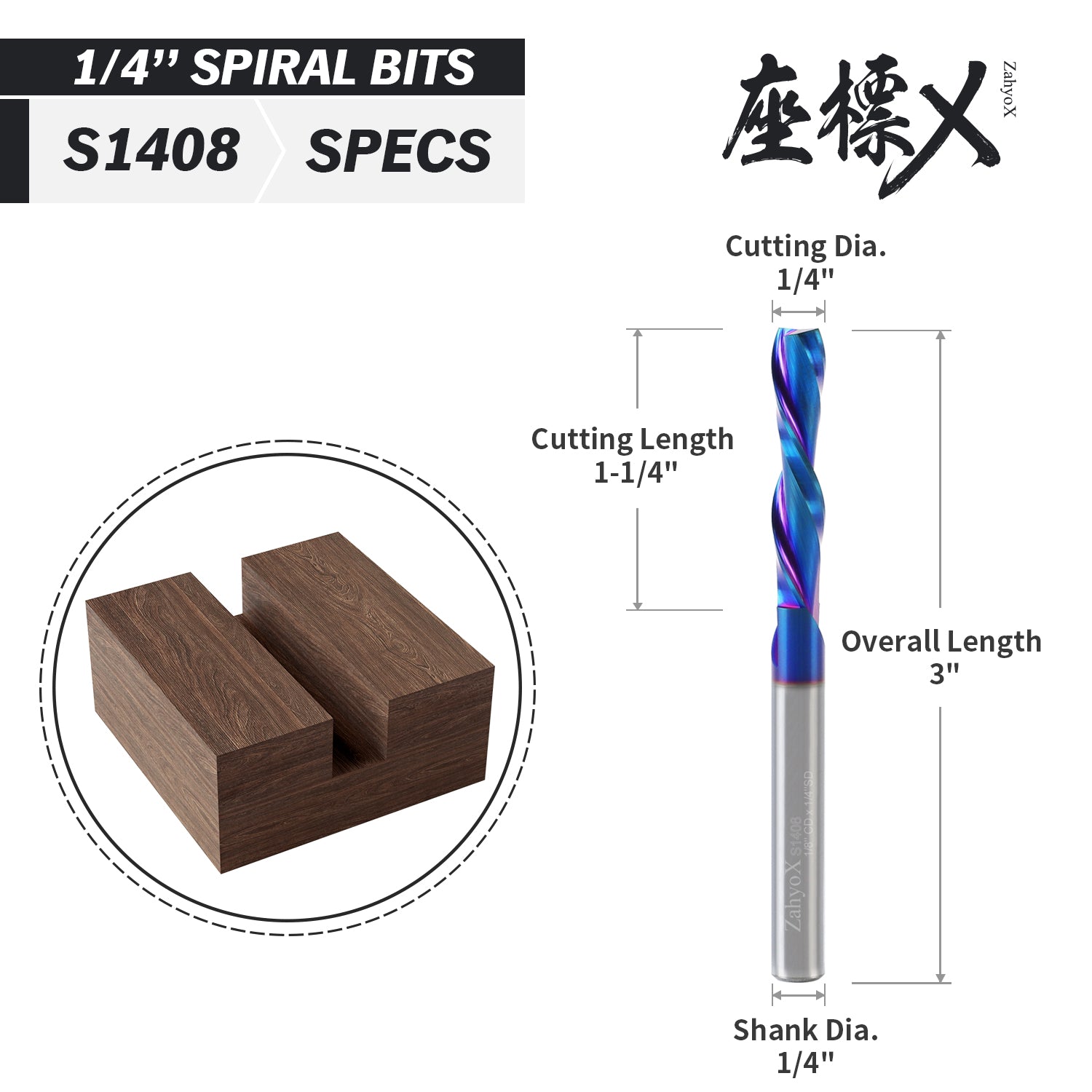

  • Geometry Specs: 1/4" Cutting Diameter, 1/4" Shank, 1-1/4" Cutting Length, 3" Overall Length, 2 Flutes, Down Cut Spiral, Nano Coated.
  • Industrial-Grade Solid Carbide: ZahyoX is industrial leading manufacturer, making solid carbide material and solid carbide router bits is our sole business for over two decades, we make our products like treating art.
  • Excellent for Cutting: Perfect for CNC sizing, cutting, and routing laminate, melamine, plywood, MDF, chipboard, foamcore, light board, aluminum foamcore, carbon fiber, veneered plywood, solid surface material.
  • Perfected Geometry Design: The geometry design has been iterated hundreds of times to ensure a perfect balance between tool life and cutting efficiency. We run our bits systematically on various machines and materials to test the performance of each iteration.
  • nACo Blue Coating: X-Series is one of our signature product lineups and bestselling for wood cutting, it is made by our own PVD process of Nano Composite Titanium Aluminum Silicon Nitride which provides highest hardness of 3800 HV, extremely low friction of 0.25, at 900°F max working temperature. The coating provides 3 times longer tool life for wood cutting performance.
  • Consistent High-Quality: The bit is made of WC-CO Alloy, and 100% made by our own factory to ensure consistency, you can expect that every bit we produce performs exactly the same.
