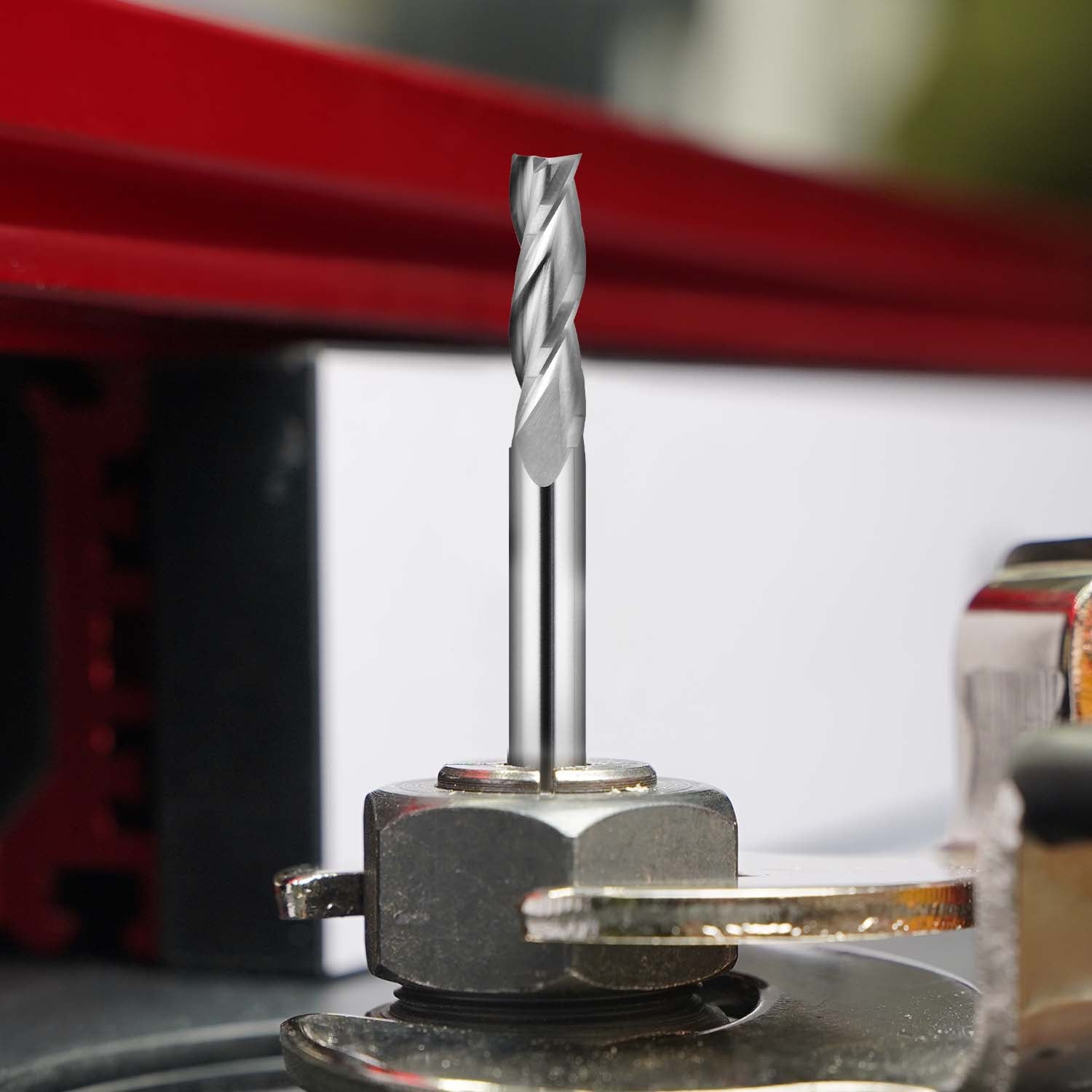

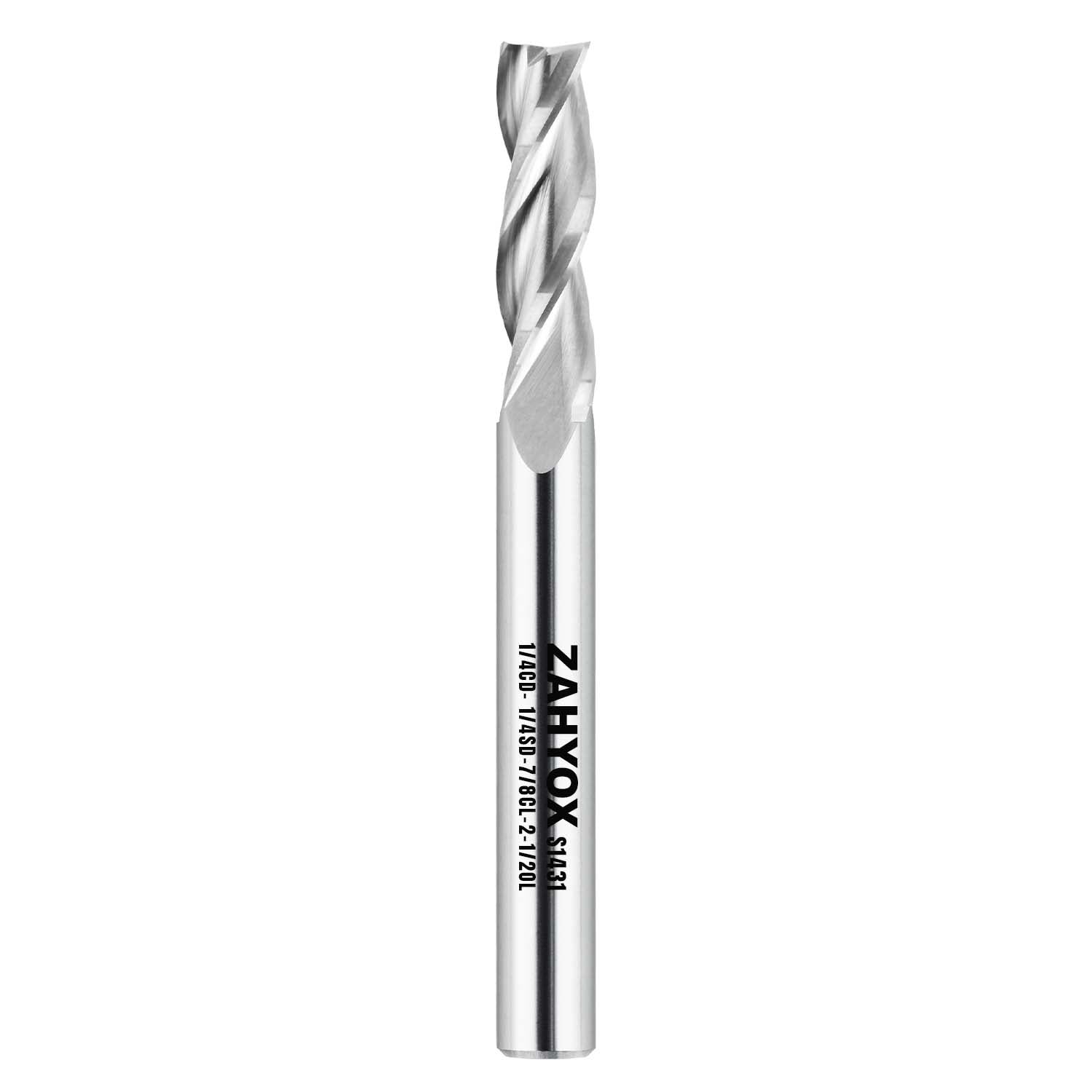

S1431 Solid Carbide Upcut Spiral Route Bit - 3 Flutes - 1/4 SD - 1/4 CD - 7/8 CL - 2-1/2 OL
S1431 Solid Carbide Upcut Spiral Route Bit - 3 Flutes - 1/4 SD - 1/4 CD - 7/8 CL - 2-1/2 OL
Regular price
$22.98
Regular price
Sale price
$22.98
Unit price
per
Shipping calculated at checkout.
| Rotation | Upcut | Coating | / |
|---|---|---|---|
| Shank Diameter | 1/4" | Router Bits Types | 1/4" Shank Spiral Bit |
| Cutting Diameter | 1/4" | Product Series | S-Series |
| Cutting Length | 7/8" | Cutting Edge Type | Solid Carbide |
| Overall Length | 2-1/2" | Measurement | Imperial |
| Flutes | 3 | Machinery Type | Handheld Router, CNC Router, Router Table |
| Material | Hardwoods, Softwoods, Plywood, MDF, HDF, LDF, Laminates, Melamine, Particle, Chipboard, Light Board | ||
| Rotation | Upcut |
|---|---|
| Shank Diameter | 1/4" |
| Cutting Diameter | 1/4" |
| Cutting Length | 7/8" |
| Overall Length | 2-1/2" |
| Flutes | 3 |
| Coating | / |
Order by 4:30 PM EST to Ship Today.
Couldn't load pickup availability
CNC Software Tool File Database
| Image | SKU | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1409 | Compression | 2 | 1/4" | 1/4" | 7/8" | 2-1/2" | ||||
|
S1405 | Compression | 2 | 1/4" | 1/4" | 7/8" | 2-1/2" | ||||
|
S1433 | Downcut | 3 | 1/4" | 1/4" | 7/8" | 2-1/2" |
Why Choose Spiral Router Bits Instead of Straight Bits?
- Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.
What is Up-Cut Bits?
- Features: The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration and rapid cutting with less stress on the tool.
- Applications: Best used in applications requiring clean finishes on the bottom surface, like grooving or deep cutting.
- Considerations: Risk to Top Surface: The upward action may damage the top layer, making them unsuitable for projects where top appearance is critical.
Why Choose ZahyoX 1/4" Shank Spiral Router Bits?

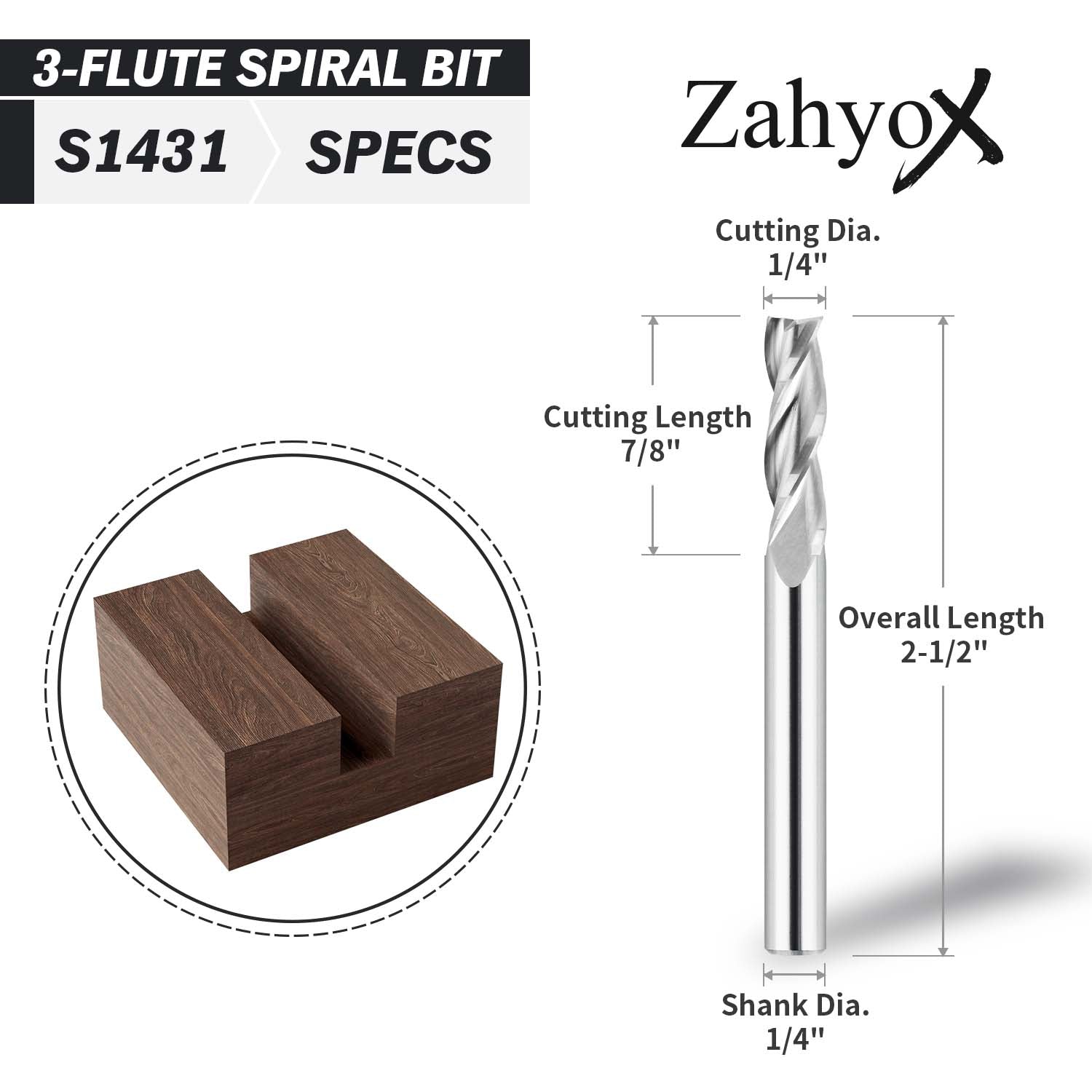

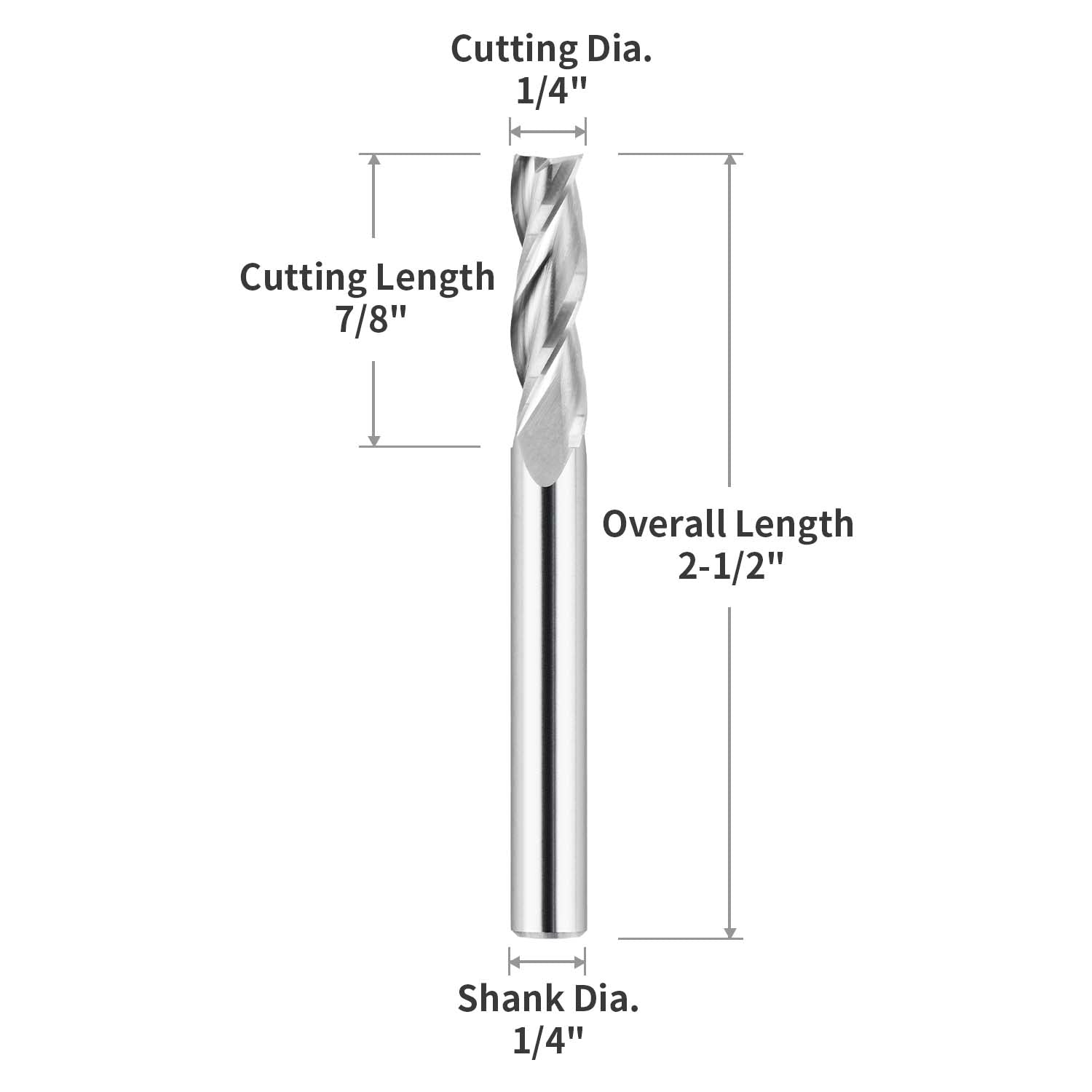

- Geometry Specs: 1/4" Cutting Diameter, 1/4" Shank, 7/8" Cutting Length, 2-1/2" Overall Length, 3 Flutes, Up-cut Spiral.

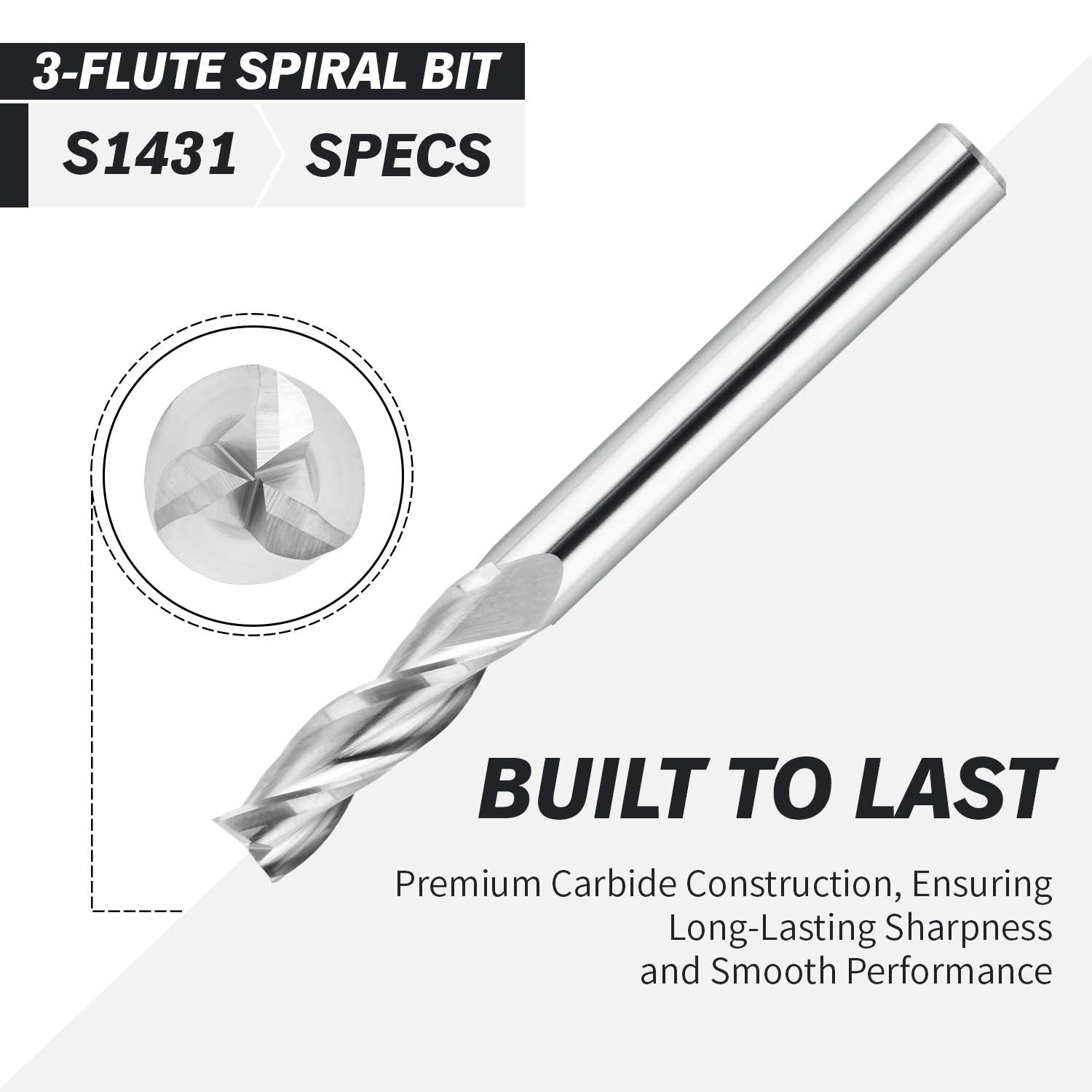

- Industrial-Grade Solid Carbide: Made of industrial quality Solid Carbide, reinforced with Tungsten Carbide cutters. This 1/4 inch compression router bit is specifically designed to provide high-quality finish and efficient cuts.
- Excellent for Cutting: Perfect for CNC sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.

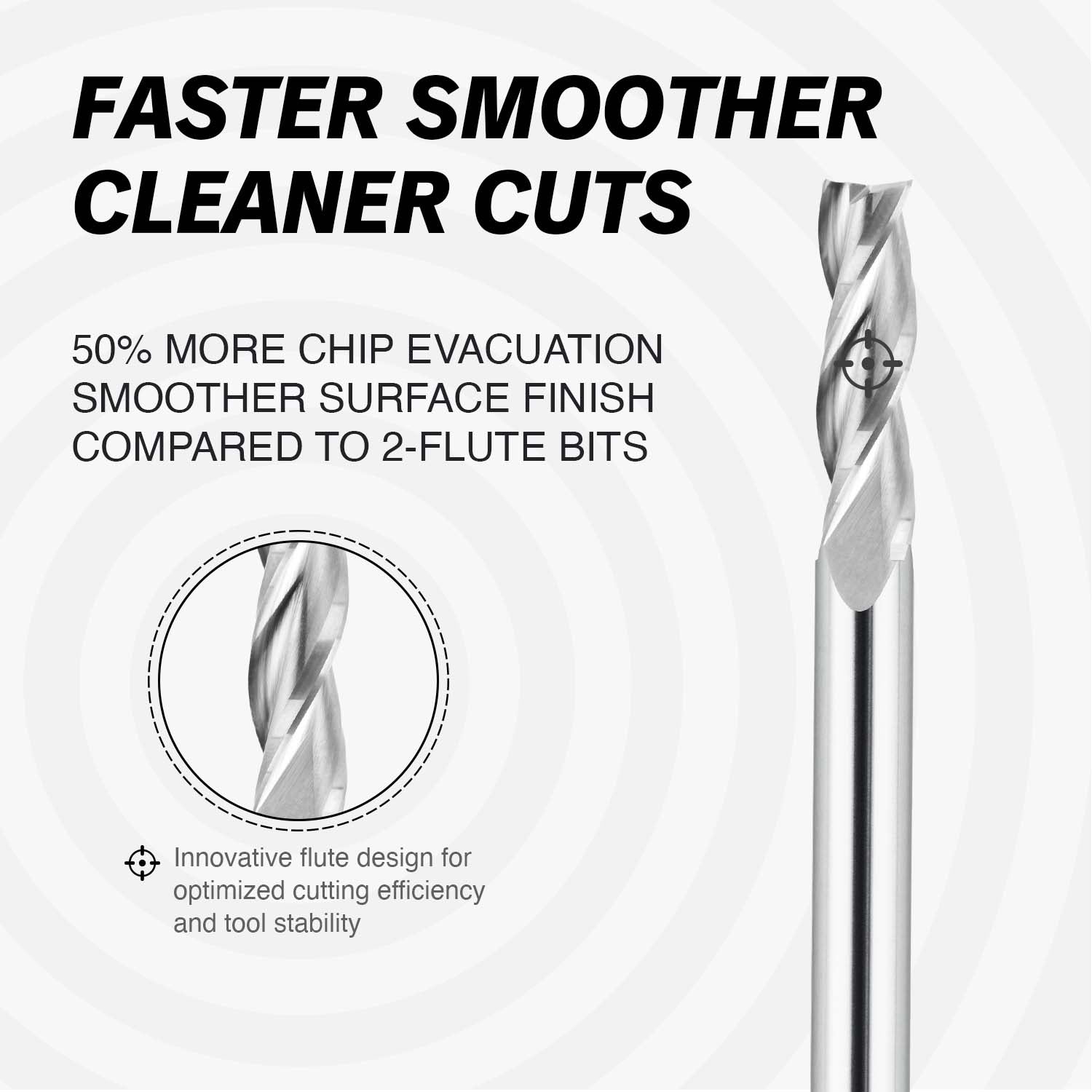

- Maximize Efficiency: Kickback-reducing design prevents overfeed and tearout. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts and efficiency than other bits on the market.
- Trusted Brand: ZahyoX provides industrial quality CNC & woodworking tools at an affordable price, by using superior materials, cutting-edge machinery and patented technology. Fully guaranteed with online customer support team.
