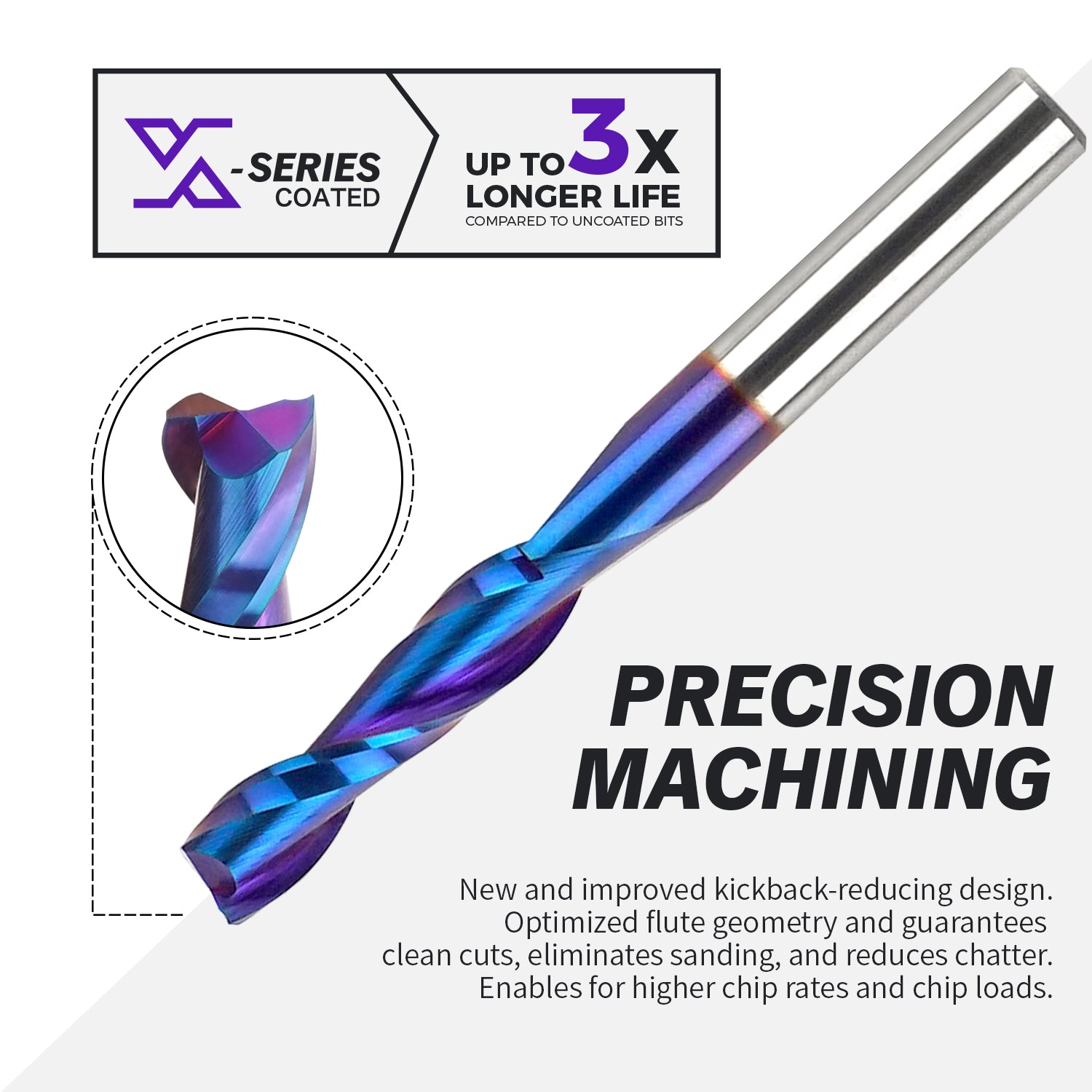

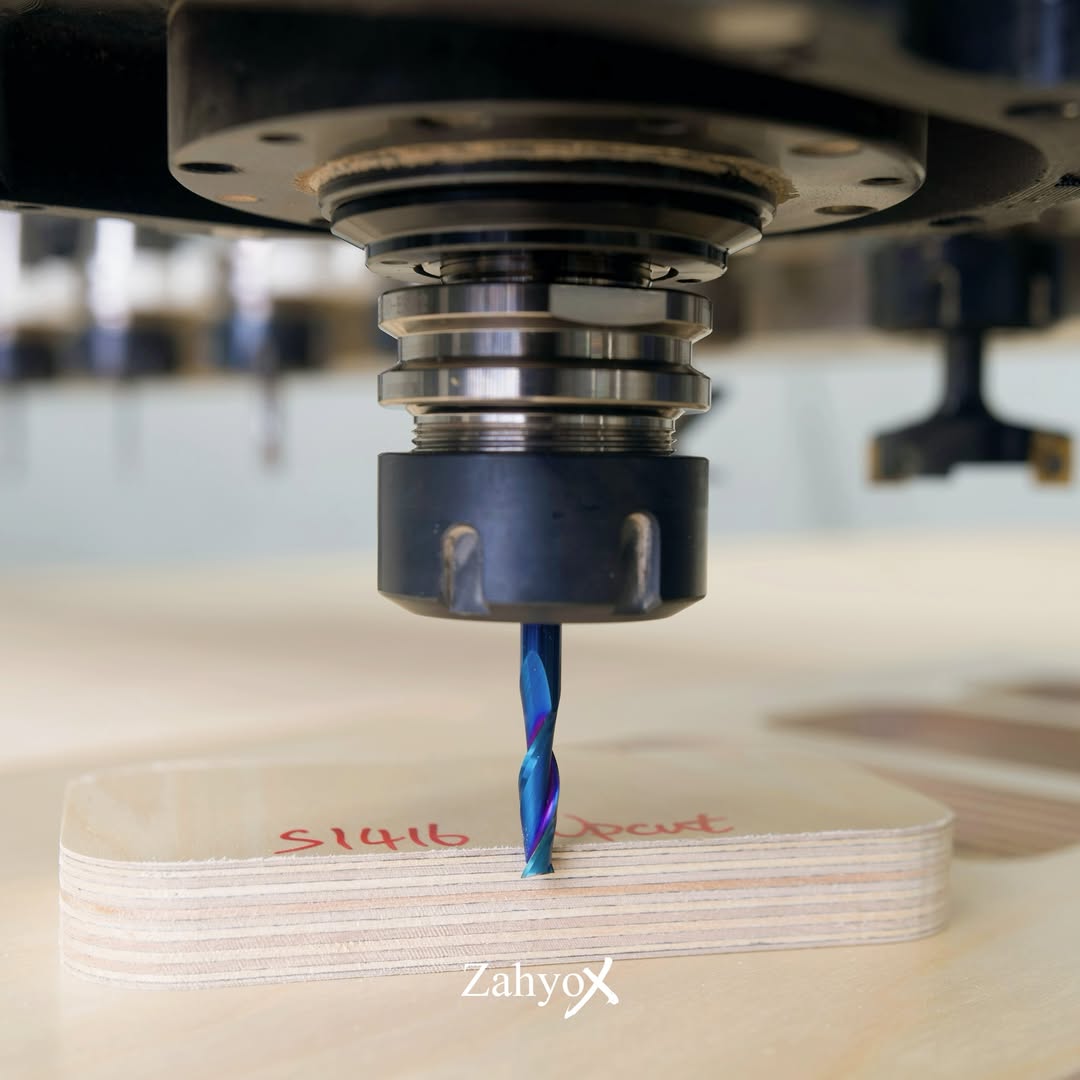

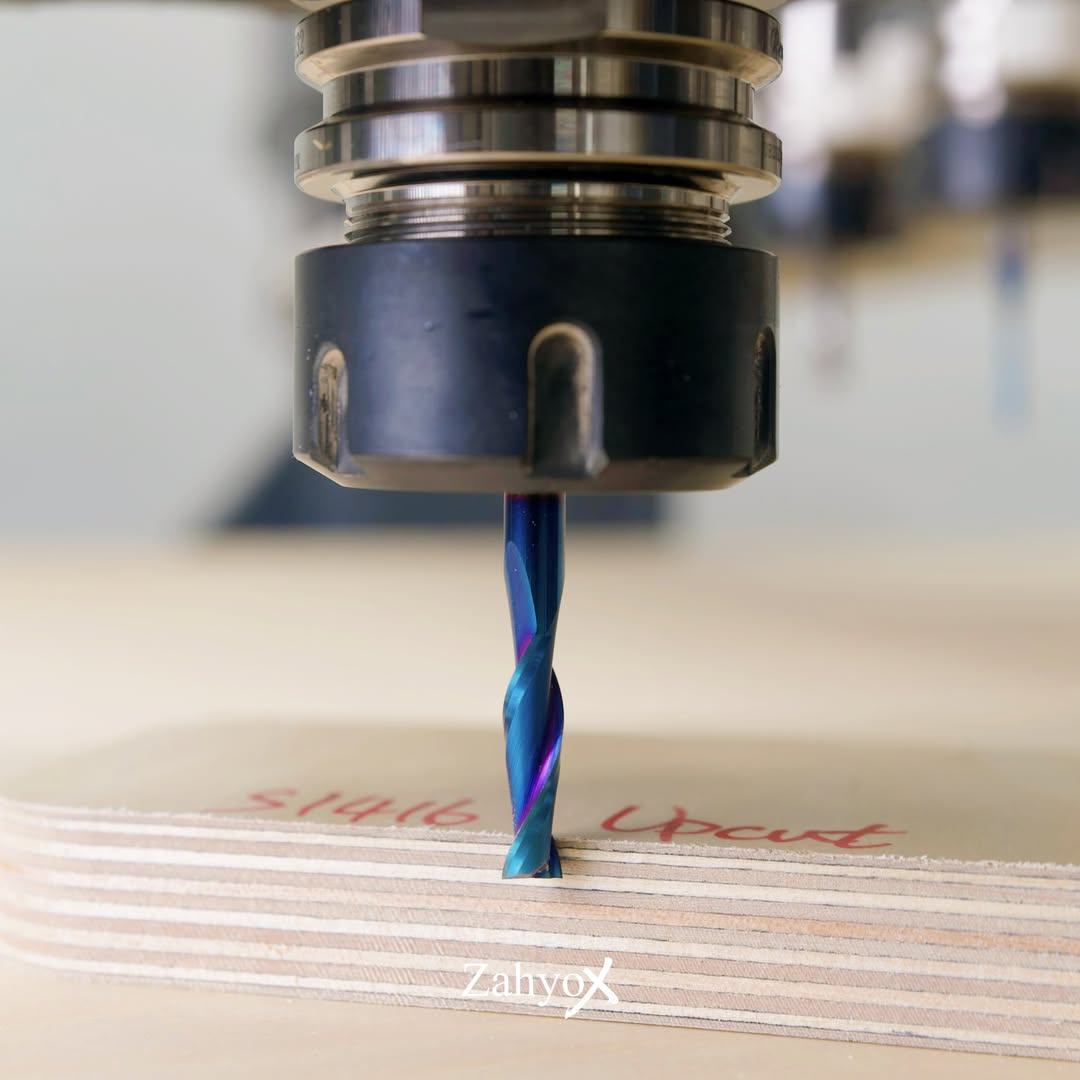

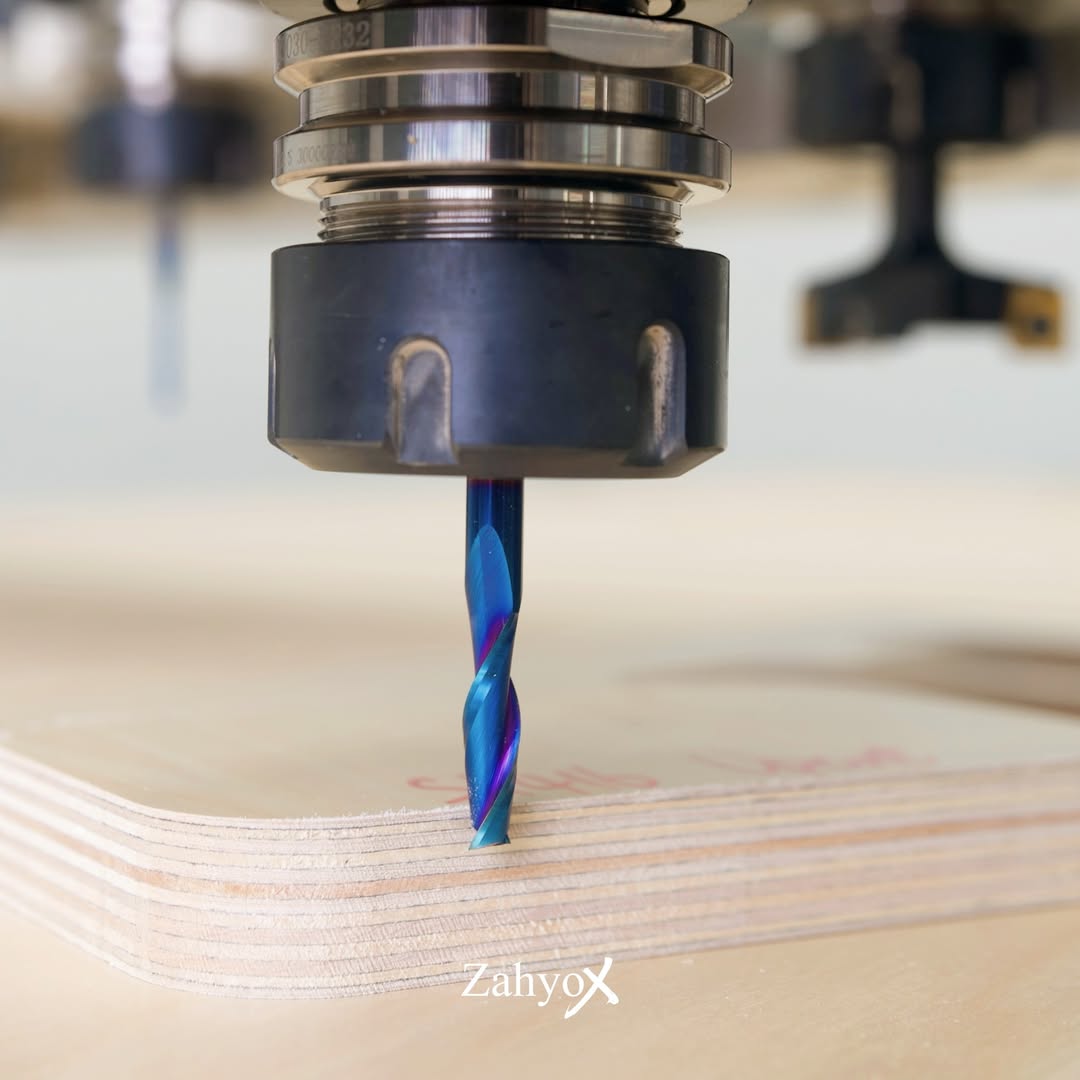

S1416 Solid Carbide nACo Coated Upcut Spiral Router Bit - 2Flutes - 1/4 SD - 1/4 CD - 1 CL - 2-1/2 OL

S1416 Solid Carbide nACo Coated Upcut Spiral Router Bit - 2Flutes - 1/4 SD - 1/4 CD - 1 CL - 2-1/2 OL

Regular price $16.97
Regular price Sale price $16.97
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Router Bits Types: Flat End Mill
  • Series: X-Series
  • Cutting Edge Type: Solid Carbide
  • Rotation: Upcut
  • Cutting Diameter: 1/4"
  • Shank Diameter: 1/4"
  • Cutting Length: 1"
  • Overall Length: 2-1/2"
  • Flutes: 2
  • Coating: nACo
  • Measurement: Imperial
  • Machinery Type: Handheld Router, CNC Router, Router Table
  • Material: Hardwoods, Softwoods, Laminate, Melamine, Plywood, MDF, Chipboard, Foamcore, Light Board, Aluminum Foamcore, Veneered Plywood, Particle, OSB, Solid Surface Material, Plastic, Acrylic

No Code Needed!
Buy 3 or More, Save 25% OFF
FREE SHIPPING IN USA

Product Description with Gradient Mask

Why Choose Spiral Router Bits Instead of Straight Bits?

  • Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.

What is Up-Cut Bits?

What is Compression (Up-Cut & Down-Cut) Bits

  • Features: The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration and rapid cutting with less stress on the tool.
  • Applications: Best used in applications requiring clean finishes on the bottom surface, like grooving or deep cutting.
  • Considerations: Risk to Top Surface: The upward action may damage the top layer, making them unsuitable for projects where top appearance is critical.

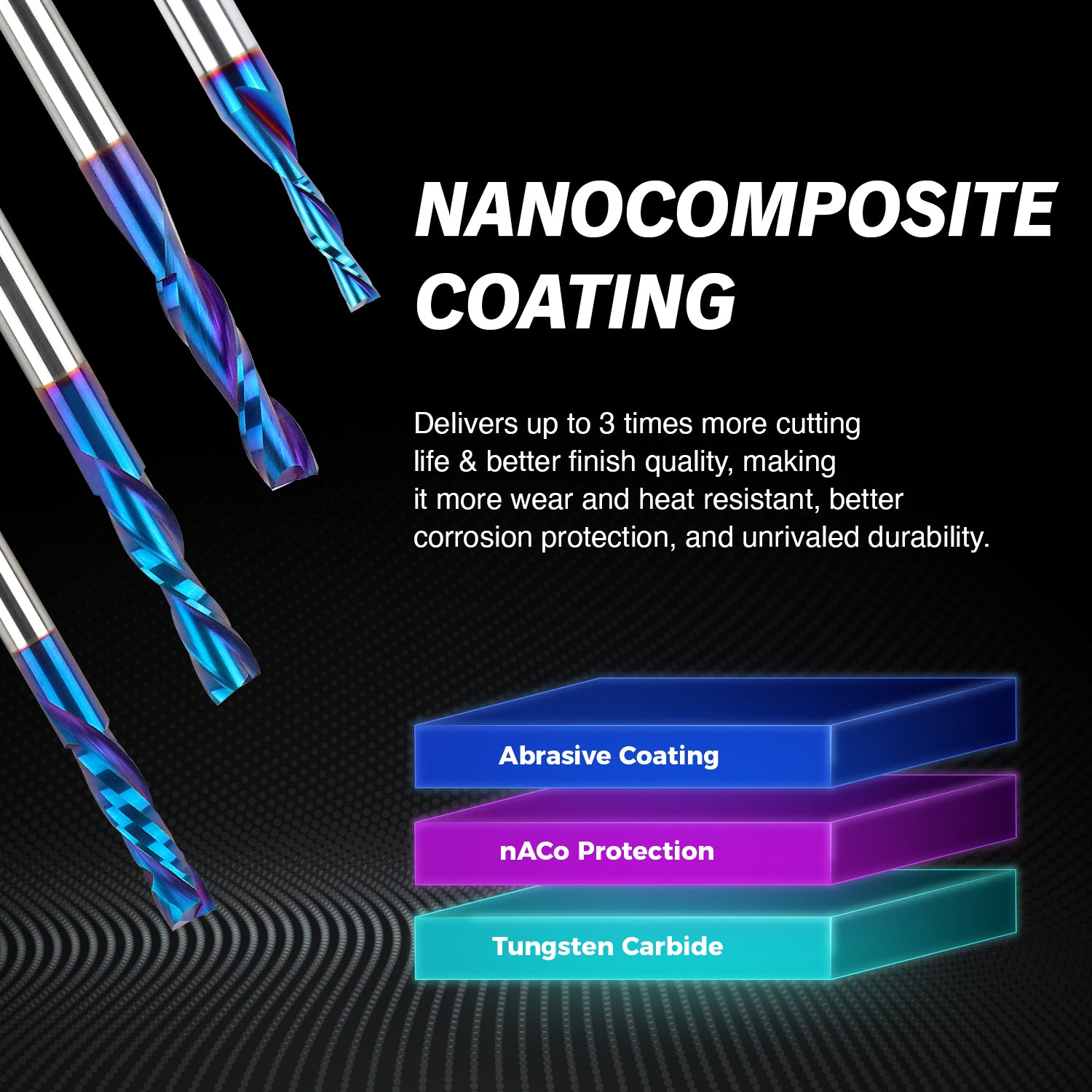

What is nACo Coating?

nACo, or nano-composite coating, is a micro-thin ceramic coating applied to cutting tools. Zahyox X-Series bits feature a nACo coating with extreme hardness and heat resistance. With a blue-tinted coloring, nACo enhances their performance and durability in router tooling.

  • Sharpness Retention: Maintains cutting edges razor-sharp for precise and clean cuts.
  • Reduced Friction: Features an extremely low friction coefficient of 0.25, minimizing tool wear and facilitating smoother operations.
  • Heat Resistance: Can withstand up to 900°F, protecting tools from heat damage during intense cutting tasks.
  • Enhanced Durability: Delivers a hardness of 3800 HV, which increases resistance to wear and extends 3 times longer tool life.

Why Choose ZahyoX Router Bits?

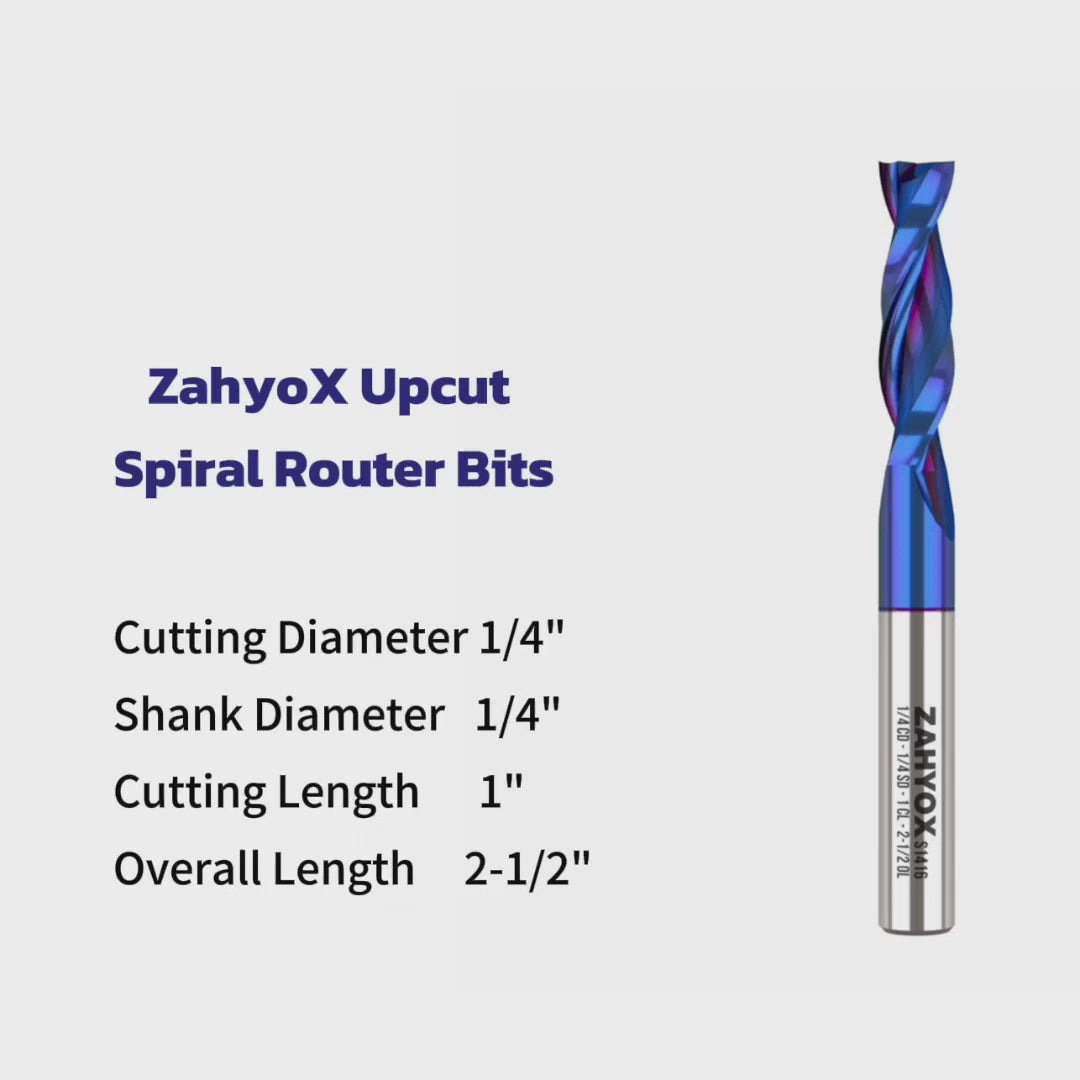

  • Geometry Specs: 1/4" Cutting Diameter, 1/4" Shank, 1" Cutting Length, 2-1/2" Overall Length, 2 Flutes, Up-Cut Spiral, Nano Coated.
  • Industrial-Grade Solid Carbide: ZahyoX is an industrial manufacturer, making solid carbide material and solid carbide router bits our sole business for over two decades, we make our products like creating art.
  • Excellent for Cutting: Perfect for CNC sizing, cutting, and routing laminate, melamine, plywood, MDF, chipboard, foam-core, light board, aluminum foam-core, carbon fiber, veneered plywood, and solid surface material.

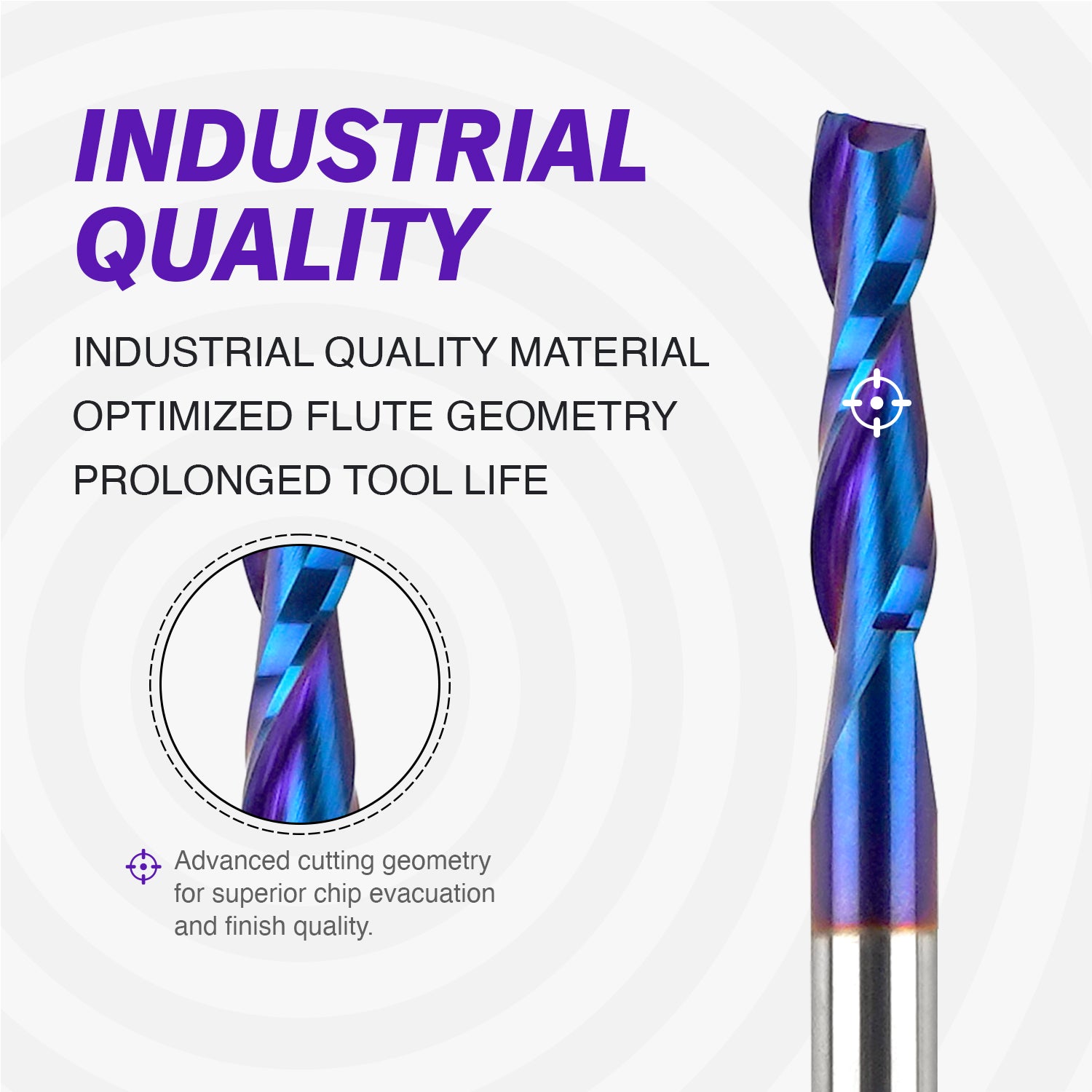

  • Perfected Geometry Design: The geometry design has been iterated hundreds of times to ensure a perfect balance between tool life and cutting efficiency. We run our bits systematically on various machines and materials to test the performance of each iteration.
  • Consistent High-Quality: The bit is made of WC-CO Alloy, and 100% made by our own factory to ensure consistency, you can expect that every bit we produce performs exactly the same.

OFFICIAL PARAMETERS FILES BY ZahyoX
View full details
Image SKU Type Rotation Flutes CD SD CL OL Stock Quantity Price Cart
S1416 Flat End Mill Upcut 2 1/4" 1/4" 1" 2-1/2"
$16.97 USD
S1401 Flat End Mill Upcut 2 1/4" 1/4" 1" 2-1/2"
$14.97 USD
S1417 Flat End Mill Downcut 2 1/4" 1/4" 1" 2-1/2"
$16.97 USD
S1418 Flat End Mill Compression 2 1/4" 1/4" 1" 2-1/2"
$20.37 USD
