S1412 Solid Carbide Compression Spiral Router Bit - 2 Flutes - 1/4 SD - 1/4 CD - 5/8 CL - 2-1/2 OL - 3/16 UCL
S1412 Solid Carbide Compression Spiral Router Bit - 2 Flutes - 1/4 SD - 1/4 CD - 5/8 CL - 2-1/2 OL - 3/16 UCL
Regular price
$25.97
Regular price
Sale price
$25.97
Unit price
per
Shipping calculated at checkout.
| Rotation | Compression | Coating | / |
|---|---|---|---|
| Shank Diameter | 1/4" | Router Bits Types | 1/4" Shank Spiral Bit |
| Cutting Diameter | 1/4" | Product Series | S-Series |
| Cutting Length | 5/8" | Cutting Edge Type | Solid Carbide |
| Overall Length | 2-1/2" | Measurement | Imperial |
| Flutes | 2 | Machinery Type | Handheld Router, CNC Router, Router Table |
| Material | Hardwoods, Softwoods, Plywood, MDF, HDF, LDF, Laminates, Melamine, Particle, Chipboard, Light Board | ||
| Rotation | Compression |
|---|---|
| Shank Diameter | 1/4" |
| Cutting Diameter | 1/4" |
| Cutting Length | 5/8" |
| Overall Length | 2-1/2" |
| Flutes | 2 |
| Coating | / |
Order by 4:30 PM EST to Ship Today.
Couldn't load pickup availability
CNC Software Tool File Database
| Image | SKU | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1401 | Upcut | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1403 | Downcut | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1404 | Compression | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1416 | Upcut | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1417 | Downcut | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1418 | Compression | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1414 | Compression | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1405 | Compression | 2 | 1/4" | 1/4" | 7/8" | 2-1/2" | ||||
|
S1406 | Upcut | 2 | 1/4" | 1/4" | 1-1/2" | 3" | ||||
|
S1407 | Downcut | 2 | 1/4" | 1/4" | 1-1/4" | 3" | ||||
|
S1408 | Downcut | 2 | 1/4" | 1/4" | 1-1/4" | 3" | ||||
|
S1409 | Compression | 2 | 1/4" | 1/4" | 7/8" | 2-1/2" | ||||
|
S1410 | Upcut | 2 | 1/4" | 1/4" | 1-1/2" | 3" | ||||
|
S1411 | Downcut | 2 | 1/4" | 1/4" | 1-1/4" | 3" | ||||
|
S1412 | Compression | 2 | 1/4" | 1/4" | 5/8" | 2-1/2" | ||||
|
S1413 | Compression | 2 | 1/4" | 1/4" | 5/8" | 2-1/2" | ||||
|
S1415 | Compression | 2 | 1/4" | 1/4" | 1" | 2-1/2" | ||||
|
S1431 | Upcut | 3 | 1/4" | 1/4" | 7/8" | 2-1/2" | ||||
|
S1433 | Downcut | 3 | 1/4" | 1/4" | 7/8" | 2-1/2" |
Why Choose Spiral Router Bits Instead of Straight Bits?
- Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.
What is Compression (Up-Cut & Down-Cut) Bits
- Features: Compression bits combine the features of both up-cut and down-cut bits. The top part of the bit is designed to be down-cut, improving the top edge finish, while the bottom part is up-cut, enhancing the finish on the bottom side of the material. This up-cut down-cut action is what leaves a sharp, clean edge on both edges of your workpiece.
- Applications: The preferred bit for cutting laminated materials or any situation where both sides of the material are visible and require a fine finish.
- Considerations: To fully benefit from a compression bit, it's crucial to make the initial cut deeper than the length of the up-cut flutes to prevent any tear-out or chipping on either side of the material.
Why Choose ZahyoX 1/4" Shank Spiral Router Bits?

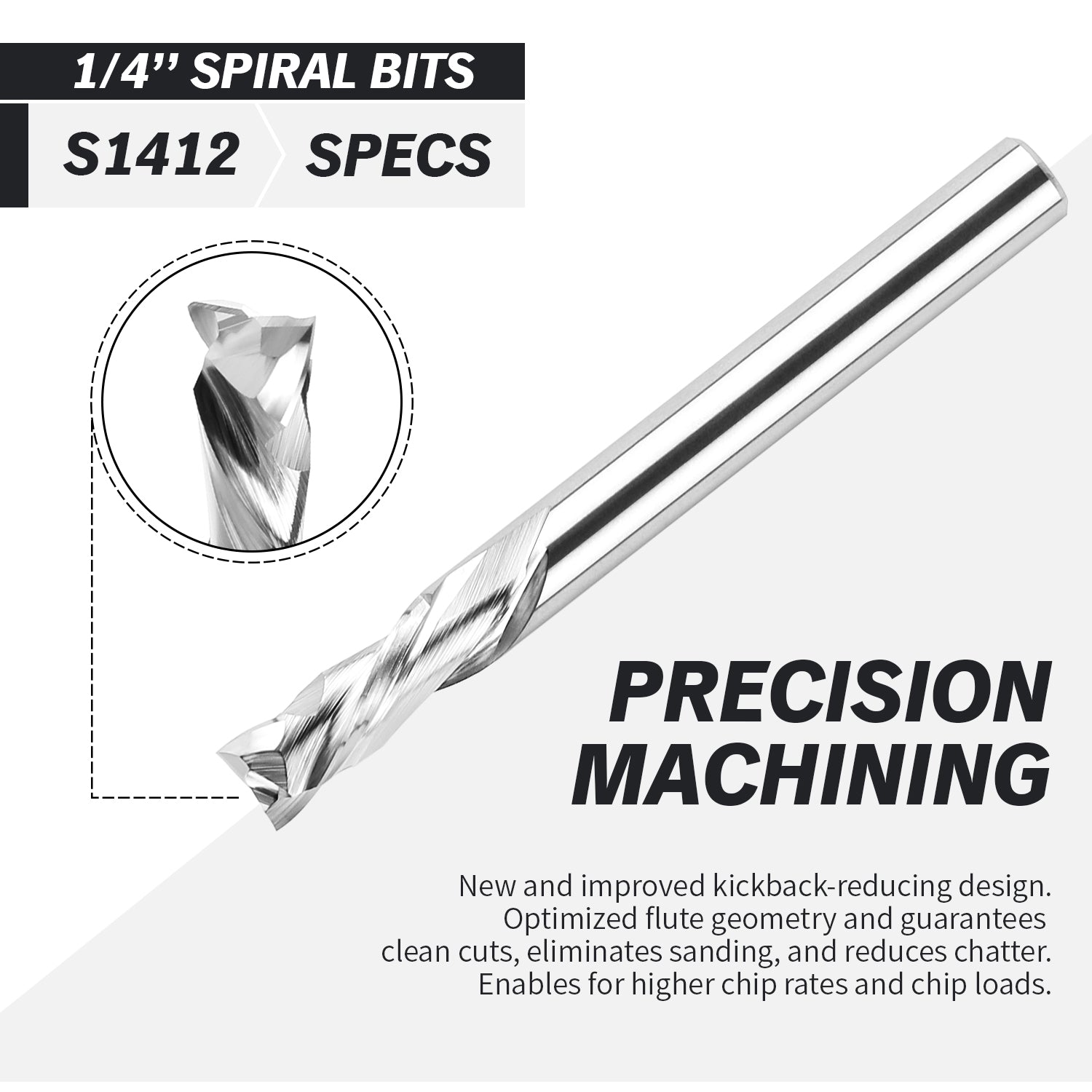

- Geometry Specs: 1/4" Cutting Diameter, 1/4" Shank, 5/8" Cutting Length, 2-1/2" Overall Length, 2 Flutes, Compression (Up and Down Cut) Spiral.

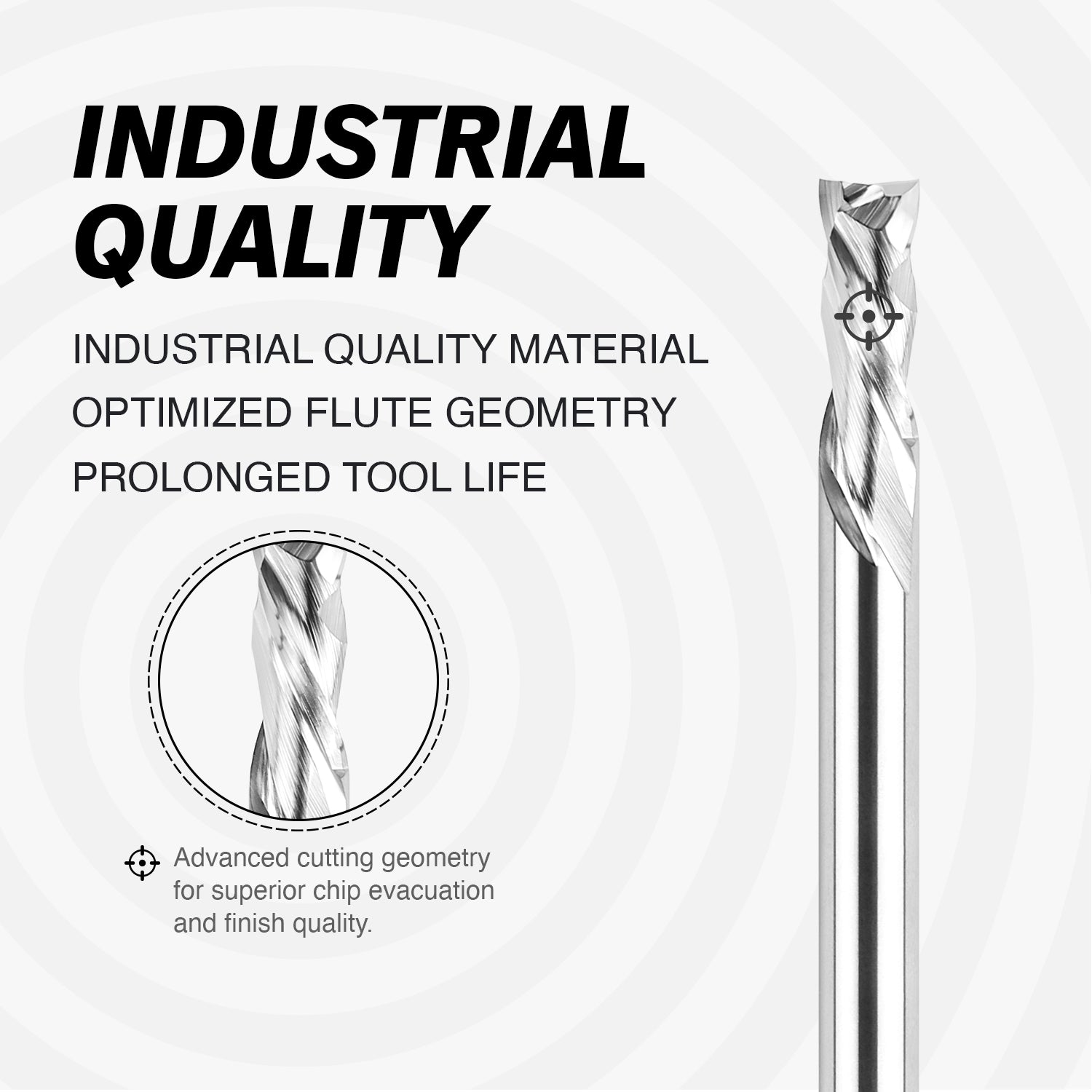

- Industrial-Grade Solid Carbide: Made of industrial quality Solid Carbide, reinforced with Tungsten Carbide cutters. This 1/4 inch compression router bit is specifically designed to provide high-quality finish and efficient cuts.
- Excellent for Cutting: Perfect for CNC sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.
- Maximize Efficiency: Kickback-reducing design prevents overfeed and tearout. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts and efficiency than other bits on the market.
- Trusted Brand: ZahyoX provides industrial quality CNC & woodworking tools at an affordable price, by using superior materials, cutting-edge machinery and patented technology. Fully guaranteed with online customer support team.
