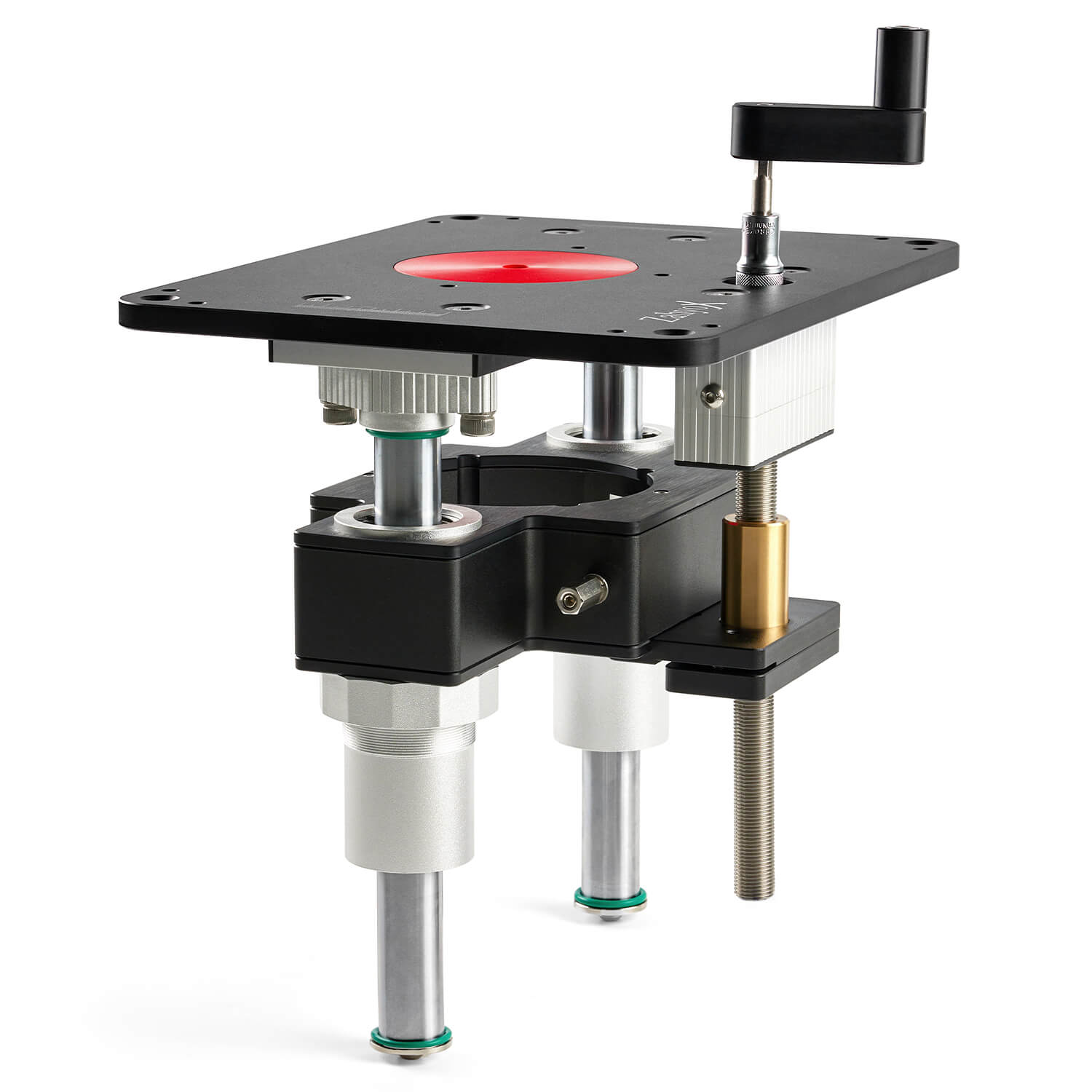

ZahyoX Router Lift for 107mm/88.9mm/65mm/69mm (4.2"/3.5"/2.72"/2.56") Wood Router - RL01 Pro

$239.97
$321.97

SPECIFICATIONS

Insert Plate Size

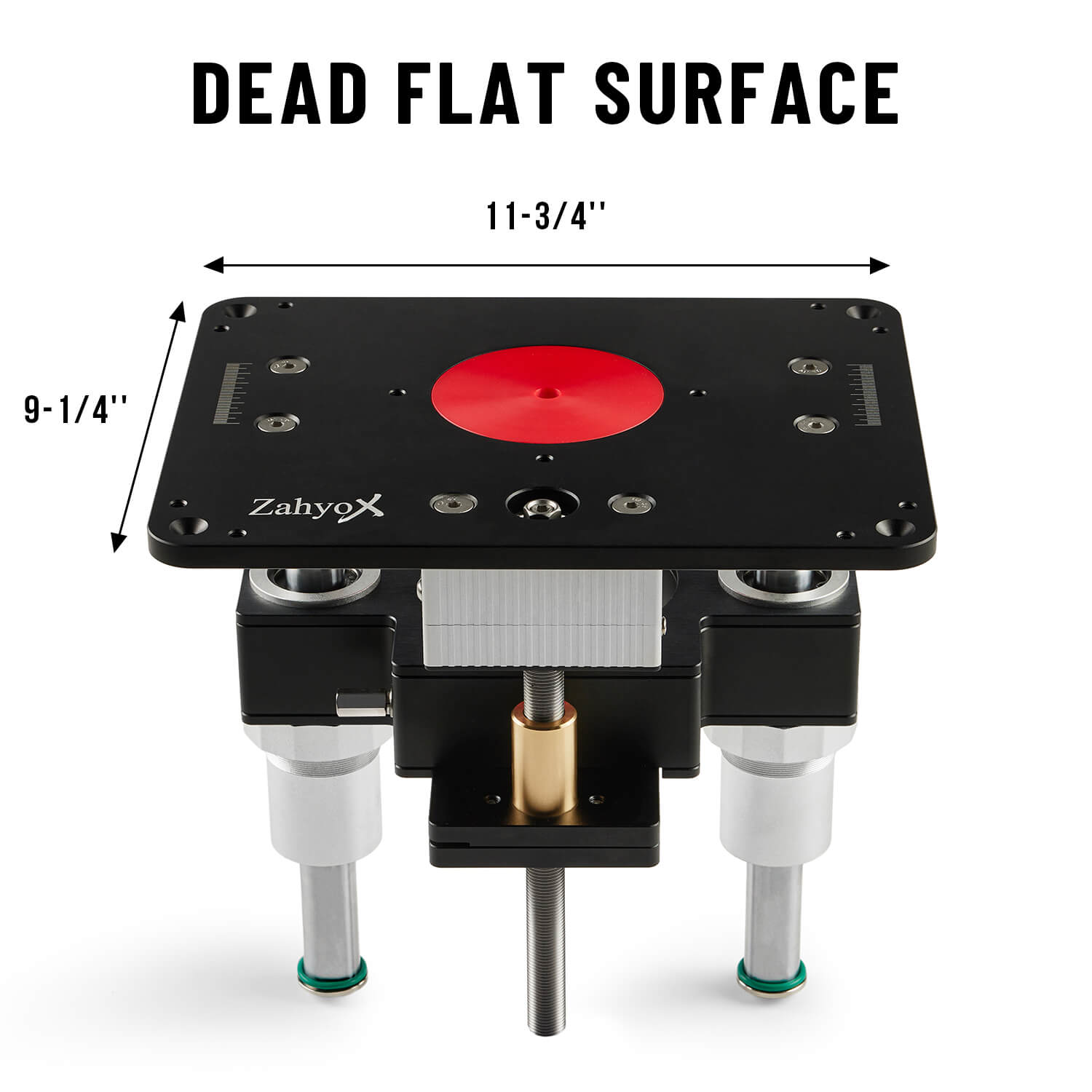

11-3/4" x 9-1/4" (298mm x 235mm)
Title

Insert Plate Thickness

1/25" (10mm)
Title

Max Lift Distance

3-15/16" (100 mm)
Title

Height Resolution

1/1000" (0.025mm)
Title

Height Change After One Revolution

1/64" (1.59mm)
Title

Router Lift Total Height

11-27/64" (290mm)
Title

Max.Dia of Motor Carriage

4-7/32" (107mm)
Title

Weight

22.64 lbs
Title

Insert Plate Material

Aluminum

MANUAL

DESCRIPTIONS

Designed for Enhanced Compatibility:

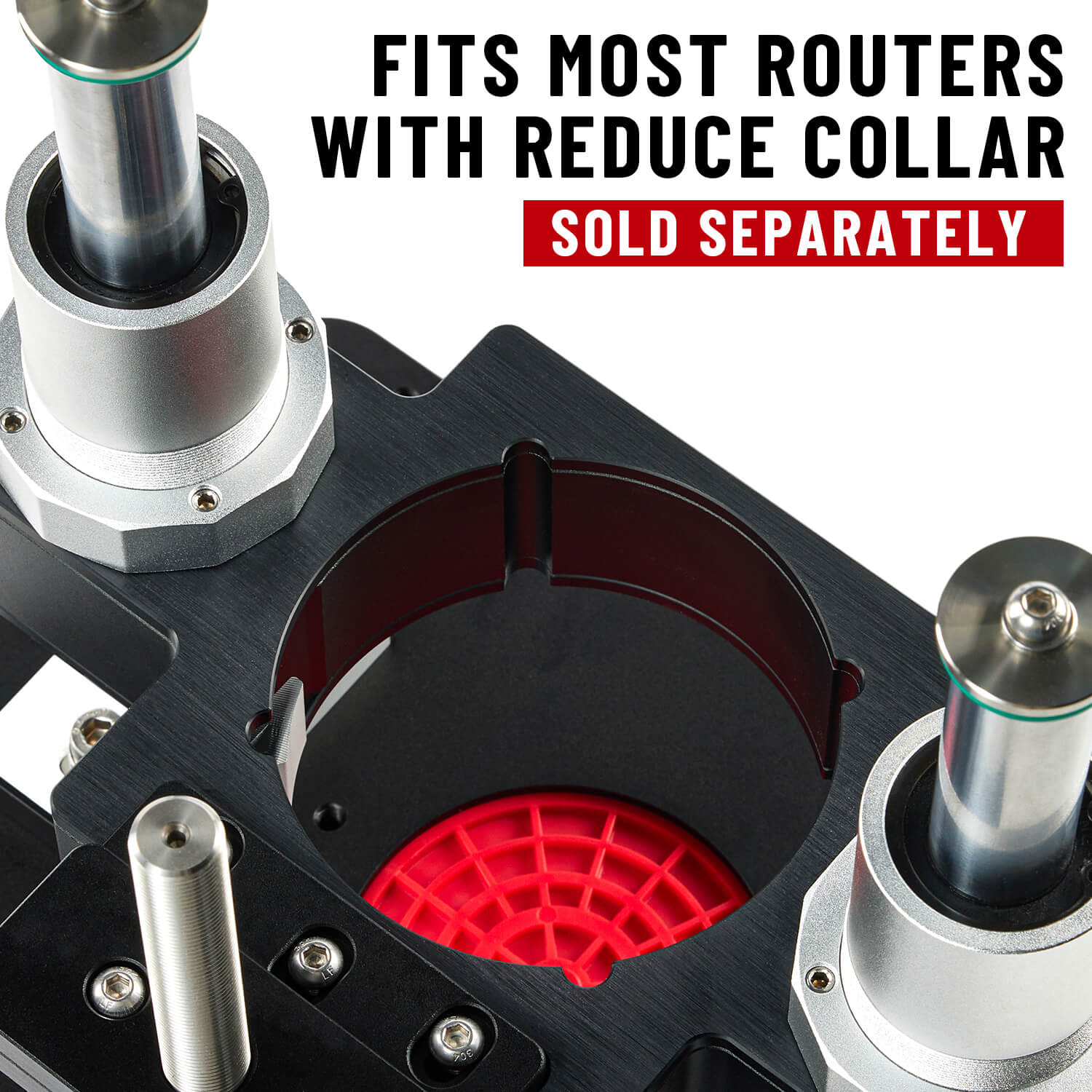

  • Features a 4.2" diameter mounting hole and offers three separately available reducing collars (3.5", 2.73", 2.56"), making it compatible with router models with motor diameters from 2.56" to 4.2".
  • Compatible with Kreg router tables, POWERTEC 71402, and most commercial router tables, with an insert plate size of 11-3/4" x 9-1/4" (298.5mm x 235mm x 10mm).

Premium Quality Materials:

  • Constructed with a 10mm thick hard-anodized solid aluminum plate, ensuring a perfectly flat and durable surface for precise routing.
  • Equipped with steel guide posts housed in double-sealed linear bearings to prevent dust infiltration and maintain smooth operation.

Time-Saving Design:

  • Offers a 100mm height adjustment range for ultra-smooth rise and fall movement, allowing for effortless bit changes without removing the router from the carriage.

Lifetime Warranty:

  • Provides free component replacement if any material or manufacturing defects occur.

ACCESSORIES
Poster

Take Control of Your Router

Quick, Accurate, and Consistently Repeatable Setups.

Pinpoint Precision

Make fast, precise height adjustments with crank handle. Dial in the height of the router bit to a resolution of 0.001" (0.025mm).

Smooth & Stable Movement

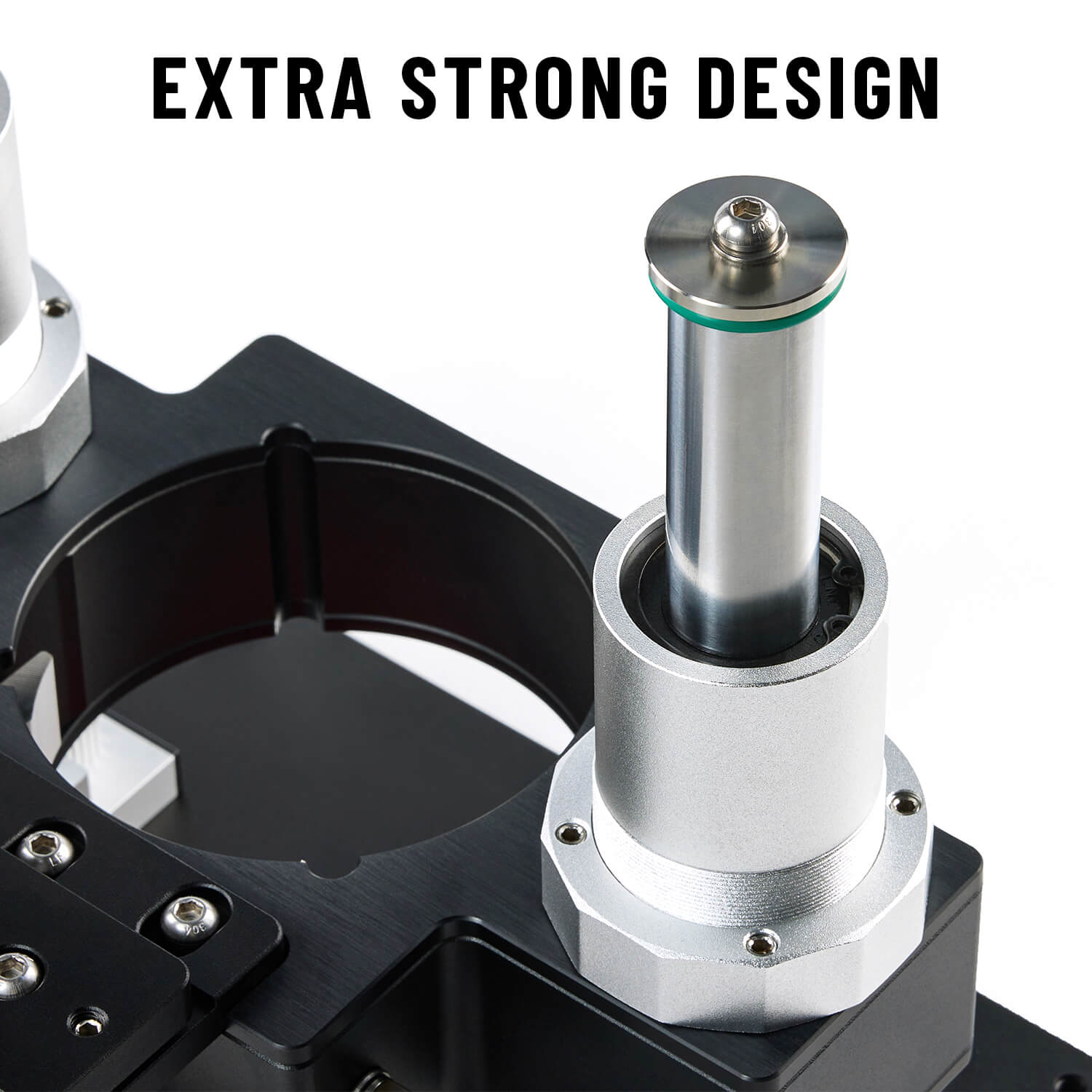

The lift carriage moves on two 55/64" (22 mm)  steel guide posts with double-sealed linear bearings, resisting dust and ensuring smooth, stable movement without side play.

Reliable Cutting Height Stability

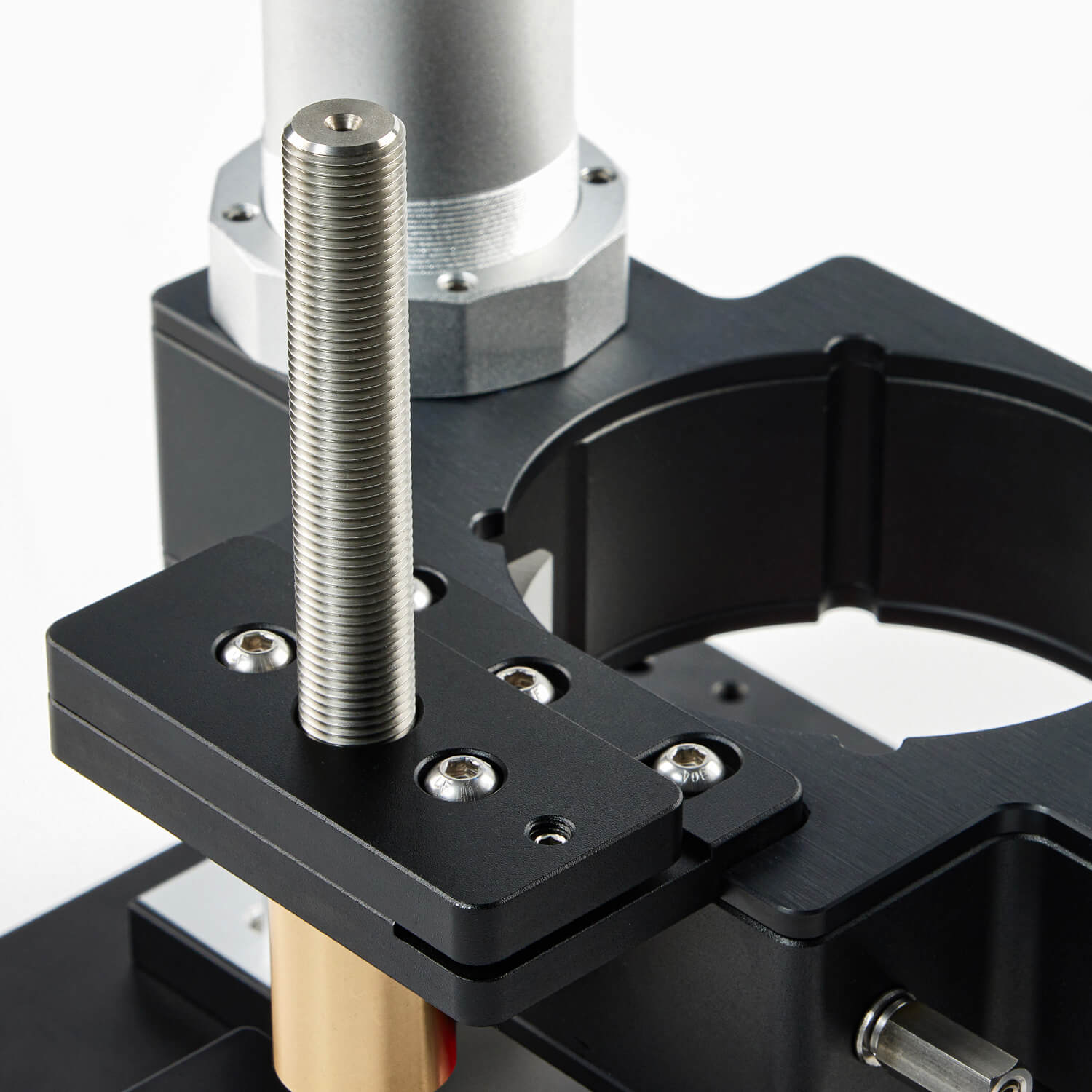

Once the router bit is set to the cutting height, a special spindle-locking mechanism prevents the height setting from changing due to vibration.

Built with Premium Material

Hard anodized aluminum wear-resistant material for long-term use.

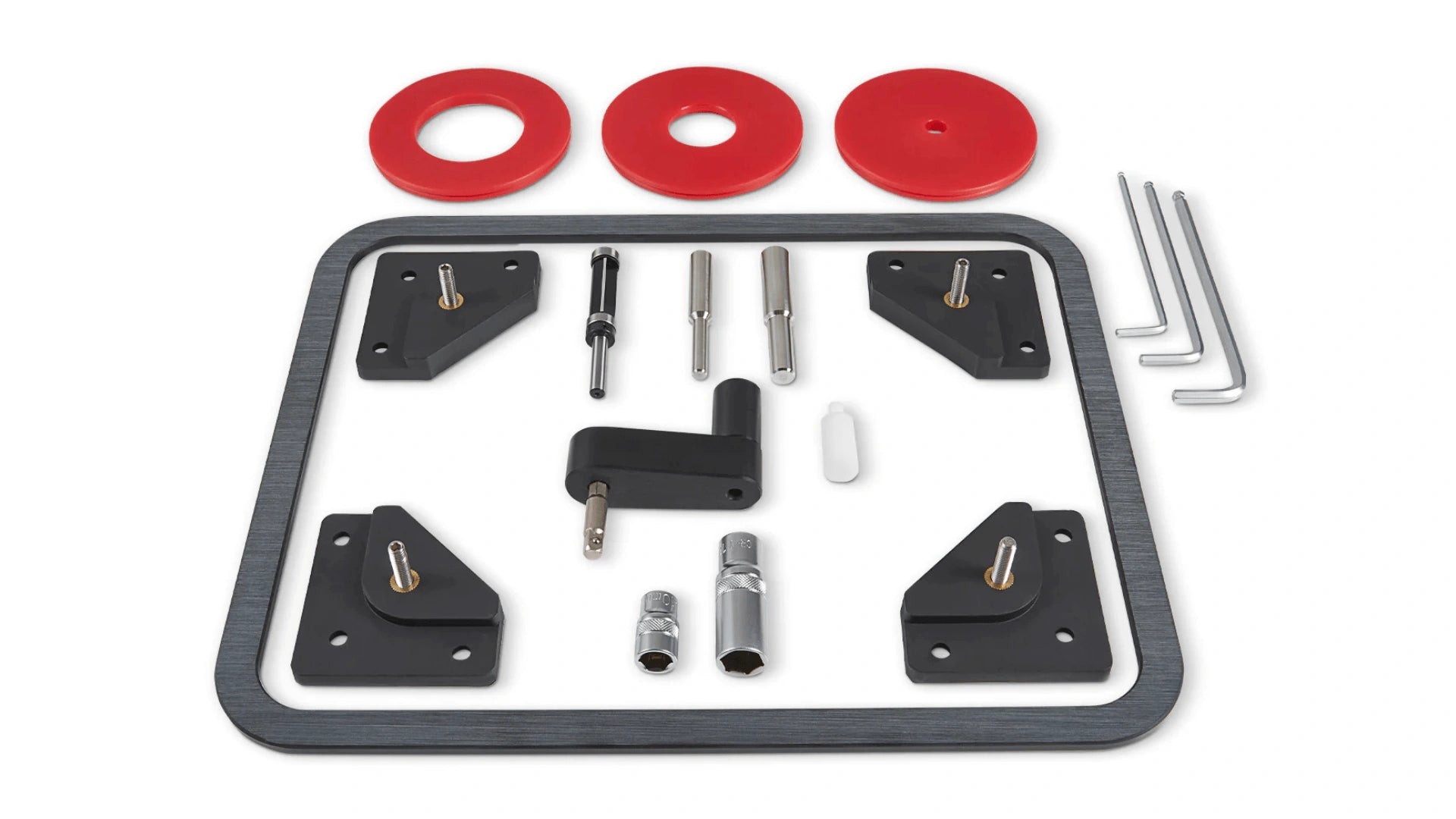

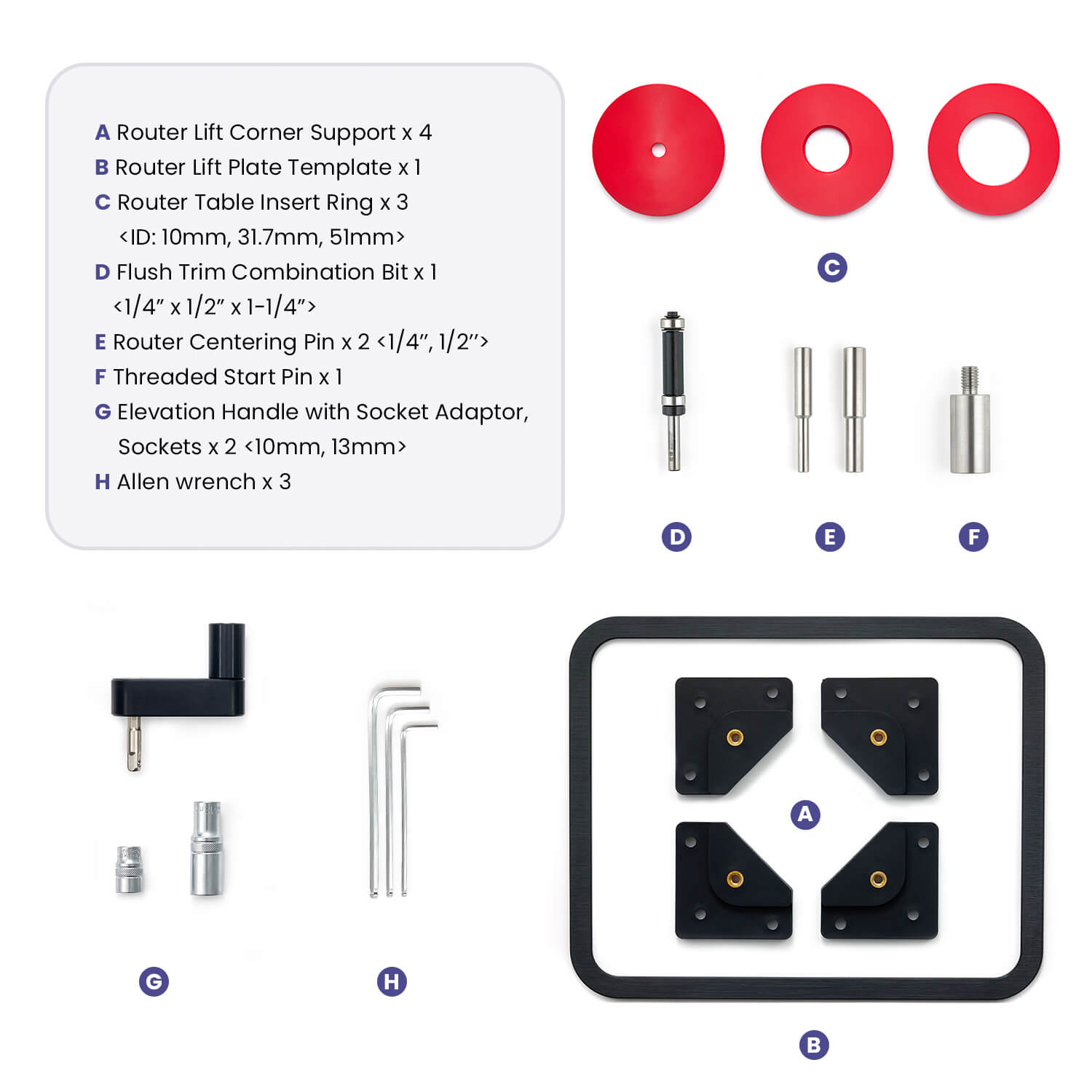

Complete Mounting Hardware Included

Supplied with all the hardware and fittings to mount into a bespoke table.

Manual

Pinpoint Precision

Make fast, precise height adjustments with crank handle. Dial in the height of the router bit to a resolution of 0.001" (0.025mm)

Smooth & Stable Movement

The lift carriage moves on two 55/64" (22 mm)  steel guide posts with double-sealed linear bearings, resisting dust and ensuring smooth, stable movement without side play.

Reliable Cutting Height Stability

Once the router bit is set to the cutting height, a special spindle-locking mechanism prevents the height setting from changing due to vibration.

Built with Premium Material

Hard anodized aluminum wear-resistant material for long-term use.

Complete Mounting Hardware Included

Supplied with all the hardware and fittings to mount into a bespoke table.

Manual

Find the Perfect Router Lift for Your Router

Please use the options below to select either your router motor's diameter or its model to find the right router lift set with the appropriate reduce collar.

By Motor Diameter

107mm/4.2 inch

88.9mm/3.5 inch

69mm/2.72 inch

65mm/2.56 inch

By Router Model

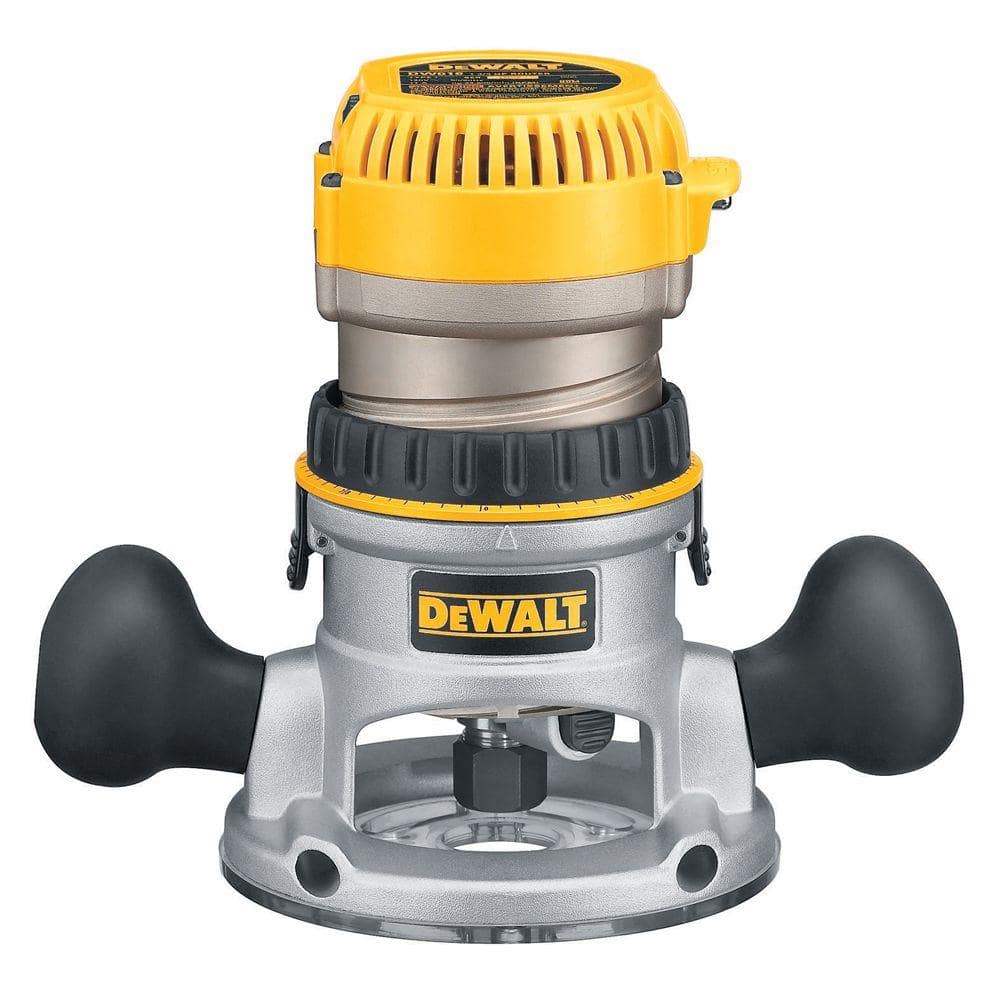

Dewalt 610/616/618

BOSCH 1617/1618

Porter-Cable 690

Porter-Cable 890

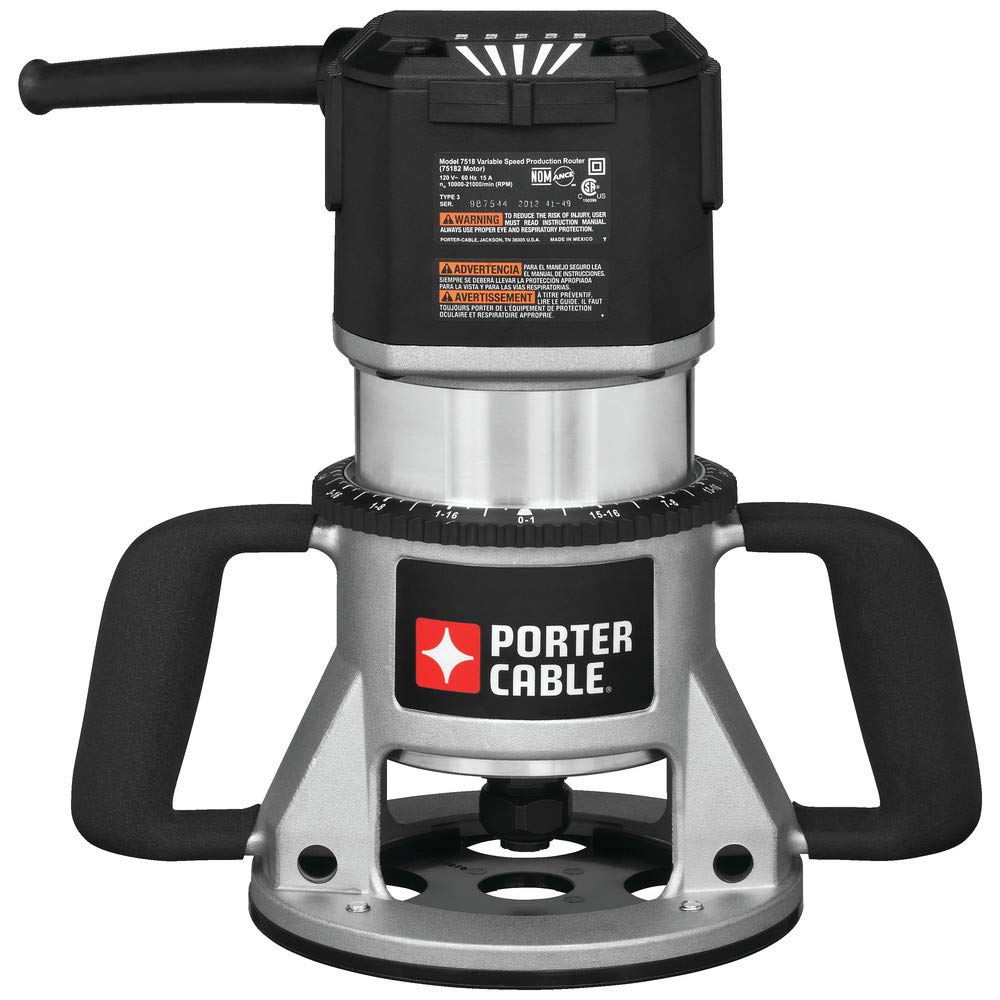

Porter-Cable 7518

Porter-Cable 7519

Dewalt DWP611

Dewalt DWP600

Devon 1316-1

Makita RT0700C

With 89.5mm (3.5 inch) Reduce Collar

RL01+RC03 router lift set is perfect for Dewalt 610/616/618, BOSCH 1617, Porter-Cable 690 series, Porter-Cable 890 series, Porter-Cable 7518/7519, Devon 1316-1, and some other 3.5" Motor Diameter.

Dewalt 610/616/618

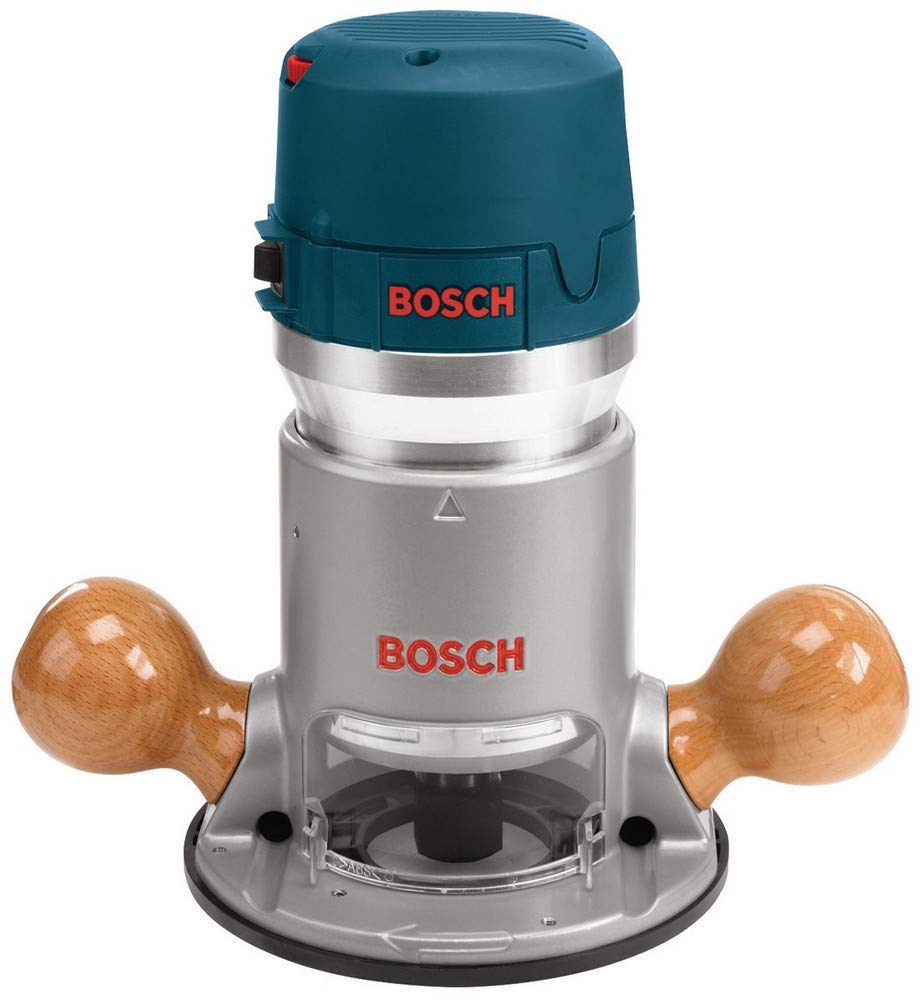

BOSCH 1617/1618

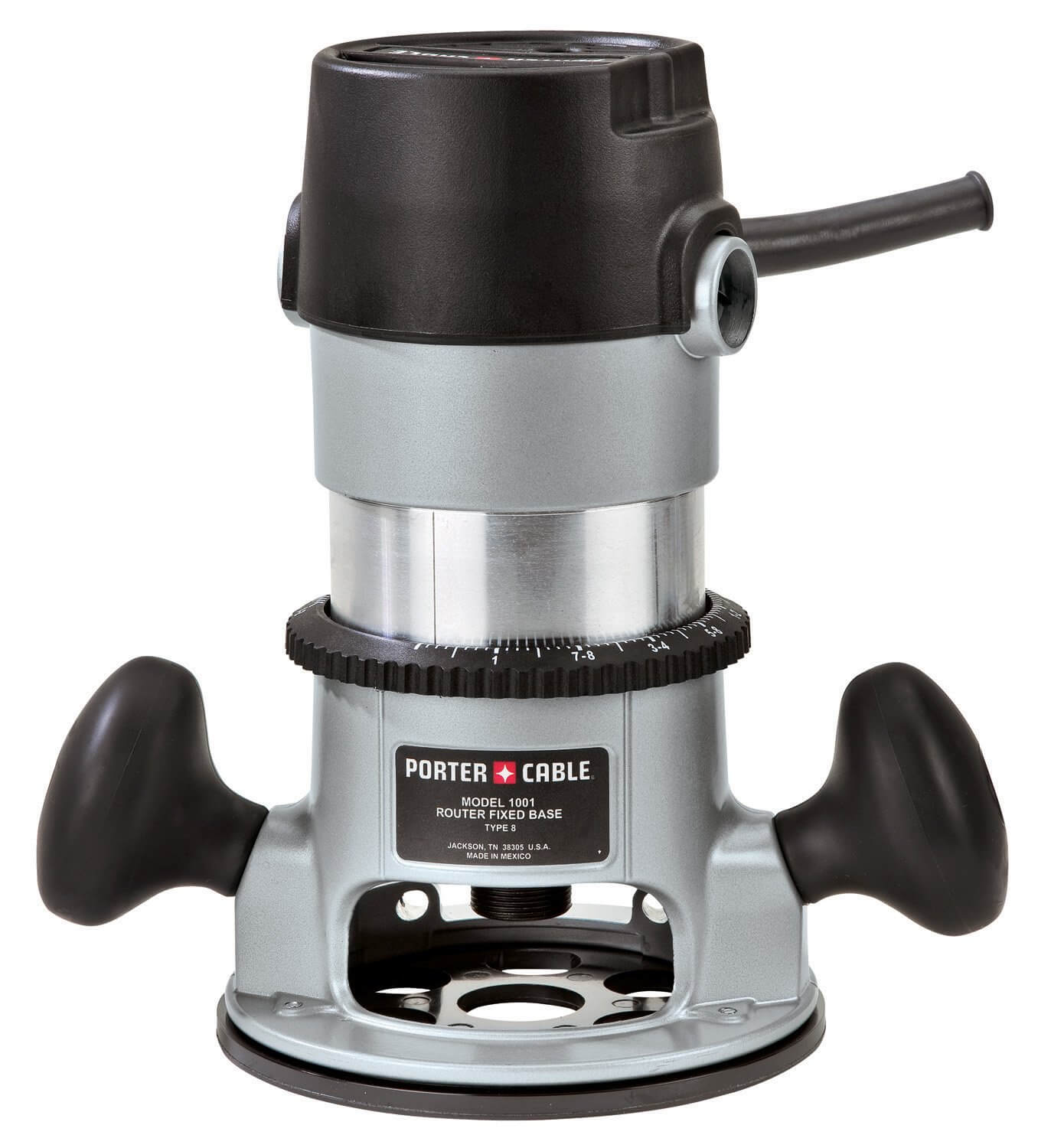

Porter-Cable 690

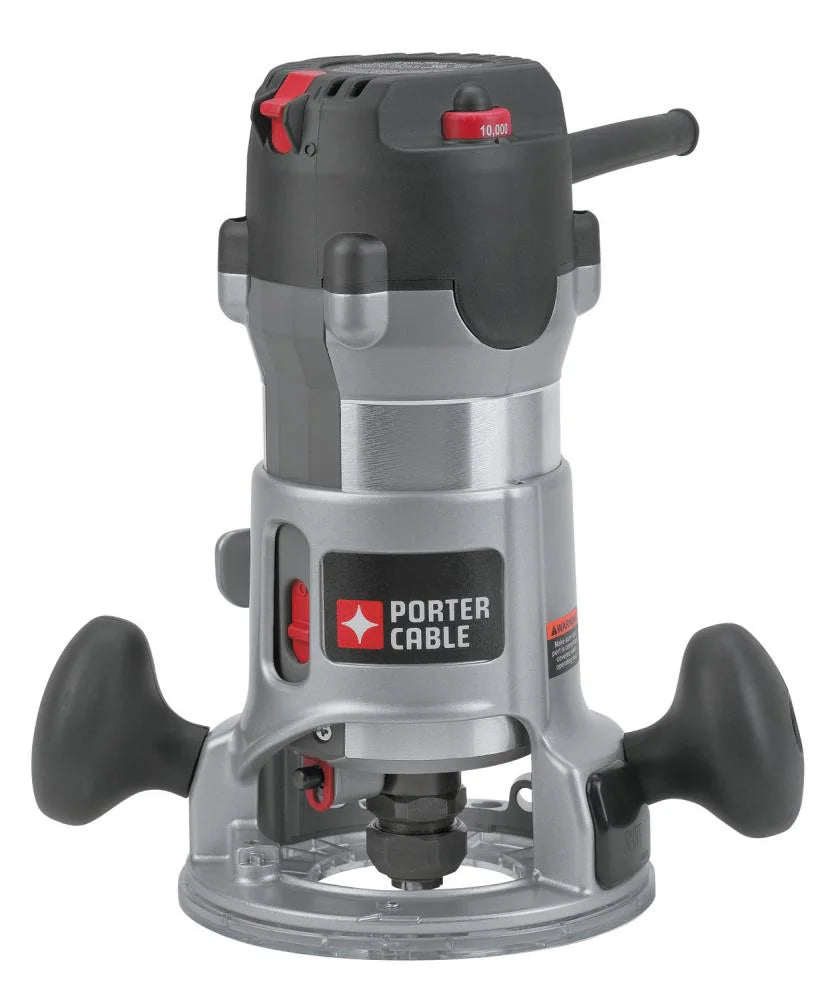

Porter-Cable 890

Porter-Cable 7518

Porter-Cable 7519

Devon 1316-1

If your router is any of the above, buy this RL01+RC03 router lift set!
ZahyoX Router Lift Set with 88.9mm(3.5
ZahyoX Router Lift Set with 88.9mm(3.5
ZahyoX Router Lift Set with 88.9mm(3.5
ZahyoX Router Lift Set with 88.9mm(3.5
ZahyoX Router Lift Set with 88.9mm(3.5
ZahyoX Router Lift Set with 88.9mm(3.5
ZahyoX Router Lift Set with 88.9mm(3.5
ZahyoX Router Lift Set with 88.9mm(3.5
ZahyoX Router Lift Set with 88.9mm(3.5
ZahyoX Router Lift Set with 88.9mm(3.5

ZahyoX Router Lift Set with 88.9mm(3.5") Reduce Collar, Compatible with Porter-Cable 7518/7519, Devon 1316-1, BOSCH 1617, Dewalt 618, Porter-Cable 690/890

$261.49
$351.49

With 69mm (2.72 inch) Reduce Collar

RL01+RC02 router lift set is perfect for Dewalt DWP611, Dewalt DCW600, Porter-Cable 7518/7519 and some other 2.72" Motor Diameter.

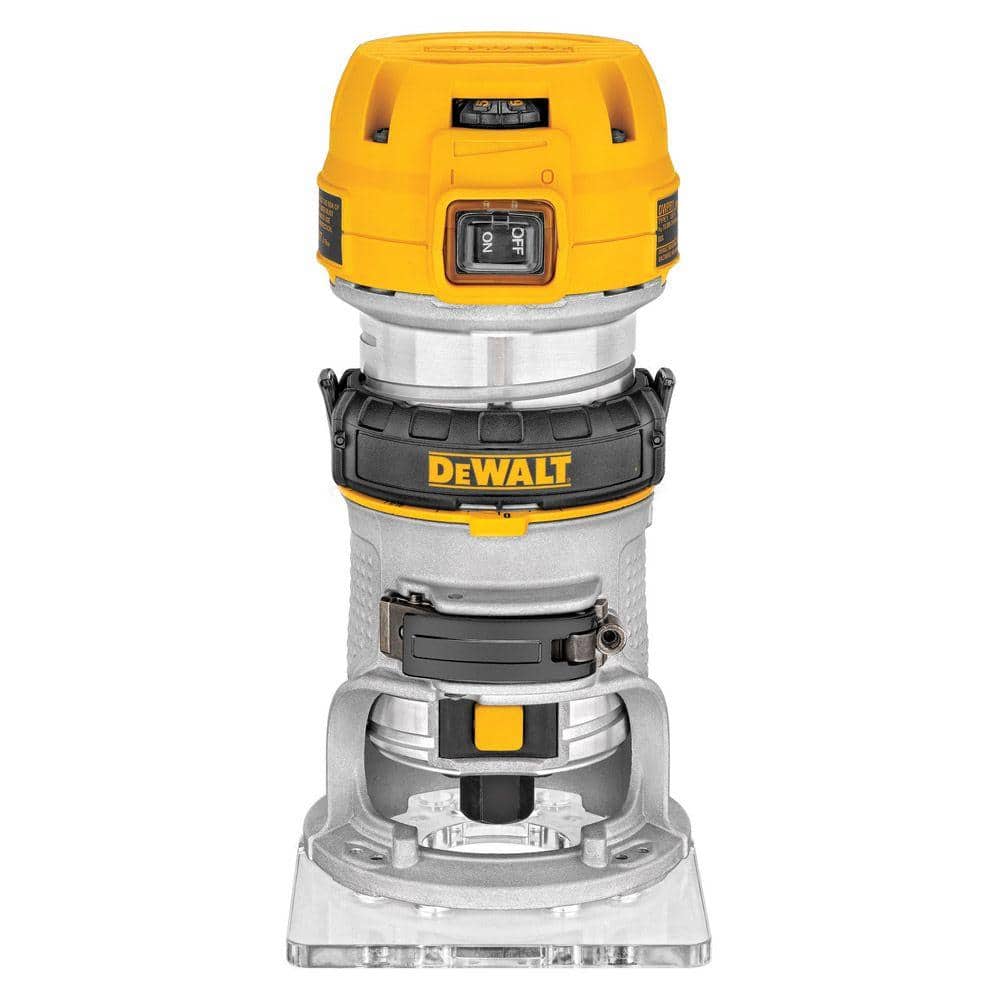

Dewalt DWP611

Dewalt DCW600

Porter-Cable7518

Porter-Cable7519

If your router is any of the above, buy this RL01+RC02 router lift set!
ZahyoX Router Lift Set with 69mm(2.72
ZahyoX Router Lift Set with 69mm(2.72
ZahyoX Router Lift Set with 69mm(2.72
ZahyoX Router Lift Set with 69mm(2.72
ZahyoX Router Lift Set with 69mm(2.72
ZahyoX Router Lift Set with 69mm(2.72
ZahyoX Router Lift Set with 69mm(2.72
ZahyoX Router Lift Set with 69mm(2.72
ZahyoX Router Lift Set with 69mm(2.72
ZahyoX Router Lift Set with 69mm(2.72

ZahyoX Router Lift Set with 69mm(2.72") Reduce Collar, Compatible with Dewalt DWP611, Dewalt DCW600, Porter-Cable 7518/7519

$261.49
$351.49

With 65mm (2.56 inch) Reduce Collar

RL01+RC01 router lift set is perfect for Makita RT0700C, Porter-Cable 7518/7519 and some other 2.56" Motor Diameter.

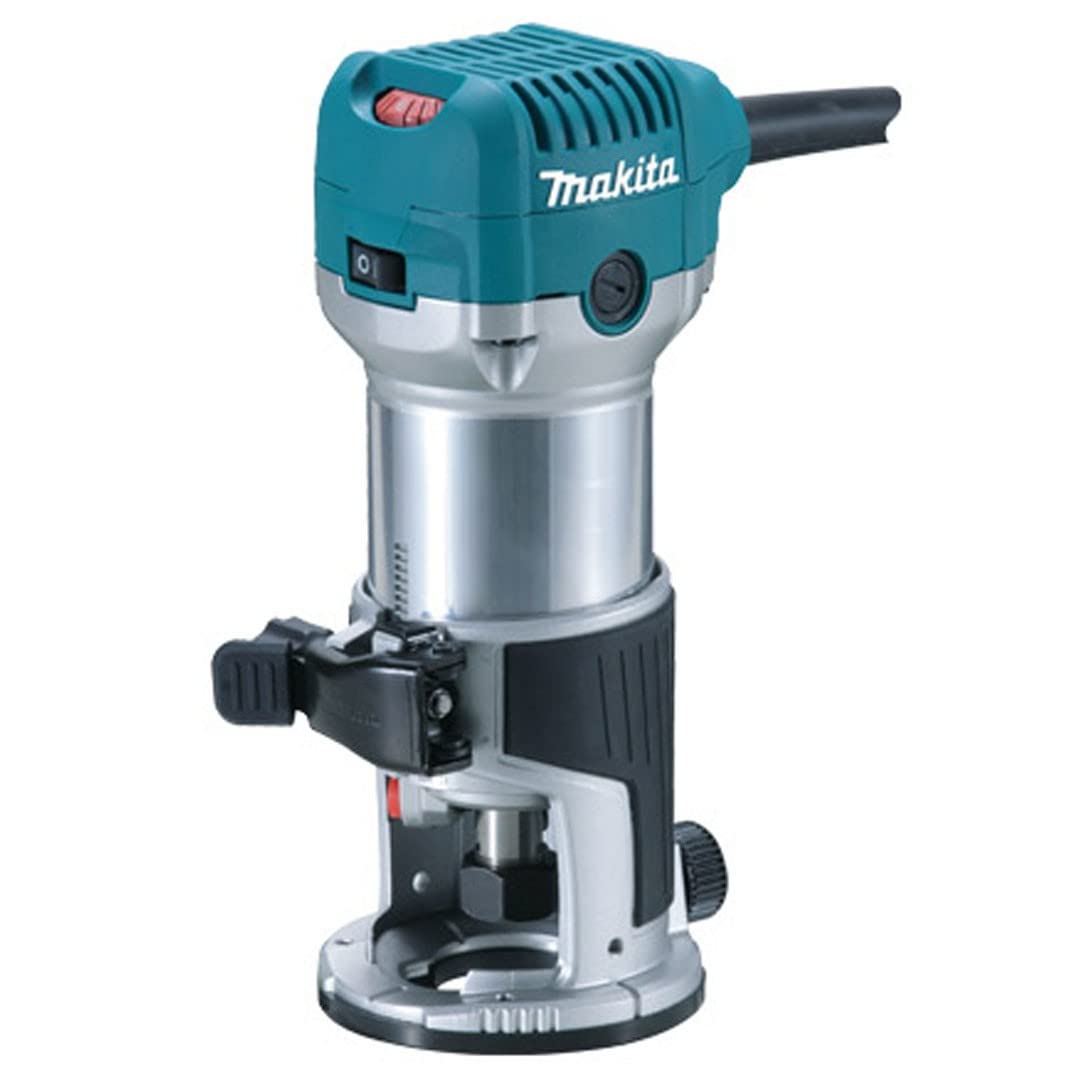

Makita RT0700C

Porter-Cable7518

Porter-Cable7519

If your router is any of the above, buy this RL01+RC01 router lift set!
ZahyoX Router Lift Set with 65mm(2.65
ZahyoX Router Lift Set with 65mm(2.65
ZahyoX Router Lift Set with 65mm(2.65
ZahyoX Router Lift Set with 65mm(2.65
ZahyoX Router Lift Set with 65mm(2.65
ZahyoX Router Lift Set with 65mm(2.65
ZahyoX Router Lift Set with 65mm(2.65
ZahyoX Router Lift Set with 65mm(2.65
ZahyoX Router Lift Set with 65mm(2.65

ZahyoX Router Lift Set with 65mm(2.65") Reduce Collar, Compatible with Makita RT0700C, Porter-Cable 7518/7519

$261.49
$351.49

Buy Reducer Collars (Optional)
RL01-RC03 Router Lift Reduce Collar for 3.50inch (88.9mm) Router
RL01-RC03 Router Lift Reduce Collar for 3.50inch (88.9mm) Router
RL01-RC03 Router Lift Reduce Collar for 3.50inch (88.9mm) Router
$22.49

RL01-RC03 Router Lift Reduce Collar for 3.50inch (88.9mm) Router
RL01-RC02 Reduce Collar for 2.72inch (69mm) Router
RL01-RC02 Reduce Collar for 2.72inch (69mm) Router
RL01-RC02 Reduce Collar for 2.72inch (69mm) Router
$22.49

RL01-RC02 Reduce Collar for 2.72inch (69mm) Router
RL01-RC01 Router Lift Reduce Collar for 2.56inch (65mm) Router
RL01-RC01 Router Lift Reduce Collar for 2.56inch (65mm) Router
$22.49

RL01-RC01 Router Lift Reduce Collar for 2.56inch (65mm) Router
