1/4 Shank Compression nACo Coated Spiral Router Bit - 2 Flutes - 1/4 SD - 1/4 CD - 1 CL - 2-1/2 OL - 3/16 UCL - S1414

1/4 Shank Compression nACo Coated Spiral Router Bit - 2 Flutes - 1/4 SD - 1/4 CD - 1 CL - 2-1/2 OL - 3/16 UCL - S1414

Regular price $26.97
Regular price Sale price $26.97
Sale Sold out
Tax included. Shipping calculated at checkout.
Rotation Compression Coating nACo
Shank Diameter 1/4" Router Bits Types 1/4" Shank Spiral Bit
Cutting Diameter 1/4" Product Series PRO-Series
Cutting Length 1" Cutting Edge Type Solid Carbide
Overall Length 2-1/2" Measurement Imperial
Flutes 2 Machinery Type Handheld Router, Router Table, CNC Router
Material Hardwoods, Softwoods, Laminate, Melamine, Plywood, MDF, Chipboard, Foamcore, Light Board, Aluminum Foamcore, Veneered Plywood, Particle, OSB, Solid Surface Material, Plastic, Acrylic
Rotation Compression
Shank Diameter 1/4"
Cutting Diameter 1/4"
Cutting Length 1"
Overall Length 2-1/2"
Flutes 2
Coating nACo
Fast Delivery

Order by 4:30 PM EST to Ship Today.

15% OFF ALL SPIRAL BITS! USE CODE: ZahyoX
CNC Software Tool File Database
View full details
Image SKU Rotation Flutes CD SD CL OL Stock Quantity Price Cart
S1414 Compression 2 1/4" 1/4" 1" 2-1/2"
$26.97 USD

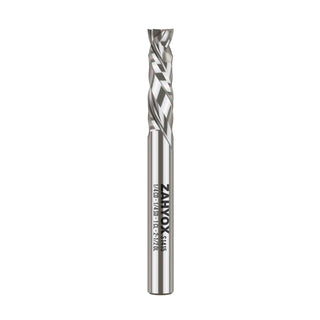

S1415 Compression 2 1/4" 1/4" 1" 2-1/2"
$22.97 USD

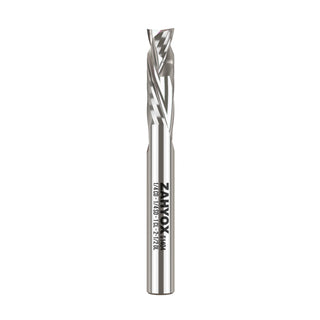

S1404 Compression 2 1/4" 1/4" 1" 2-1/2"
$21.37 USD

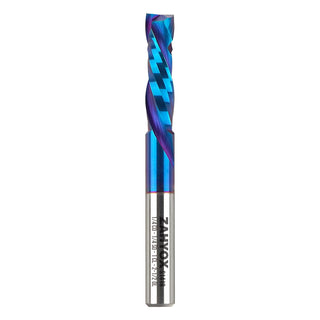

S1418 Compression 2 1/4" 1/4" 1" 2-1/2"
$23.37 USD

Why Choose Spiral Router Bits Instead of Straight Bits?

  • Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.

What is Compression (Up-Cut & Down-Cut) Bits

What is Compression (Up-Cut & Down-Cut) Bits

  • Features: Compression bits combine the features of both up-cut and down-cut bits. The top part of the bit is designed to be down-cut, improving the top edge finish, while the bottom part is up-cut, enhancing the finish on the bottom side of the material. This up-cut down-cut action is what leaves a sharp, clean edge on both edges of your workpiece.
  • Applications: The preferred bit for cutting laminated materials or any situation where both sides of the material are visible and require a fine finish.
  • Considerations: To fully benefit from a compression bit, it's crucial to make the initial cut deeper than the length of the up-cut flutes to prevent any tear-out or chipping on either side of the material.

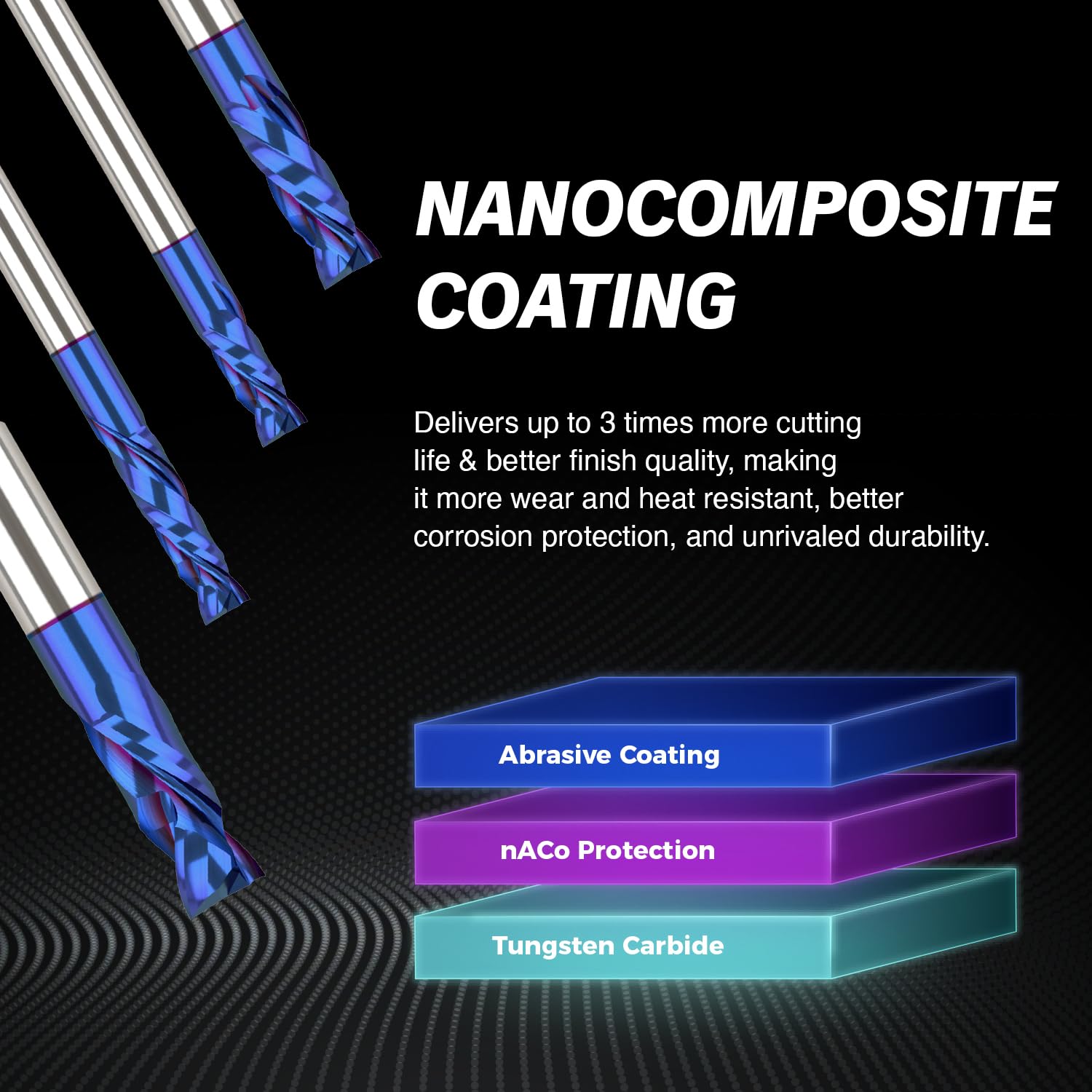

What is nACo Coating?

nACo, or nano-composite coating, is a micro-thin ceramic coating applied to cutting tools. Zahyox PRO-Series bits feature a nACo coating with extreme hardness and heat resistance. With a blue-tinted coloring, nACo enhances their performance and durability in router tooling.

  • Sharpness Retention: Maintains cutting edges razor-sharp for precise and clean cuts.
  • Reduced Friction: Features an extremely low friction coefficient of 0.25, minimizing tool wear and facilitating smoother operations.
  • Heat Resistance: Can withstand up to 900°F, protecting tools from heat damage during intense cutting tasks.
  • Enhanced Durability: Delivers a hardness of 3800 HV, which increases resistance to wear and extends 3 times longer tool life.

Why Choose ZahyoX 1/4" Shank Spiral Router Bits?

  • Geometry Specs: 1/4" Cutting Diameter, 1/4" Shank, 1" Cutting Length, 2-1/2" Overall Length, 2 Flutes, Compression (Up and Down Cut) Spiral.
  • Industrial-grade Solid Carbide: Made of industrial-quality Solid Carbide, reinforced with Tungsten Carbide cutters. This 1/4-inch compression router bit is specifically designed to provide a high-quality finish and efficient cuts.
  • Excellent for Cutting: Perfect for CNC sizing, cutting, copying, and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates, and soft metals.
  • Maximize Efficiency: Kickback-reducing design prevents overfeeding and tears out. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts and efficiency than other bits on the market.
  • Trusted Brands: ZahyoX provides industrial quality CNC & woodworking tools at an affordable price, by using superior materials, cutting-edge machinery, and patented technology. Fully guaranteed with an online customer support team.
