Sold out

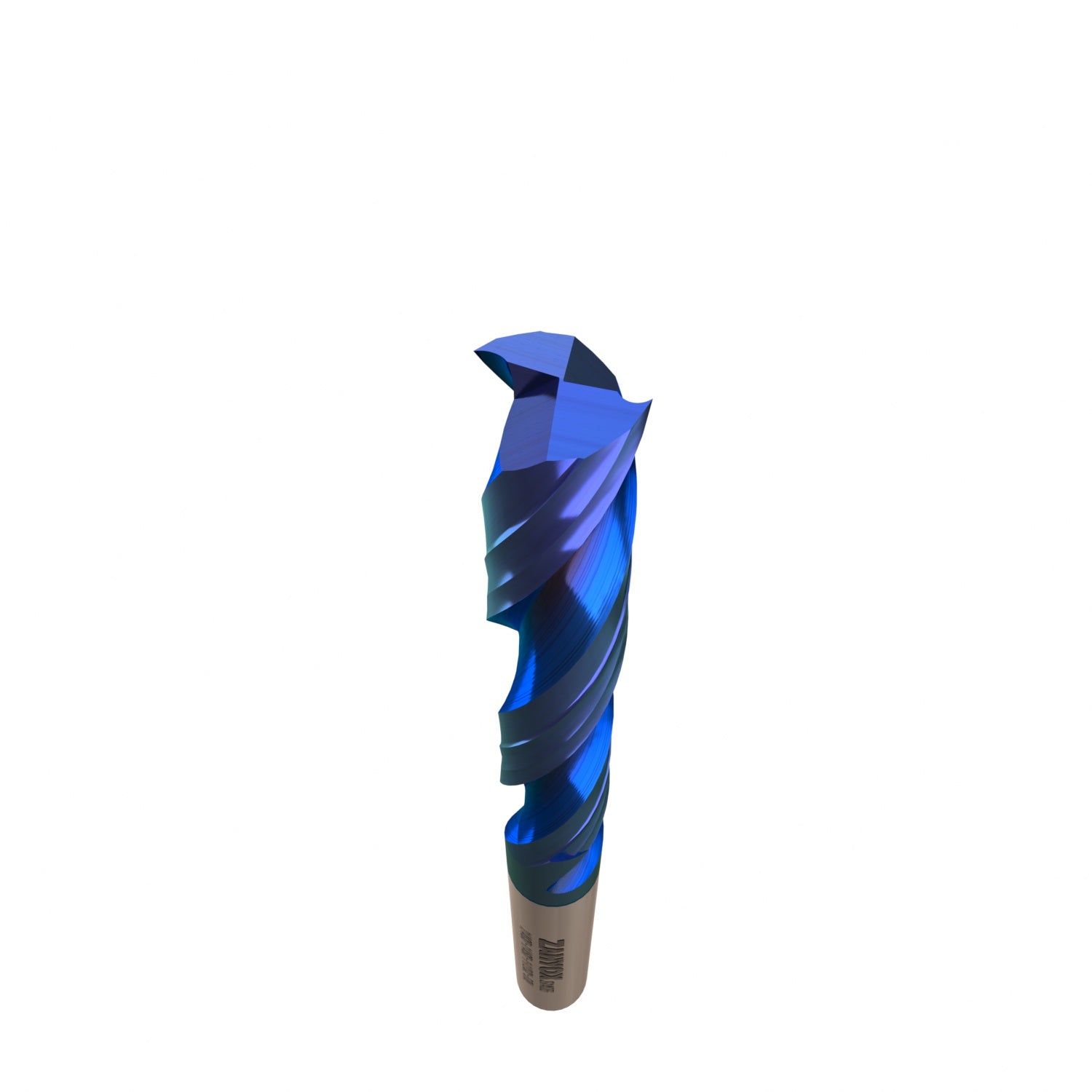

2Pack - S1406 Solid Carbide nACo Coated Upcut Spiral Router Bit - 2 Flutes - 1/4 SD - 1/4 CD - 1-1/2 CL - 3 OL
2Pack - S1406 Solid Carbide nACo Coated Upcut Spiral Router Bit - 2 Flutes - 1/4 SD - 1/4 CD - 1-1/2 CL - 3 OL
Regular price
$33.47
Sale price
$33.47
Regular price
Out of stock
| Rotation | Upcut | Coating | nACo |
|---|---|---|---|
| Shank Diameter | 1/4" | Router Bits Types | 1/4" Shank Spiral Bit |
| Cutting Diameter | 1/4" | Product Series | X-Series |
| Cutting Length | 1-1/2" | Cutting Edge Type | Solid Carbide |
| Overall Length | 3" | Measurement | Imperial |
| Flutes | 2 | Machinery Type | Handheld Router, CNC Router, Router Table |
| Material | Hardwoods, Softwoods, Laminate, Melamine, Plywood, MDF, Chipboard, Foamcore, Light Board, Aluminum Foamcore, Veneered Plywood, Particle, OSB, Solid Surface Material, Plastic, Acrylic | ||
| Rotation | Upcut |
|---|---|
| Shank Diameter | 1/4" |
| Cutting Diameter | 1/4" |
| Cutting Length | 1-1/2" |
| Overall Length | 3" |
| Flutes | 2 |
| Coating | nACo |

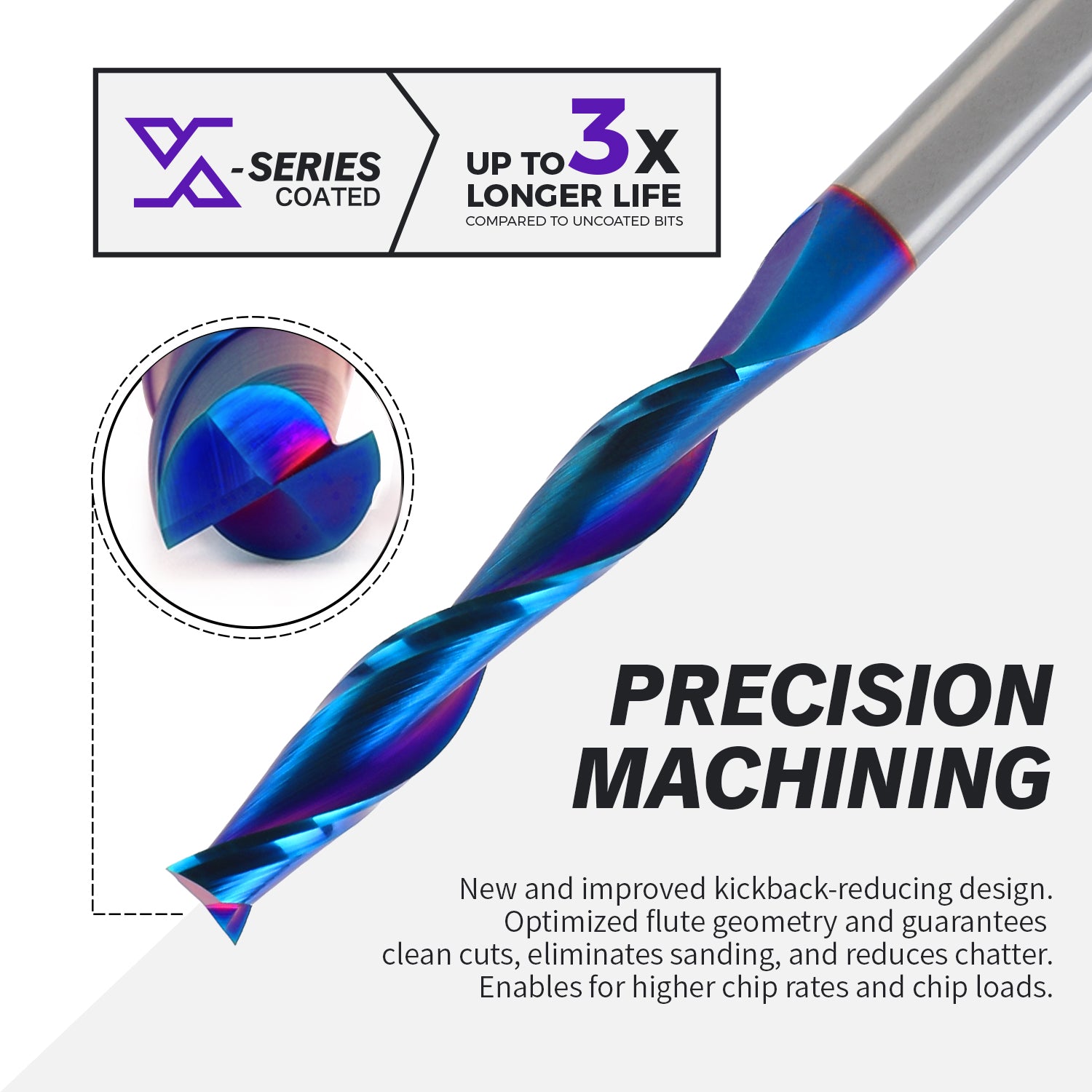

Why Choose Spiral Router Bits Instead of Straight Bits?
- Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.
What is Up-Cut Bits?
- Features: The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration and rapid cutting with less stress on the tool.
- Applications: Best used in applications requiring clean finishes on the bottom surface, like grooving or deep cutting.
- Considerations: Risk to Top Surface: The upward action may damage the top layer, making them unsuitable for projects where top appearance is critical.

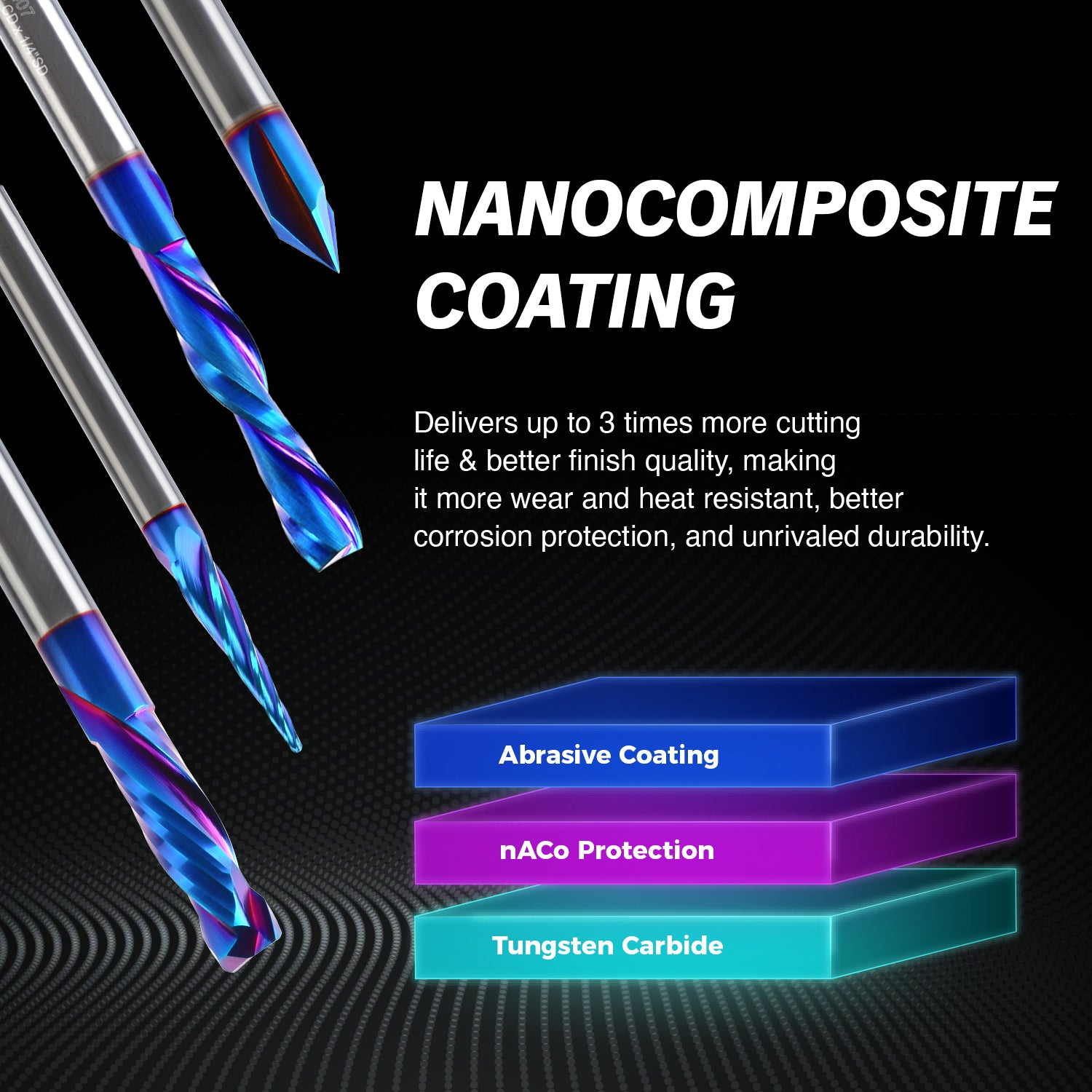

What is nACo Coating?
nACo, or nano-composite coating, is a micro-thin ceramic coating applied to cutting tools. Zahyox X-Series bits feature a nACo coating with extreme hardness and heat resistance. With a blue-tinted coloring, nACo enhances their performance and durability in router tooling.
- Sharpness Retention: Maintains cutting edges razor-sharp for precise and clean cuts.
- Reduced Friction: Features an extremely low friction coefficient of 0.25, minimizing tool wear and facilitating smoother operations.
- Heat Resistance: Can withstand up to 900°F, protecting tools from heat damage during intense cutting tasks.
- Enhanced Durability: Delivers a hardness of 3800 HV, which increases resistance to wear and extends 3 times longer tool life.

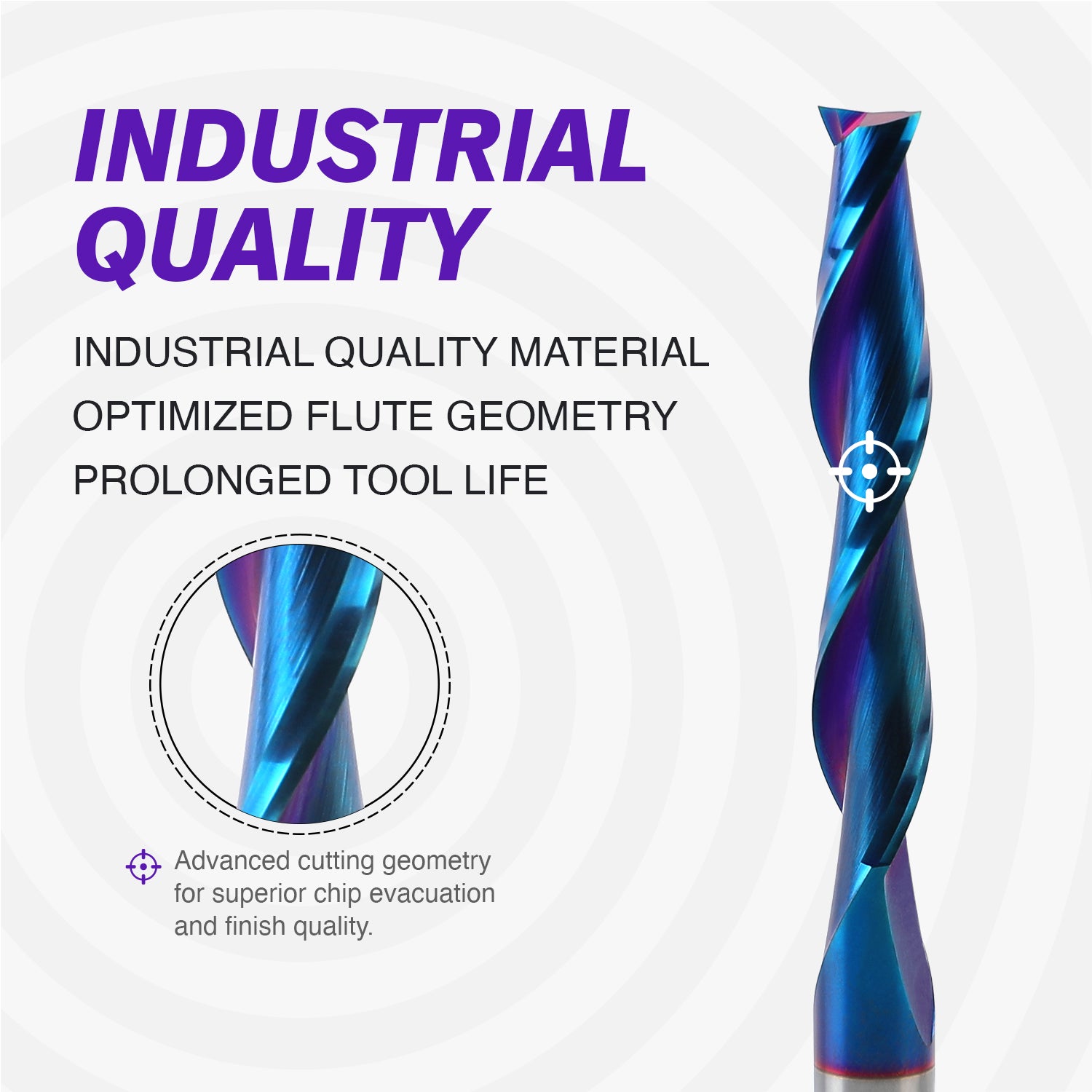

Why Choose ZahyoX Router Bits?
- Geometry Specs: 1/4" Cutting Diameter, 1/4" Shank, 1-1/2" Cutting Length, 3" Overall Length, 2 Flutes, Up-Cut Spiral, Nano Coated.
- Industrial-Grade Solid Carbide: ZahyoX is an industrial manufacturer, making solid carbide material and solid carbide router bits our sole business for over two decades, we make our products like creating art.
- Excellent for Cutting: Perfect for CNC sizing, cutting, and routing laminate, melamine, plywood, MDF, chipboard, foam-core, light board, aluminum foam-core, carbon fiber, veneered plywood, and solid surface material.
- Perfected Geometry Design: The geometry design has been iterated hundreds of times to ensure a perfect balance between tool life and cutting efficiency. We run our bits systematically on various machines and materials to test the performance of each iteration.
- Consistent High-Quality: The bit is made of WC-CO Alloy, and 100% made by our own factory to ensure consistency, you can expect that every bit we produce performs exactly the same.
Payment & Security
Payment methods
| Image | SKU | Rotation | Flutes | Cutting Dia | Shank Dia | Cutting Length | Overall Length | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1401 | Upcut | 2 | 1/4" | 1/4" | 1" | 2-1/2" |
|
$17.97 USD | ||
|
S1403 | Downcut | 2 | 1/4" | 1/4" | 1" | 2-1/2" |
|
$17.97 USD | ||
|
S1404 | Compression | 2 | 1/4" | 1/4" | 1" | 2-1/2" |
|
$21.37 USD | ||
|
S1416 | Upcut | 2 | 1/4" | 1/4" | 1" | 2-1/2" |
|
$19.75 USD | ||
|
S1417 | Downcut | 2 | 1/4" | 1/4" | 1" | 2-1/2" |
|
$16.49 USD | ||
|
S1418 | Compression | 2 | 1/4" | 1/4" | 1" | 2-1/2" |
|
$23.37 USD | ||
|
S1414 | Compression | 2 | 1/4" | 1/4" | 1" | 2-1/2" |
|
$26.97 USD | ||
|
S1405 | Compression | 2 | 1/4" | 1/4" | 7/8" | 2-1/2" |
|
$18.97 USD | ||
|
S1406 | Upcut | 2 | 1/4" | 1/4" | 1-1/2" | 3" |
|
$25.97 USD | ||
|
S1407 | Downcut | 2 | 1/4" | 1/4" | 1-1/4" | 3" |
|
$25.07 USD | ||
|
S1408 | Downcut | 2 | 1/4" | 1/4" | 1-1/4" | 3" |
|
$25.57 USD | ||
|
S1410 | Upcut | 2 | 1/4" | 1/4" | 1-1/2" | 3" |
|
$21.97 USD | ||
|
S1411 | Downcut | 2 | 1/4" | 1/4" | 1-1/4" | 3" |
|
$21.57 USD | ||
|
S1412 | Compression | 2 | 1/4" | 1/4" | 5/8" | 2-1/2" |
|
$25.97 USD | ||
|
S1413 | Compression | 2 | 1/4" | 1/4" | 5/8" | 2-1/2" |
|
$23.97 USD | ||
|
S1415 | Compression | 2 | 1/4" | 1/4" | 1" | 2-1/2" |
|
$22.97 USD | ||
|
S1431 | Upcut | 3 | 1/4" | 1/4" | 7/8" | 2-1/2" |
|
$22.98 USD | ||
|
S1433 | Downcut | 3 | 1/4" | 1/4" | 7/8" | 2-1/2" |
|
$22.98 USD |
