Rated 5.0 out of 5 stars
2 Reviews

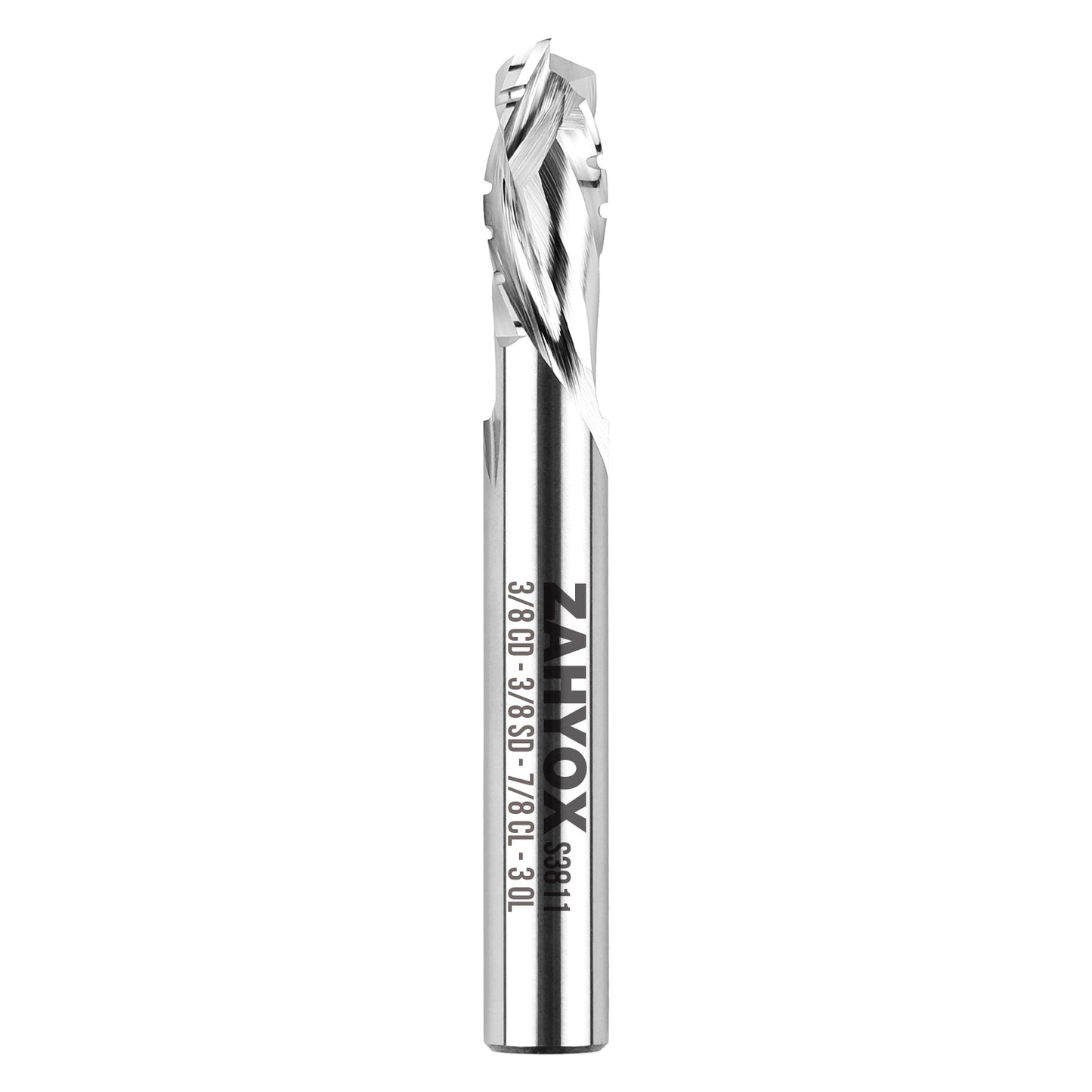

3/8" Shank Solid Carbide Compression Chip Breaker Spiral Router Bit - 2 Flutes - 3/8" Cutting Dia - 7/8" LOC - 3" OAL - 1/4" UCL - S3811
3/8" Shank Solid Carbide Compression Chip Breaker Spiral Router Bit - 2 Flutes - 3/8" Cutting Dia - 7/8" LOC - 3" OAL - 1/4" UCL - S3811
Regular price
$44.97
Regular price
$52.97
Sale price
$44.97
Unit price
per
Tax included.
Shipping calculated at checkout.

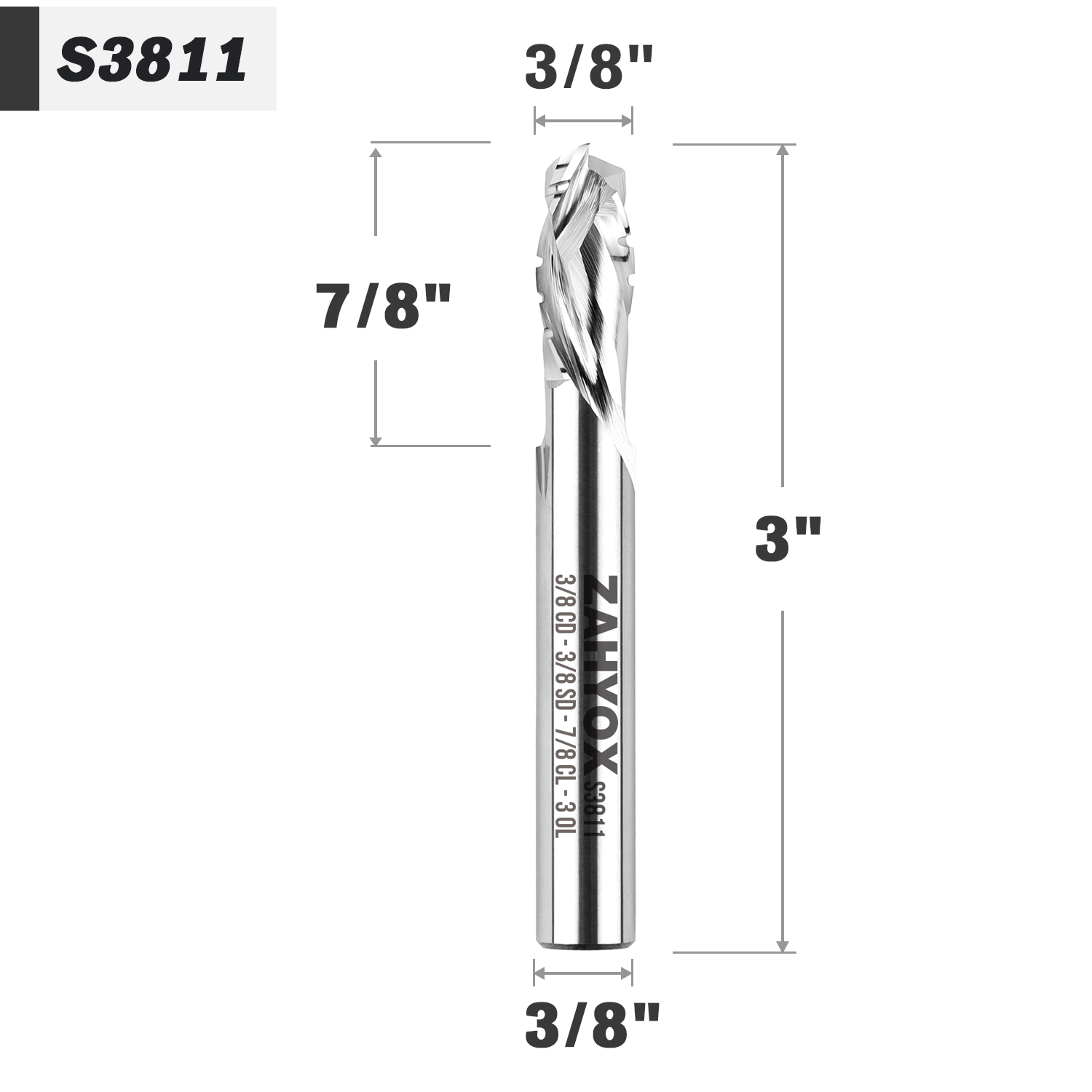

| Rotation | Compression | Coating | / |
|---|---|---|---|
| Shank Diameter | 3/8" | Router Bits Types | 3/8" Shank Spiral Bit |
| Cutting Diameter | 3/8" | Product Series | S-Series |
| Cutting Length | 7/8" | Cutting Edge Type | Solid Carbide |
| Overall Length | 3" | Measurement | Imperial |
| Flutes | 2 | Machinery Type | CNC Router |
| Material | Plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals | ||
| Rotation | Compression |
|---|---|
| Shank Diameter | 3/8" |
| Cutting Diameter | 3/8" |
| Cutting Length | 7/8" |
| Overall Length | 3" |
| Flutes | 2 |
| Coating | / |
Order by 4:30 PM EST to Ship Today.
Couldn't load pickup availability
CNC Software Tool File Database
| Image | SKU | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S3802 | Compression | 2 | 3/8" | 3/8" | 1-1/16" | 3" | ||||
|
S3804 | Upcut | 2 | 3/8" | 3/8" | 2" | 4" | ||||
|
S3806 | Compression | 2 | 3/8" | 3/8" | 1-5/8" | 3-1/2" | ||||
|
S3808 | Downcut | 2 | 3/8" | 3/8" | 1" | 2-1/2" | ||||
|
S3809 | Compression | 3 | 3/8" | 3/8" | 7/8" | 3" | ||||
|
S3811 | Compression | 2 | 3/8" | 3/8" | 7/8" | 3" |
Why Choose Spiral Router Bits Instead of Straight Bits?
- Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.
What is Compression (Up-Cut & Down-Cut) Bits?
- Features: Compression bits combine the features of both up-cut and down-cut bits. The top part of the bit is designed to be down-cut, improving the top edge finish, while the bottom part is up-cut, enhancing the finish on the bottom side of the material. This up-cut down-cut action is what leaves a sharp, clean edge on both edges of your workpiece.
- Applications: The preferred bit for cutting laminated materials or any situation where both sides of the material are visible and require a fine finish.
- Considerations: To fully benefit from a compression bit, it's crucial to make the initial cut deeper than the length of the up-cut flutes to prevent any tear-out or chipping on either side of the material.
Why Choose ZahyoX 3/8 inch Shank Router Bits?

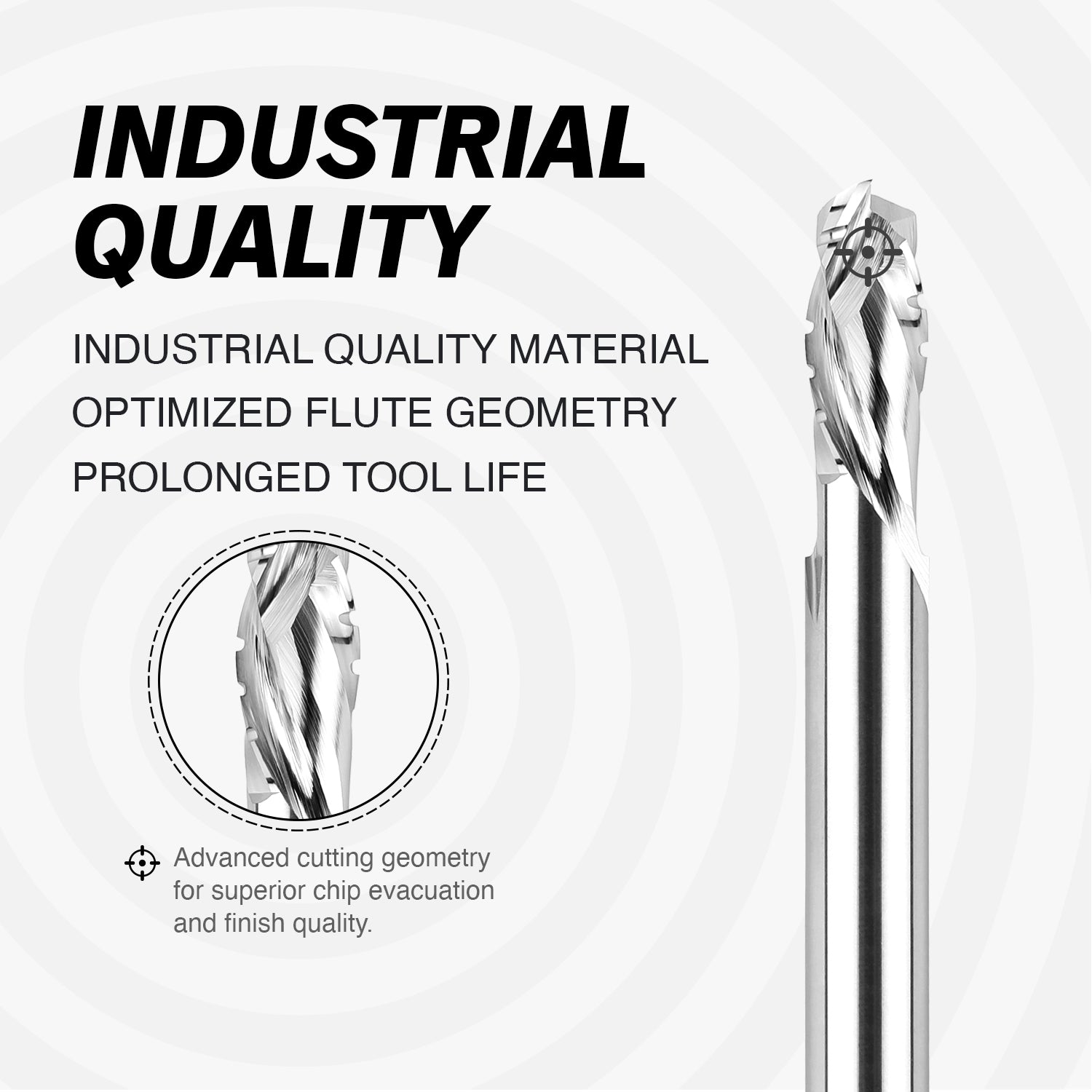

- Industrial-Grade Solid Carbide: Made of industrial quality Solid Carbide, reinforced with Tungsten Carbide cutters. This 3/8 inch compression router bit is specifically designed to provide high-quality finish and efficient cuts.
- Excellent for Cutting: Perfect for CNC sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.

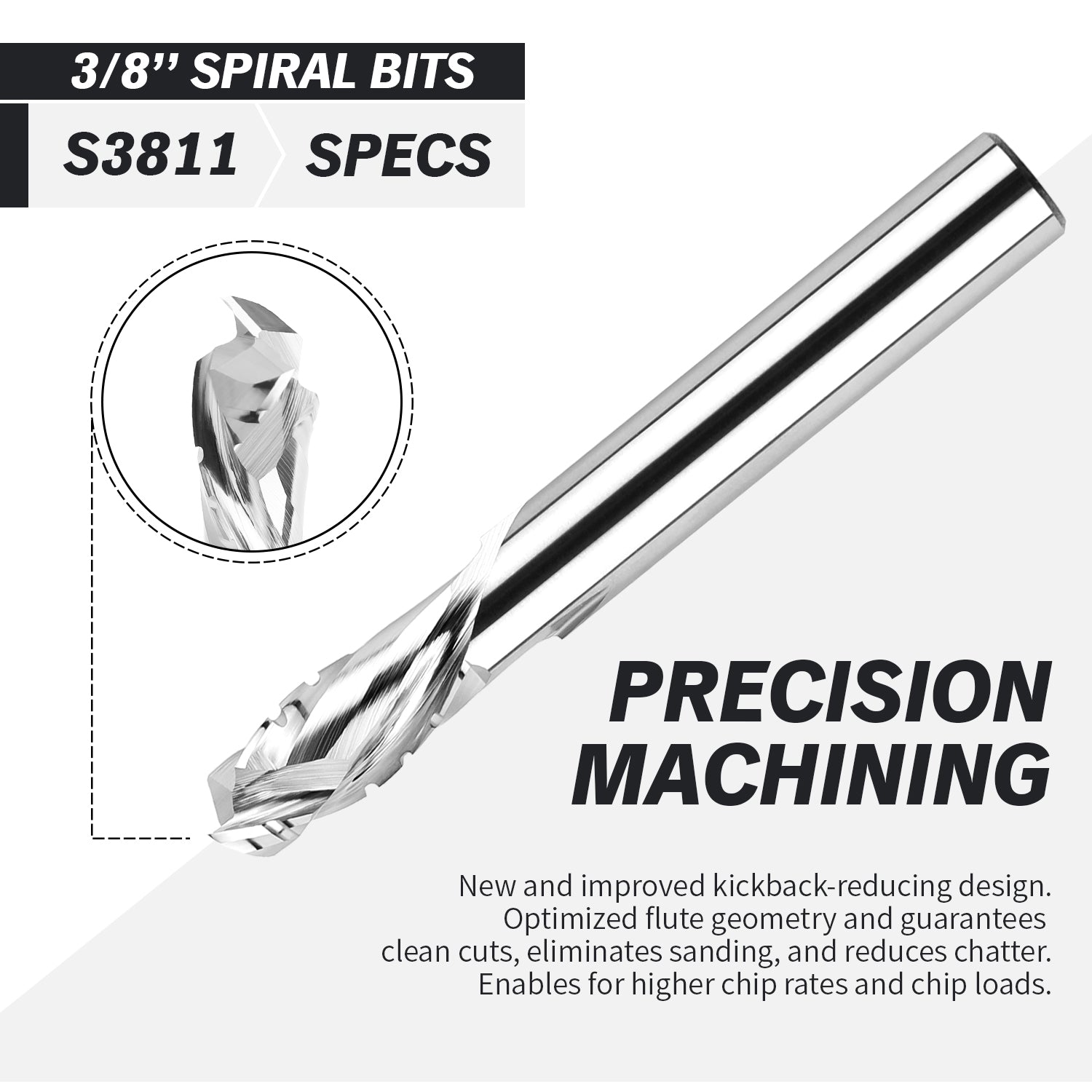

- Maximize Efficiency: Kickback-reducing design prevents overfeed and tearout. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts and efficiency than other bits on the market.
- Trusted Brand: ZahyoX provides industrial quality CNC & woodworking tools at an affordable price, by using superior materials, cutting-edge machinery and patented technology. Fully guaranteed with online customer support team.
Total 5 star reviews: 2 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
100%would recommend this product
2 reviews
- SESamuel E. S.Rated 5 out of 5 starsPlywood Cutting Perfection
I rely on this bit for the initial cut through plywood, then switch to an upcut for the rest of the job. It minimizes tearout, resulting in parts that need less sanding. Just be aware, it's not designed for deep cuts where material can obstruct the path.
- ACAubrey C. B.Rated 5 out of 5 starsHigh-Performance Cutting Power
This tool is a powerhouse—fast, sharp, and efficient. It handles 16k RPM and a 35 feed rate with ease, cutting through all but the densest woods without breaking a sweat.
