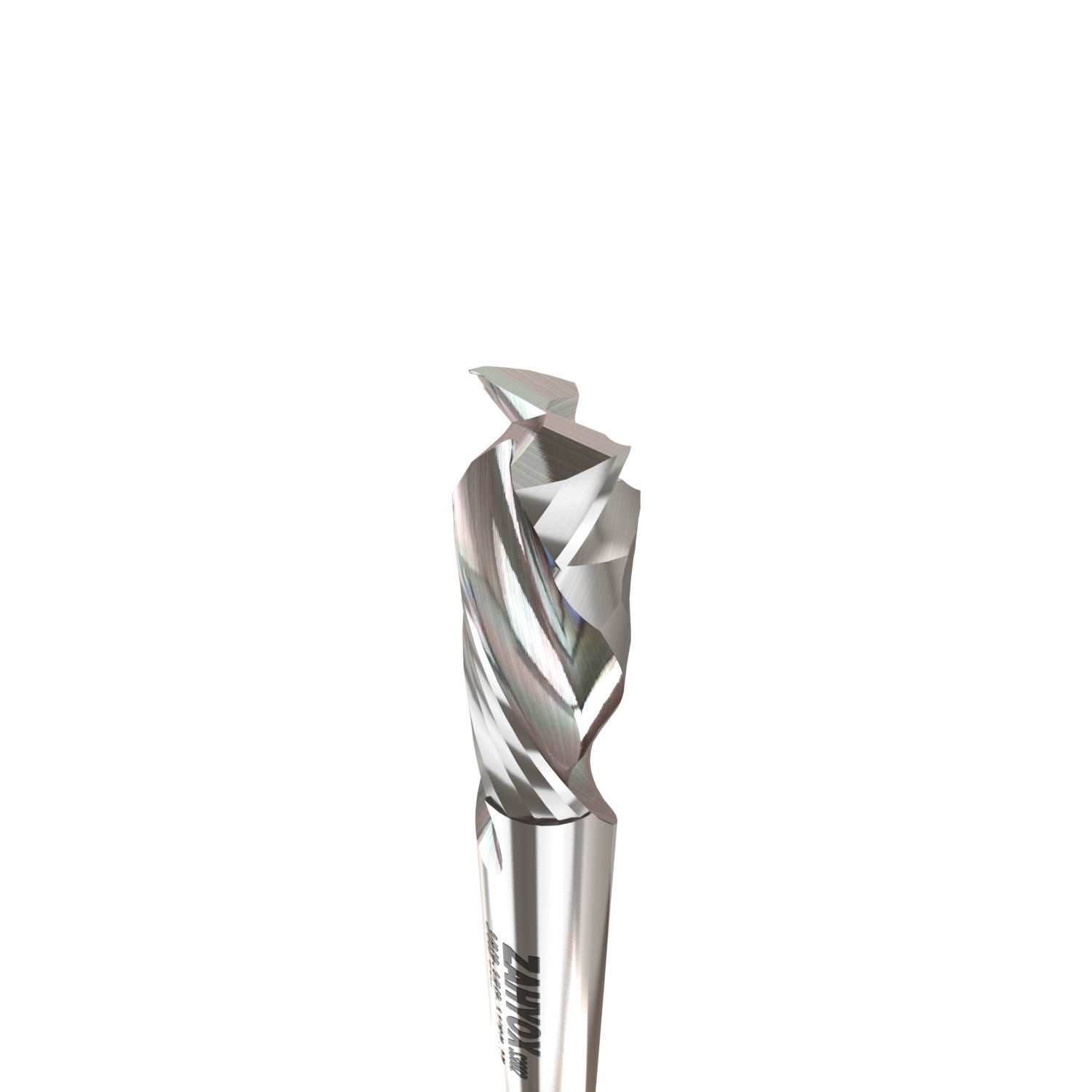

3/8" Shank Solid Carbide Compression CNC Spiral Router Bit - 2 Flutes - 3/8" Cutting Dia - 1-1/16" LOC - 3" OAL - S3802
3/8" Shank Solid Carbide Compression CNC Spiral Router Bit - 2 Flutes - 3/8" Cutting Dia - 1-1/16" LOC - 3" OAL - S3802
| Rotation | Compression | Coating | / |
|---|---|---|---|

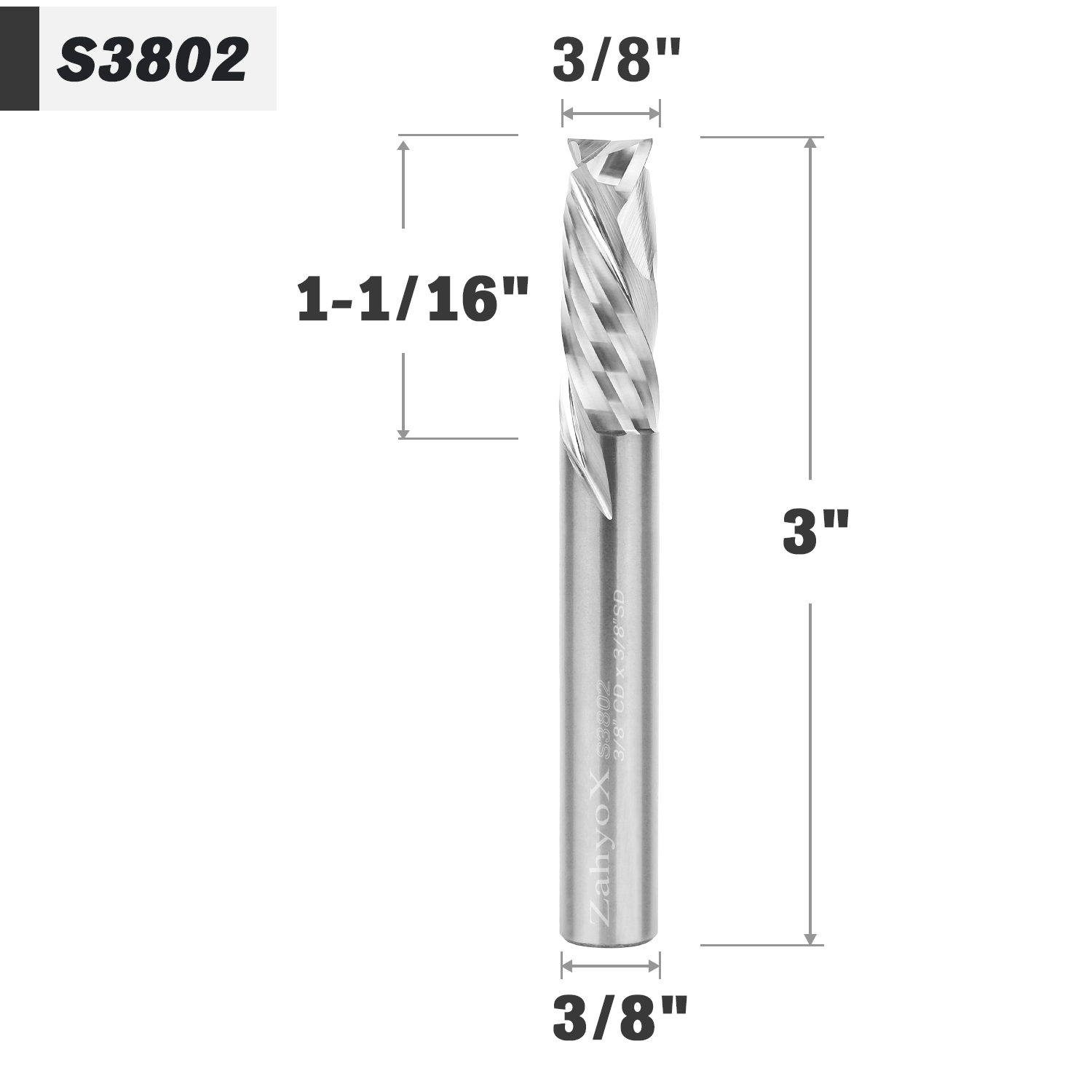

| Shank Diameter | 3/8" | Router Bits Types | 3/8" Shank Spiral Bit |
| Cutting Diameter | 3/8" | Product Series | S-Series |
| Cutting Length | 1-1/16" | Cutting Edge Type | Solid Carbide |
| Overall Length | 3" | Measurement | Imperial |
| Flutes | 2 | Machinery Type | CNC Router |
| Material | Plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals | ||
| Rotation | Compression |
|---|---|
| Shank Diameter | 3/8" |
| Cutting Diameter | 3/8" |
| Cutting Length | 1-1/16" |
| Overall Length | 3" |
| Flutes | 2 |
| Coating | / |
Order by 4:30 PM EST to Ship Today.
Couldn't load pickup availability
| Image | SKU | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S3802 | Compression | 2 | 3/8" | 3/8" | 1-1/16" | 3" | ||||
|
S3804 | Upcut | 2 | 3/8" | 3/8" | 2" | 4" | ||||
|
S3806 | Compression | 2 | 3/8" | 3/8" | 1-5/8" | 3-1/2" | ||||
|
S3808 | Downcut | 2 | 3/8" | 3/8" | 1" | 2-1/2" | ||||
|
S3809 | Compression | 3 | 3/8" | 3/8" | 7/8" | 3" | ||||
|
S3811 | Compression | 2 | 3/8" | 3/8" | 7/8" | 3" |
Why Choose Spiral Router Bits Instead of Straight Bits?
- Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.
What is Compression (Up-Cut & Down-Cut) Bits?
- Features: Compression bits combine the features of both up-cut and down-cut bits. The top part of the bit is designed to be down-cut, improving the top edge finish, while the bottom part is up-cut, enhancing the finish on the bottom side of the material. This up-cut down-cut action is what leaves a sharp, clean edge on both edges of your workpiece.
- Applications: The preferred bit for cutting laminated materials or any situation where both sides of the material are visible and require a fine finish.
- Considerations: To fully benefit from a compression bit, it's crucial to make the initial cut deeper than the length of the up-cut flutes to prevent any tear-out or chipping on either side of the material.
Why Choose ZahyoX 3/8 inch Shank Router Bits?

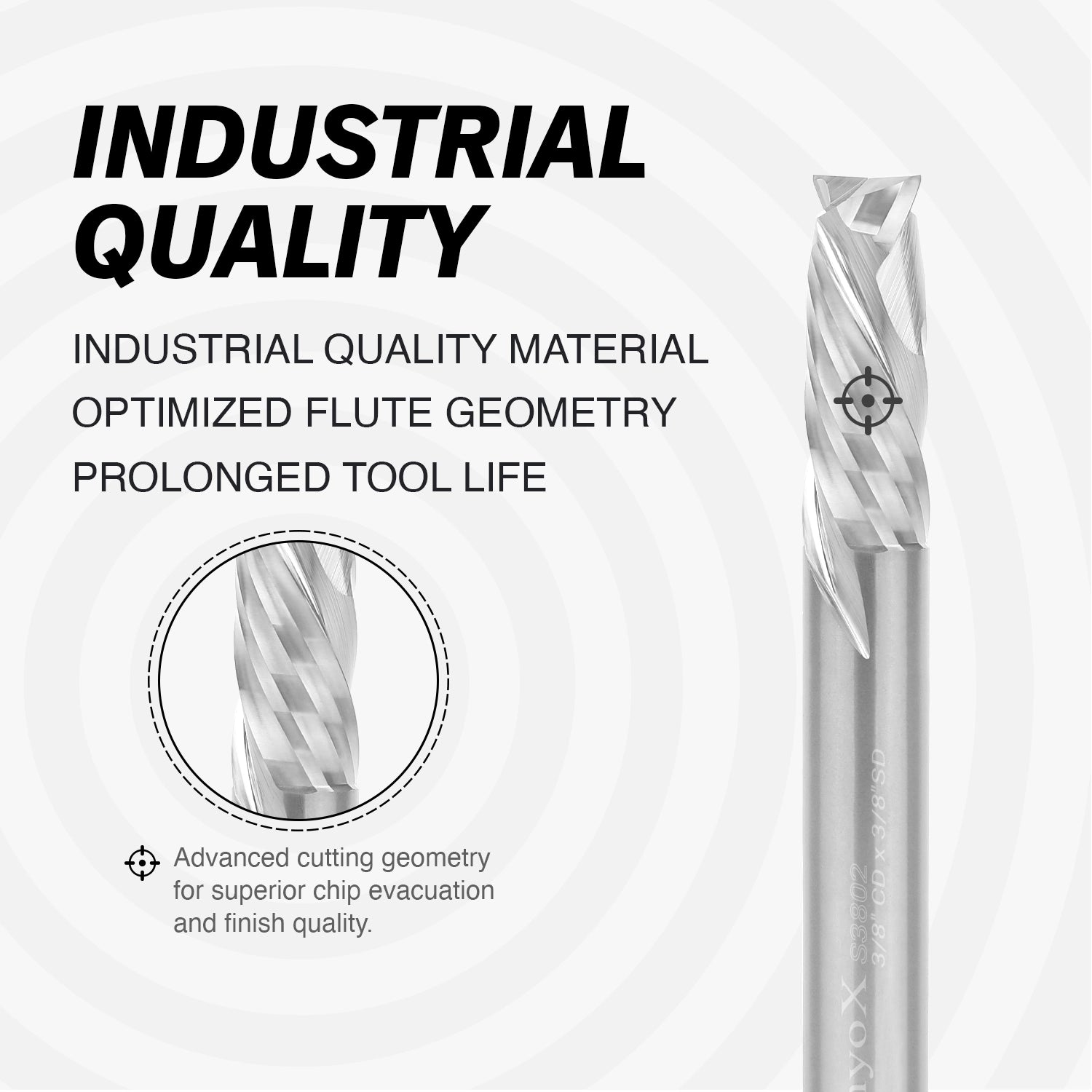

- Industrial-Grade Solid Carbide: Made of industrial-quality Solid Carbide, reinforced with Tungsten Carbide cutters. This 3/8-inch compression router bit is specifically designed to provide high-quality finish and efficient cuts.
- Excellent for Cutting: Perfect for CNC sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.

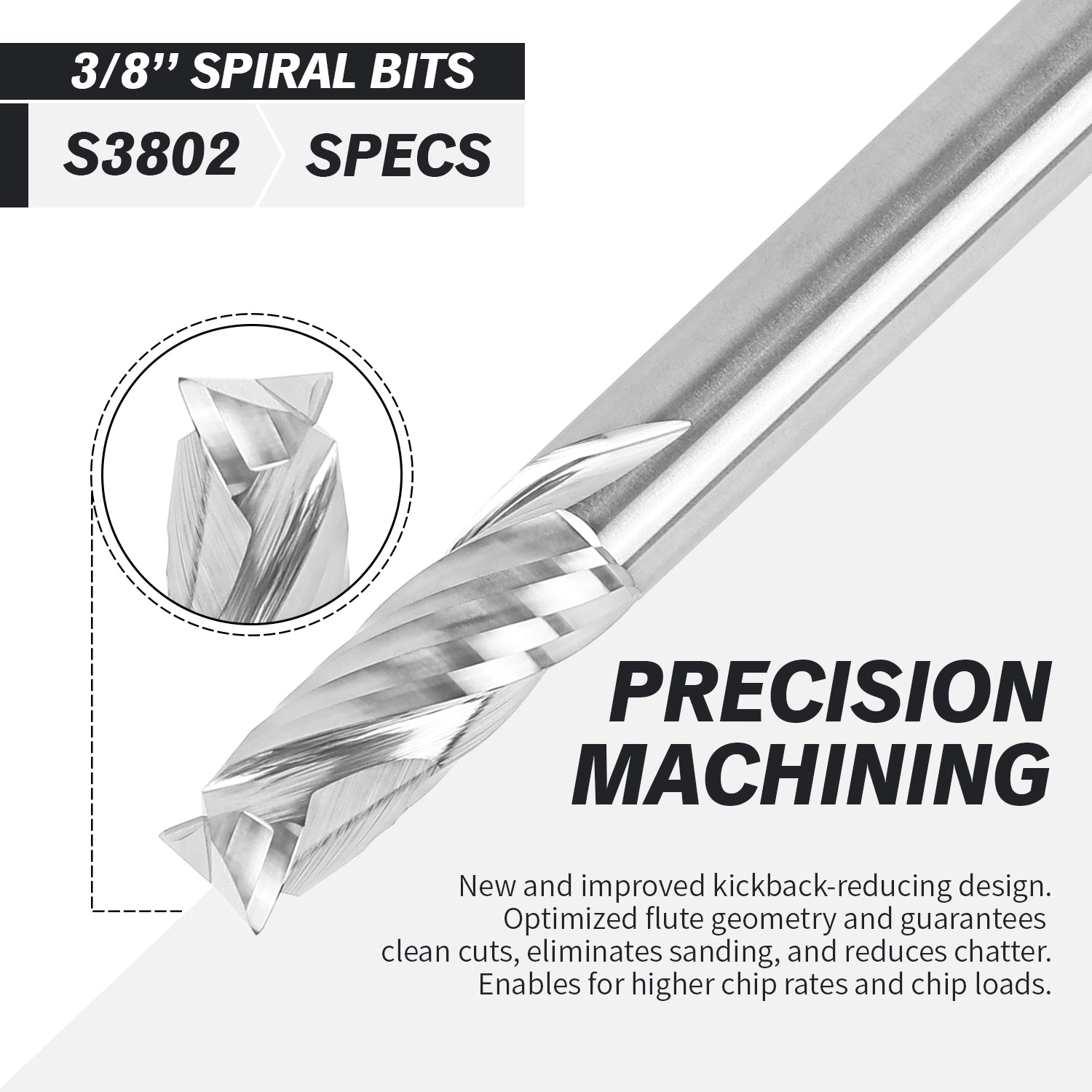

- Maximize Efficiency: Kickback-reducing design prevents overfeeding and tearout. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts and efficiency than other bits on the market.
- Trusted Brand: ZahyoX provides industrial quality CNC & woodworking tools at an affordable price, by using superior materials, cutting-edge machinery and patented technology. Fully guaranteed with online customer support team.
- CCaitlinVerified BuyerRated 5 out of 5 starsnice bit, comes in sharp, works well.
This bit comes in a tight-fitting plastic case to protect it when not in use. Came with perfectly even and sharp tip. Well made compression bit which starts with an upcut bit and turns into a down cut for clean edges on top and bottom of boards.
- SASparky A.Rated 5 out of 5 starsfast shipping
got to my doorstep next day. Tried it once on table router and works as intended so far.
- RHRoy H.Rated 5 out of 5 starsA+
Local hardware store has something like this for $59 so I got this instead.
Worked great so far, virtually no tear out
- CMCharlie m.Rated 5 out of 5 starsWorth every cent
Used it on trespa high density laminate board. Wonderful finish, great chipload, no visible tear
- WWolfnRavenVerified BuyerRated 4 out of 5 starsSeems to cut ok
Like another reviewer said, you will need an ER-16 or larger collet compatible spindle to run this bit… it will not fit in the smaller ER11 collets found on most smaller routers or spindles. For the test, we cut partial depth cuts in the sides to make turkey calls and it left a nice surface at the bottom as well as the top, even though we were still engaging the upcut portion, there was no tear out. We also tried it to cut full depth pockets and it work fine but this really wasn’t the right use of the bit. So we routed a 24x24” test pc of ¾” plywood in both directions at .0045” per tooth and worked fine. You may want to reference one of your other bit catalogues for 2-flute, 3/8” compression bit for parameters since the manufacturer didn’t provide this data. I’ll need to run this bit more for a final conclusion but based on the limited run, it has been working good.
