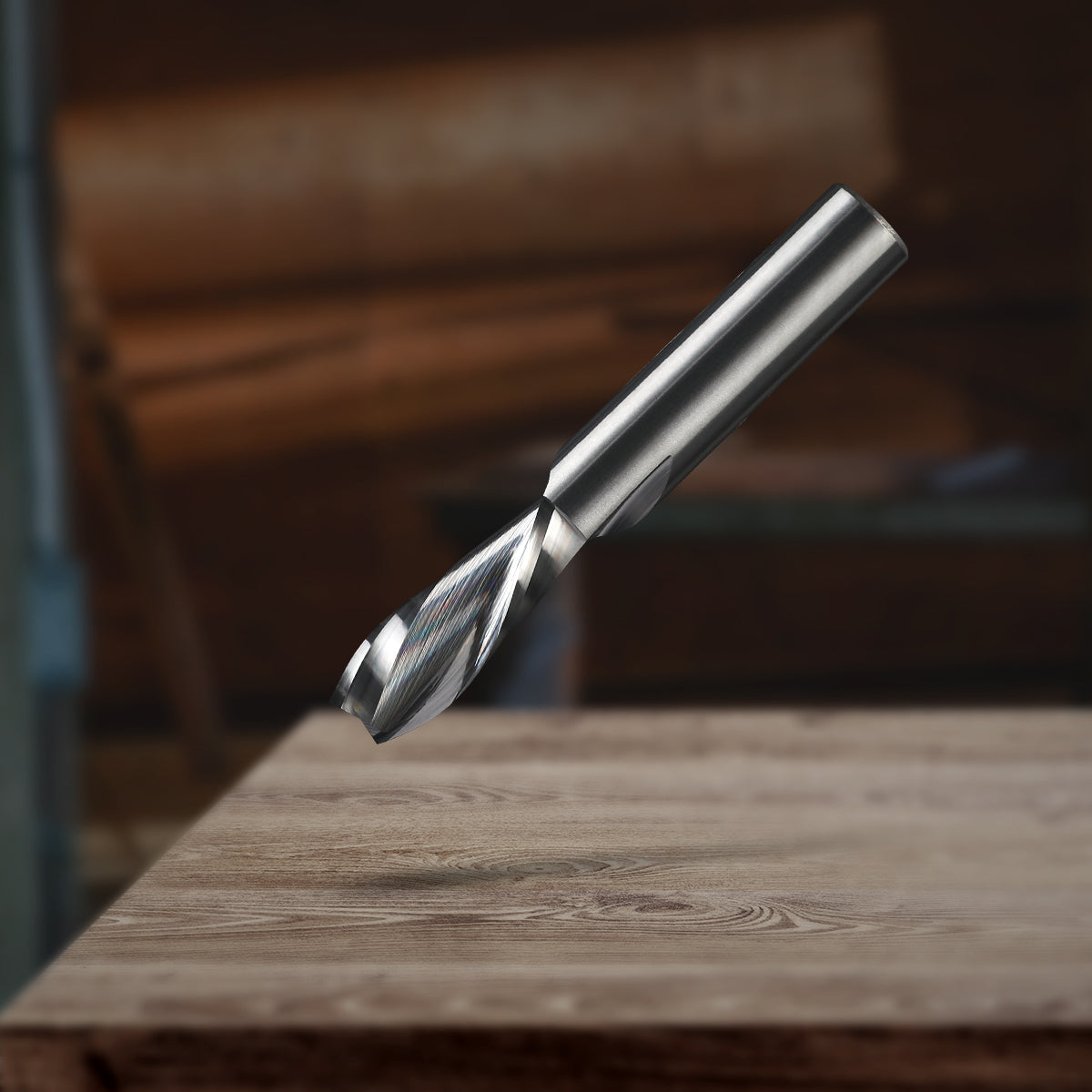

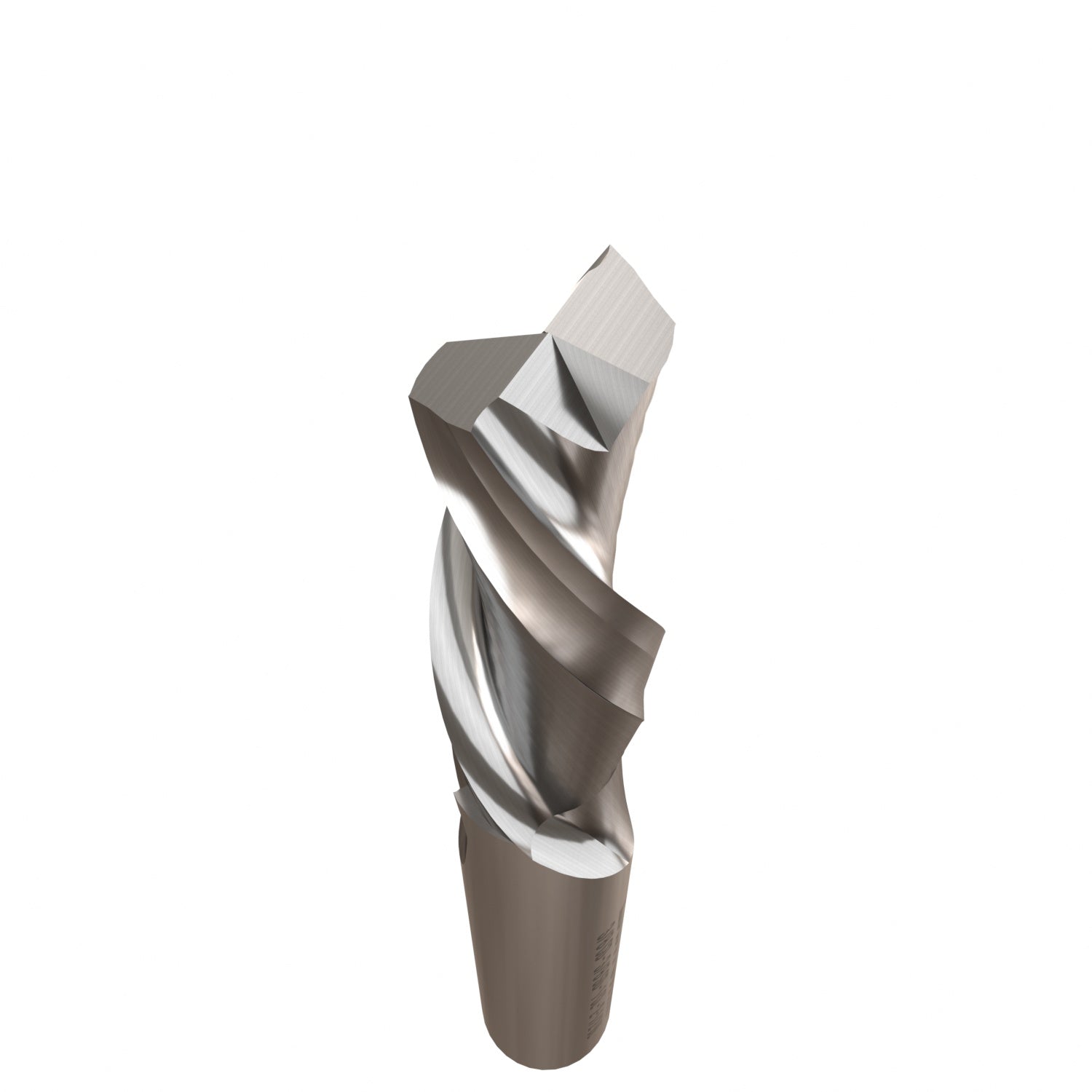

S3808 3/8" Shank Solid Carbide Downcut CNC Spiral Router Bit - 2 Flutes - 3/8" Cutting Dia - 1" LOC - 2-1/2" OAL
S3808 3/8" Shank Solid Carbide Downcut CNC Spiral Router Bit - 2 Flutes - 3/8" Cutting Dia - 1" LOC - 2-1/2" OAL

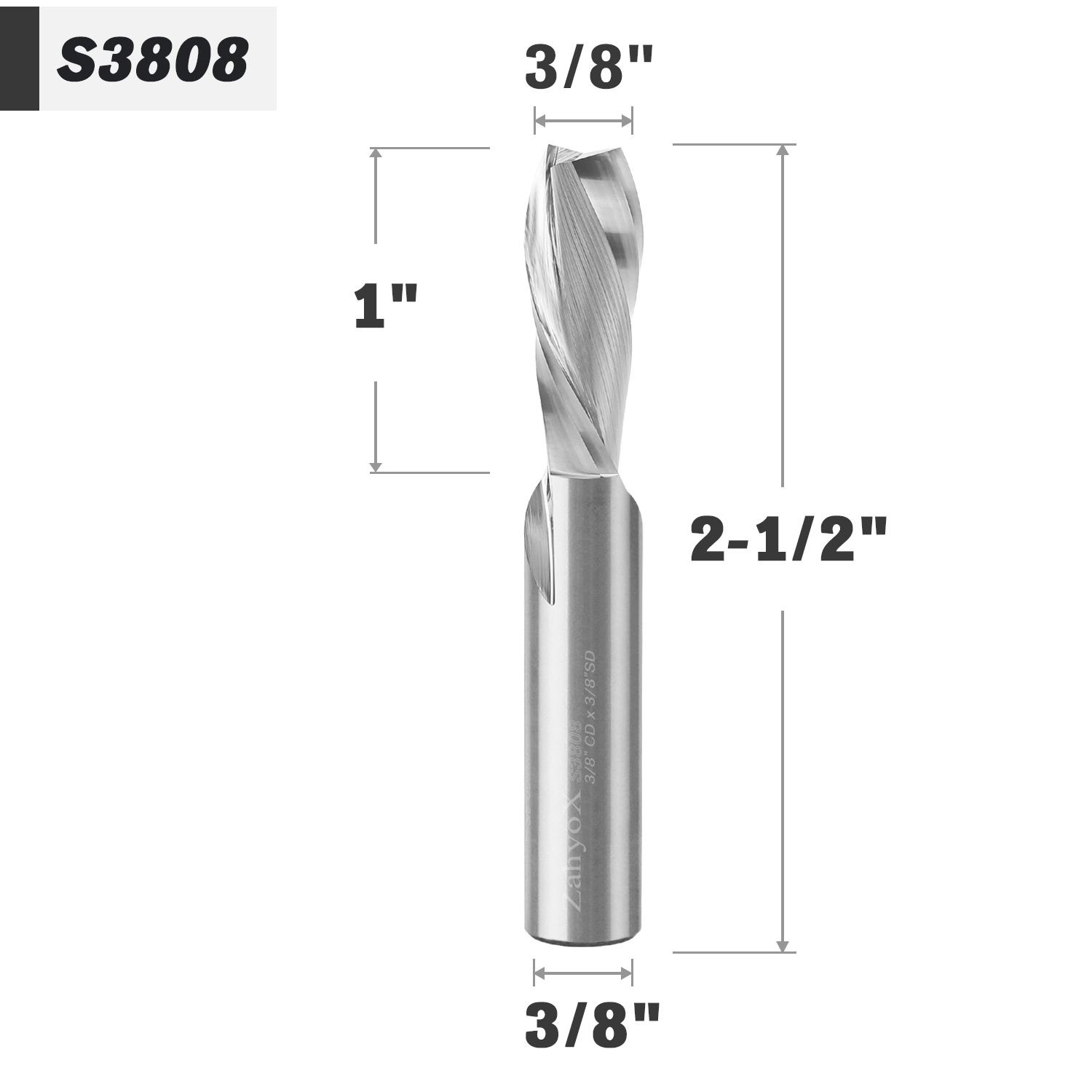

| Rotation | Downcut | Coating | / |
|---|---|---|---|
| Shank Diameter | 3/8" | Router Bits Types | 3/8" Shank Spiral Bit |
| Cutting Diameter | 3/8" | Product Series | S-Series |
| Cutting Length | 1" | Cutting Edge Type | Solid Carbide |
| Overall Length | 2-1/2" | Measurement | Imperial |
| Flutes | 2 | Machinery Type | CNC Router |
| Material | Plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals | ||
| Rotation | Downcut |
|---|---|
| Shank Diameter | 3/8" |
| Cutting Diameter | 3/8" |
| Cutting Length | 1" |
| Overall Length | 2-1/2" |
| Flutes | 2 |
| Coating | / |
Order by 4:30 PM EST to Ship Today.
Couldn't load pickup availability
| Image | SKU | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S3801 | Compression | 2 | 3/8" | 3/8" | 1-1/16" | 3" | ||||
|
S3802 | Compression | 2 | 3/8" | 3/8" | 1-1/16" | 3" | ||||
|
S3803 | Upcut | 2 | 3/8" | 3/8" | 2" | 4" | ||||
|
S3804 | Upcut | 2 | 3/8" | 3/8" | 2" | 4" | ||||
|
S3805 | Compression | 2 | 3/8" | 3/8" | 1-5/8" | 3-1/2" | ||||
|
S3806 | Compression | 2 | 3/8" | 3/8" | 1-5/8" | 3-1/2" | ||||
|
S3807 | Downcut | 2 | 3/8" | 3/8" | 1" | 2-1/2" | ||||
|
S3808 | Downcut | 2 | 3/8" | 3/8" | 1" | 2-1/2" | ||||
|
S3809 | Compression | 3 | 3/8" | 3/8" | 7/8" | 3" | ||||
|
S3811 | Compression | 2 | 3/8" | 3/8" | 7/8" | 3" | ||||
|
S3812 | Compression | 2 | 3/8" | 3/8" | 1-1/16" | 3" | ||||
|
S3815 | Compression | 2 | 3/8" | 3/8" | 1-5/8" | 3-1/2" | ||||
|
S3814 | Compression | 2 | 3/8" | 3/8" | 1-1/8" | 3" | ||||
|
S3813 | Compression | 2 | 3/8" | 3/8" | 1-1/8" | 3" |
Why Choose Spiral Router Bits Instead of Straight Bits?
- Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.
What is Down-Cut Bits?
- Features: The “down-cut” cuts from the surface down, leaving a smooth edge at the surface.
- Applications: Top Surface Finishing: Ideal for projects where a clean finish on the top surface is crucial, such as with veneers or laminated materials.
- Considerations: 1. Trapped Waste: The down-cut action pushes waste back into the cut area instead of being ejected, so the down-cut bits are unsuitable for cutting dados or drilling holes. 2. Slower Operation: Down-cut bits need to be run slower, both in RPM and spindle movement, to manage the waste build-up effectively.
Why Choose ZahyoX Router Bits?

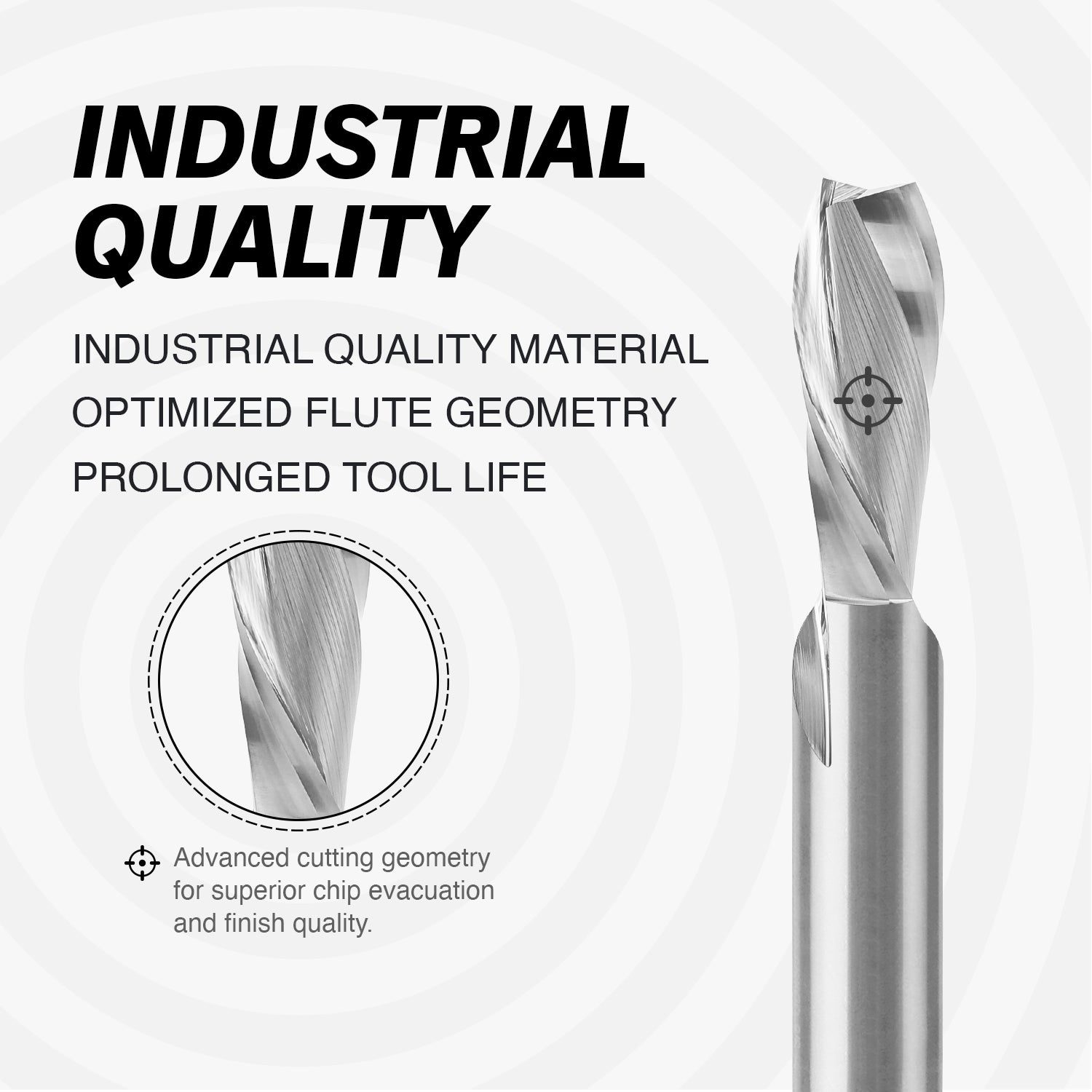

- Industrial-Grade Solid Carbide: Made of industrial quality Solid Carbide, reinforced with Tungsten Carbide cutters. This 3/8 inch downcut router bit is specifically designed to provide high-quality finish and efficient cuts.
- Excellent for Cutting: Perfect for CNC sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.

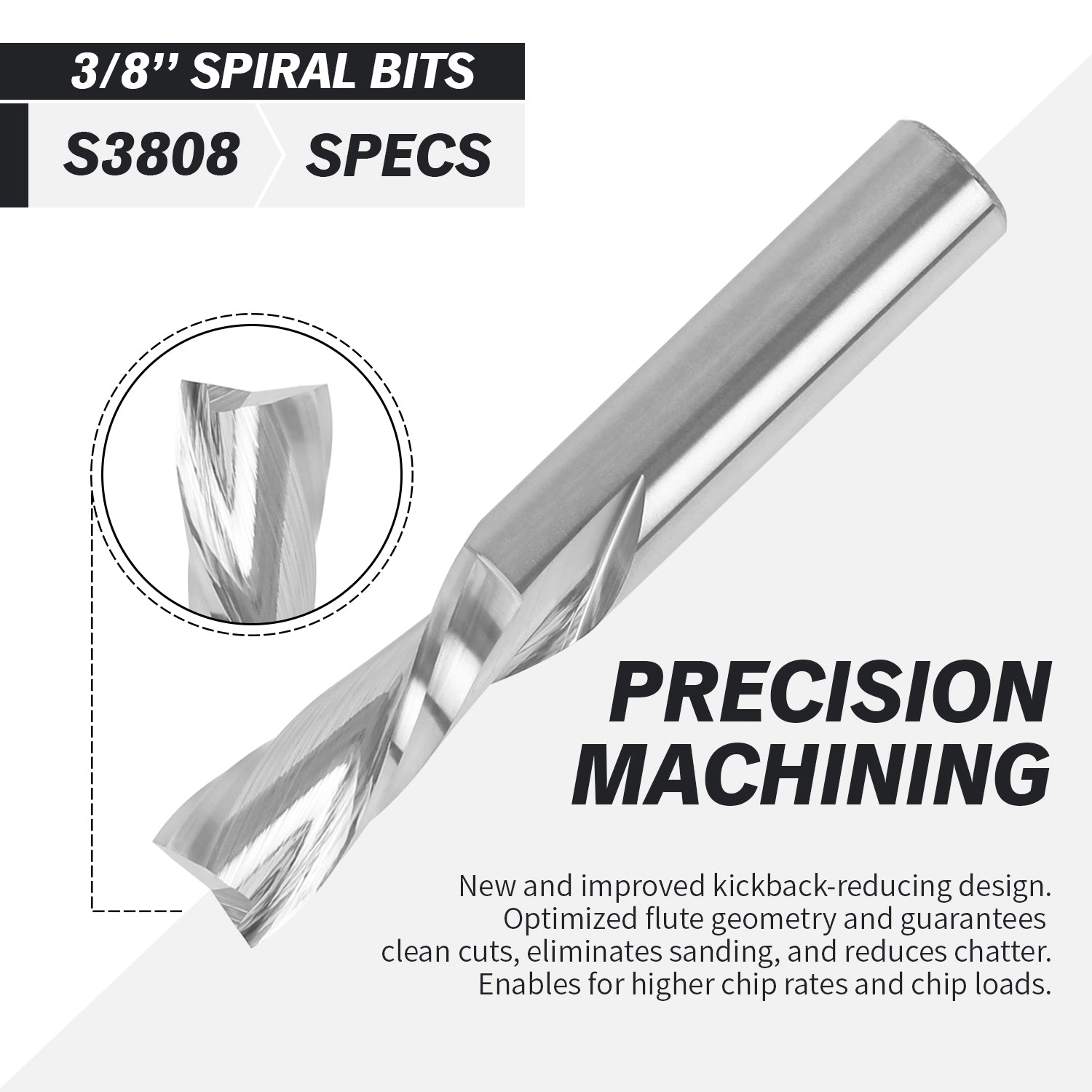

- Maximize Efficiency: Kickback-reducing design prevents overfeed and tearout. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts and efficiency than other bits on the market.
- Trusted Brand: ZahyoX provides industrial quality CNC & woodworking tools at an affordable price, by using superior materials, cutting-edge machinery and patented technology. Fully guaranteed with online customer support team.
- KCK C W.Verified BuyerRated 5 out of 5 starsWorks as advertised although a bit short
Very sharp, it cuts fine but limited to depth of cut of 1 inch. What I will be using it for will not be effected by that height so no issues here. I like that it also comes in the plastic case so it doesn't roll around in the bit drawer and possibly dull the cutting edge.
- THTerry H. W.Verified BuyerRated 5 out of 5 starsVery good quality, sharp CNC bit
The finish quality of this bit is very good, there are some machining marks in the flutes, but there are very few bits in this price range that don't have them.The bit is razor sharp and there were no obvious inclusions or voids in the carbide.Overall, a quality bit.
- SAS. A. H.Verified BuyerRated 5 out of 5 starsVery high-quality cutter!
ZahyoX 3/8” Router BitThis bit is sold for use in CNC routers, but I’ve found it works very well in plain old milling machines when working with plastics like Delrin. This is the first bit from ZahyoX that I’ve used so I looked at it very carefully. One of the lessons I learned early on was that using cheap tooling is always a mistake.The bit comes packaged in a nice plastic case that protects the bit. It is clean and looks very well made. I looked at the bit edges using my stereo microscope and they are very clean and sharp. I always test new tooling on scrap material and this bit produced very clean cuts.There’s not really a lot you can say about a cutter other than it cuts well or it doesn’t. This one cuts very well. I can’t speak to its durability until I’ve used it for a while, but I expect it’s going to do very well.
- DEDouglas E. J.Rated 5 out of 5 starsRazor-Sharp and Long-Lasting
This tool is a testament to sharpness and durability. It delivers a spotless cut every time.
- TCThomas C. C.Rated 5 out of 5 starsExceptional Quality and Performance
The finish on this tool and its work is nothing short of impressive. I've put it through its paces in wood, and it's been flawless—no hiccups even when the wood moves during plunge. Plus, it comes in a handy plastic case, ensuring it stays pristine for future projects.
