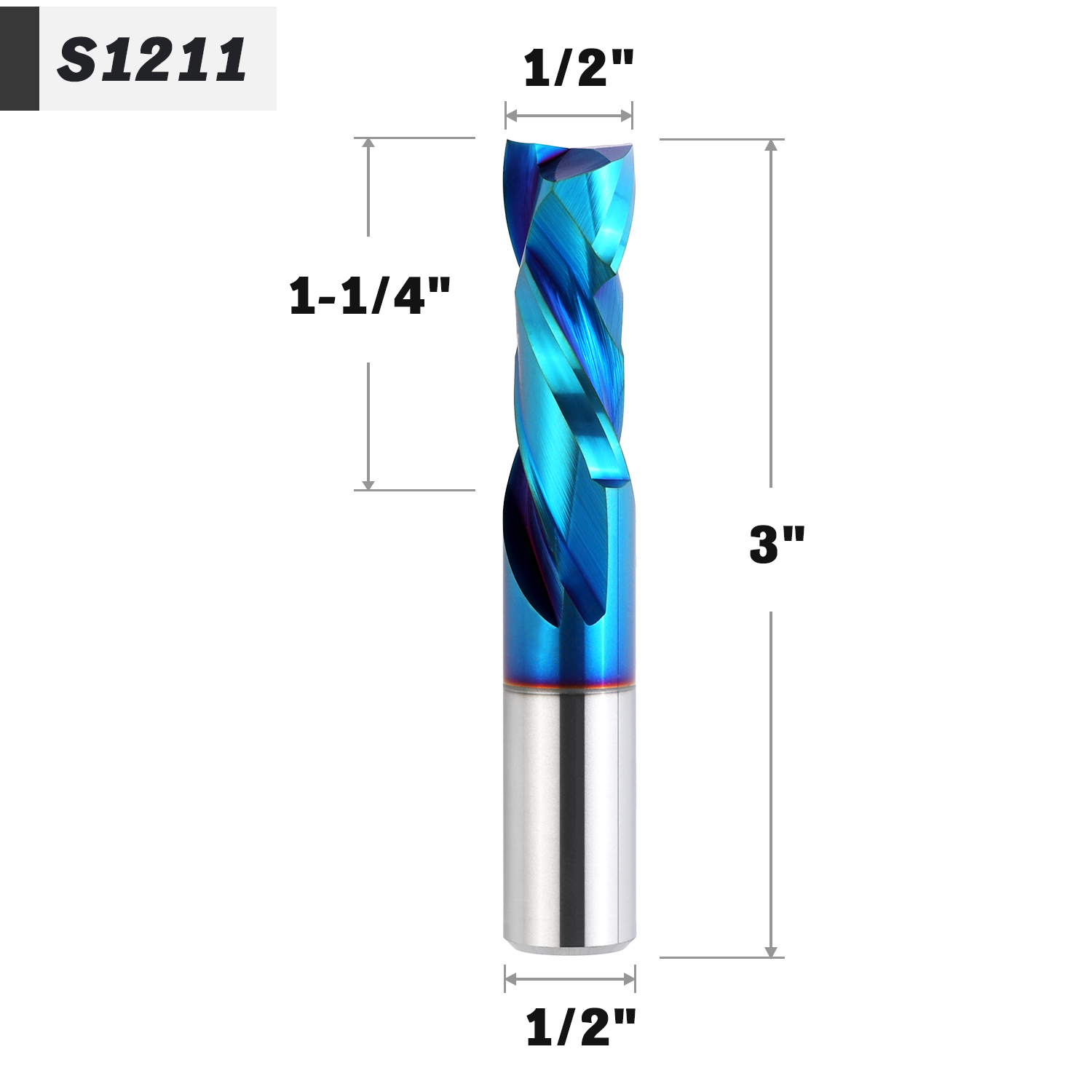

S1211 PRO Solid Carbide Nano Coated Compression Spiral Router Bit - 2 Flutes - 1/2 SD - 1/2 CD - 1-1/4 CL - 3 OL - 1/2 UCL
S1211 PRO Solid Carbide Nano Coated Compression Spiral Router Bit - 2 Flutes - 1/2 SD - 1/2 CD - 1-1/4 CL - 3 OL - 1/2 UCL
- Router Bits Types: Flat End Mill
- Series: PRO-Series
- Cutting Edge Type: Solid Carbide
- Rotation: Compression
- Cutting Diameter: 1/2"
- Shank Diameter: 1/2"
- Cutting Length: 1-1/4"
- Overall Length: 3"
- Flutes: 2
- Coating: nACo
- Measurement: Imperial
- Machinery Type: CNC Router
- Material: Hardwoods, Softwoods, Laminate, Melamine, Plywood, MDF, Chipboard, Foamcore, Light Board, Aluminum Foamcore, Veneered Plywood, Particle, OSB, Solid Surface Material, Plastic, Acrylic

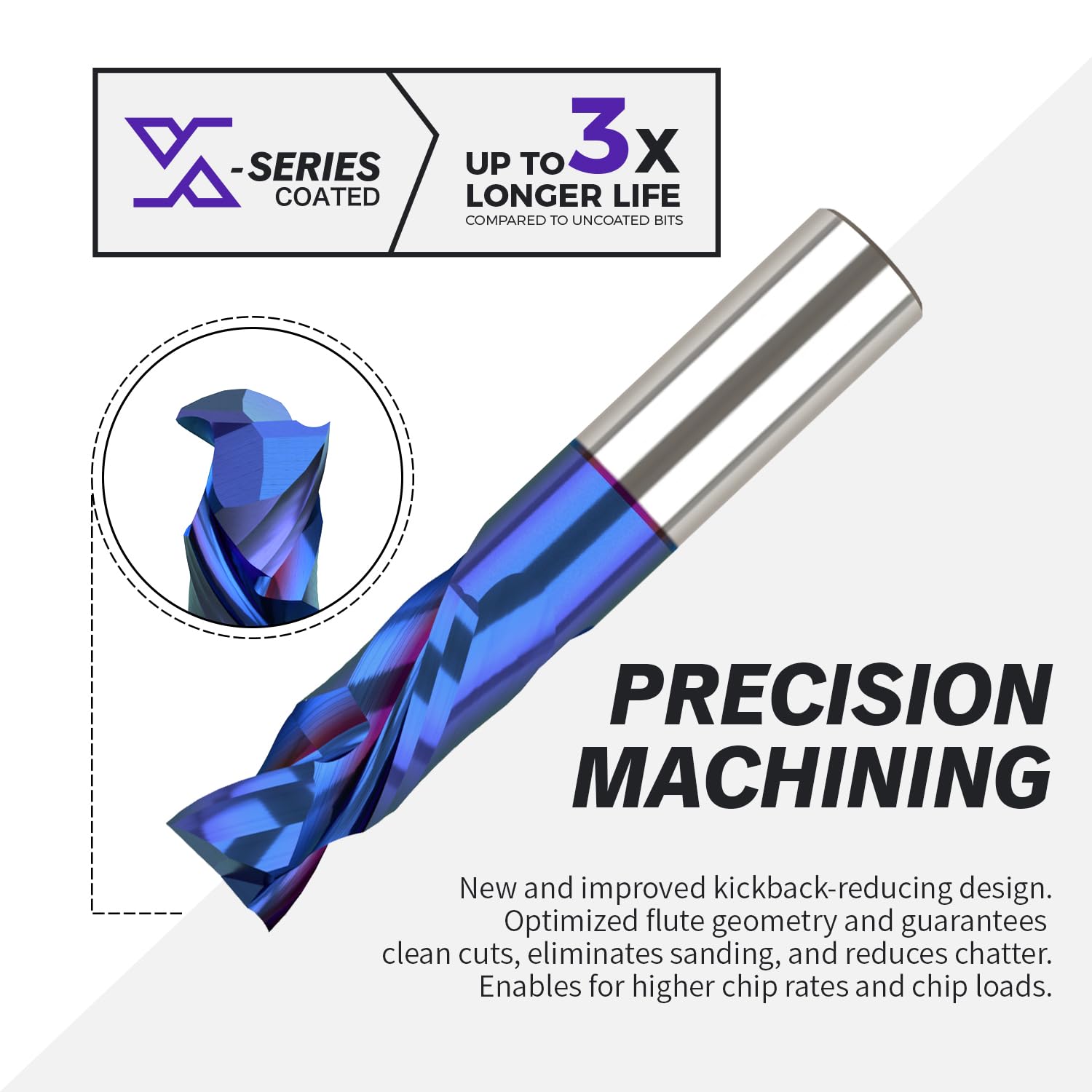

Why Choose Spiral Router Bits Instead of Straight Bits?
- Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.
What is Compression (Up-Cut & Down-Cut) Bits
- Features: Compression bits combine the features of both up-cut and down-cut bits. The top part of the bit is designed to be down-cut, improving the top edge finish, while the bottom part is up-cut, enhancing the finish on the bottom side of the material. This up-cut down-cut action is what leaves a sharp, clean edge on both edges of your workpiece.
- Applications: The preferred bit for cutting laminated materials or any situation where both sides of the material are visible and require a fine finish.
- Considerations: To fully benefit from a compression bit, it's crucial to make the initial cut deeper than the length of the up-cut flutes to prevent any tear-out or chipping on either side of the material.

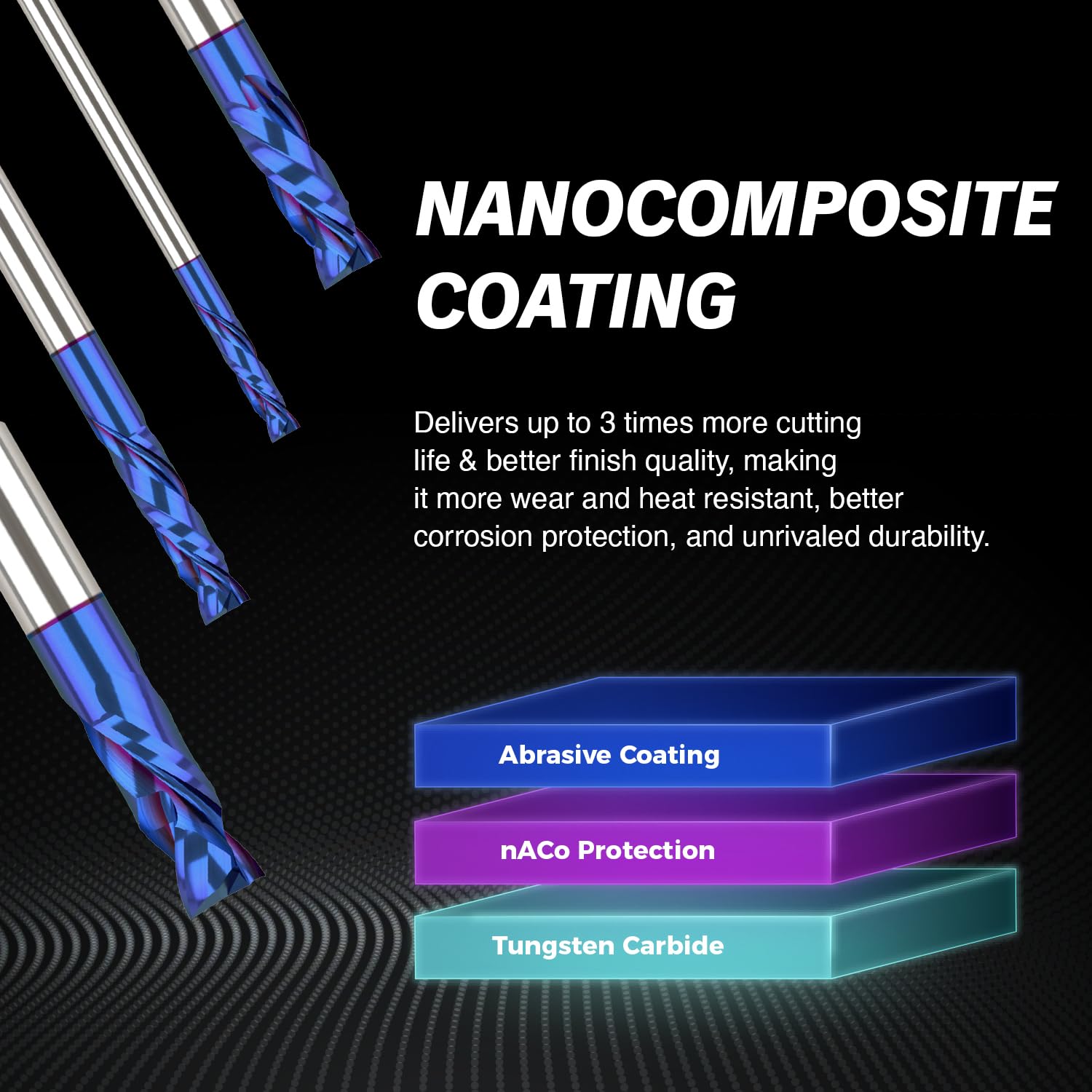

What is nACo Coating?
nACo, or nano-composite coating, is a micro-thin ceramic coating applied to cutting tools. Zahyox PRO-Series bits feature a nACo coating with extreme hardness and heat resistance. With a blue-tinted coloring, nACo enhances their performance and durability in router tooling.
- Sharpness Retention: Maintains cutting edges razor-sharp for precise and clean cuts.
- Reduced Friction: Features an extremely low friction coefficient of 0.25, minimizing tool wear and facilitating smoother operations.
- Heat Resistance: Can withstand up to 900°F, protecting tools from heat damage during intense cutting tasks.
- Enhanced Durability: Delivers a hardness of 3800 HV, which increases resistance to wear and extends 3 times longer tool life.
Couldn't load pickup availability
Shipping Policy
Shipping Policy
1. Shipping Locations
ZahyoX ships within the US. Our products are shipped from multiple warehouses located in the United States, China, and Germany.
2. Shipping Methods
ZahyoX uses a variety of shipping methods, including Amazon Fulfillment, FedEx, UPS, DHL, USPS, and SF Express to deliver our products. The shipping method used will depend on the destination and the item(s) being shipped.
3. Shipping Times
Shipping times will vary depending on the destination and the shipping method used. Most orders will be processed and shipped within 24 hours. Please note that shipping times are estimated and may be subject to delays due to holidays, weekends, and other unforeseen circumstances.
4. Shipping Fees
Shipping fees will vary depending on the destination and the shipping method used. Shipping fees will be calculated and displayed at checkout before the order is placed.
Shipping rates
| Shipping Zone | Service | Timeframe | Price |
|---|---|---|---|
| Contiguous US | Standard | 3-5 business days | Free for orders $49+ $3.99 under $49 |
| Contiguous US | Express | 2-3 business days | $2.99 on orders $49+ $6.99 under $49 |
| Germany | Standard | 3-5 business days | Free for orders $49+ $3.99 under $49 |
5. Tracking Information
Tracking information will be provided via email once the order has been shipped. You can also check the status of your order by Tracking Order.
6. Delivery
The recipient is responsible for receiving the package, please ensure that the delivery address is correct and that someone will be available to receive the package. If the package is returned to us due to an incorrect or incomplete address, or if the recipient is not available to receive the package, the customer will be responsible for any additional shipping fees.
7. Customs and Import Taxes
Please note that international shipments may be subject to customs and import taxes. The recipient is responsible for paying any customs or import taxes that may apply. ZahyoX is not responsible for any customs or import taxes that may be imposed on international shipments.
8. Sale Tax
All prices listed on our website are in US Dollars and inclusive of sales tax. The amount you see is the amount you pay, with no additional sales tax added at checkout.
If you have any questions or concerns regarding the shipping policy, please contact us at alwaysanswers@zahyox.com
Return & Refund
Return & Refund
1. Return Eligibility
-
ZahyoX will accept returns for any products that are in new, unused condition and in the original packaging within 15 days of receipt of the order.
-
Returns are accepted for defective, damaged, or missing items upon receipt, as well as for wrong items or incorrect packages sent.
-
Products that are used, damaged or missing parts will not be accepted.
2. Return Process
-
Submit your order number, the reason for your return, clear pictures or video of the item, and the shipping package. We will provide a return address via email once your return request is approved.
-
When returning the package, please ensure that the item is intact. (Except for defective items, damaged or missing upon receipt). Leave the items in the original box, sealed. Attach the barcode we provided to the package and send it to the return address.
-
When the items are sent out, send the shipping receipt and tracking number to us in time. (If you don't contact us, we can't help you deal with it.)
-
After our warehouse receives the items to confirm that they are not damaged and in item condition, you will get a refund within 5 business days. (Refunds will be issued back to the original method of payment.)
3. Return Shipping
The customer is responsible for the cost of return shipping. We recommend using a trackable and insured shipping method. ZahyoX is not responsible for lost or damaged return shipments.
-
We will pay the return shipping cost due to the manufacturer or our website errors. (Defective or damaged products, missing accessories, etc.)
-
If the return is caused by the consumer (such as dissatisfaction with the product or purchasing the wrong product), the consumer should be responsible for the cost of return shipping.
No restocking fee will be charged.
4. Refunds
Refunds will be issued to the original method of payment within 5 business days of receiving the returned product. Please note that original shipping charges are non-refundable.
5. Damaged or Defective Products
If you receive a damaged or defective product, please contact us at alwaysanswers@zahyox.com within 10 days of receipt of the order. We will provide instructions on how to proceed with the return and will replace the product or issue a refund.
6. Cancellations
-
Orders can be canceled at any time before shipping. Please contact us at alwaysanswers@zahyox.com to request a cancellation.
-
If you cancel an order after shipping or refuse delivery (except for deliveries refused due to shipping damage), it will be treated as a return and will be subject to shipping charges.
Tool File Database
Tool File Database
CNC Software Tool File Database
Save your work time by importing a utility database of default values. Use the links below to download the tool files for the application.
Fusion 360™ Compatible CNC Tool File
The tool files are applicable to all Fusion 360 versions.
These tool databases will be used as the default data for your CNC
project, and the actual parameters should be adjusted according
to your project and materials.
Fusion File Warning
The Fusion .tools file should only be used in conjunction with the
ZahyoX® item number specified. Using this file with other brands
is dangerous to the operator and CNC machine.
Installation:
1. Download it to a folder on your computer
2. In the fusion 360, go to "manufacture", then on the toolbar go to "tool library"
3. Right-click "import libraries", select the file you just downloaded, and import it.
Vectric® Compatible CNC Tool File
The tool files to be used with Vectric software from version 11.0 and up(other lower versions can also be tried). Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve.
These tool databases will be used as the default data for your CNC project, and the actual parameters should be adjusted according to your project and materials.
Vectric File Warning
The Vectric.vtdb file should only be used in conjunction with the ZahyoX® item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
Installation:
1. Download it to a folder on your computer
2. In the Vectric software(in the case of Aspire), on the toolbar go to "Toolpath", select "show toolpaths tab", then click "Display Tool Database"
3. Click "Import a tool database", select the file you just downloaded, and import it
Carbide 3D® Compatible CNC Tool File
The tool files to be used with Carbide Create Pro software from V6 and up (other lower versions can also be tried).
These tool databases will be used as the default data for your project, and the actual parameters should be adjusted according to your project and materials.
Import Data:
1. Download it to a folder on your computer
2. Unzip to a folder
3. In the Carbide Create Pro software, on the toolbar go to "Help", unfold "About", then click on the screen that pops up "Open Data Directory"
4. Open the folder path "Carbide Create\tools", paste the extracted.csv file into the "tools" folder, and you can use it on the software page
https://gem-3910432.netCarbide Create Tool File
Carveco® Compatible CNC Tool File
The tool files to be used with Carveco Maker software from version 1.28 and up(other lower versions can also be tried).
These tool databases will be used as the default data for your project, and the actual parameters should be adjusted according to your project and materials.
Carveco File Warning
The Carveco.tdb file should only be used in conjunction with the ZahyoX® item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
Installation:
1. Download it to a folder on your computer
2. In the Carveco Maker software, on the toolbar go to "Toolpath", unfold "Toolpaths Operations", then click "Tool Database"
3. Click "Import...", select the file you just downloaded, and import it
Carveco Maker Tool File
Contact Us
Email us, we’d love to hear from you!
| Image | SKU | Type | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1211 | Flat End Mill | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" | ||||
|
S1212 | Flat End Mill | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" |
Why Choose Spiral Router Bits Instead of Straight Bits?
- Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.
What is Compression (Up-Cut & Down-Cut) Bits
- Features: Compression bits combine the features of both up-cut and down-cut bits. The top part of the bit is designed to be down-cut, improving the top edge finish, while the bottom part is up-cut, enhancing the finish on the bottom side of the material. This up-cut down-cut action is what leaves a sharp, clean edge on both edges of your workpiece.
- Applications: The preferred bit for cutting laminated materials or any situation where both sides of the material are visible and require a fine finish.
- Considerations: To fully benefit from a compression bit, it's crucial to make the initial cut deeper than the length of the up-cut flutes to prevent any tear-out or chipping on either side of the material.
What is nACo Coating?
nACo, or nano-composite coating, is a micro-thin ceramic coating applied to cutting tools. Zahyox PRO-Series bits feature a nACo coating with extreme hardness and heat resistance. With a blue-tinted coloring, nACo enhances their performance and durability in router tooling.
- Sharpness Retention: Maintains cutting edges razor-sharp for precise and clean cuts.
- Reduced Friction: Features an extremely low friction coefficient of 0.25, minimizing tool wear and facilitating smoother operations.
- Heat Resistance: Can withstand up to 900°F, protecting tools from heat damage during intense cutting tasks.
- Enhanced Durability: Delivers a hardness of 3800 HV, which increases resistance to wear and extends 3 times longer tool life.
