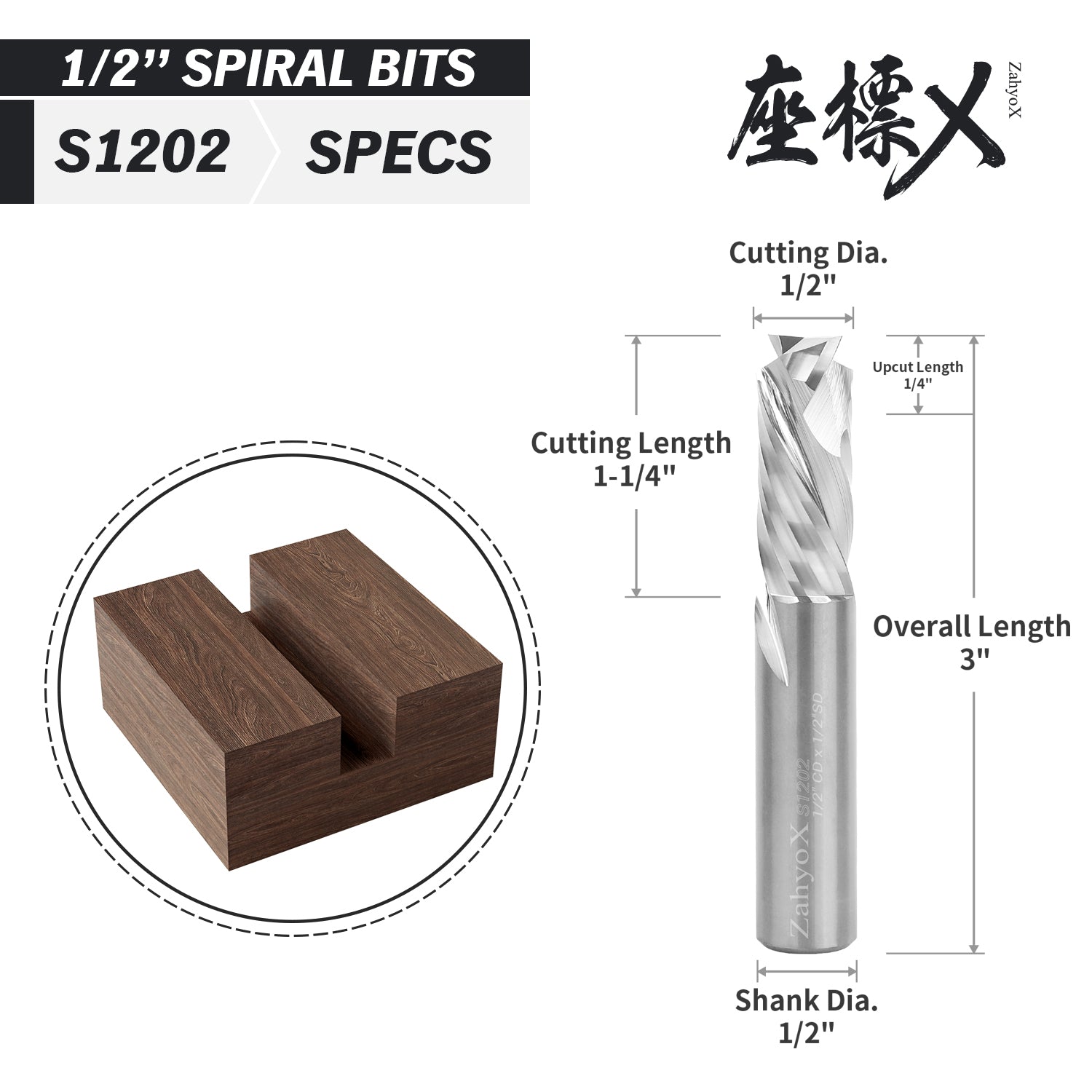

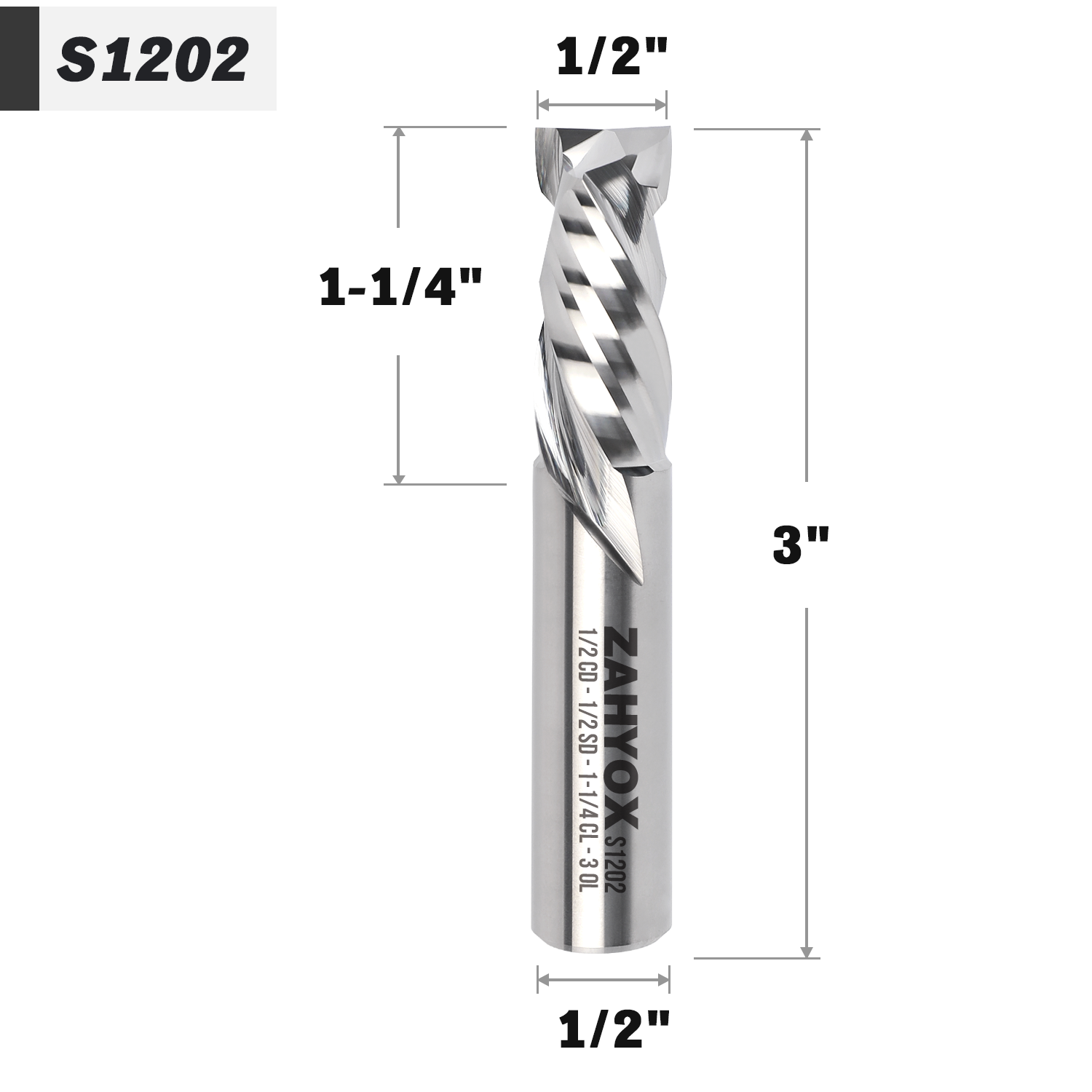

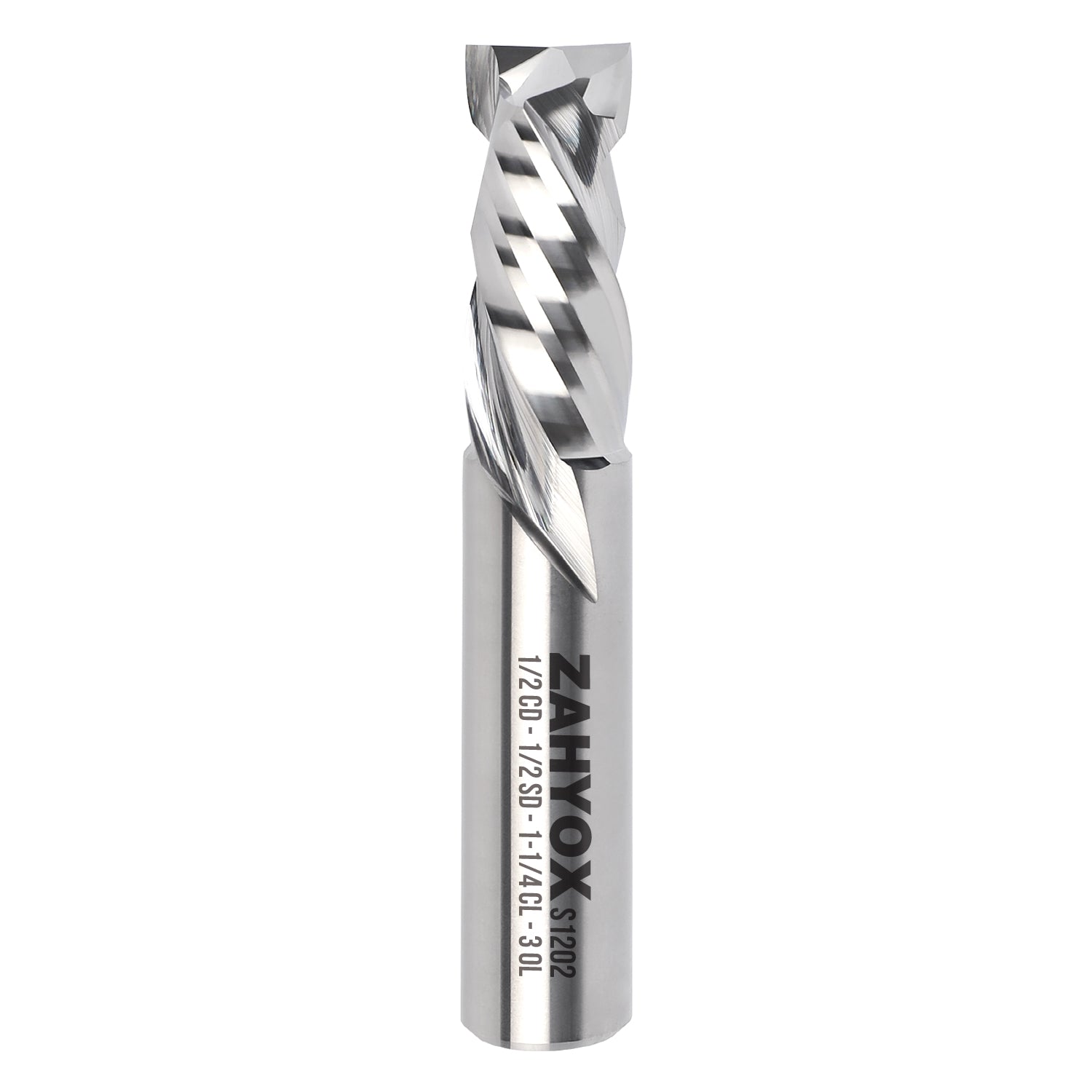

1/2" Shank Compression CNC Spiral Router Bit - 2 Flutes - 1/2" Cutting Dia - 1-1/4" LOC - 3" OAL - S1202
1/2" Shank Compression CNC Spiral Router Bit - 2 Flutes - 1/2" Cutting Dia - 1-1/4" LOC - 3" OAL - S1202
| Rotation | Compression | Coating | / |
|---|---|---|---|
| Shank Diameter | 1/2" | Router Bits Types | 1/2 Shank Spiral Bit |
| Cutting Diameter | 1/2" | Product Series | S-Series |
| Cutting Length | 1-1/4" | Cutting Edge Type | Solid Carbide |
| Overall Length | 3" | Measurement | Imperial |
| Flutes | 2 | Machinery Type | CNC Router |
| Material | Hardwoods, Softwoods, Plywood, MDF, HDF, LDF, Laminates, Melamine, Particle, Chipboard, Light Board | ||
| Rotation | Compression |
|---|---|
| Shank Diameter | 1/2" |
| Cutting Diameter | 1/2" |
| Cutting Length | 1-1/4" |
| Overall Length | 3" |
| Flutes | 2 |
| Coating | / |
Order by 4:30 PM EST to Ship Today.
Couldn't load pickup availability
| Image | SKU | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1202 | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" | ||||
|
S1201 | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" | ||||
|
S1211 | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" | ||||
|
S1212 | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" | ||||
|
S1203 | Compression | 2 | 1/2" | 1/2" | 2" | 4" | ||||
|
S1204 | Compression | 2 | 1/2" | 1/2" | 2" | 4" | ||||
|
S1205 | Upcut | 2 | 1/2" | 1/2" | 1-1/4" | 3" | ||||
|
S1206 | Upcut | 2 | 1/2" | 1/2" | 1-1/4" | 3" | ||||
|
S1207 | Downcut | 3 | 1/2" | 1/2" | 1-1/2" | 3-1/2" | ||||
|
S1208 | Downcut | 3 | 1/2" | 1/2" | 1-1/2" | 3-1/2" | ||||
|
S1209 | Compression | 2 | 1/2" | 1/2" | 1" | 3" |
Why Choose Spiral Router Bits Instead of Straight Bits?
- Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.

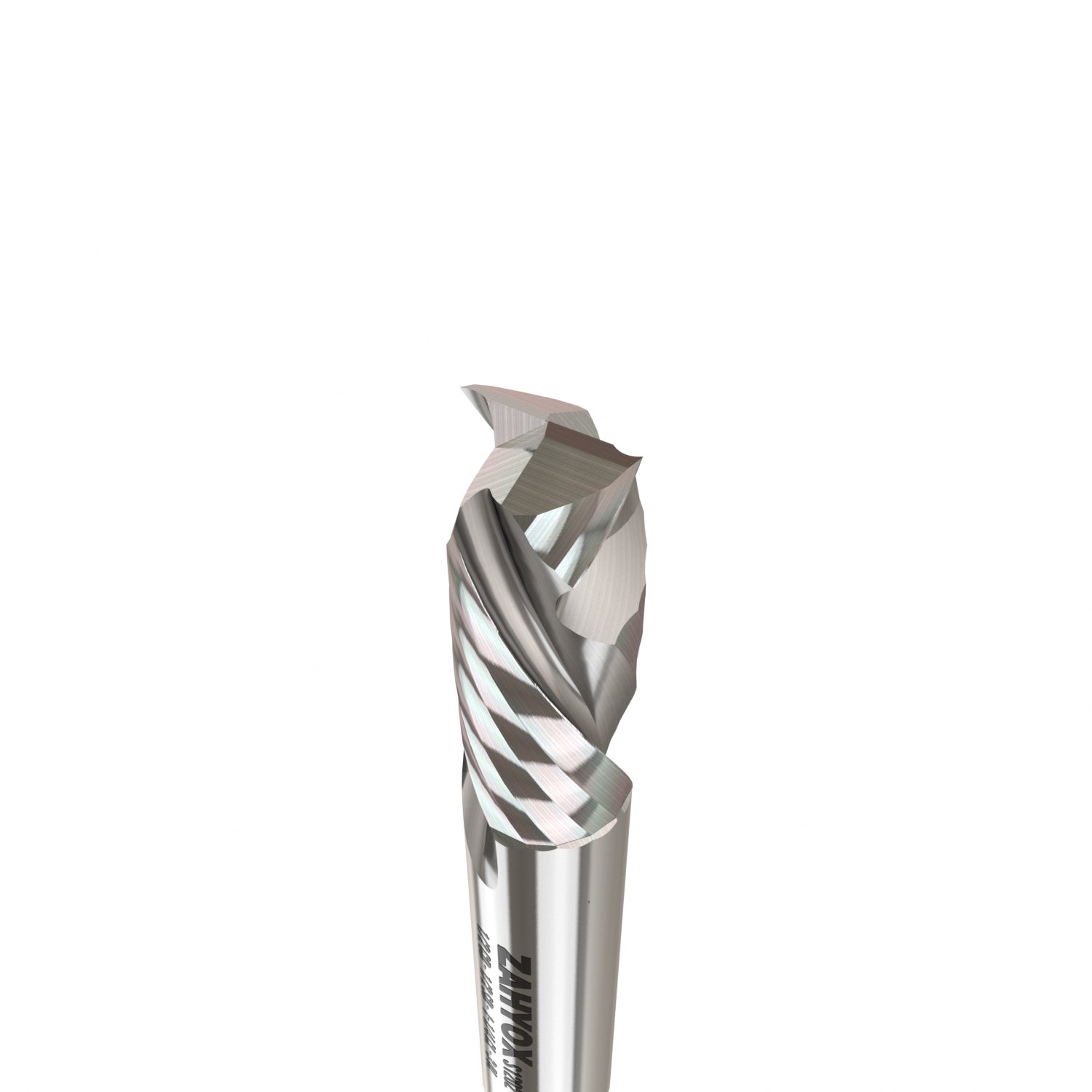

What is Compression (Up-Cut & Down-Cut) Bits?
- Features: Compression bits combine the features of both up-cut and down-cut bits. The top part of the bit is designed to be down-cut, improving the top edge finish, while the bottom part is up-cut, enhancing the finish on the bottom side of the material. This up-cut down-cut action is what leaves a sharp, clean edge on both edges of your workpiece.
- Applications: The preferred bit for cutting laminated materials or any situation where both sides of the material are visible and require a fine finish.
- Considerations: To fully benefit from a compression bit, it's crucial to make the initial cut deeper than the length of the up-cut flutes to prevent any tear-out or chipping on either side of the material.

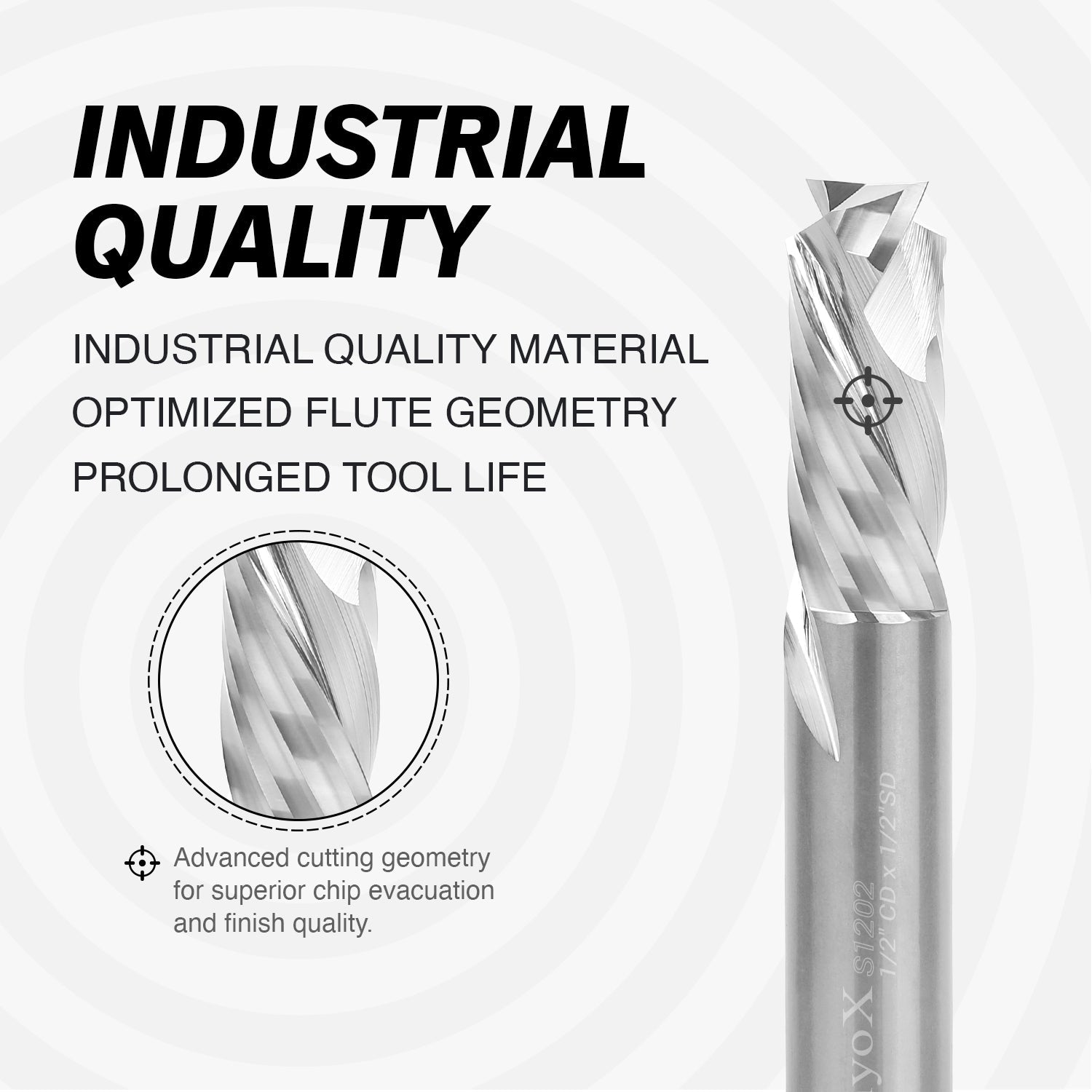

- Industrial-Grade Solid Carbide: Made of industrial quality Solid Carbide, reinforced with Tungsten Carbide cutters. This 1/2-inch compression router bit is specifically designed to provide high-quality finish and efficient cuts.
- Excellent for Cutting: Perfect for CNC sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.

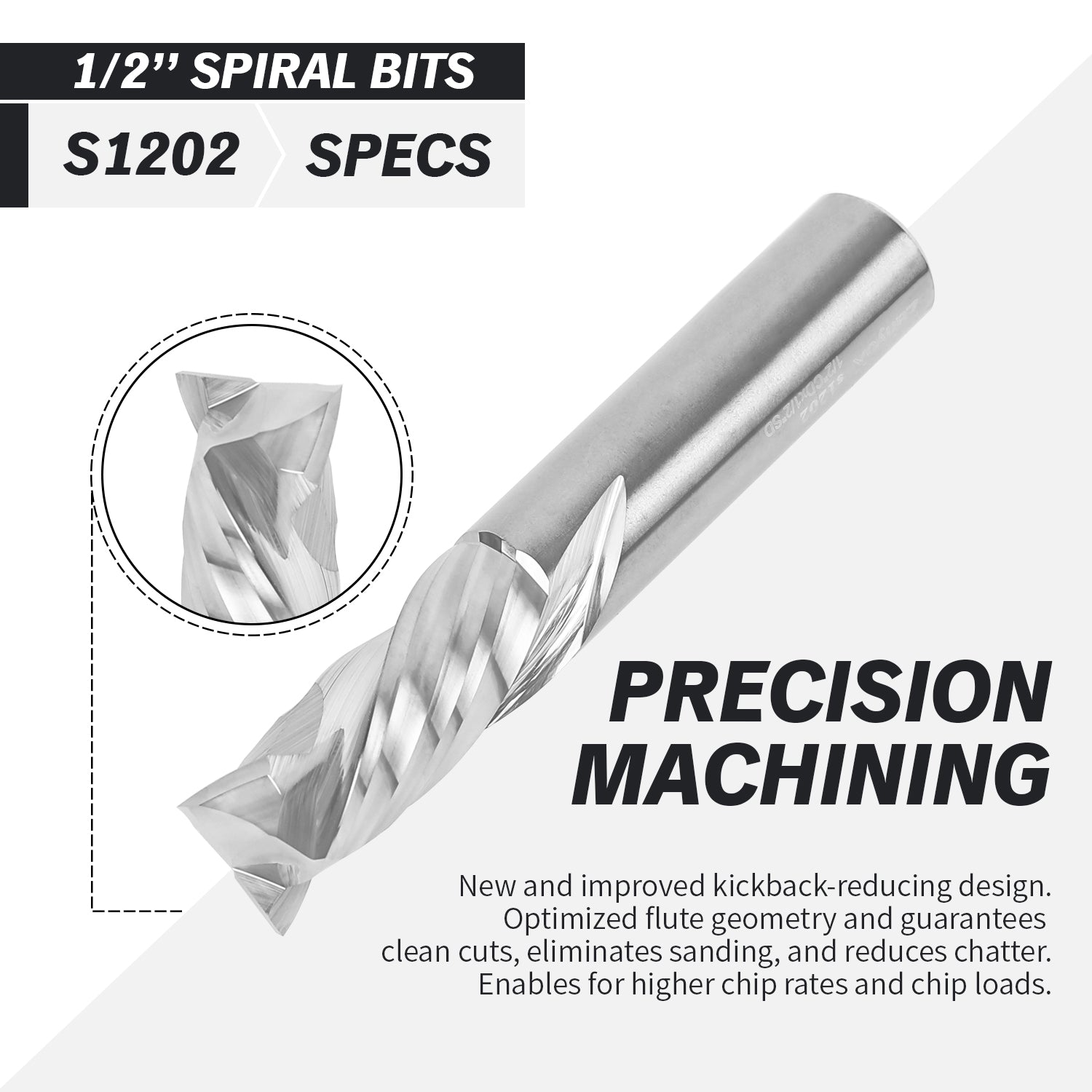

- Maximize Efficiency: Kickback-reducing design prevents overfeed and tearout. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts and efficiency than other bits on the market.
- Trusted Brand: ZahyoX provides industrial quality CNC & woodworking tools at an affordable price, by using superior materials, cutting-edge machinery and patented technology. Fully guaranteed with online customer support team.
- JBJensen B.Rated 5 out of 5 starsFantastic Cutting Bit
This 1/2 inch solid carbide spiral bit by Zahyox effortlessly slices through wood, akin to a knife through warm butter. Its sharpness ensures a smooth cut without any splintering. I'm particularly impressed by its precision on various woods such as maple, oak, and walnut samples. With several summer projects on my agenda, I look forward to utilizing this tool extensively.
- TSTimothy S.Rated 5 out of 5 starsImpeccable finish, a mechanical "Jewel"
When I first used this bit, I was genuinely impressed. The craftsmanship is impeccable with highly polished surfaces and exceptionally sharp, smooth cutting edges. It effortlessly slices through materials without any burning, almost akin to a hot knife through butter. While I haven't tried a plunge cut yet, the design of the flutes suggests they are well-suited for it.
- RKRon K.Rated 4 out of 5 starsBeautiful sharp router bit...
I am really into woodworking and use my routers often. So always handy to have extra bits on hand. Plus it's nice to try new brands, you might find some gems. This is a very well made bit, outstanding fit and finish, just quality. Best part, this thing is very sharp, I mean real sharp. I like compression bits because they give you better cuts on some materials like plywood. This bit works exactly as it should and cuts fantastic. Big question is how this will last, but that will take time and use.
