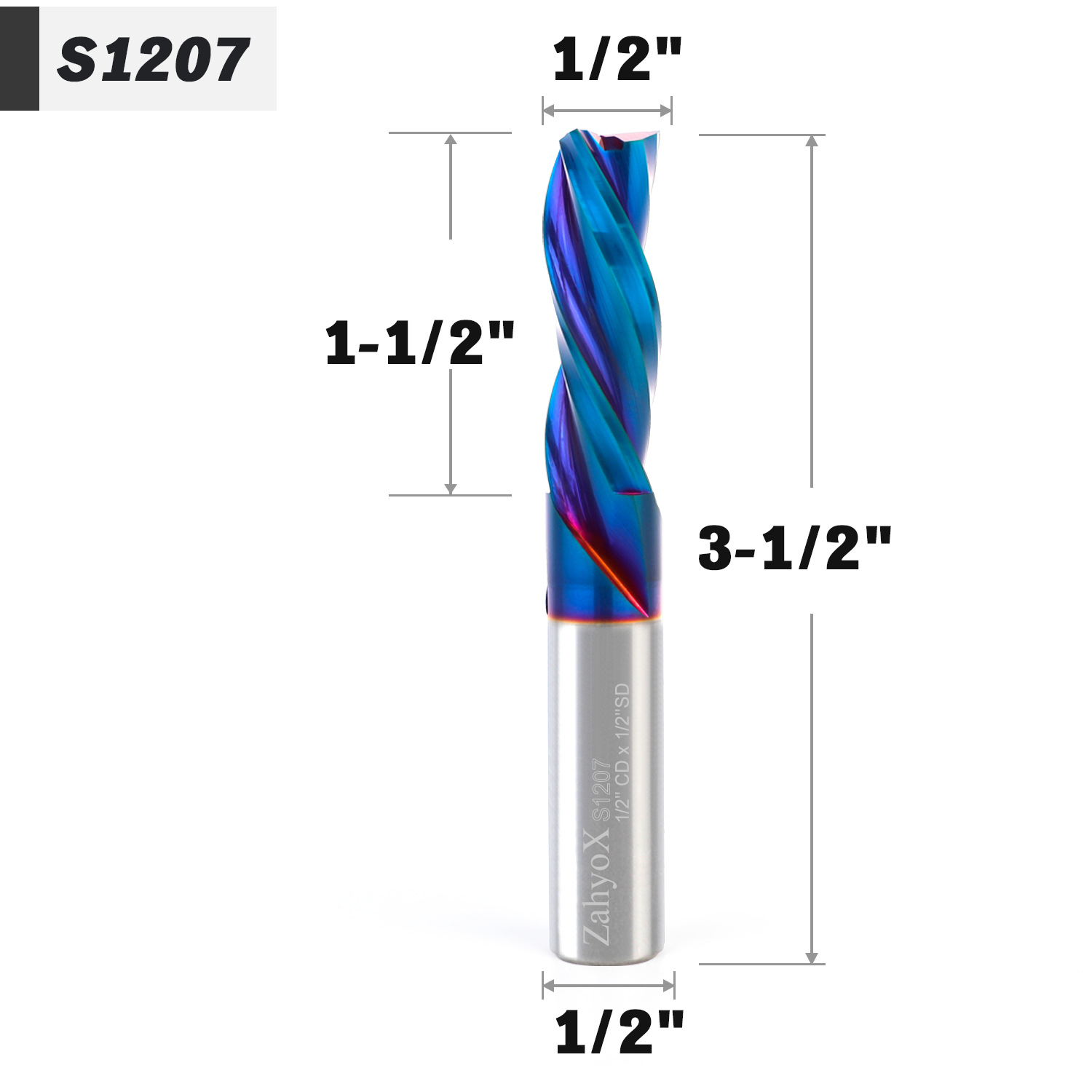

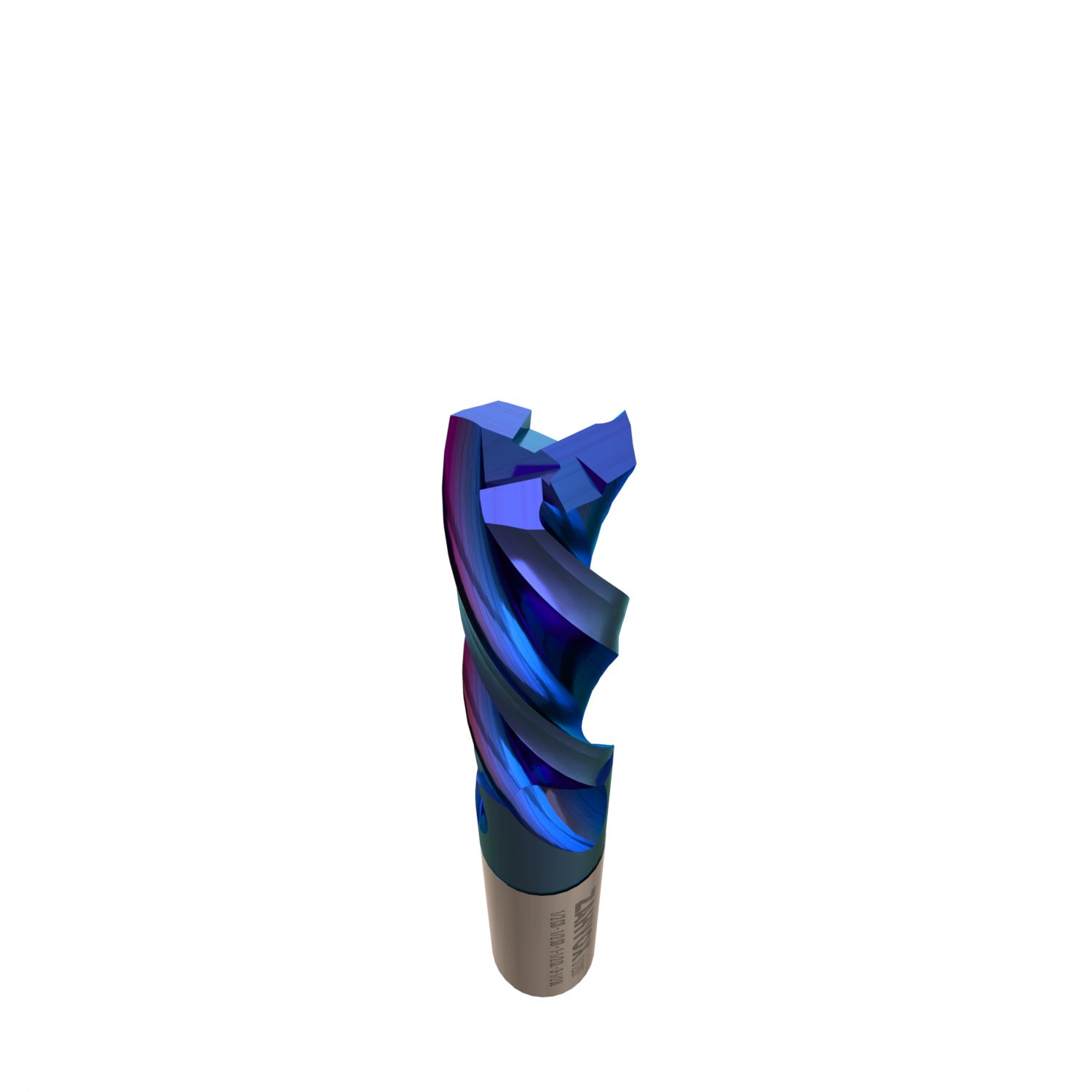

1/2" Shank Downcut nACo Coated CNC Spiral Router Bit- 3 Flutes - 1/2" CD - 1-1/2" CL - 3-1/2" OL - S1207
1/2" Shank Downcut nACo Coated CNC Spiral Router Bit- 3 Flutes - 1/2" CD - 1-1/2" CL - 3-1/2" OL - S1207
| Rotation | Downcut | Coating | nACo |
|---|---|---|---|
| Shank Diameter | 1/2" | Router Bits Types | 1/2 Shank Spiral Bit |
| Cutting Diameter | 1/2" | Product Series | X-Series |
| Cutting Length | 1-1/2" | Cutting Edge Type | Solid Carbide |
| Overall Length | 3-1/2" | Measurement | Imperial |
| Flutes | 3 | Machinery Type | CNC Router |
| Material | Hardwoods, Softwoods, Laminate, Melamine, Plywood, MDF, Chipboard, Foamcore, Light Board, Aluminum Foamcore, Veneered Plywood, Particle, OSB, Solid Surface Material, Plastic, Acrylic | ||
| Rotation | Downcut |
|---|---|
| Shank Diameter | 1/2" |
| Cutting Diameter | 1/2" |
| Cutting Length | 1-1/2" |
| Overall Length | 3-1/2" |
| Flutes | 3 |
| Coating | nACo |
Order by 4:30 PM EST to Ship Today.
Couldn't load pickup availability
| Image | SKU | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1207 | Downcut | 3 | 1/2" | 1/2" | 1-1/2" | 3-1/2" | ||||
|
S1208 | Downcut | 3 | 1/2" | 1/2" | 1-1/2" | 3-1/2" | ||||
|
S1201 | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" | ||||
|
S1202 | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" | ||||
|
S1203 | Compression | 2 | 1/2" | 1/2" | 2" | 4" | ||||
|
S1204 | Compression | 2 | 1/2" | 1/2" | 2" | 4" | ||||
|
S1205 | Upcut | 2 | 1/2" | 1/2" | 1-1/4" | 3" | ||||
|
S1206 | Upcut | 2 | 1/2" | 1/2" | 1-1/4" | 3" | ||||
|
S1209 | Compression | 2 | 1/2" | 1/2" | 1" | 3" | ||||
|
S1211 | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" | ||||
|
S1212 | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" |
Why Choose Spiral Router Bits Instead of Straight Bits?
- Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.
What is Down-Cut Bits?
Down-cut: This premium solid carbide bit cuts dadoes with crisp, clean edges on both sides of the dado. The downward spiral forces the chips down into the groove, eliminating the tendency for wood fibers to chip out the face. Also works great for cutouts and edgework.
Application:
- Grooves and dadoes in single-sided veneers and laminates.
Zahyox's solid carbide down spiral bit is ideal for smooth, chip-free routing where chip removal is not a problem. - Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on CNC and other automatic routers as well as table-mounted portable routers.
Why Choose ZahyoX 1/2 inch Shank Router Bits?
- Geometry Specs: 1/2" Cutting Diameter, 1/2" Shank, 1-1/2" Cutting Length, 3-1/2" Overall Length, 2 Flutes, Down-Cut Rotation, Nano Coated.
- Trusted Brand: ZahyoX is an industrial manufacturer, making solid carbide material and solid carbide router bits is our sole business for over two decades, we make our products like treating art.

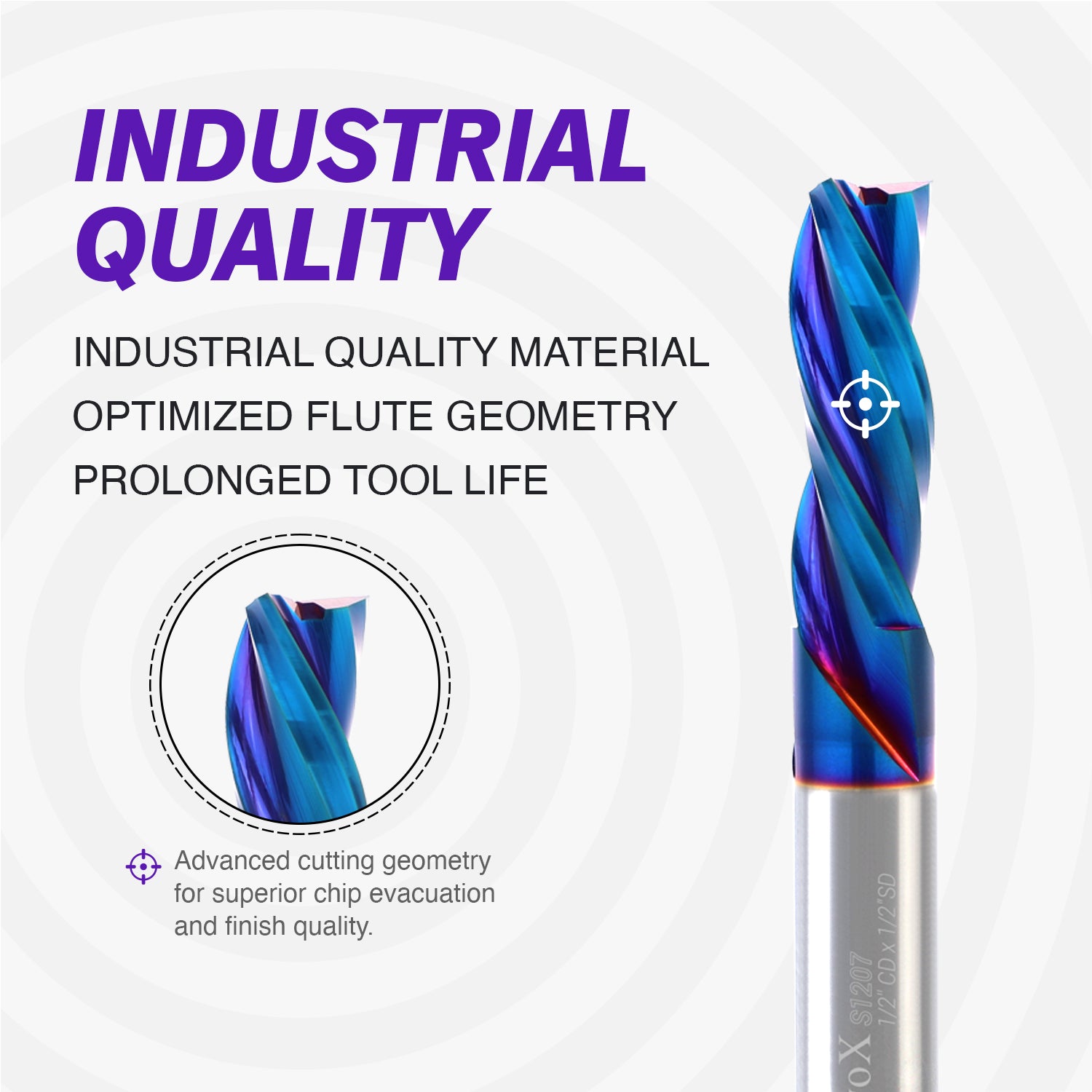

- Perfected Geometry: The geometry design has been iterated hundreds of times to ensure a perfect balance between tool life and cutting efficiency. We run our bits systematically on various machines and materials to test the performance of each iteration.

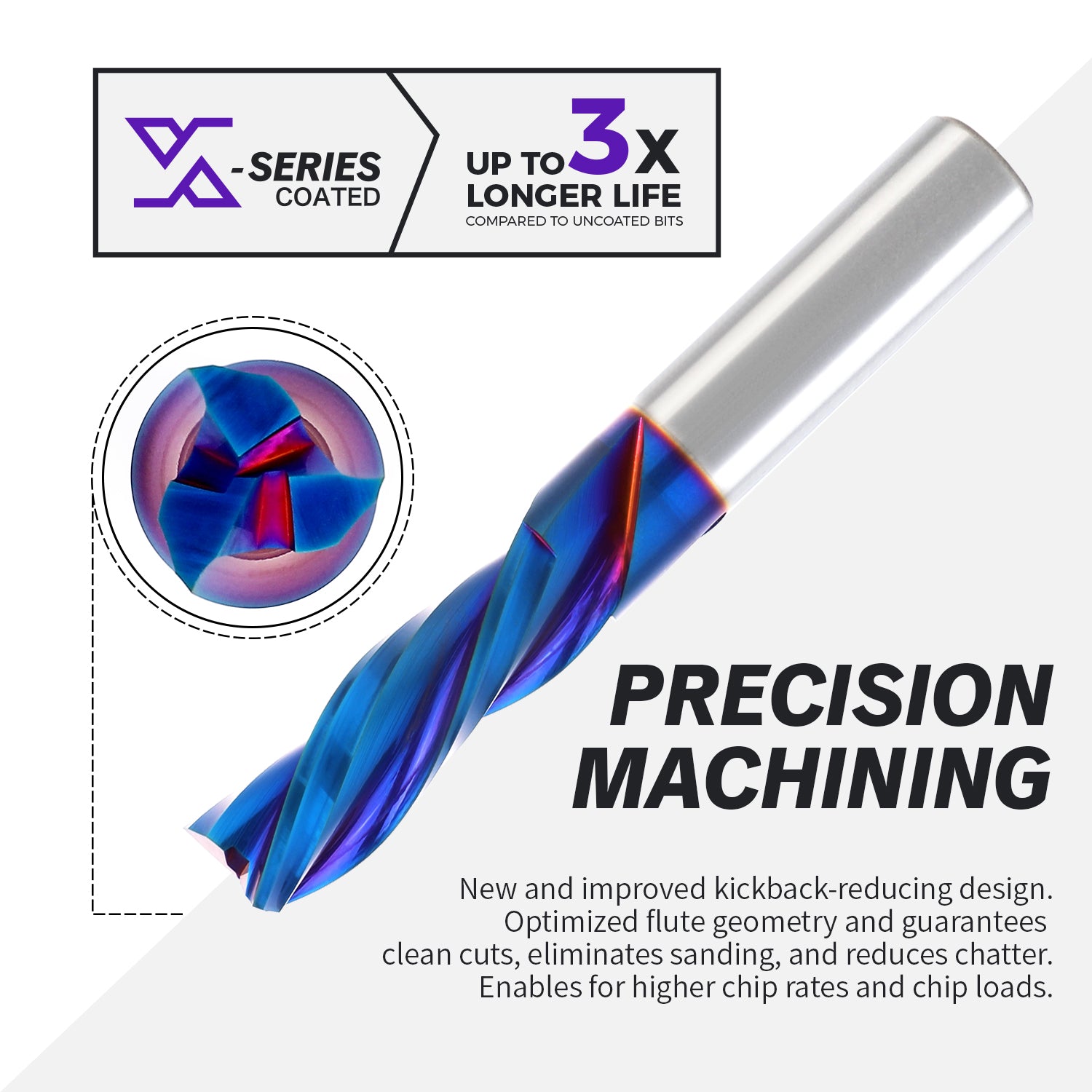

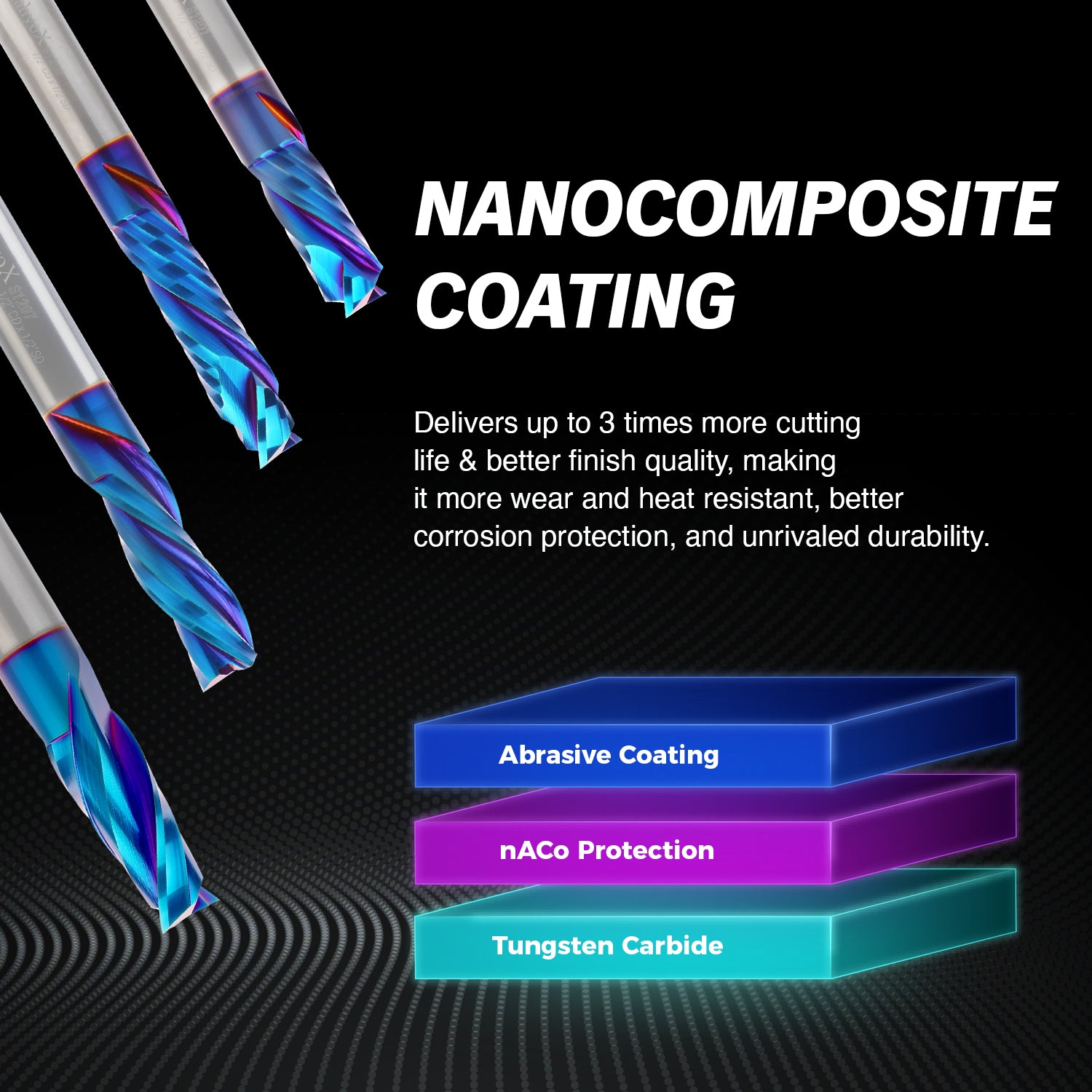

- X-Series: X-Series is one of our signature product lineups and bestselling for wood cutting, it is made by our own PVD process of Nano Composite Titanium Aluminum Silicon Nitride which provides highest hardness of 3800 HV, extremely low friction of 0.25, at 900°F max working temperature. The coating provides 3 times longer tool life for wood cutting performance.
- Consistent High-Quality: The bit is made of WC-CO Alloy, and 100% made by our own factory to ensure consistency, you can expect that every bit we produce performs exactly the same.
- MCMilton C. R.Rated 5 out of 5 starsOne and done
I needed to make a 40-inch circle cut through 2.5-inch Walnut. It resulted in no tear-out, no burning, and the chips exited smoothly without clogging. It ran once and was done—effortless!
- JTJoseph T. M.Rated 5 out of 5 starsHope I get one earlier!
As an avid cabinet maker, I'm always eager to try new bits and brands. I typically purchase larger bits from this company, and they never disappoint. This particular bit is a beast—it effortlessly cuts through material and leaves a smooth surface. Dealing with this company was a pleasure; they delivered as promised. I'm very impressed, especially considering it was about 30% cheaper than a competing product I was considering.
- JDJudy D. L.Rated 5 out of 5 starsInsanely sharp
I've been using this router bit with my Porter Cable 3.5 HP router to mill large tenons for a walnut breadboard end table top, and it cuts like a hot knife through butter! If you have a lot of similar work, I highly recommend investing in both the 1/2-inch and 1/4-inch shank versions of this router bit. The results are impressively precise, consistently delivering perfect dadoes and rabbits. It's very stable, ensuring a perfect cut every time. This tool has significantly improved my efficiency and ease of work, and I'm confident it will do the same for you!
- DEDavid E. H.Rated 5 out of 5 starsIt creates a fantastic edge!
I recently used this bit on a 1.5-inch thick block of white oak, and I must say, its performance was truly impressive. By scanning the QR code on the product packaging, I accessed a tool that calculated the ideal speed and feed rate for me. Running the CNC at 200 IPM, the milling cutter produced a clean cut without needing any sanding—just a quick finish with 220 grit sandpaper on the edge.
What's even more remarkable is how effectively it cleared all the wood chips, making cleanup effortless. I'm now a loyal fan of this product. Its exceptional performance has made a lasting impression on me, and I wholeheartedly recommend it to anyone seeking a reliable and high-performing spiral bit.
- CGCarol G. S.Rated 5 out of 5 starsSuitable for both industrial use and hobbyists.
This bit is quite impressive; it can cut 200 ipm if your setup has enough power and rigidity. It's sharp and sturdy. A hobbyist could likely use it for years without it dulling. I hope this information is helpful.
