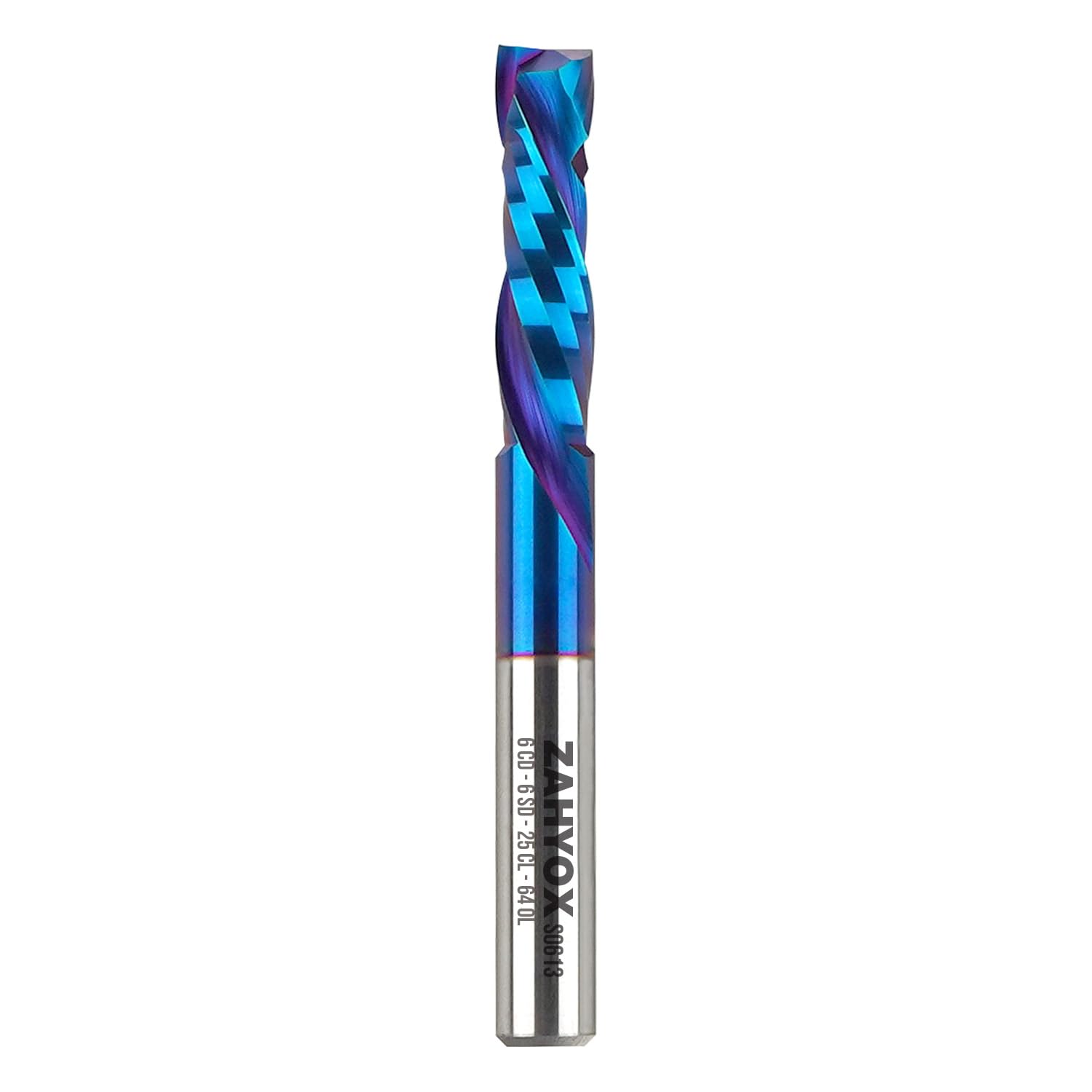

S0613 Solid Carbide Metric Compression Spiral Router Bit - Nano Coated - 2 Flutes - 6mm SD - 6mm CD - 22mm CL - 64mm OL - 3/16 UCL

Why Choose Spiral Router Bits Instead of Straight Bits?

• Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.

What is Compression (Up-Cut & Down-Cut) Bits

• Features: Compression bits combine the features of both up-cut and down-cut bits. The top part of the bit is designed to be down-cut, improving the top edge finish, while the bottom part is up-cut, enhancing the finish on the bottom side of the material. This up-cut down-cut action is what leaves a sharp, clean edge on both edges of your workpiece.
• Applications: The preferred bit for cutting laminated materials or any situation where both sides of the material are visible and require a fine finish.
• Considerations: To fully benefit from a compression bit, it's crucial to make the initial cut deeper than the length of the up-cut flutes to prevent any tear-out or chipping on either side of the material.

Why Choose ZahyoX Metric Router Bits?

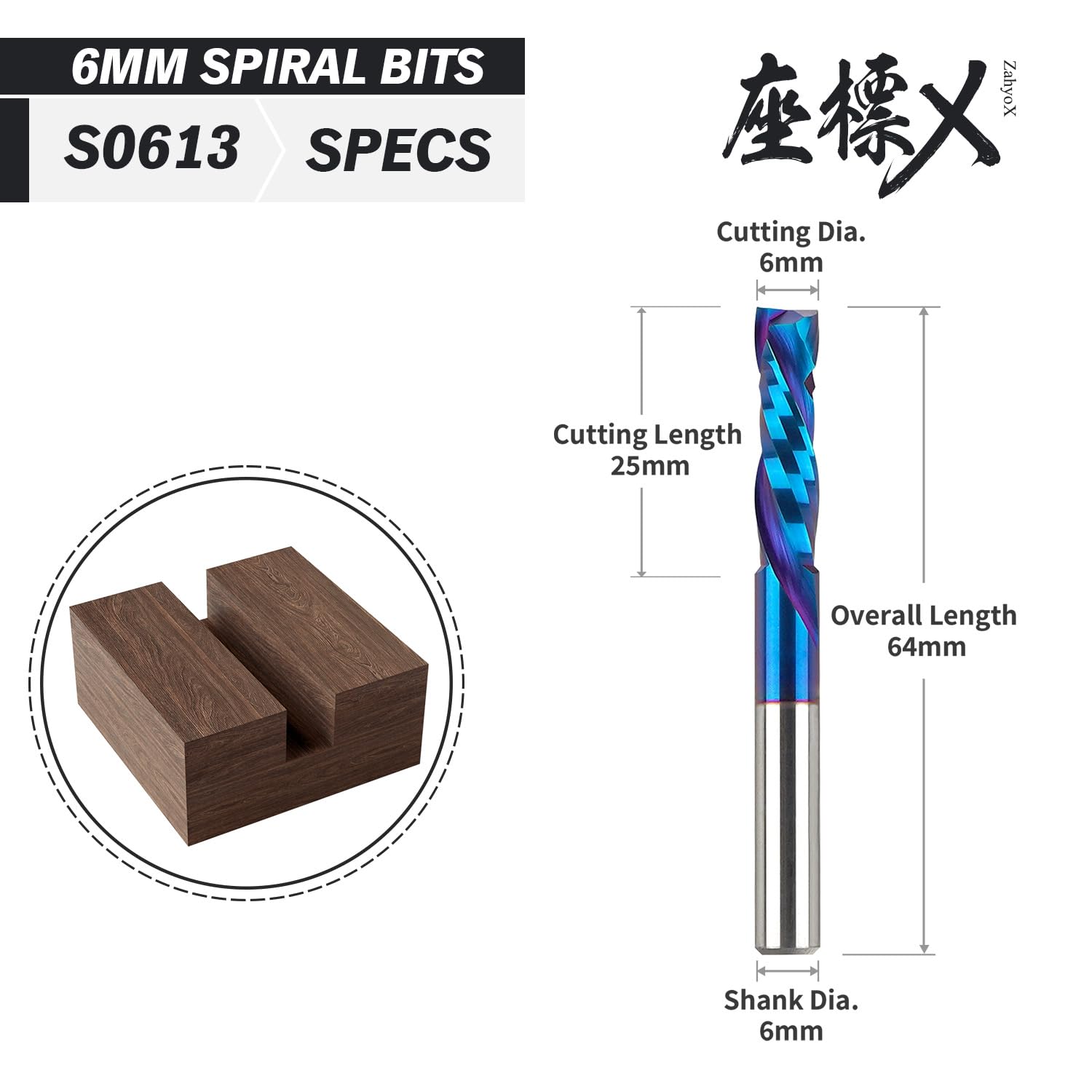

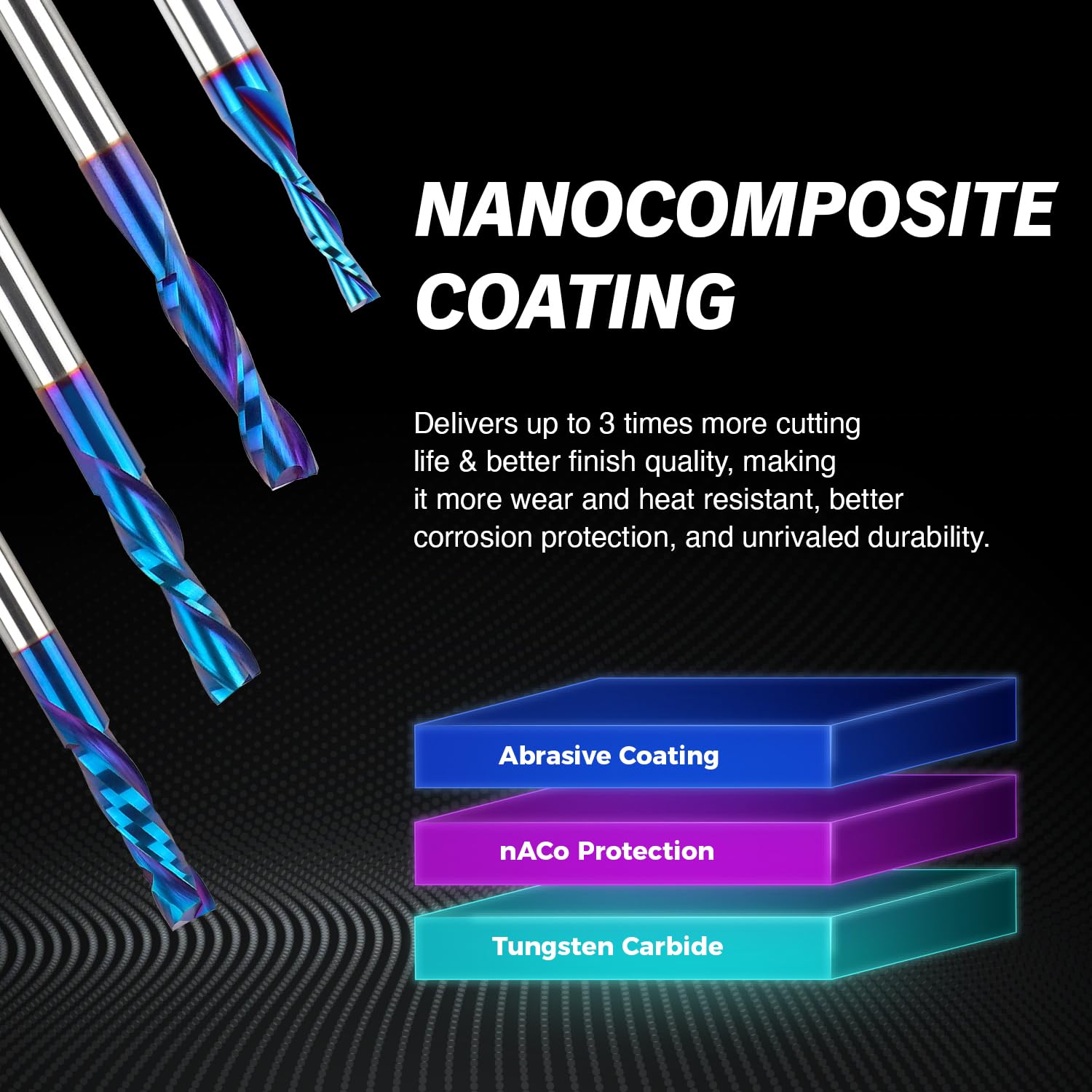

• Geometry Specs: Nano Coated, 6mm CD - 6mm SD - 22mm CL - 64mm OL, 2 Flutes, Compression Spiral CNC Router Bits, CNC End Mill
• Industrial-Grade Solid Carbide: Made of industrial quality Solid Carbide, reinforced with Tungsten Carbide cutters. The 6mm cutting diameter compression router bit is specifically designed to provide high-quality finish and efficient cuts.
• Excellent for Cutting: Perfect for CNC sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.

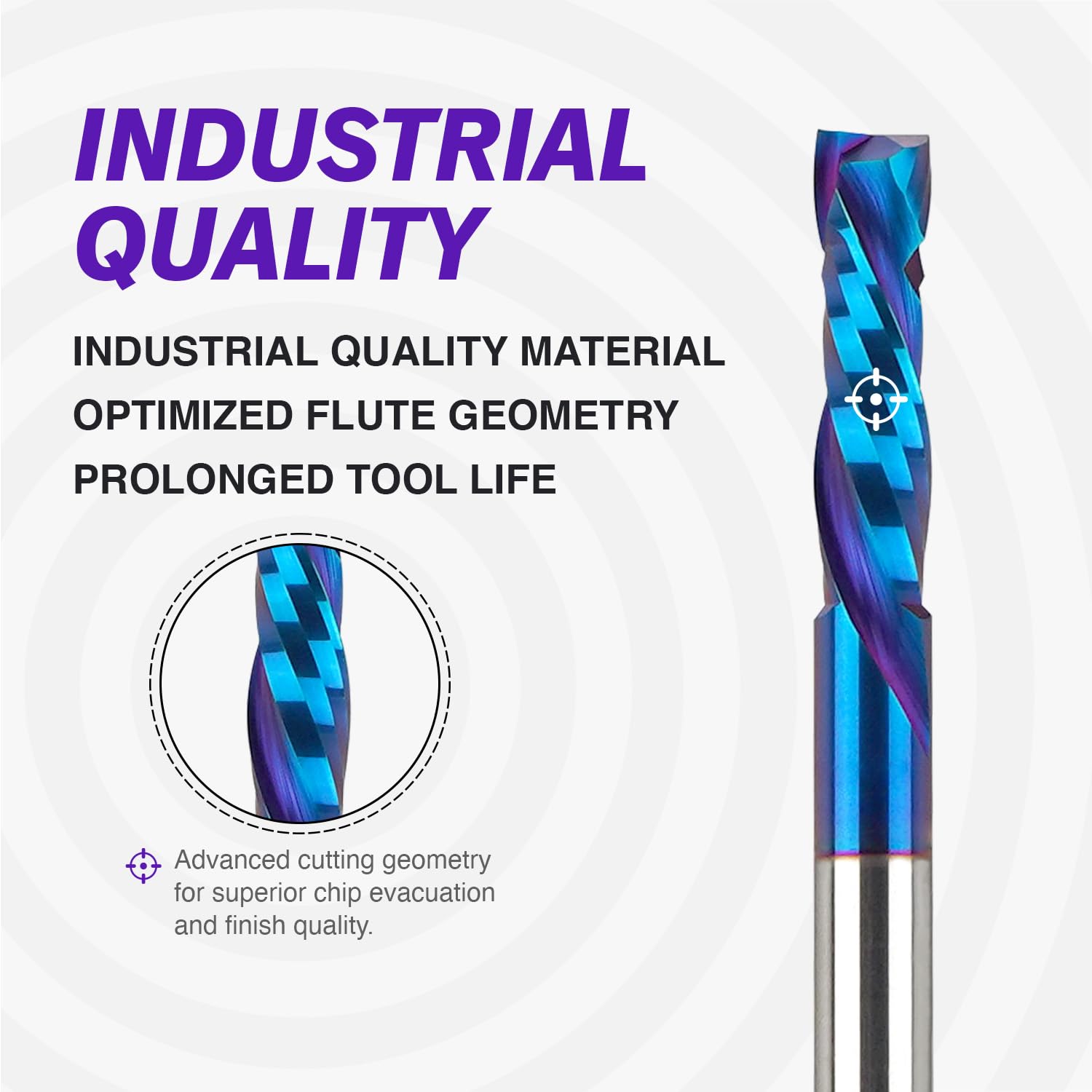

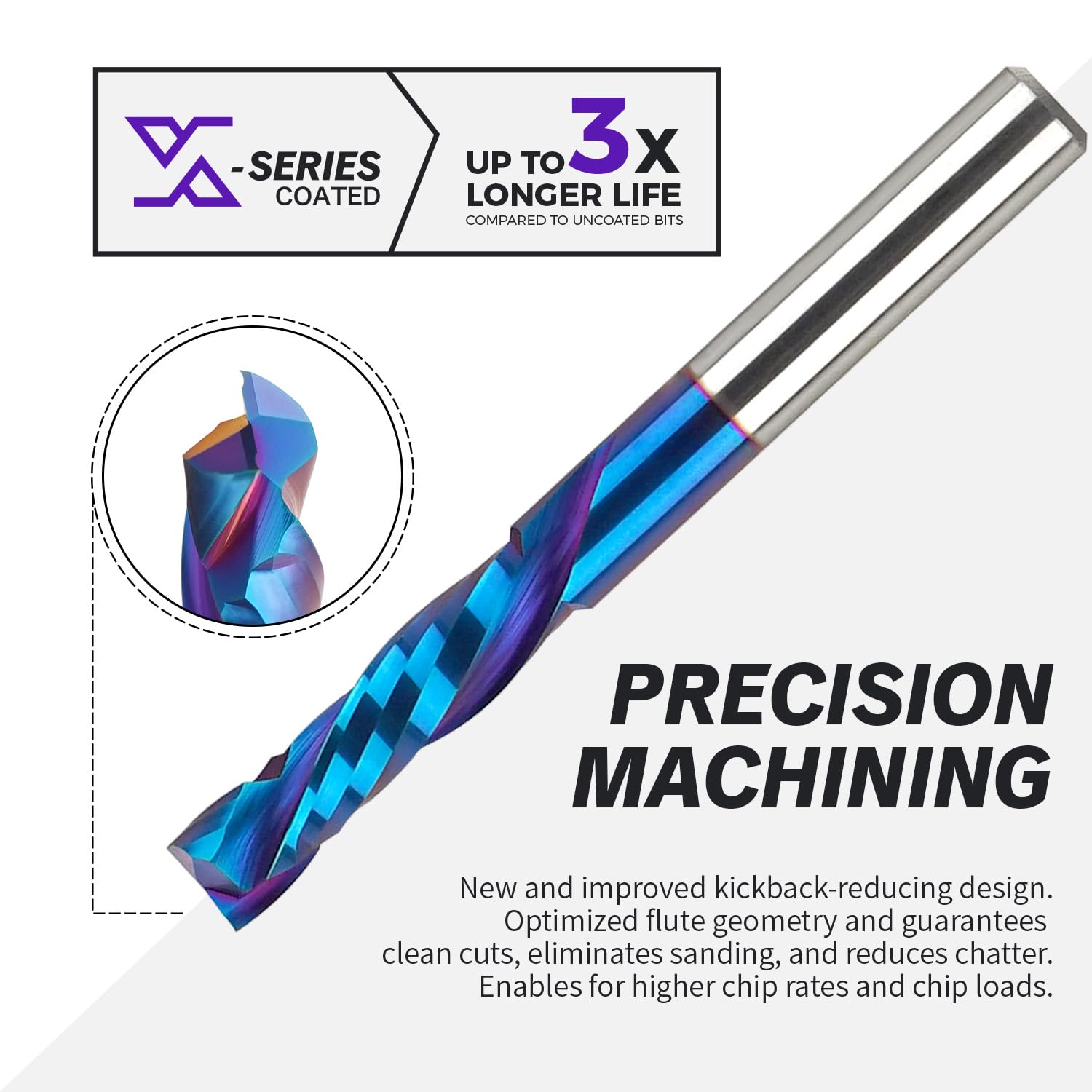

• Maximize Efficiency: Kickback-reducing design prevents overfeed and tearout. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts and efficiency than other bits on the market.
• Trusted Brand: ZahyoX provides industrial quality CNC & woodworking tools at an affordable price, by using superior materials, cutting-edge machinery and patented technology. Fully guaranteed with online customer support team.
