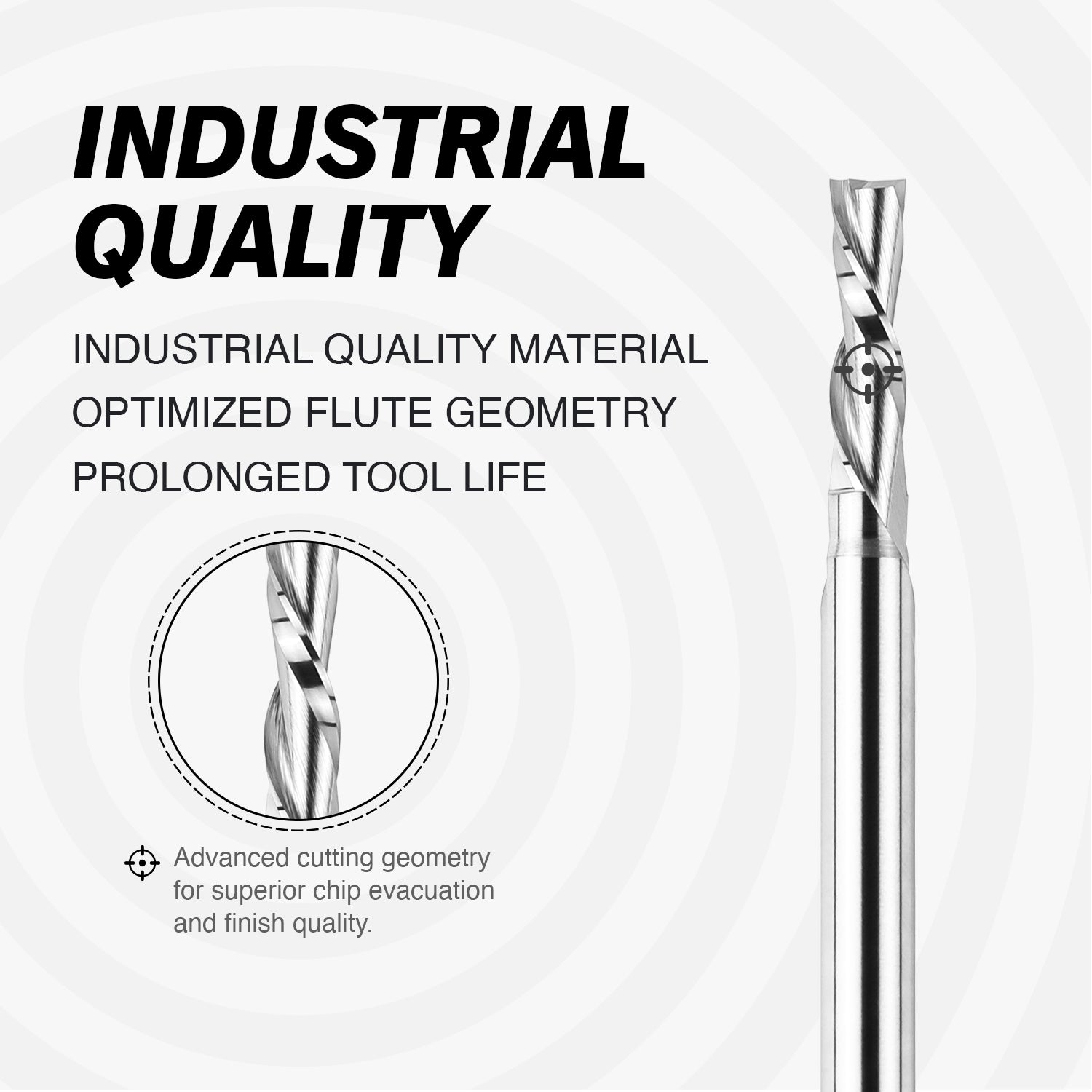

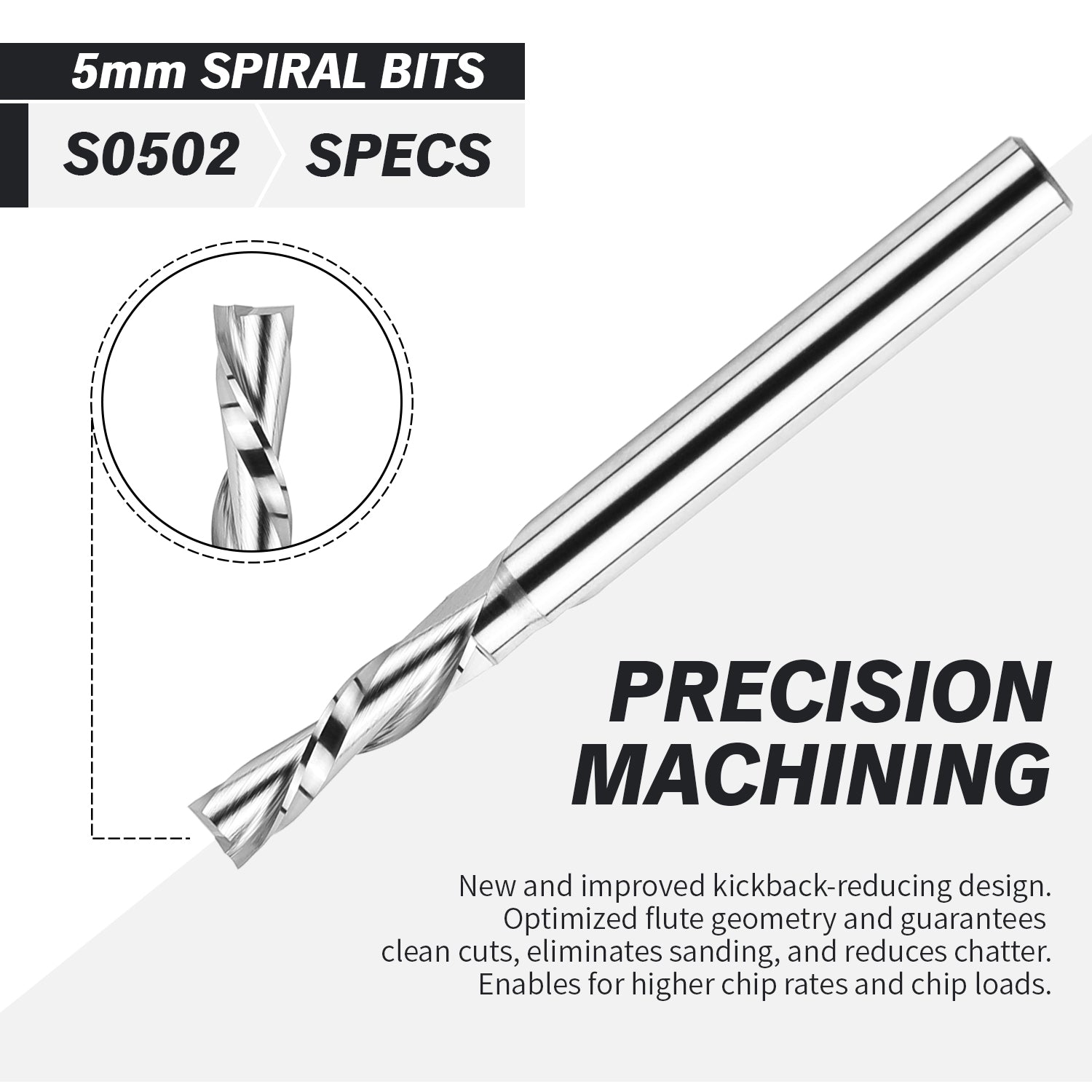

S0502 Solid Carbide Metric Downcut Spiral Router Bit - 2 Flutes - 6mm SD - 5mm CD - 20mm CL - 64mm OL

S0502 Solid Carbide Metric Downcut Spiral Router Bit - 2 Flutes - 6mm SD - 5mm CD - 20mm CL - 64mm OL

Regular price $17.97
Regular price Sale price $17.97
Sale Sold out
Tax included. Shipping calculated at checkout.
Rotation Downcut Coating /
Shank Diameter 6mm Router Bits Types Flat End Mill
Cutting Diameter 5mm Product Series S-Series
Cutting Length 20mm Cutting Edge Type Solid Carbide
Overall Length 64mm Measurement Metric
Flutes 2 Machinery Type Handheld Router, Router Table, CNC Router
Material Hardwoods, Softwoods, Plywood, MDF, HDF, LDF, Laminates, Melamine, Particle, Chipboard, Light Board
Rotation Downcut
Shank Diameter 6mm
Cutting Diameter 5mm
Cutting Length 20mm
Overall Length 64mm
Flutes 2
Coating /
Fast Delivery

Order by 4:30 PM EST to Ship Today.

15% OFF ALL SPIRAL BITS! USE CODE: ZahyoX
CNC Software Tool File Database
View full details
Image SKU Rotation Flutes CD SD CL OL Stock Quantity Price Cart
S0502 Downcut 2 5mm 6mm 20mm 64mm
$17.97 USD
S0501 Upcut 2 5mm 6mm 20mm 64mm
$17.97 USD
S0401 Upcut 2 4mm 6mm 16mm 64mm
$16.97 USD
S0402 Downcut 2 4mm 6mm 16mm 64mm
$16.97 USD
S0601 Upcut 2 6mm 6mm 25mm 64mm
$18.97 USD
S0602 Downcut 2 6mm 6mm 25mm 64mm
$18.97 USD
S0603 Compression 2 6mm 6mm 22mm 64mm
$19.97 USD
S0801 Upcut 2 8mm 8mm 25mm 64mm
$21.97 USD
S0802 Downcut 2 8mm 8mm 25mm 64mm
$21.97 USD
S0803 Compression 2 8mm 8mm 25mm 76mm
$25.97 USD

Why Choose Spiral Router Bits Instead of Straight Bits?

  • Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.

What is Down-Cut Bits?

What is Compression (Up-Cut & Down-Cut) Bits

Down-cut: This premium solid carbide bit cuts dadoes with crisp, clean edges on both sides of the dado. The downward spiral forces the chips down into the groove, eliminating the tendency for wood fibers to chip out the face. Also works great for cutouts and edgework.

Application:

  • Grooves and dadoes in single-sided veneers and laminates.
    Zahyox's solid carbide down spiral bit is ideal for smooth, chip-free routing where chip removal is not a problem.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on CNC and other automatic routers as well as table-mounted portable routers.

Why Choose ZahyoX 6mm Shank Router Bits?

  • Geometry Specs: 5mm CD - 6mm SD - 20mm CL - 64mm OL, 2 Flutes,   Downcut Spiral CNC Router Bits, CNC End Mill
  • Industrial-Grade Solid Carbide: Made of industrial quality Solid Carbide, reinforced with Tungsten Carbide cutters. The 5mm cutting diameter upcut router bit is specifically designed to provide high-quality finish and efficient cuts.
  • Excellent for Cutting: Perfect for CNC sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.
  • Maximize Efficiency: Kickback-reducing design prevents overfeed and tearout. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts and efficiency than other bits on the market.
  • Trusted Brand: ZahyoX provides industrial quality CNC & woodworking tools at an affordable price, by using superior materials, cutting-edge machinery and patented technology. Fully guaranteed with online customer support team.
