S0603 Solid Carbide Metric Compression Spiral Router Bit - 2 Flutes - 6mm SD - 6mm CD - 22mm CL - 64mm OL - 3/16 UCL

S0603 Solid Carbide Metric Compression Spiral Router Bit - 2 Flutes - 6mm SD - 6mm CD - 22mm CL - 64mm OL - 3/16 UCL

Regular price $19.97
Regular price Sale price $19.97
Sale Sold out
Tax included. Shipping calculated at checkout.
Rotation Compression Coating /
Shank Diameter 6mm Router Bits Types Flat End Mill
Cutting Diameter 6mm Product Series S-Series
Cutting Length 22mm Cutting Edge Type Solid Carbide
Overall Length 64mm Measurement Metric
Flutes 2 Machinery Type Handheld Router, Router Table, CNC Router
Material Hardwoods, Softwoods, Plywood, MDF, HDF, LDF, Laminates, Melamine, Particle, Chipboard, Light Board
Rotation Compression
Shank Diameter 6mm
Cutting Diameter 6mm
Cutting Length 22mm
Overall Length 64mm
Flutes 2
Coating /
Fast Delivery

Order by 4:30 PM EST to Ship Today.

15% OFF ALL SPIRAL BITS! USE CODE: ZahyoX
CNC Software Tool File Database
View full details
Image SKU Rotation Flutes CD SD CL OL Stock Quantity Price Cart
S0603 Compression 2 6mm 6mm 22mm 64mm
$19.97 USD
S0602 Downcut 2 6mm 6mm 25mm 64mm
$18.97 USD
S0601 Upcut 2 6mm 6mm 25mm 64mm
$18.97 USD
S0401 Upcut 2 4mm 6mm 16mm 64mm
$16.97 USD
S0402 Downcut 2 4mm 6mm 16mm 64mm
$16.97 USD
S0501 Upcut 2 5mm 6mm 20mm 64mm
$17.97 USD
S0502 Downcut 2 5mm 6mm 20mm 64mm
$17.97 USD
S0801 Upcut 2 8mm 8mm 25mm 64mm
$21.97 USD
S0802 Downcut 2 8mm 8mm 25mm 64mm
$21.97 USD
S0803 Compression 2 8mm 8mm 25mm 76mm
$25.97 USD

Why Choose Spiral Router Bits Instead of Straight Bits?

  • Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.

What is Compression (Up-Cut & Down-Cut) Bits

What is Compression (Up-Cut & Down-Cut) Bits

  • Features: Compression bits combine the features of both up-cut and down-cut bits. The top part of the bit is designed to be down-cut, improving the top edge finish, while the bottom part is up-cut, enhancing the finish on the bottom side of the material. This up-cut down-cut action is what leaves a sharp, clean edge on both edges of your workpiece.
  • Applications: The preferred bit for cutting laminated materials or any situation where both sides of the material are visible and require a fine finish.
  • Considerations: To fully benefit from a compression bit, it's crucial to make the initial cut deeper than the length of the up-cut flutes to prevent any tear-out or chipping on either side of the material.

Why Choose ZahyoX Metric Router Bits?

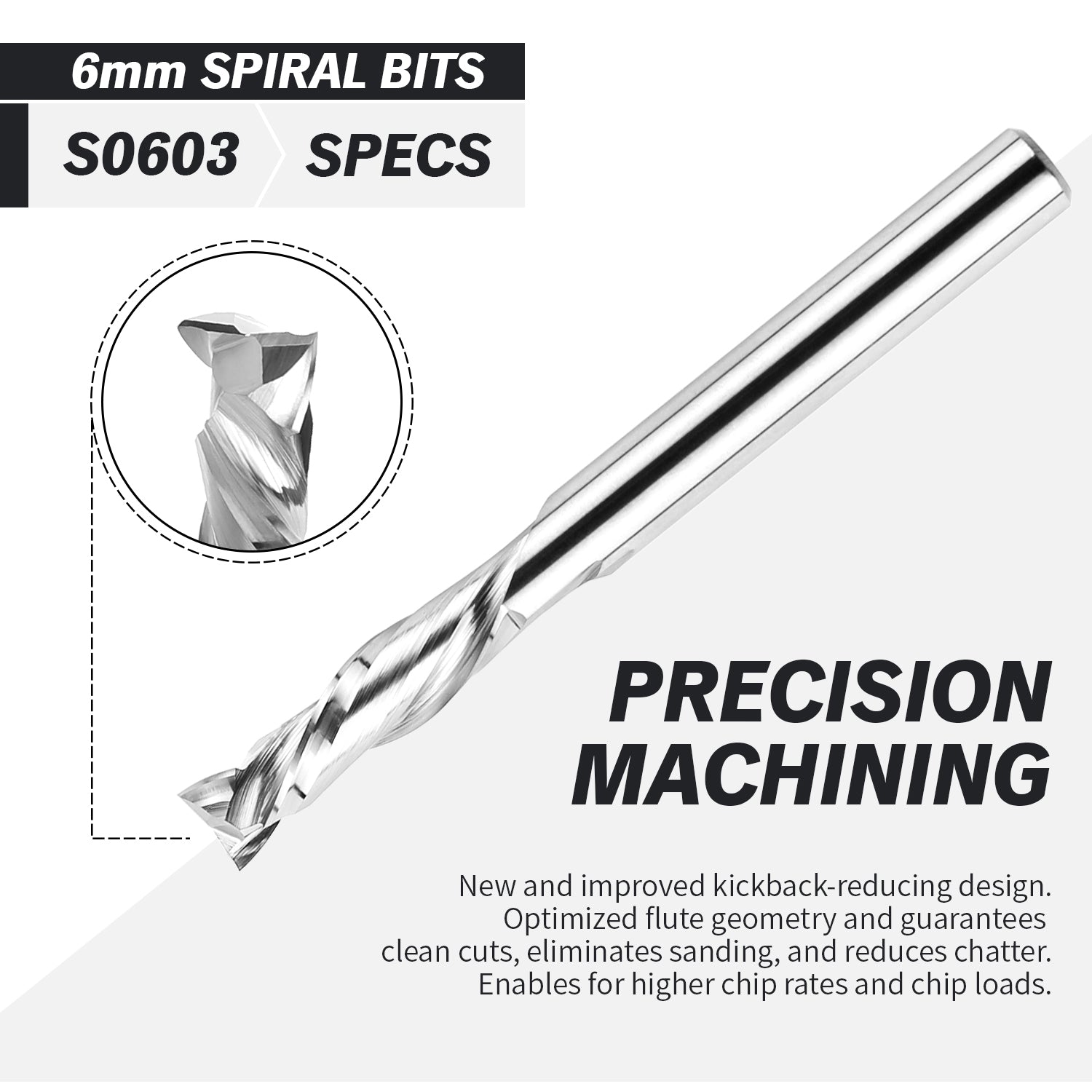

  • Geometry Specs: 6mm CD - 6mm SD - 22mm CL - 64mm OL, 2 Flutes, Compression Spiral CNC Router Bits, CNC End Mill
  • Industrial-Grade Solid Carbide: Made of industrial quality Solid Carbide, reinforced with Tungsten Carbide cutters. The 6mm cutting diameter compression router bit is specifically designed to provide high-quality finish and efficient cuts.
  • Excellent for Cutting: Perfect for CNC sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.

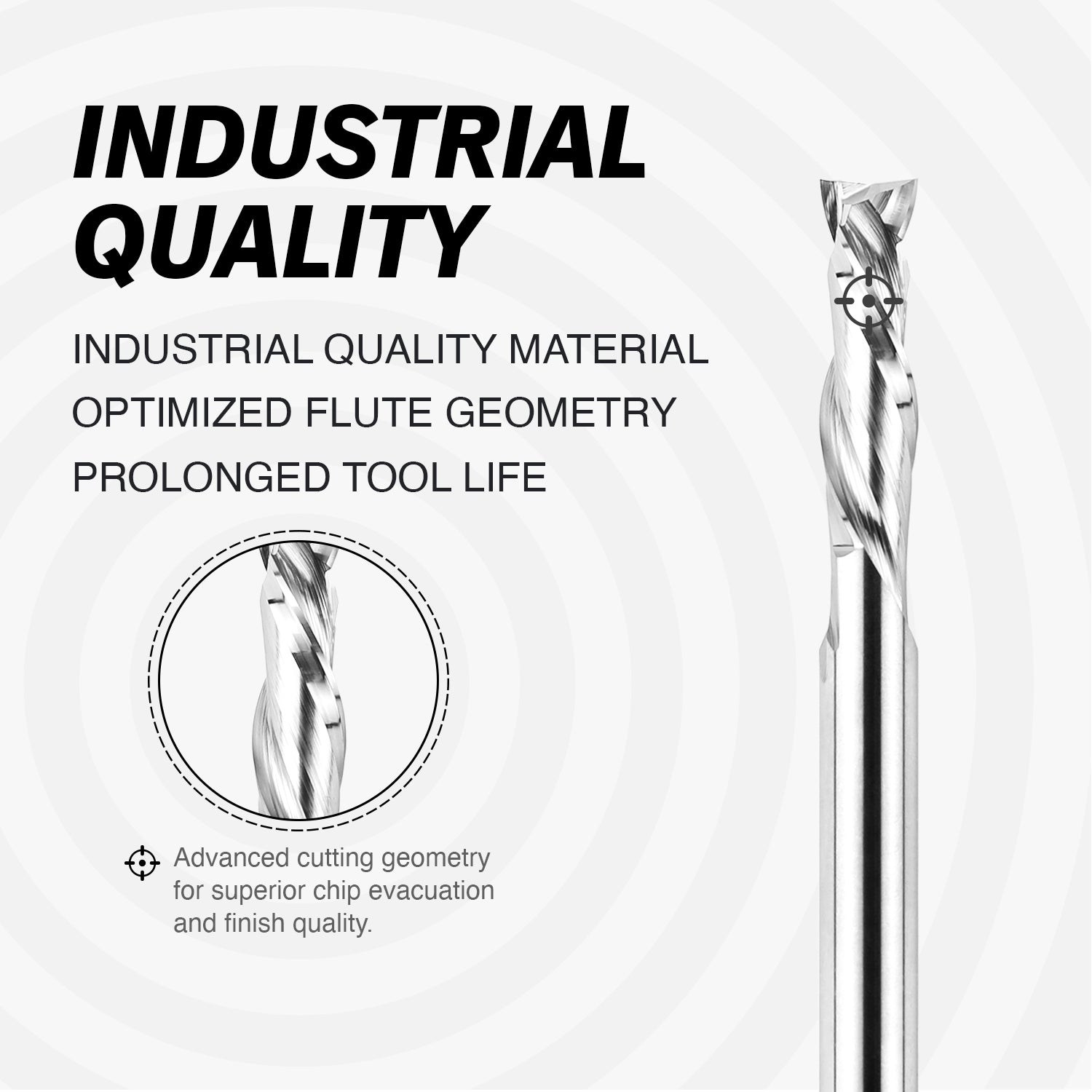

  • Maximize Efficiency: Kickback-reducing design prevents overfeed and tearout. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts and efficiency than other bits on the market.
  • Trusted Brand: ZahyoX provides industrial quality CNC & woodworking tools at an affordable price, by using superior materials, cutting-edge machinery and patented technology. Fully guaranteed with online customer support team.
