CNC Spoilboard Surfacing Router Bit, 1/2" Shank, 4 Wings, 3" Cutting Dia, TiN Coated Insert Carbide Slab Flattening Router Bit - C1202T
CNC Spoilboard Surfacing Router Bit, 1/2" Shank, 4 Wings, 3" Cutting Dia, TiN Coated Insert Carbide Slab Flattening Router Bit - C1202T
Available in stock
| Rotation | / | Coating | TiN Coated |
|---|---|---|---|
| Shank Diameter | 1/2" | Router Bits Types | Spoilboard Surfacing |
| Cutting Diameter | 3" | Product Series | C-Series |
| Cutting Length | 15/32" (12mm) | Cutting Edge Type | Solid Carbide |
| Overall Length | 2-15/16" | Measurement | Imperial |
| Flutes | 4 | Machinery Type | CNC Router |
| Material | Hardwoods, Softwoods, Laminate, Plywood, MDF | ||
| Rotation | / |
|---|---|
| Shank Diameter | 1/2" |
| Cutting Diameter | 3" |
| Cutting Length | 15/32" (12mm) |
| Overall Length | 2-15/16" |
| Flutes | 4 |
| Coating | TiN Coated |
ZahyoX Carbide Insert Spoilboard Router Bits - The Last Surfacing Bit You’ll Ever Need
It is designed for slab flattening, resurfacing spoilboards, rabbeting, and bottom cleaning. Its Four 4-edged carbide inserts can be rotated for fresh cutting edges, ensuring consistent, sharp performance without the need for frequent replacements. These features enable smooth material removal, clean finishes, and efficient chip ejection, making it a reliable tool for any workshop.
- Efficient Surface Flattening: ZahyoX spoilboard surfacing bit with 4 wings, 3" cutting diameter and 1/2" shank is perfect for fast and smooth slab flattening, planing, and resurfacing tasks.
- Smooth & Precision Cutting: Features 3 wings for even and precise cuts, providing a clean finish on wood surfaces with minimal tool marks, ideal for CNC machines and handheld routers.

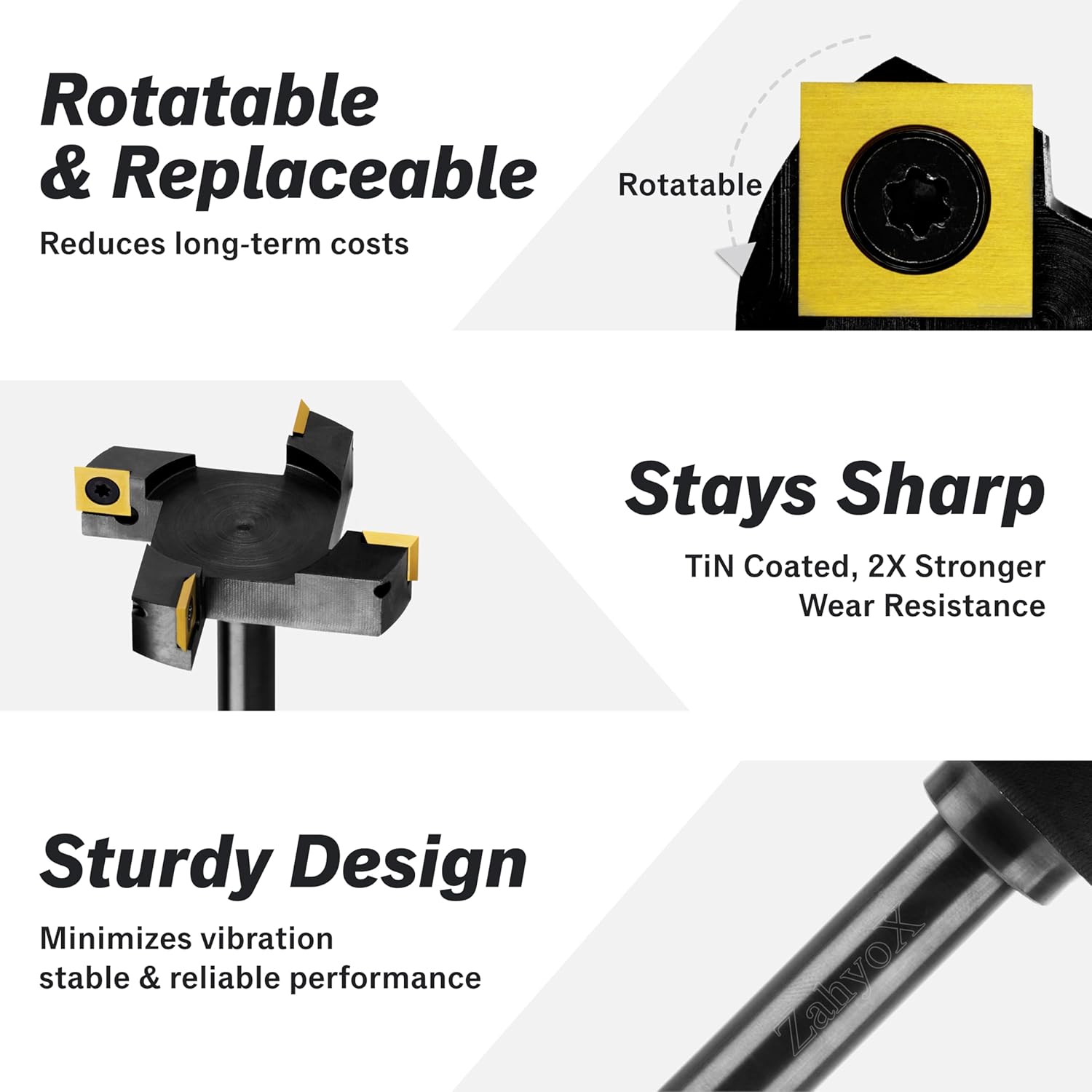

- Rotatable & Replaceable Blades: Equipped with coated insert carbide blades that are both rotatable and replaceable, offering cost-saving versatility and ensuring peak performance over time.
- Cost-Effective & Long-Lasting: With rotatable inserts and a TiN coating that enhances wear resistance by reducing friction and oxidation, this durable carbide bit is the last surfacing bit you’ll need—saving you money on replacements.
- Versatile Woodworking Tool: Perfect for resurfacing spoilboards, leveling slabs, and planing large panels, making it essential for woodworkers, cabinetmakers, and DIY enthusiasts. Recommended for CNC, router table & router sled.
| Image | SKU | Rotation | Flutes | Cutting Dia | Shank Dia | Cutting Length | Overall Length | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCIS12T | N/A | N/A | N/A | N/A | N/A | N/A |
|
$29.99 USD | ||
|
C1202T | / | 4 | 3" | 1/2" | 15/32" (12mm) | 2-15/16" |
|
$47.97 USD | ||
|
C1401T | / | 3 | 1-1/2" | 1/4" | 15/32" (12mm) | 2" |
|
$40.97 USD | ||
|
C1402T | / | 4 | 1-3/8" | 1/4" | 15/32" (12mm) | 1-7/8" |
|
$42.97 USD | ||
|
C1201T | / | 3 | 2-5/16" | 1/2" | 15/32" (12mm) | 3-3/16" |
|
$43.97 USD |
- JJoeVerified BuyerRated 4 out of 5 starsUseful bit for flattening with a router like a spoilboard or a slab of wood. Unknown top speed...
This is a useful bit, but it really concerns me that the max speed is not shown anywhere - not on the case and not on the bit. This is very large and heavy for a normal router and you can easily create a real hazard by running it too fast or without securing your router carefully. The machining seems ok - the one I got had a sloppily finished center section. The good news is that the inserts are a common size - 12mm x 12mm x 2.2mm and 35 degrees. The front of the bit seems to be square with the shank, so it works like a zero-rake cutter.
- LLRSVerified BuyerRated 5 out of 5 starsHeavy and large surfacing bit
The bit is as advertised and appears to be good quality; there are no apparent manufacturing defects and the machining looks clean. The carbide cutters are sharp. I haven’t had a chance to use it yet, but as others have pointed out, it’s a pretty large and heavy bit. You will need a powerful router, and you’ll want to make sure the speed is set appropriately.
- DDavidVerified BuyerRated 5 out of 5 starsGood quality.
This a nicely balanced, sharp, smooth cutting surfacing bit. It is big so you need a powerful router to properly use it. It has cutters that can be rotated if one side gets damaged or dull. There are 4 faces to each cutter so it will be usable for a long time. Recommended.
- DAD. Ashley Cohen, P.Verified BuyerRated 5 out of 5 starsI have a number of planer/surfacing bits—this is the best
Of the bunch. A bunch that includes ones of US manufacture. If you need to understand this bit, prior reviews have described it very well. If you already know., then just buy this if you would benefit from its capabilities.
- DMDave M.Verified BuyerRated 5 out of 5 starsWorks great on redwood slabs
I use this bit to flatten a an 8 foot long by 3 foot redwood slab. It did a great job. This task required only one of the four sides of the blades to accomplish, so the ***** should work for many slabs. Please note that this bit is huge, and requires a large, powerful router, like the Bosch 1617 I used. don’t waste your time trying to flatten slabs with battery operated routers. Also, I did not try this bit on hardwood, that would require even more power. Happy customer.
