1/2" Shank CNC Spoilboard Surfacing Router Bit | 3-Flute, 2-5/16" Cutting Dia | TiN Coated Insert Carbide Slab Flattening Router Bit - C1201T
1/2" Shank CNC Spoilboard Surfacing Router Bit | 3-Flute, 2-5/16" Cutting Dia | TiN Coated Insert Carbide Slab Flattening Router Bit - C1201T
| Rotation | / | Coating | TiN Coated |
|---|---|---|---|
| Shank Diameter | 1/2" | Router Bits Types | Spoilboard Surfacing |
| Cutting Diameter | 2-5/16" | Product Series | C-Series |
| Cutting Length | 15/32" (12mm) | Cutting Edge Type | Solid Carbide |
| Overall Length | 3-3/16" | Measurement | Imperial |
| Flutes | 3 | Machinery Type | CNC Router |
| Material | Hardwoods, Softwoods, Laminate, Plywood, MDF | ||
| Rotation | / |
|---|---|
| Shank Diameter | 1/2" |
| Cutting Diameter | 2-5/16" |
| Cutting Length | 15/32" (12mm) |
| Overall Length | 3-3/16" |
| Flutes | 3 |
| Coating | TiN Coated |
Order by 4:30 PM EST to Ship Today.
Couldn't load pickup availability
| Image | SKU | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCIS12T | ||||||||||
|
C1201T | / | 3 | 2-5/16" | 1/2" | 15/32" (12mm) | 3-3/16" | ||||
|
C1202T | / | 4 | 3" | 1/2" | 15/32" (12mm) | 2-15/16" | ||||
|
C1401T | / | 3 | 1-1/2" | 1/4" | 15/32" (12mm) | 2" | ||||
|
C1402T | / | 4 | 1-3/8" | 1/4" | 15/32" (12mm) | 1-7/8" | ||||
|
C1203 | / | 4 | 1-1/2" | 1/2" | 9/16" | 2-1/4" | ||||
|
C1202 | / | 3 | 2-5/16" | 1/2" | 1/2" | 3-3/16" | ||||
|
C1201 | / | 4 | 3" | 1/2" | 1/2" | 3-3/16" |
ZahyoX Carbide Insert Spoilboard Router Bits - The Last Surfacing Bit You’ll Ever Need
It is designed for slab flattening, resurfacing spoilboards, rabbeting, and bottom cleaning. Its three 4-edged carbide inserts can be rotated for fresh cutting edges, ensuring consistent, sharp performance without the need for frequent replacements. These features enable smooth material removal, clean finishes, and efficient chip ejection, making it a reliable tool for any workshop.
- Efficient Surface Flattening: ZahyoX spoilboard surfacing bit with 3 wings, 2-5/16" cutting diameter and 1/2" shank is perfect for fast and smooth slab flattening, planing, and resurfacing tasks.
- Smooth & Precision Cutting: Features 3 wings for even and precise cuts, providing a clean finish on wood surfaces with minimal tool marks, ideal for CNC machines and handheld routers.

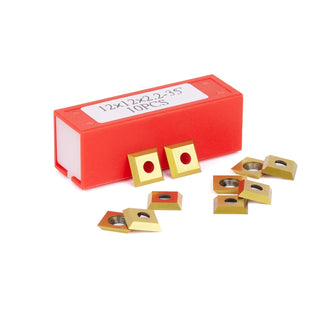

- Rotatable & Replaceable Blades: Equipped with coated insert carbide blades that are both rotatable and replaceable, offering cost-saving versatility and ensuring peak performance over time.
- Cost-Effective & Long-Lasting: With rotatable inserts and a TiN coating that enhances wear resistance by reducing friction and oxidation, this durable carbide bit is the last surfacing bit you’ll need—saving you money on replacements.
- Versatile Woodworking Tool: Perfect for resurfacing spoilboards, leveling slabs, and planing large panels, making it essential for woodworkers, cabinetmakers, and DIY enthusiasts.

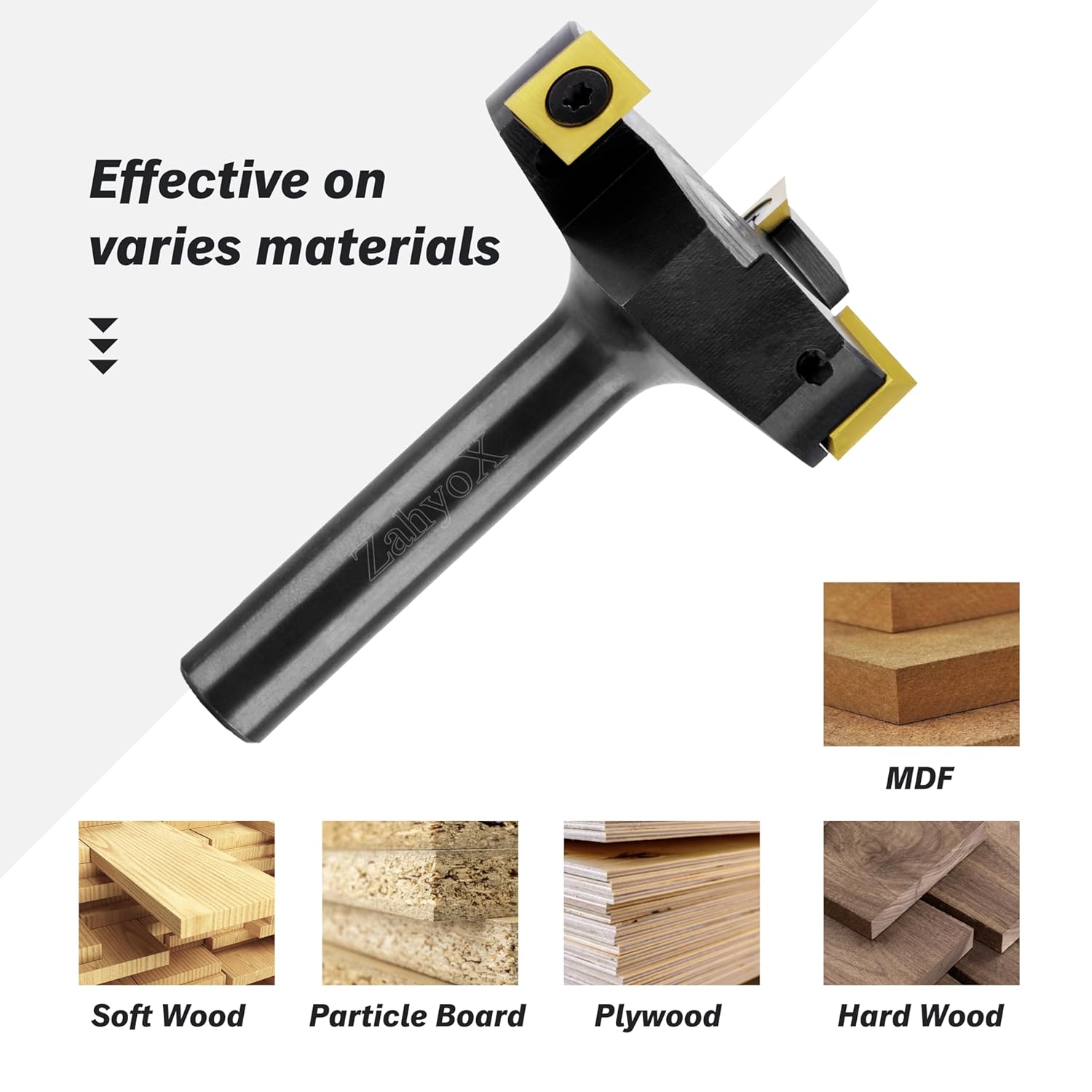

- Multi-Use: Used on soft and hardwoods, particle board, MDF, plywood compact panel, laminate, acrylic etc.
- Application Equipment: Recommended for CNC Router.
- GGGayle G.Rated 5 out of 5 starsUpon inspection
This bit appears to be of professional quality. Having the ability to change out the cutting inserts enhances its value. If you chip an edge just rotate the insert 90 degrees.
- MVMiriam V.Rated 4 out of 5 starsVery nice surfacing bit
I'm actually using this in a milling machine - a specific set of parts need to be fastened down to a wood spoil board to be machined.
Using a high spindle speed combined with the larger diameter of this bit, it produces an excellent finish and flat surface - even below typical "Router RPM's".
Impressed with how balanced and well made this is - its perfect for flattening a surface or truing it to the machine in my case.
Nice bit, well made, replicable cutters - this is a really good value
- MVMiriam V.Verified BuyerRated 4 out of 5 starsVery nice surfacing bit
I'm actually using this in a milling machine - a specific set of parts need to be fastened down to a wood spoil board to be machined.Using a high spindle speed combined with the larger diameter of this bit, it produces an excellent finish and flat surface - even below typical Router RPM's.Impressed with how balanced and well made this is - its perfect for flattening a surface or truing it to the machine in my case.Nice bit, well made, replicable cutters - this is a really good value
- GGGayle G.Verified BuyerRated 5 out of 5 starsUpon inspection
This bit appears to be of professional quality. Having the ability to change out the cutting inserts enhances its value. If you chip an edge just rotate the insert 90 degrees.
