S1807 Solid Carbide nACo Coated Downcut Spiral Router Bit - 2Flutes - 1/4 SD - 1/8 CD - 7/8 CL - 2-1/2 OL
S1807 Solid Carbide nACo Coated Downcut Spiral Router Bit - 2Flutes - 1/4 SD - 1/8 CD - 7/8 CL - 2-1/2 OL
Regular price
$23.97
Regular price
Sale price
$23.97
Unit price
per
Tax included.
Shipping calculated at checkout.
| Rotation | Downcut | Coating | nACo |
|---|---|---|---|
| Shank Diameter | 1/4" | Router Bits Types | 1/4" Shank Spiral Bit |
| Cutting Diameter | 1/8" | Product Series | X-Series |
| Cutting Length | 7/8" | Cutting Edge Type | Solid Carbide |
| Overall Length | 2-1/2" | Measurement | Imperial |
| Flutes | 2 | Machinery Type | Handheld Router, CNC Router, Router Table |
| Material | Hardwoods, Softwoods, Laminate, Melamine, Plywood, MDF, Chipboard, Foamcore, Light Board, Aluminum Foamcore, Veneered Plywood, Particle, OSB, Solid Surface Material, Plastic, Acrylic | ||
| Rotation | Downcut |
|---|---|
| Shank Diameter | 1/4" |
| Cutting Diameter | 1/8" |
| Cutting Length | 7/8" |
| Overall Length | 2-1/2" |
| Flutes | 2 |
| Coating | nACo |
Order by 4:30 PM EST to Ship Today.
15% OFF
ALL
SPIRAL BITS!
USE CODE:
ZahyoX
Couldn't load pickup availability
CNC Software Tool File Database
| Image | SKU | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1801 | Upcut | 2 | 1/8" | 1/4" | 1/2" | 2" | ||||
|
S1802 | Upcut | 2 | 1/8" | 1/4" | 1/2" | 2" | ||||
|
S1803 | Upcut | 2 | 1/8" | 1/4" | 7/8" | 2-1/2" | ||||
|
S1804 | Upcut | 2 | 1/8" | 1/4" | 7/8" | 2-1/2" | ||||
|
S1805 | Downcut | 2 | 1/8" | 1/4" | 1/2" | 2" | ||||
|
S1806 | Downcut | 2 | 1/8" | 1/4" | 1/2" | 2" | ||||
|
S1807 | Downcut | 2 | 1/8" | 1/4" | 7/8" | 2-1/2" | ||||
|
S1808 | Downcut | 2 | 1/8" | 1/4" | 7/8" | 2-1/2" | ||||
|
S1809 | Compression | 2 | 1/8" | 1/8" | 1/2" | 2" | ||||
|
S1810 | Compression | 2 | 1/8" | 1/8" | 1/2" | 2" |
Why Choose Spiral Router Bits Instead of Straight Bits?
- Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.
What is Down-Cut Bits?
- Features: The “down-cut” cuts from the surface down, leaving a smooth edge at the surface.
- Applications: Top Surface Finishing: Ideal for projects where a clean finish on the top surface is crucial, such as with veneers or laminated materials.
- Considerations: 1. Trapped Waste: The down-cut action pushes waste back into the cut area instead of being ejected, so the down-cut bits are unsuitable for cutting dados or drilling holes. 2. Slower Operation: Down-cut bits need to be run slower, both in RPM and spindle movement, to manage the waste build-up effectively.
Why Choose ZahyoX 1/2 inch Shank Router Bits?
- Geometry Specs: 1/8" Cutting Diameter, 1/4" Shank, 7/8" Cutting Length, 2-1/2" Overall Length, 2 Flutes, Downcut Spiral.
- Industrial-Grade Solid Carbide: Made of industrial-quality Solid Carbide. This 1/4-inch shank diameter downcut router bit is specifically designed to provide high-quality finish and efficient cuts.
- Excellent for Cutting: Perfect for CNC sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.

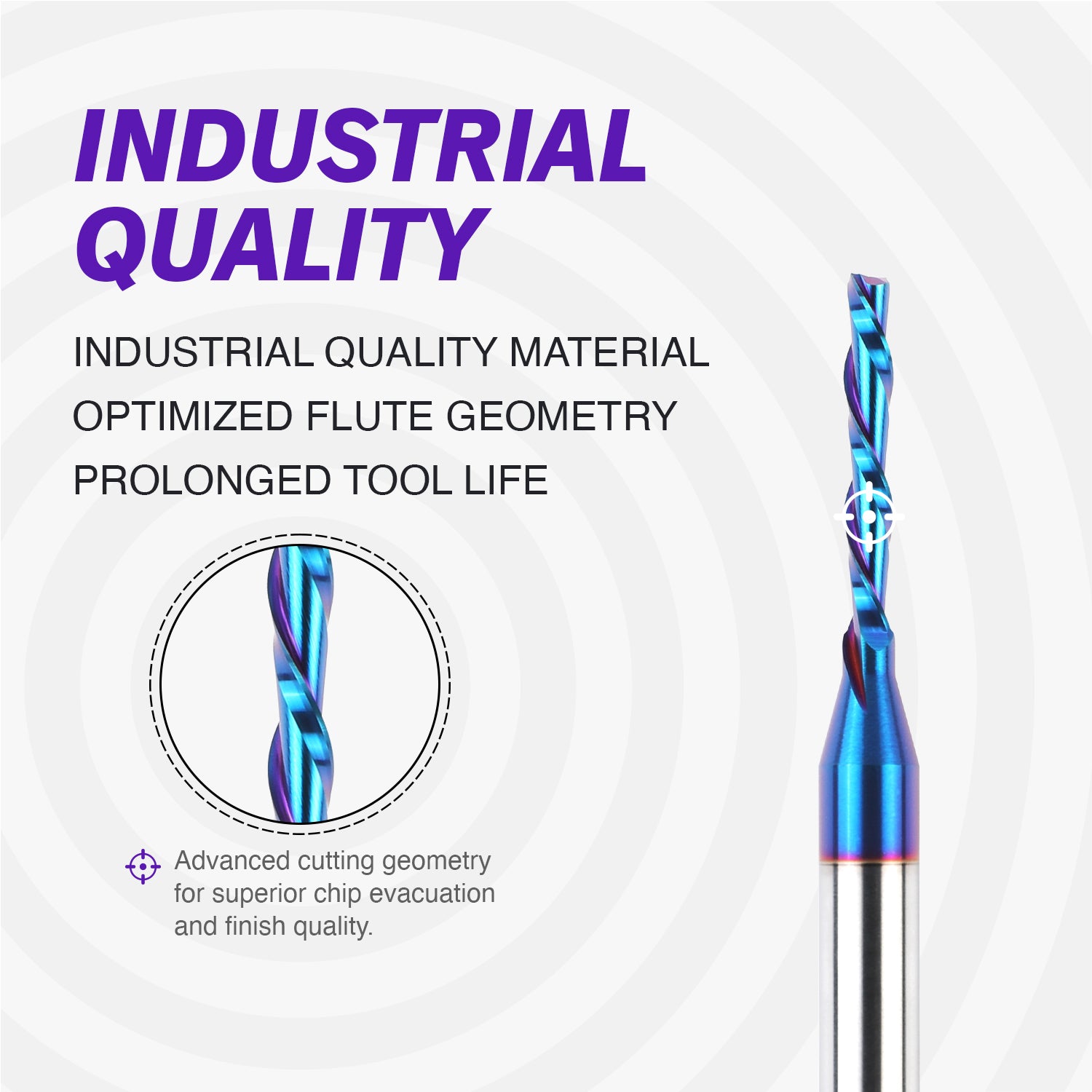

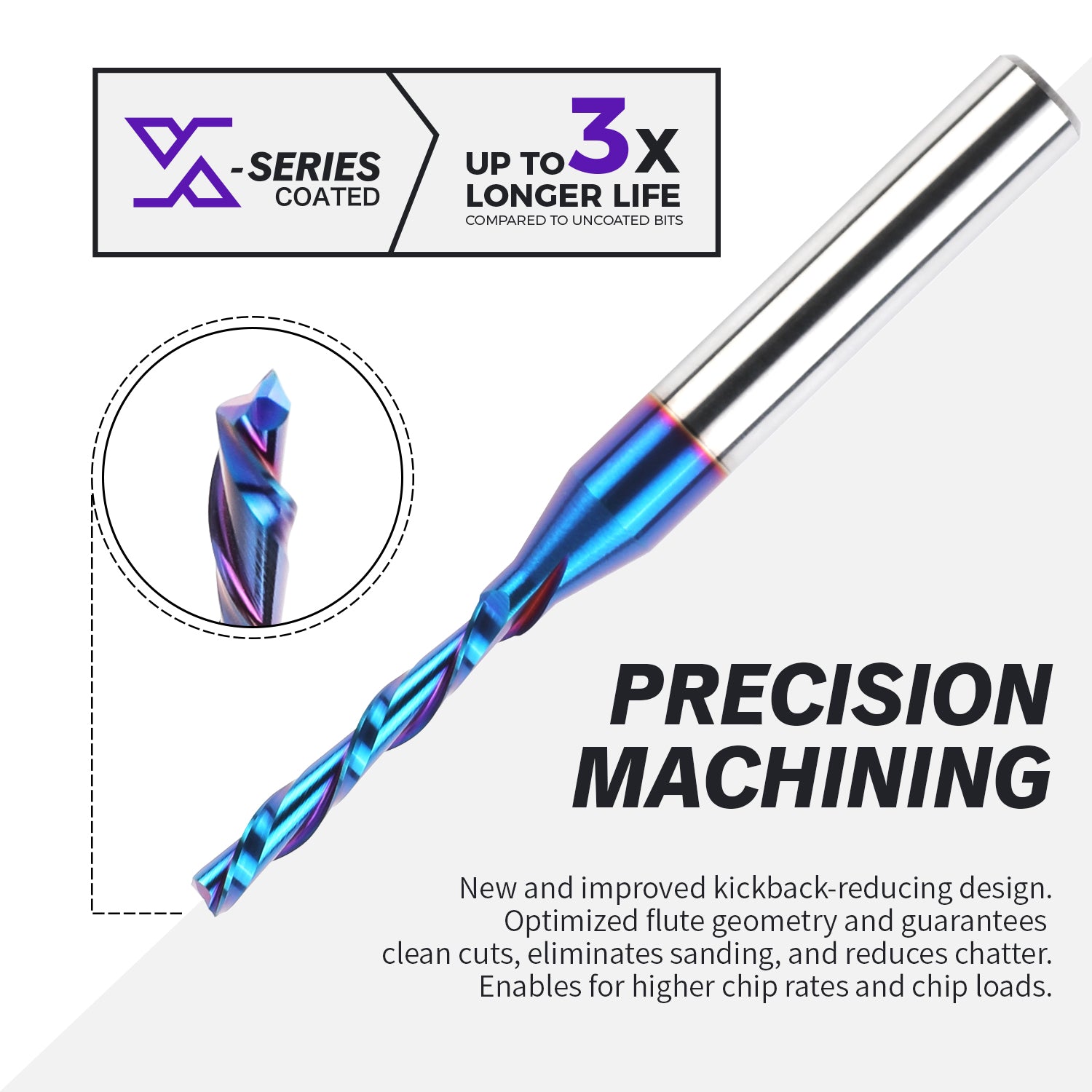

- Maximize Efficiency: Kickback-reducing design prevents overfeeding and tearout. Advanced cutting geometry for superior chip evacuation and finish quality. Offering better cuts and efficiency than other bits on the market.

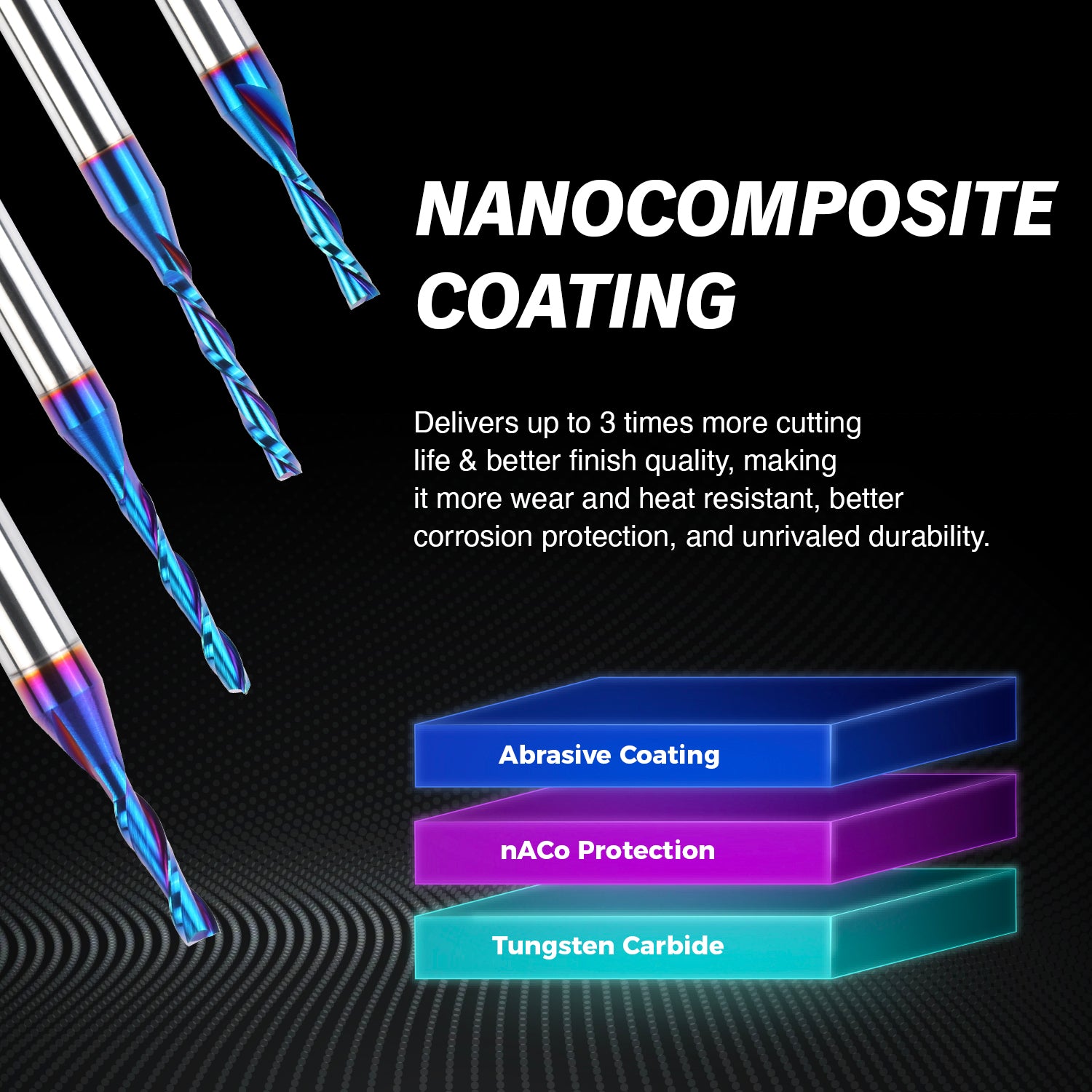

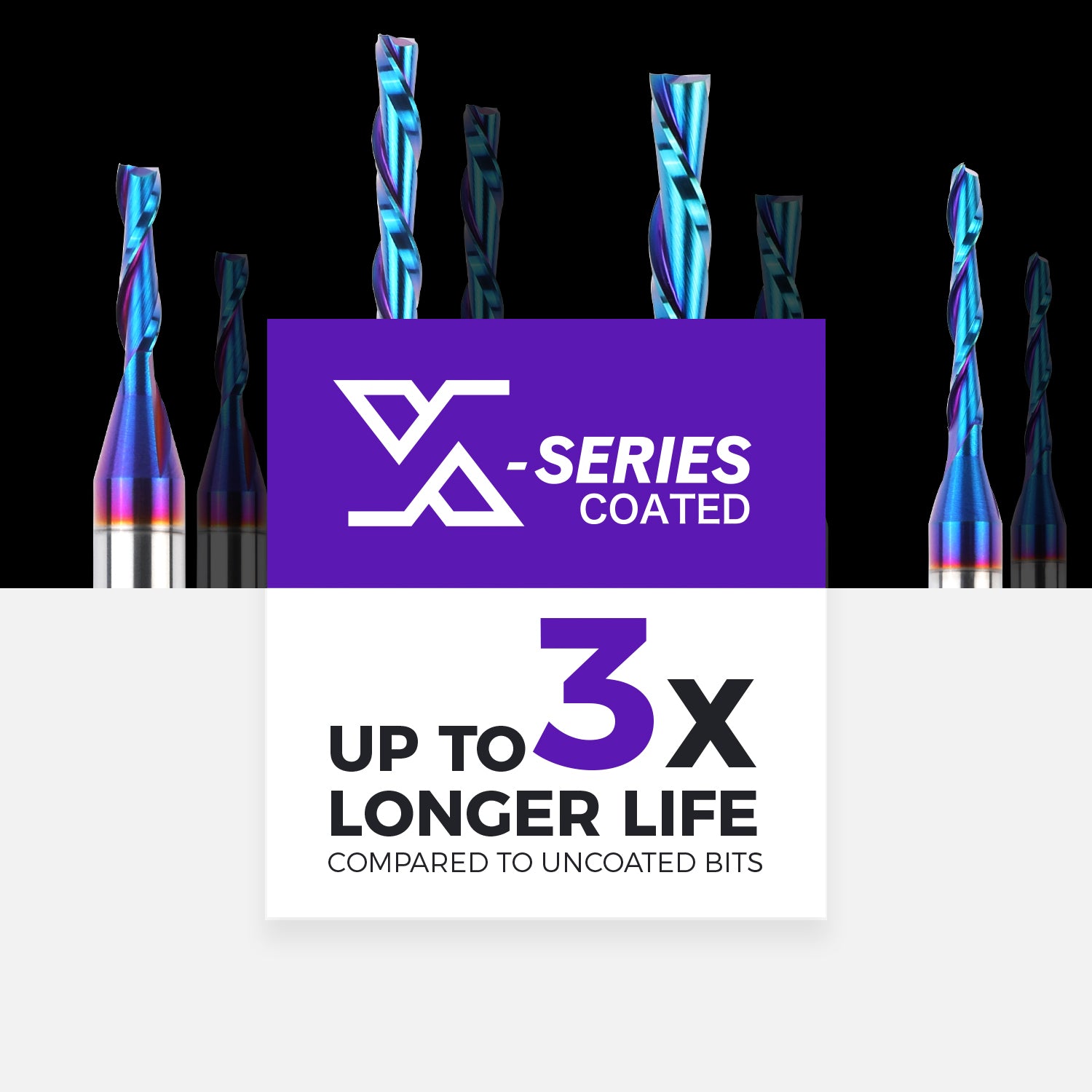

- nACo Blue Coating: X-Series is one of our signature product lineups and bestselling for wood cutting, it is made by our own PVD process of Nano Composite Titanium Aluminum Silicon Nitride which provides highest hardness of 3800 HV, extremely low friction of 0.25, at 900°F max working temperature. The coating provides 3 times longer tool life for wood cutting performance.
- Trusted Brand: ZahyoX provides industrial quality CNC & woodworking tools at an affordable price, by using superior materials, cutting-edge machinery and patented technology. Fully guaranteed with online customer support team.
