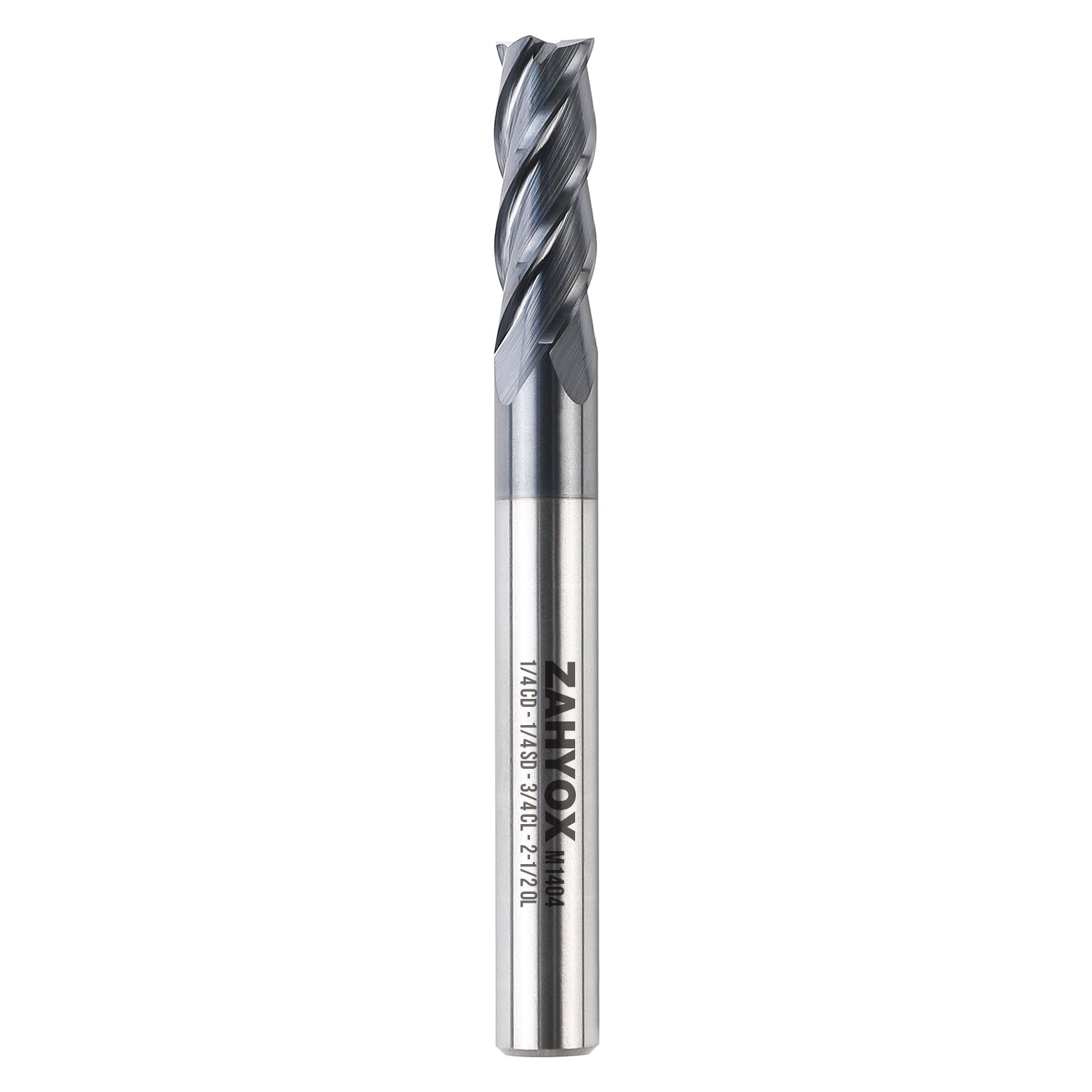

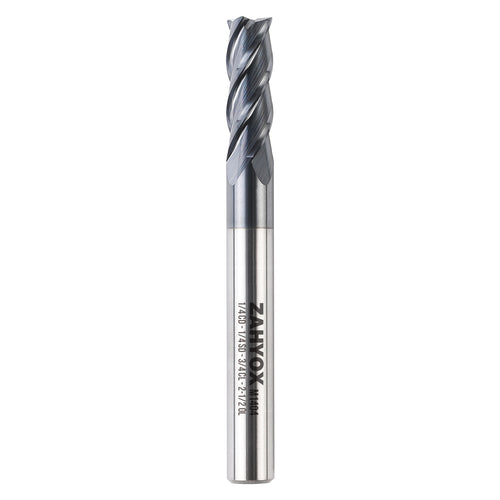

M1404 Solid Carbide Upcut End Mill - 4 Flutes - 1/4 Dia - 1/4 Shank - 3/4 LOC - 2-1/2 OAL
M1404 Solid Carbide Upcut End Mill - 4 Flutes - 1/4 Dia - 1/4 Shank - 3/4 LOC - 2-1/2 OAL
Regular price
$27.97
Regular price
Sale price
$27.97
Unit price
per
Tax included.
Shipping calculated at checkout.
| Rotation | Upcut | Coating | TiAlN |
|---|---|---|---|
| Shank Diameter | 1/4" | Router Bits Types | 1/4" Shank Flat End Mill |
| Cutting Diameter | 1/4" | Product Series | Y-Series |
| Cutting Length | 3/4" | Cutting Edge Type | Solid Carbide |
| Overall Length | 2-1/2" | Measurement | Imperial |
| Flutes | 4 | Machinery Type | Handheld Router, CNC Router, Router Table |
| Material | Cast Iron, Titanium, Carbon Steel, Chrome, Stainless Steel, Steel Weldments, Ferrous Metal | ||
| Rotation | Upcut |
|---|---|
| Shank Diameter | 1/4" |
| Cutting Diameter | 1/4" |
| Cutting Length | 3/4" |
| Overall Length | 2-1/2" |
| Flutes | 4 |
| Coating | TiAlN |
Order by 4:30 PM EST to Ship Today.
15% OFF
ALL
SPIRAL BITS!
USE CODE:
ZahyoX
Couldn't load pickup availability
CNC Software Tool File Database
| Image | SKU | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
M1404 | Upcut | 4 | 1/4" | 1/4" | 3/4" | 2-1/2" | ||||
|
M1402 | Upcut | 2 | 1/4" | 1/4" | 3/4" | 2-1/2" | ||||
|
M1403 | Upcut | 2 | 1/4" | 1/4" | 1-1/8" | 3" | ||||
|
M1405 | Upcut | 4 | 1/4" | 1/4" | 1-1/8" | 3" | ||||
|
M1201 | Upcut | 4 | 1/2" | 1/2" | 1-1/8" | 3" |

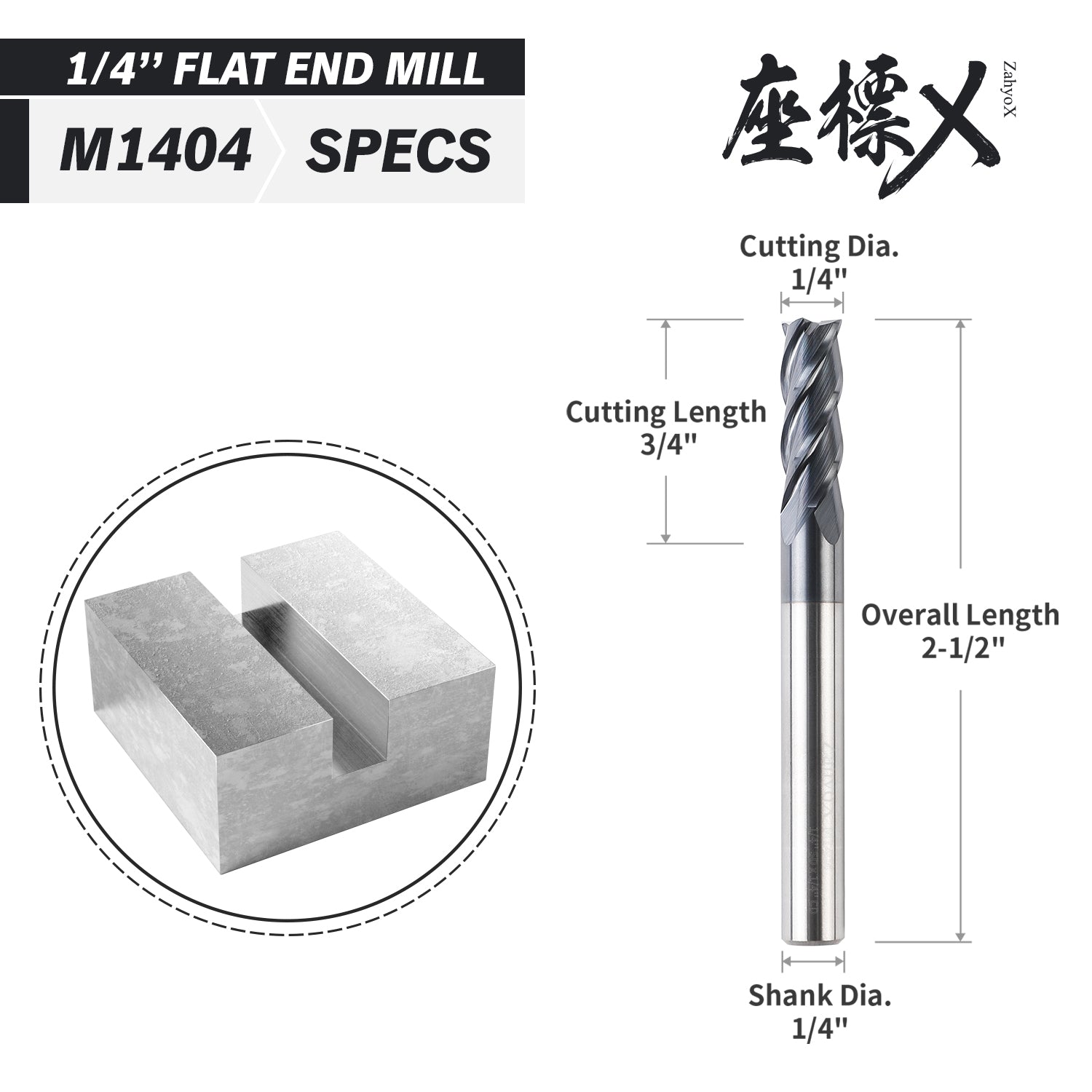

- Geometry Specs: Y-Series, 4 flutes, upcut bit for alloy steels/hardened steels, 1/4" cutting diameter, 1/4" shank diameter, 3/4" cutting length, 2-1/2" overall length, CNC Cutter Milling Tool
- Industrial-Grade Solid Carbide: ZahyoX is industrial leading manufacturer, making solid carbide material and solid carbide router bits is our sole business for over two decades, we make our products like treating art.
- Excellent for Cutting: Perfect for CNC sizing, cutting, copying and routing plywood, OAK, MDF, other hardwood materials, plastic, laminates and soft metals.
- Perfected Geometry Design: The geometry design has been iterated hundreds of times to ensure a perfect balance between tool life and cutting efficiency. We run our bits systematically on various machines and materials to test the performances of every iteration.
- TiAlN Coating: Y-Series is one of our signature product lineups for metal cutting, it is made by our own PVD process of Titanium Aluminum Nitride which provides extreme hardness at 3400 HV and endures a stunning 1300°F max working temperature. The coating provides 3 times longer tool life for metal cutting performance.
- Consistent High-Quality: The bit is made of WC-CO Alloy, and 100% made by our own factory to ensure consistency, you can expect that every bit we produce performs exactly the same.
- Trusted Brand: ZahyoX provides industrial quality CNC woodworking tools at an affordable price, by using superior materials, cutting-edge machinery and patented technology. Fully guaranteed with online customer support team.
