E1402 Solid Carbide 3D Carving nACo Coated Upcut Tapered Ball Nose Bit- 3.6°- 1/32 Radius - 1/4 SD - 1/4~1/16 CD - 3 OL
E1402 Solid Carbide 3D Carving nACo Coated Upcut Tapered Ball Nose Bit- 3.6°- 1/32 Radius - 1/4 SD - 1/4~1/16 CD - 3 OL
Regular price
$27.97
Regular price
Sale price
$27.97
Unit price
per
Tax included.
Shipping calculated at checkout.
| Rotation | Upcut | Coating | nACo |
|---|---|---|---|
| Shank Diameter | 1/4" | Router Bits Types | Tapered Ball Nose |
| Cutting Diameter | 1/4"~1/16" | Product Series | X-Series |
| Cutting Length | 1" | Cutting Edge Type | Solid Carbide |
| Overall Length | 3" | Measurement | Imperial |
| Flutes | 2 | Machinery Type | CNC Router |
| Material | Hardwoods, Softwoods, Laminate, Melamine, Plywood, MDF, Chipboard, Foamcore, Light Board, Aluminum Foamcore, Veneered Plywood, Particle, OSB, Solid Surface Material, Plastic, Acrylic | ||
| Rotation | Upcut |
|---|---|
| Shank Diameter | 1/4" |
| Cutting Diameter | 1/4"~1/16" |
| Cutting Length | 1" |
| Overall Length | 3" |
| Flutes | 2 |
| Coating | nACo |
Order by 4:30 PM EST to Ship Today.
15% OFF
ALL
SPIRAL BITS!
USE CODE:
ZahyoX
Couldn't load pickup availability
CNC Software Tool File Database
| Image | SKU | Rotation | Flutes | CD | SD | CL | OL | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
E1402 | Upcut | 2 | 1/4"~1/16" | 1/4" | 1" | 3" | ||||
|
E1401 | Upcut | 2 | 1/4“ - 1/16" | 1/4" | 1 | 3" | ||||
|
E1403 | Upcut | 2 | 1/4"~1/16" | 1/4" | 1" | 3" |
- Geometry Specs: 1/16" Cutting Diameter, 1/32" Radius, 3.6 Degree, 1/4" Shank, 1" Cutting Length, 3" Overall Length, nACo Coated.
- Specialized Design for CNC Machining: Designed for 2D and 3D CNC profiling and carving in plastic & wood with CNC machines. Particularly suitable for laminate, melamine, plywood, MDF, foamcore, light board, aluminum foamcore, carbon fiber, veneered plywood, and solid surface material.

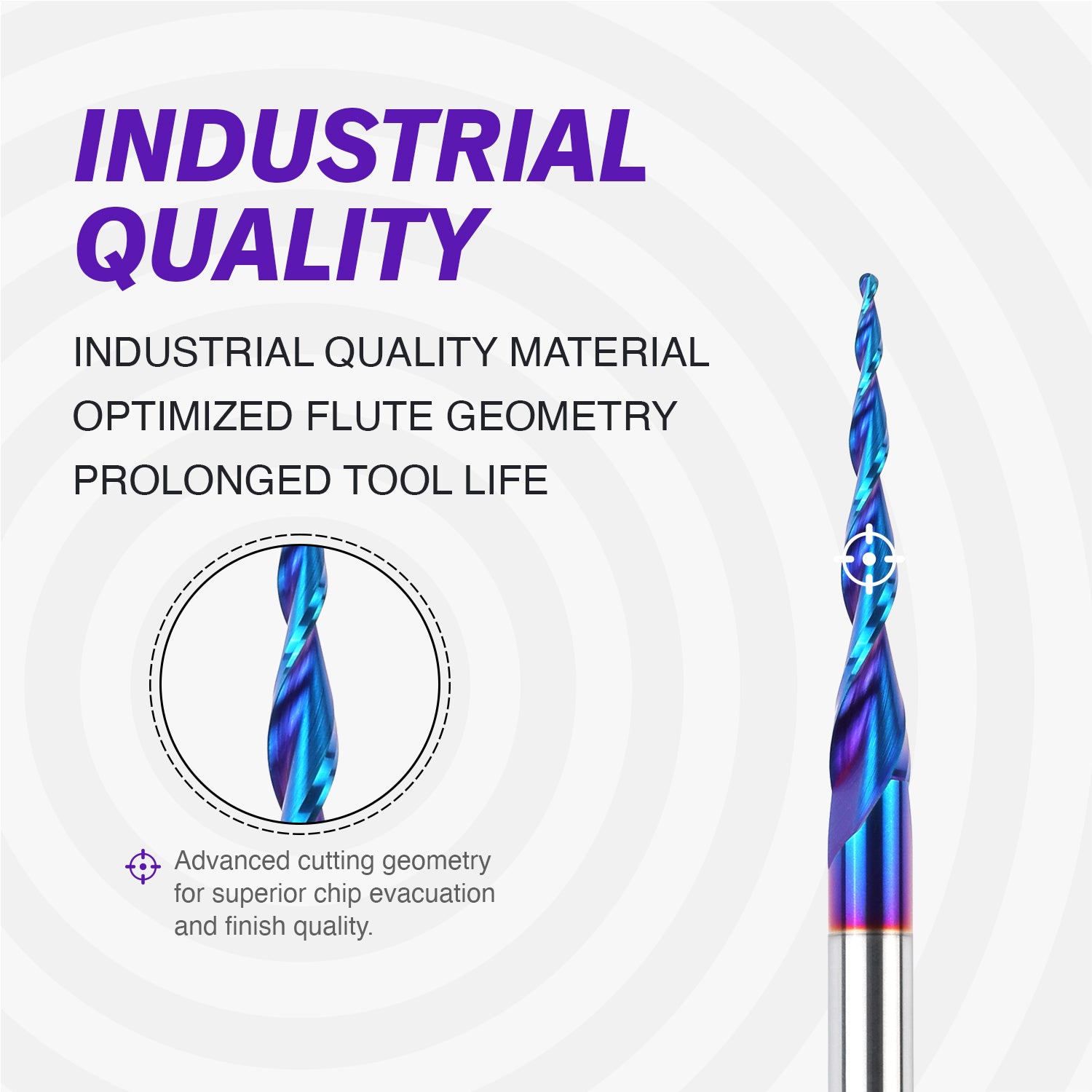

- Perfected Geometry Design: The geometry design has been iterated hundreds of times to ensure a perfect balance between tool life and cutting efficiency. We run our bits systematically on various machines and materials to test the performance of each iteration.

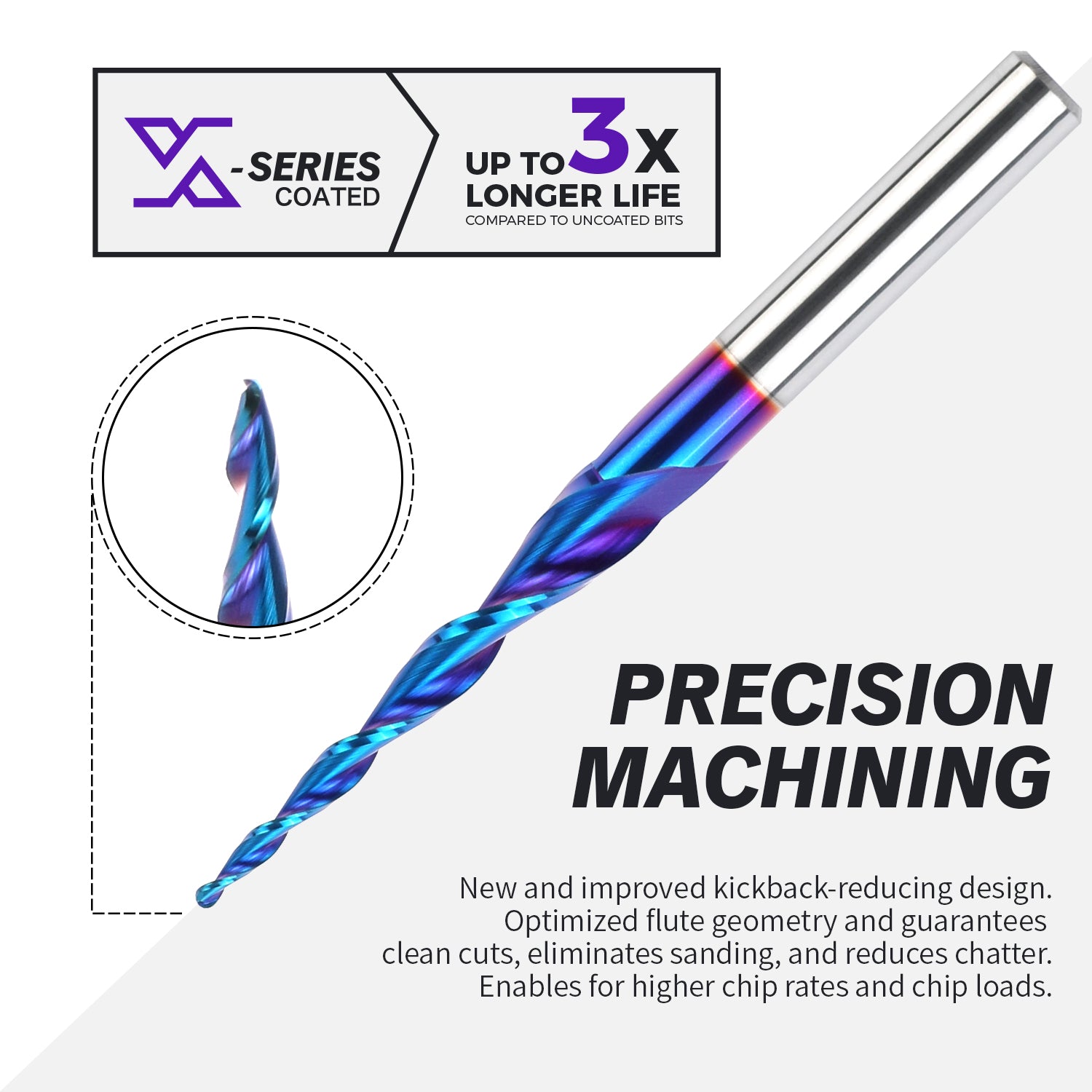

- Superior Cutting Quality: The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary PVD nACo coating provides high resistance to wear sharper cutting edges extended tool life and less friction & heat buildup.

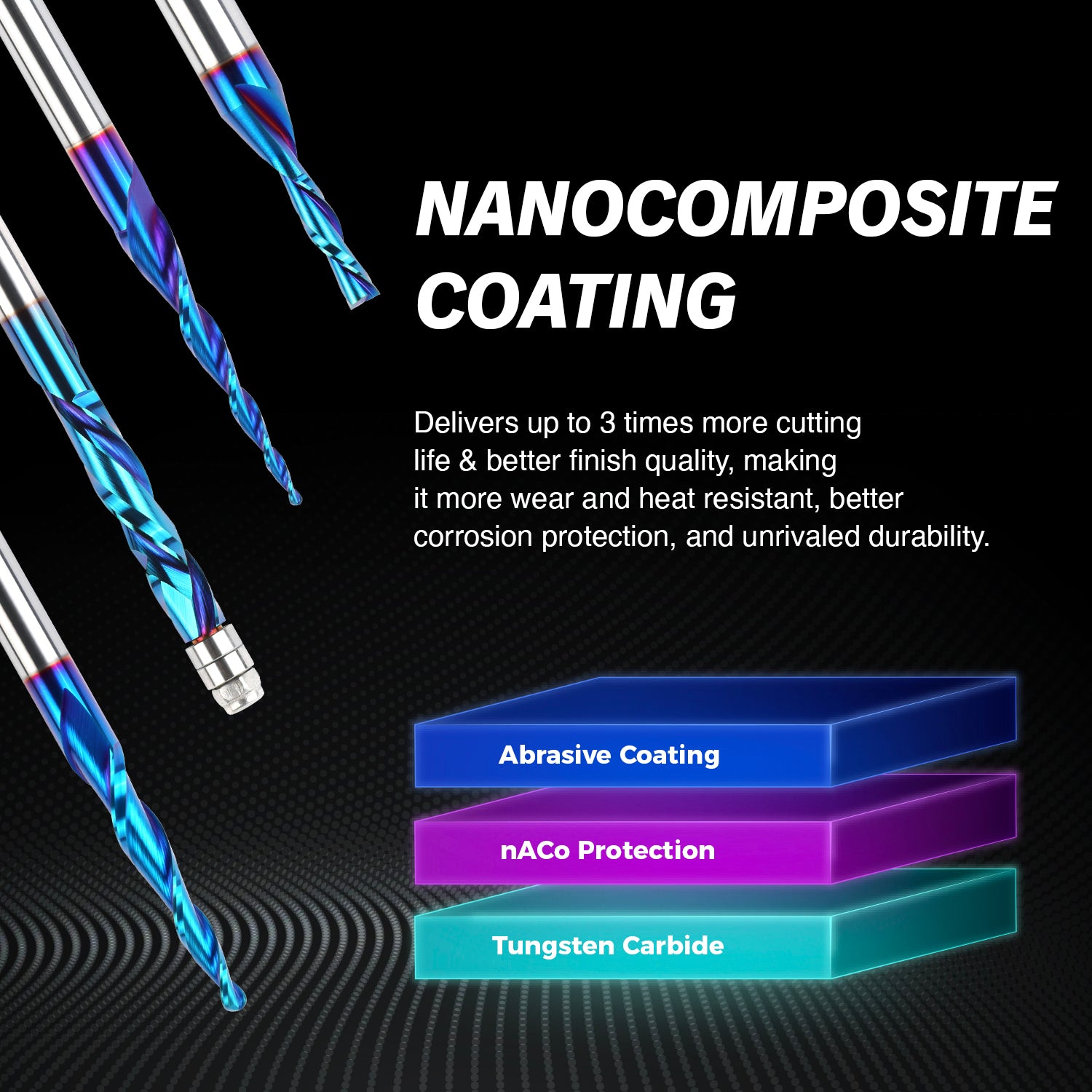

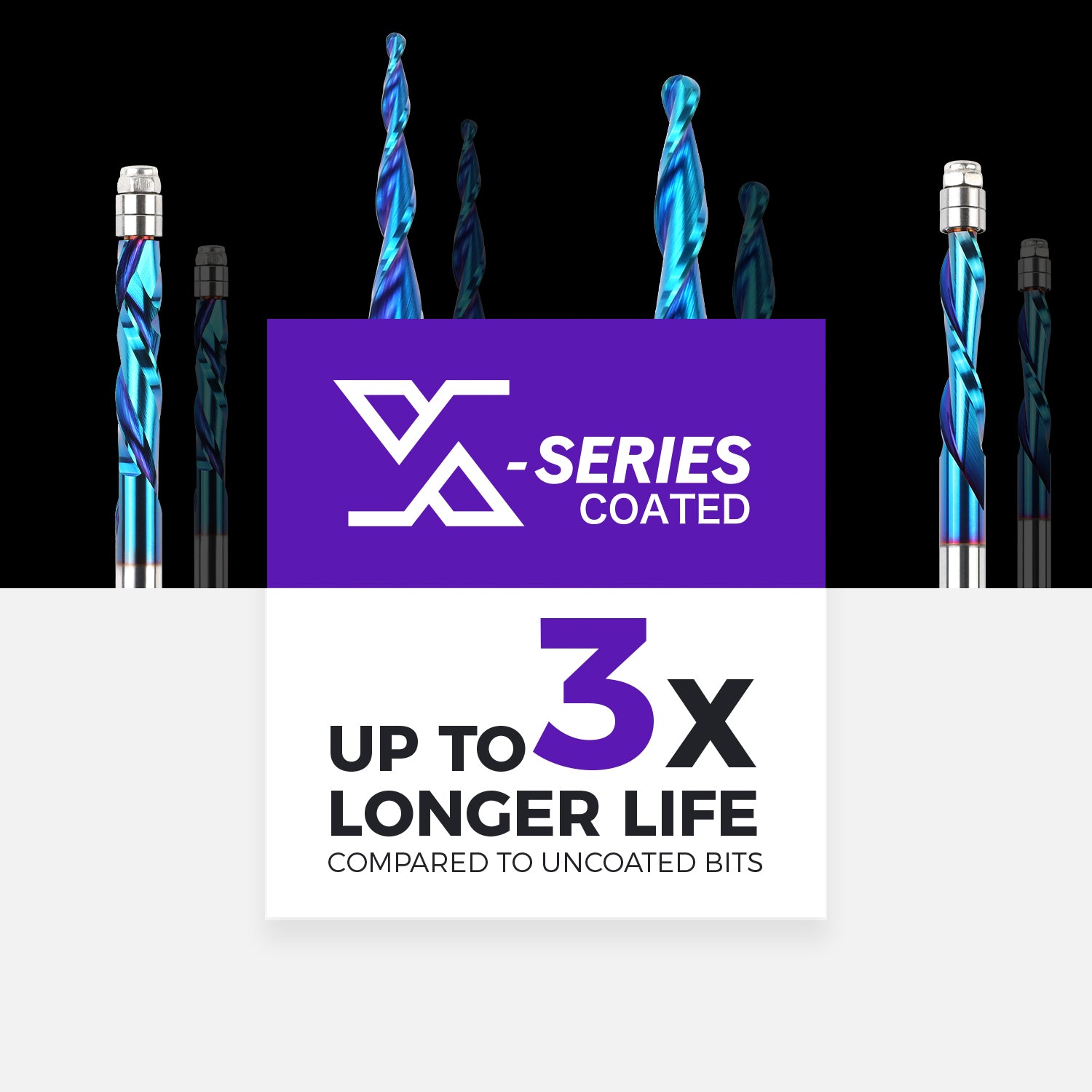

- X-Series: X-Series is one of our signature product lineups and bestselling for wood/aluminum/hard composites cutting, it is made by our own PVD process of Nano Composite Titanium Aluminum Silicon Nitride which provides highest hardness of 3800 HV, extremely low friction of 0.25, at 900°F max working temperature. The coating provides 3 times longer tool life for aluminum/wood cutting performance.
- Consistent High-Quality: The bit is made of WC-CO Alloy, and 100% made by our own factory to ensure consistency, you can expect that every bit we produce performs exactly the same.
- Trusted Brand: ZahyoX is industrial leading manufacturer, making solid carbide material and solid carbide router bits is our sole business for over two decades, we make our products like treating art.
