Quick, Accurate, and Consistently Repeatable Setups.
Pinpoint Precision
Make fast, precise height adjustments with crank handle. Dial in the height of the router bit to a resolution of 0.001" (0.025mm).
Smooth & Stable Movement
The lift carriage moves on two 55/64" (22 mm) steel guide posts with double-sealed linear bearings, resisting dust and ensuring smooth, stable movement without side play.
Reliable Cutting Height Stability
Once the router bit is set to the cutting height, a special spindle-locking mechanism prevents the height setting from changing due to vibration.
Built with Premium Material
Hard anodized aluminum wear-resistant material for long-term use.
Complete Mounting Hardware Included
Supplied with all the hardware and fittings to mount into a bespoke table.
Make fast, precise height adjustments with crank handle. Dial in the height of the router bit to a resolution of 0.001" (0.025mm)
Smooth & Stable Movement
The lift carriage moves on two 55/64" (22 mm) steel guide posts with double-sealed linear bearings, resisting dust and ensuring smooth, stable movement without side play.
Reliable Cutting Height Stability
Once the router bit is set to the cutting height, a special spindle-locking mechanism prevents the height setting from changing due to vibration.
Built with Premium Material
Hard anodized aluminum wear-resistant material for long-term use.
Complete Mounting Hardware Included
Supplied with all the hardware and fittings to mount into a bespoke table.
Please use the options below to select either your router motor's diameter or its model to find the right router lift set with the appropriate reduce collar.
Any router that has the power source on the housing similar to the Bosch MR23EVS, will not work in any of our lifts. The reason being is that once removed from the housing, the motor has no power source to be turned on.
With 89.5mm (3.5 inch) Reduce Collar
RL01+RC03 router lift set is perfect for Dewalt 610/616/618, BOSCH 1617, Porter-Cable 690 series, Porter-Cable 890 series, Porter-Cable 7518/7519, Devon 1316-1, and some other 3.5" Motor Diameter.
Dewalt 610/616/618
BOSCH 1617/1618
Porter-Cable 690
Porter-Cable 890
Porter-Cable 7518
Porter-Cable 7519
Devon 1316-1
If your router is any of the above, buy this RL01+RC03 router lift set!

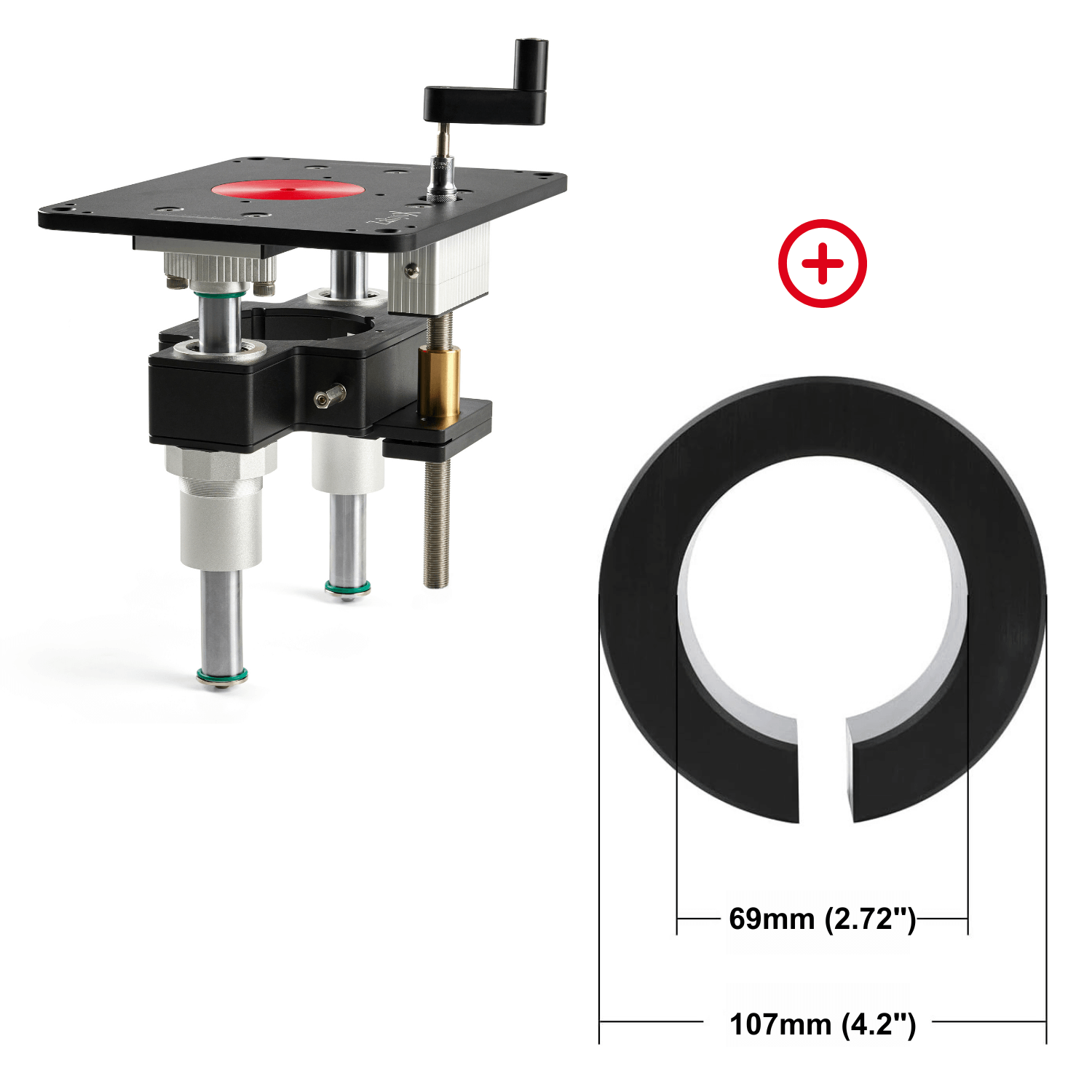

With 69mm (2.72 inch) Reduce Collar
RL01+RC02 router lift set is perfect for Dewalt DWP611, Dewalt DCW600, Porter-Cable 7518/7519 and some other 2.72" Motor Diameter.
Dewalt DWP611
Dewalt DCW600
Porter-Cable7518
Porter-Cable7519
If your router is any of the above, buy this RL01+RC02 router lift set!
With 65mm (2.56 inch) Reduce Collar
RL01+RC01 router lift set is perfect for Makita RT0700C, Porter-Cable 7518/7519 and some other 2.56" Motor Diameter.
Makita RT0700C
Porter-Cable7518
Porter-Cable7519
If your router is any of the above, buy this RL01+RC01 router lift set!
Buy Reducer Collars (Optional)
