S1201 - 1/2" Shank Compression nACo Coated CNC Spiral Router Bit - 2 Flutes - 1/2" CD - 1-1/4" CL - 3" OL
S1201 - 1/2" Shank Compression nACo Coated CNC Spiral Router Bit - 2 Flutes - 1/2" CD - 1-1/4" CL - 3" OL
Out of stock
| Rotation | Compression | Coating | nACo |
|---|---|---|---|
| Shank Diameter | 1/2" | Router Bits Types | 1/2 Shank Spiral Bit |
| Cutting Diameter | 1/2" | Product Series | X-Series |
| Cutting Length | 1-1/4" | Cutting Edge Type | Solid Carbide |
| Overall Length | 3" | Measurement | Imperial |
| Flutes | 2 | Machinery Type | CNC Router |
| Material | Hardwoods, Softwoods, Laminate, Melamine, Plywood, MDF, Chipboard, Foamcore, Light Board, Aluminum Foamcore, Veneered Plywood, Particle, OSB, Solid Surface Material, Plastic, Acrylic | ||
| Rotation | Compression |
|---|---|
| Shank Diameter | 1/2" |
| Cutting Diameter | 1/2" |
| Cutting Length | 1-1/4" |
| Overall Length | 3" |
| Flutes | 2 |
| Coating | nACo |
Why Choose Spiral Router Bits Instead of Straight Bits?
- Spiral router bits combine a shearing action with an augering action for chip clearance. This dual action not only produces a clean and accurate cut but also efficiently clears chips from the cut area, enhancing the overall cutting experience.
What is Compression (Up-Cut & Down-Cut) Bits?
ZahyoX Compression Spiral Bit is the ultimate high-performance straight bit, specially designed to eliminate chipping on both sides of the workpiece. This makes it ideal for pattern routing on double-sided panels, edgework, mortises, and more.

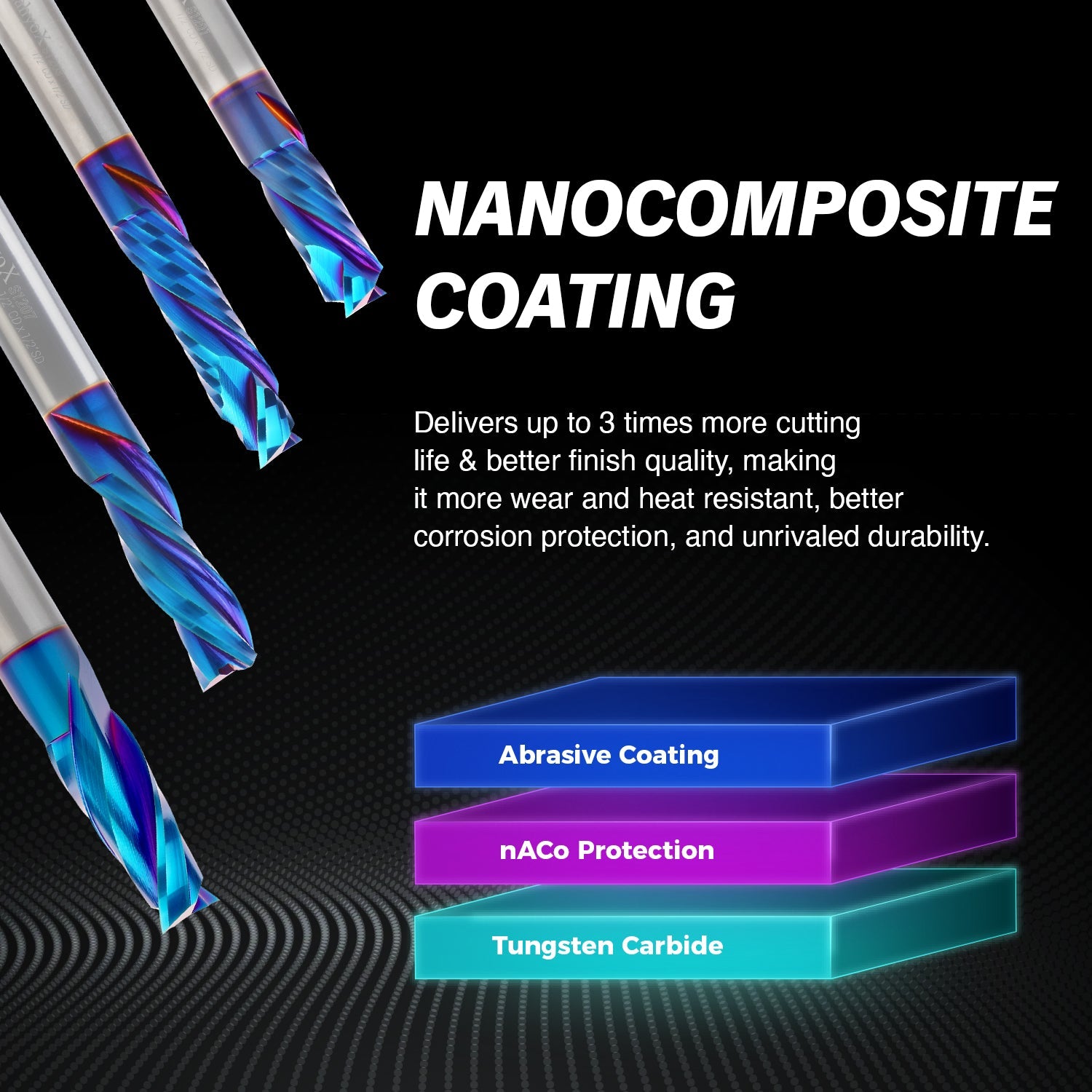

What is nACo Coating?

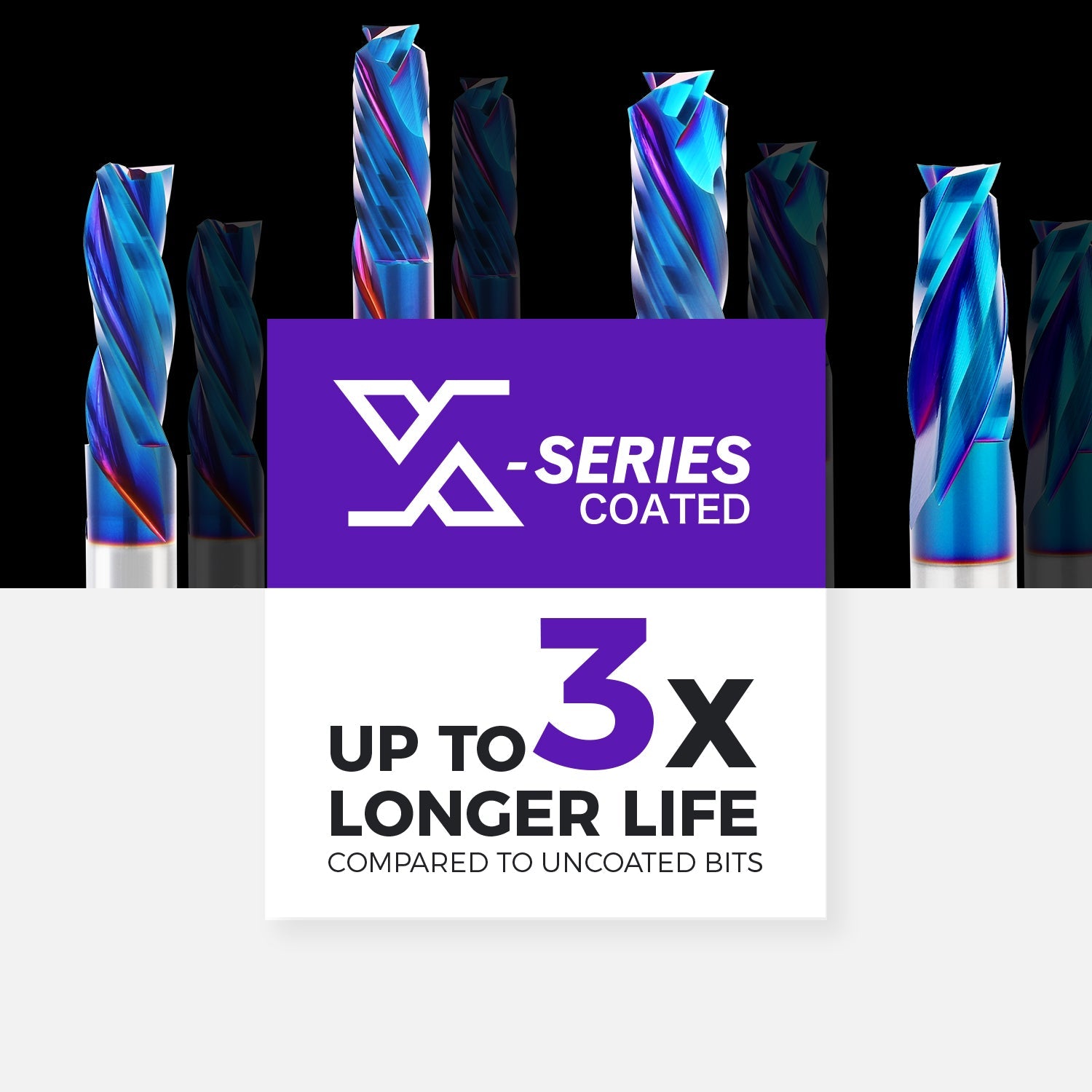

nACo, or nano-composite coating, is a micro-thin ceramic coating applied to cutting tools. Zahyox X-Series bits feature a nACo coating with extreme hardness and heat resistance. With a blue-tinted coloring, nACo enhances their performance and durability in router tooling.
- Sharpness Retention: Maintains cutting edges razor-sharp for precise and clean cuts.
- Reduced Friction: Features an extremely low friction coefficient of 0.25, minimizing tool wear and facilitating smoother operations.
- Heat Resistance: Can withstand up to 900°F, protecting tools from heat damage during intense cutting tasks.
- Enhanced Durability: Delivers a hardness of 3800 HV, which increases resistance to wear and extends 3 times longer tool life.
Why Choose ZahyoX 1/2 inch Shank Spiral Router Bits?

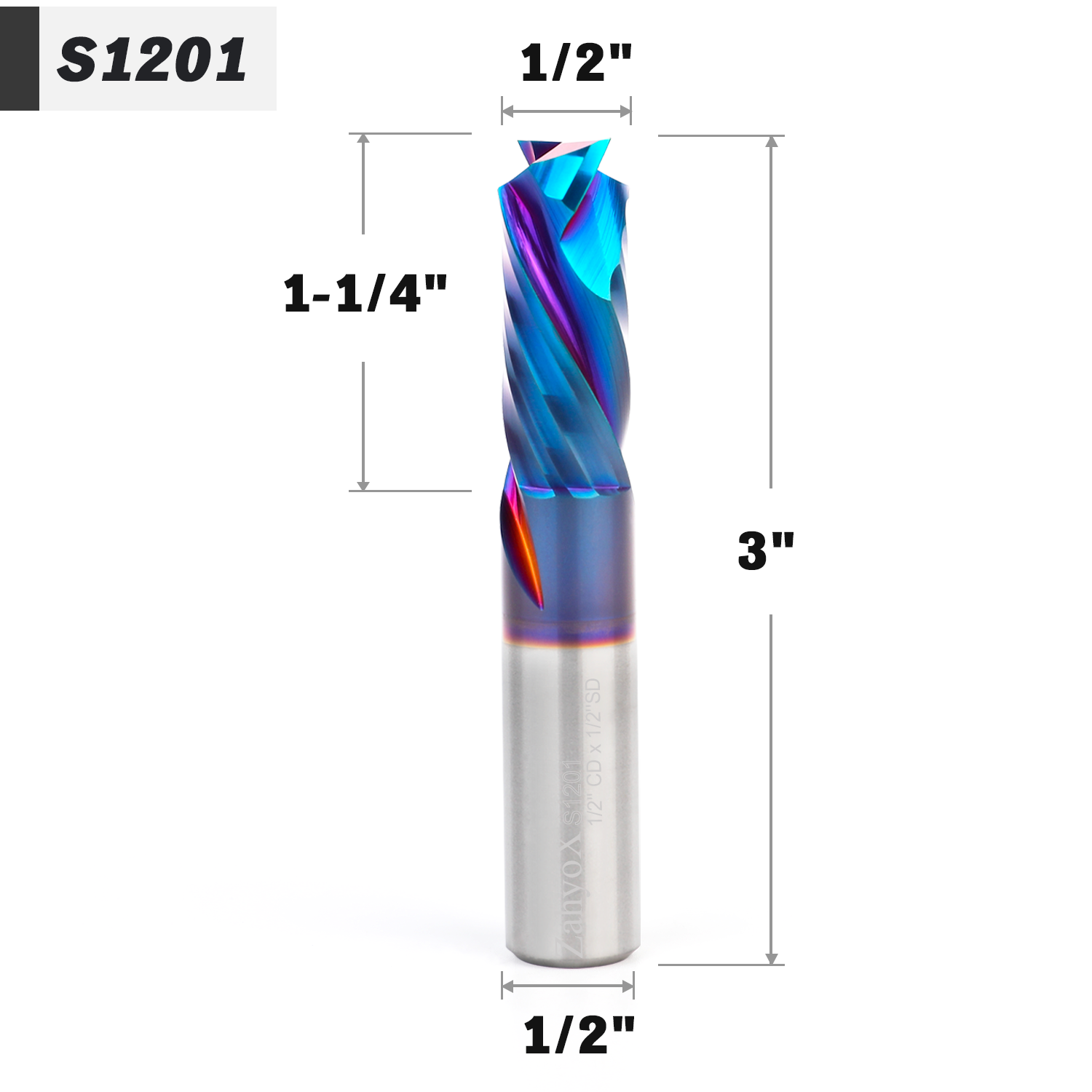

- Geometry Specs: 1/2" Cutting Diameter, 1/2" Shank, 1-1/4" Cutting Length, 3" Overall Length, 2 Flutes, Compression Rotation, Nano Coated.
- Application: Fine finish, chip-free routing in double-sided veneers and laminates.
- The combination of up and down shear flutes eliminates chipping on both sides of double-sided veneers or laminated materials for a fine finish.
- Cuts all composition materials, plywoods, hardwoods, and softwoods.
- Use on CNC and other automatic routers as well as table-mounted portable routers.
| Image | SKU | Rotation | Flutes | Cutting Dia | Shank Dia | Cutting Length | Overall Length | Stock | Quantity | Price | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1201 | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" |
|
$49.97 USD | ||
|
S1202 | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" |
|
$44.97 USD | ||
|
S1211 | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" |
|
$58.97 USD | ||
|
S1212 | Compression | 2 | 1/2" | 1/2" | 1-1/4" | 3" |
|
$61.97 USD | ||
|
S1203 | Compression | 2 | 1/2" | 1/2" | 2" | 4" |
|
$49.97 USD | ||
|
S1204 | Compression | 2 | 1/2" | 1/2" | 2" | 4" |
|
$44.97 USD | ||
|
S1205 | Upcut | 2 | 1/2" | 1/2" | 1-1/4" | 3" |
|
$49.97 USD | ||
|
S1206 | Upcut | 2 | 1/2" | 1/2" | 1-1/4" | 3" |
|
$44.97 USD | ||
|
S1207 | Downcut | 3 | 1/2" | 1/2" | 1-1/2" | 3-1/2" |
|
$49.97 USD | ||
|
S1208 | Downcut | 3 | 1/2" | 1/2" | 1-1/2" | 3-1/2" |
|
$44.97 USD | ||
|
S1209 | Compression | 2 | 1/2" | 1/2" | 1" | 3" |
|
$44.97 USD |
